High-Performance Silent Drag Chains for Precision Motion Control
In modern high-speed and cleanroom automation, controlling noise, vibration, and dust is critical for machine longevity and operational efficiency. Premium silent drag chains (also known as low-noise cable carriers) are specifically engineered to provide smooth, ultra-quiet, and reliable cable protection for dynamic moving applications.
Structural Features & Design Engineering
Our silent drag chain series features an advanced bridge-type structure (open frame design), allowing for maximum airflow, quick heat dissipation, and easy visual inspection of internal cables and hoses. Key architectural highlights include:
- Optimized Small Pitch Design: Significantly reduces the "polygonal effect" during articulation, ensuring ultra-smooth polygonal transitions and minimal impact force.
- Integrated Buffering & Silent Stops: Specially designed multi-point limiters and dampening pin structures absorb kinetic energy, preventing metal-on-plastic or link-to-link impact noise.
- Modular Internal Separators: The interior can be fitted with vertical and horizontal dividers (separators) to systematically isolate power cables, signal lines, and pneumatic tubes, preventing twisting and friction wear.
- Lightweight & Durable Engineering Plastics: Molded from high-grade modified polyamide (PA66 reinforced with glass fiber) for superior tensile strength and reduced rotational inertia.
Key Performance Specifications
The silent drag chain series is designed for rigorous industrial metrics:
- Low Noise Levels: Maintains running noise under 30–40 dB(A) even at maximum acceleration.
- High Speed & Acceleration: Supports travel speeds up to 10 m/s and accelerations up to 100 m/s².
- Cleanroom Compatibility: Extremely low particle abrasion makes these carriers ideal for Class 1 / ISO Class 1 cleanroom standards.
Technical Specifications Matrix
|
Model |
Inner Height (mm) |
Outer Height (mm) |
Pitch (mm) |
Bending Radii (mm) |
|

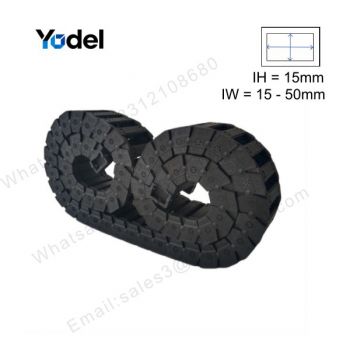

YDLHS15 |
15 |
22 |
17 |
R28 R38 R48 |
|
YDLHS18 |
18 |
25 |
17 |
R28 R38 R48 |
|
YDLHS25 |
25 |
35 |
24 |
R75 R100 R125 R150 R175 R200 R250 |
|
YDLHS35 |
35 |
46 |
30 |
R75 R100 R125 R150 R175 R200 R250 |
|
YDLHS45 |
45 |
56 |
30 |
R80 R100 R125 R150 R200 R250 |
|
YDLHS55 |
55 |
66 |
30 |
R100 R125 R150 R200 R250 |
|
Features |
1.smaller pitch and outer height 2.low noise and high speed 3.light weights 4.multi-point limiters & silent stops |
|||
Target Applications & Key Industries
Due to their exceptional stability, clean operation, and low acoustic impact, silent cable chains are widely utilized in high-end automated machinery, including:
- Semiconductor & SMT Assembly: Chip mounters, wafer handling systems, and automated optical inspection (AOI) machines.
- Medical & Laboratory Automation: CT/MRI imaging equipment, automated analyzers, and pharmaceutical robotic arms.
- Precision CNC & Laser Cutting: High-speed engraving machinery, linear motor drives, and coordinate measuring machines (CMM).
- Display & Electronics Manufacturing: LCD panel handlers and cleanroom conveyor units.
Customization Services & Product Solutions
As a leading cable track manufacturer, we offer complete OEM and ODM customization options to meet specific project demands. You can customize outer/inner dimensions, custom color matching (such as yellow, blue, or ESD black), custom brand logo engraving, and specialized separator layouts. For heavier load capacities or enclosed cable protection, explore our broader range of industrial nylon drag chains to find the ideal match for your automation equipment.
