China Drag Chain Manufacturer: 18x25 Open-Type Silent Nylon Cable Carrier

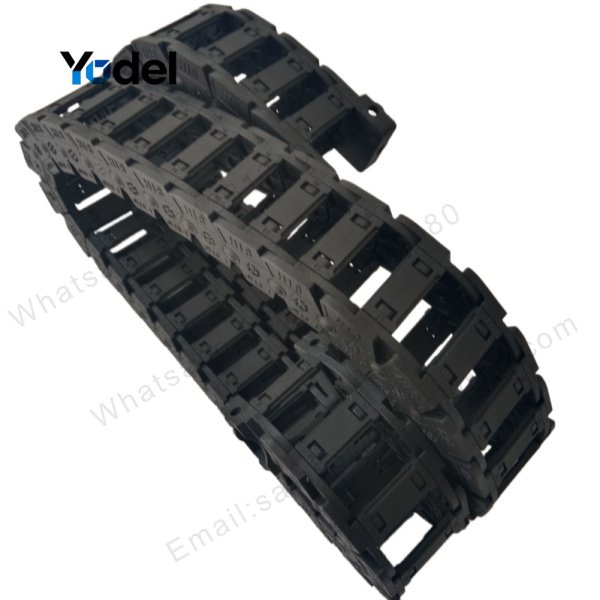

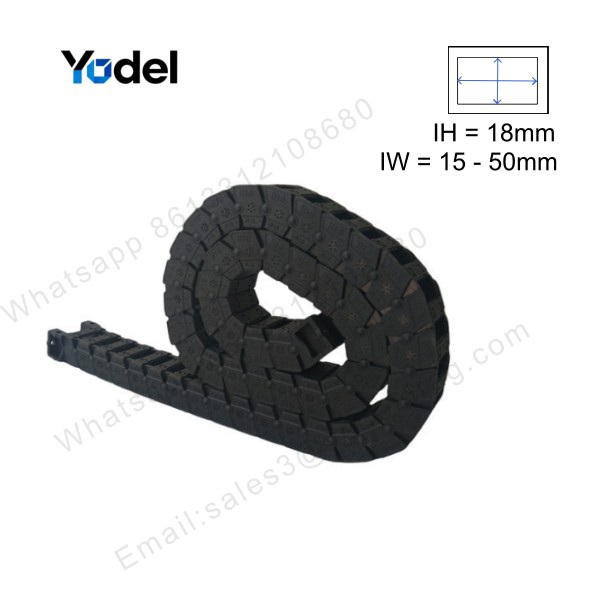

The H18 series open-type silent nylon cable drag chain is an ultra-flexible, high-speed, and low-noise cable carrier designed to protect delicate electrical cables, pneumatic hoses, and fluid tubes from mechanical wear, abrasion, and strain fatigue. As a premier dynamic routing solution engineered by a leading China drag chain manufacturer, this series optimizes moving power supply paths across high-precision equipment including CNC engraving machinery, industrial 3D printers, multi-axis robotic arms, automated packaging systems, and semiconductor handling equipment. Featuring a compact 18mm inner height and specified 18x25mm sizing, this miniature drag chain is specifically engineered for tight structural footprints, continuous reciprocating movement, and high-frequency dynamic motion. For larger cable bundles, heavy hydraulic lines, or unique lateral routing requirements, check our 18x37 Side-Openable Nylon Drag Chain Cable Carrier for CNC Routers.

Key Features & Technical Specifications

Manufactured from high-grade reinforced PA66 nylon blended with 30% glass fiber, this bridge-type silent energy chain delivers superior tensile strength, excellent flame retardancy, low thermal expansion, and exceptional wear resistance under continuous friction. The openable cross-bar structure allows rapid cable laying, fast retrofitting, and effortless maintenance, making it an indispensable asset for demanding industrial automation setups and precision engineering projects.

Key Performance Features & Engineering Design

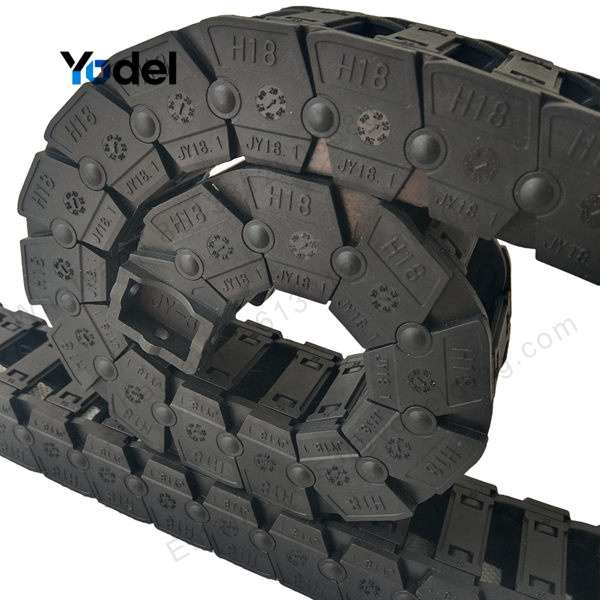

• Silent Running Mechanism: Designed with special multi-point limiting and noise-reduction stroke stops at the chain joints to minimize impact noise and vibration during high-speed movement.
• Durable Material Composition: Formulated with 30% glass fiber reinforced PA66 nylon for high load capacity, long service life, superior tensile strength, and strong resistance against industrial oils, lubricants, salts, and light acids.

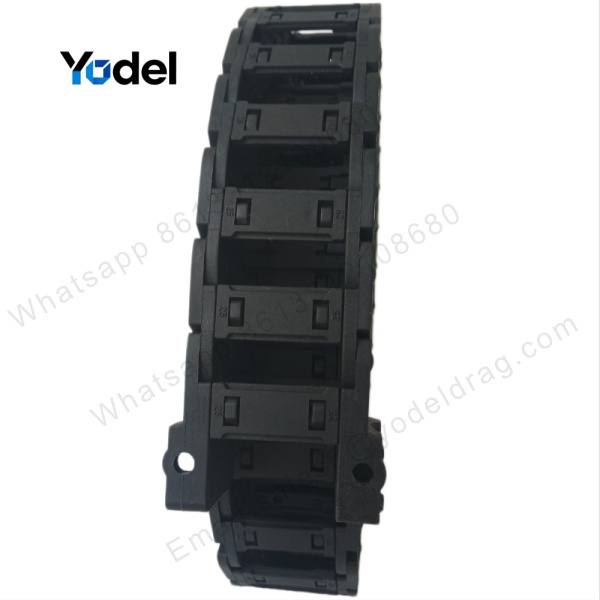

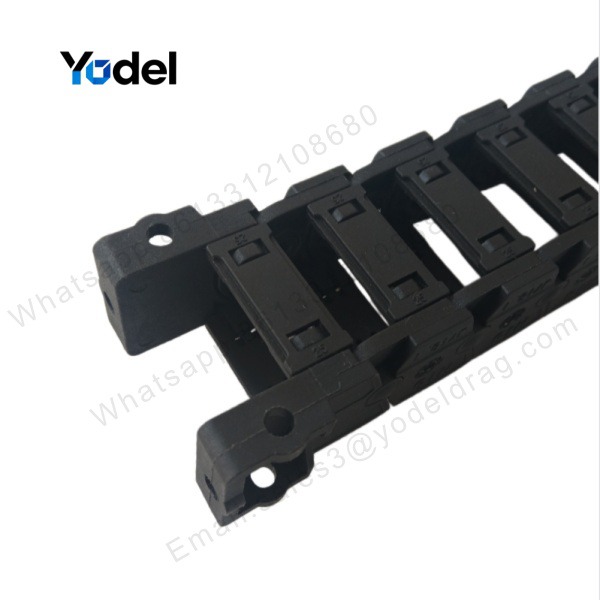

• Easy Installation & Maintenance: Both sides of the cross-bars can be opened quickly using a standard flathead screwdriver, significantly reducing machine downtime during cable replacements or system upgrades.
• High-Speed Adaptability: Engineered with a compact 17mm pitch to minimize polygon effect, ensuring smooth, vibration-free travel at high accelerations up to 50 m/s².

Product Specifications Parameter Table

Industrial Applications & Manufacturing Standards

Popular Sizes and Industrial Applications

• 18x20mm (R38mm): Desktop FDM/SLA 3D printers, mini PCB CNC engravers, desktop pick-and-place automated robots, diode/CO₂ precision laser cutters.
• 18x25mm (R38mm): Small industrial CNC routers, automated optical vision testing stations, desktop SCARA robotic arms, lab automation systems.
• 18x30mm (R48mm): Medium laser cutting systems, industrial gantry automation, compact pick-and-place machinery, automated textile cutting equipment.

Factory Production & Quality Control Assurance

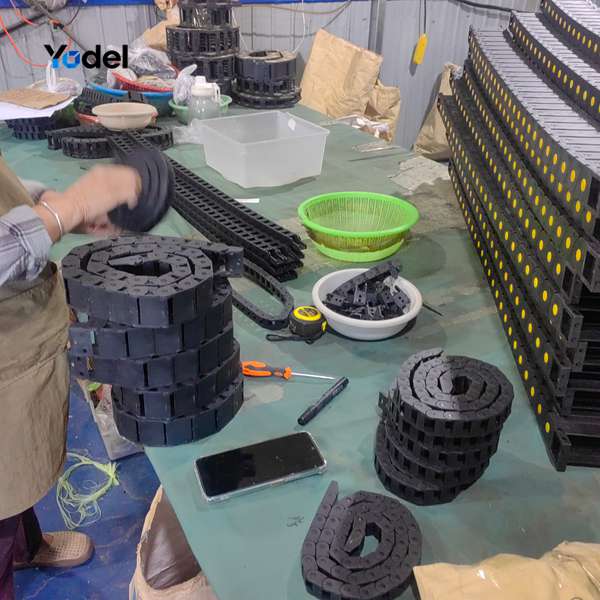

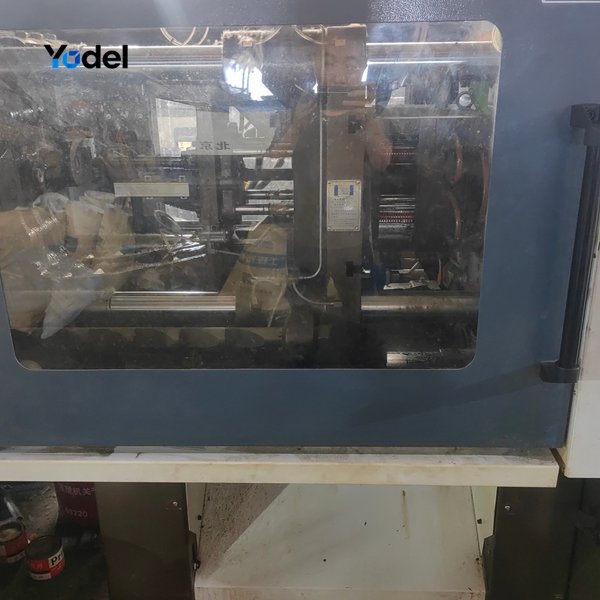

As an experienced China drag chain supplier, our manufacturing facility enforces rigorous quality management standards at every production stage. Raw PA66 nylon compound is injected via high-precision multi-cavity molds under strict thermal regulation to guarantee exact dimensional tolerances, consistent wall thickness, and zero internal stress concentration. Each chain segment is meticulously hand-assembled, articulated, and dynamically load-tested for smooth operation, ensuring optimal noise-damping performance during high-speed reciprocating travel. Prior to international export shipment, products undergo detailed batch counting, length verification, and heavy-duty reinforced carton packing to guarantee safe delivery worldwide.

Selection Guide

How to Select the Right Drag Chain Size

1. Select Inner Height: Ensure the internal height exceeds the maximum cable/hose outer diameter by at least 10%–15% to prevent friction wear (Inner Height > 1.2–1.5 × Cable Diameter).
2. Select Inner Width: Sum the outer diameters of all installed cables/hoses and add a minimum 20% clearance margin for unrestricted movement and heat dissipation.
3. Determine Bending Radius (R): Measure the allowable clearance height on your equipment. Selecting a larger bending radius minimizes mechanical strain and significantly prolongs cable flex life.
4. Calculate Required Chain Length: Use the standard formula L = S/2 + K (where S represents total travel stroke length and K accounts for the bend radius arc margin).
