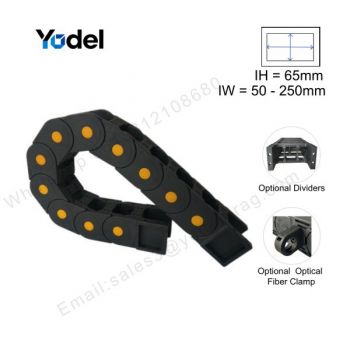

65 Series Bridge Nylon Cable Hose Carrier - Heavy-Duty Open Carrier

The 65 series bridge cable hose carrier is an open-style dynamic protection track engineered with a 65mm internal height to house heavy electrical power cables, feedback wiring, and high-pressure hydraulic or pneumatic hoses. Molded exclusively from pure virgin PA66 engineering nylon—without low-grade recycled plastic fillers—this durable cable hose carrier series delivers outstanding tensile strength, exceptional friction wear resistance, and long-term oil endurance under demanding operational conditions. Engineered as a lightweight, non-corrosive alternative to heavy steel carriers, it handles heavy payloads at a competitive factory-direct price point.

Featuring a snap-open bridge architecture, this cable hose carrier reduces total moving mass across machine gantries while allowing rapid hose installation, visual inspection, and straightforward routine maintenance without needing to disassemble the entire chain track. The open crossbar design facilitates continuous ventilation around dynamic conductors and hoses, dissipating friction heat efficiently during high-speed reciprocating travel cycles. For harsh machining environments where hot metal chips, coolants, or abrasive swarf pose a hazard, explore our fully sealed 65 series enclosed drag chain range.

65 Series Specifications & Dimension Matrix

Our 65 series bridge cable hose carrier accommodates maximum cable and hose outer diameters up to 58.5mm. Review the complete sizing options available across this series in the table below:

Item No	Internal Size (H x W) mm	External Size (H x W) mm	Bending Radius (R) mm	Pitch (mm)	Links per Meter	Opening Type	Max Cable OD (mm)
YDLB6550	65 x 50	85 x 82	R100 R125 R150 R200 R250 R300	80.5	13 pcs	Bridge Openable	58.5
YDLB6560	65 x 60	85 x 92
YDLB6575	65 x 75	85 x 107
YDLB6590	65 x 90	85 x 122
YDLB65100	65 x 100	85 x 132
YDLB65117	65 x 117	85 x 150
YDLB65125	65 x 125	85 x 157
YDLB65150	65 x 150	85 x 182
YDLB65175	65 x 175	85 x 207
YDLB65200	65 x 200	85 x 232
YDLB65250	65 x 250	85 x 282

Key Advantages & Custom Accessories

• Pure PA66 Nylon Material: Offers wide operating temperature endurance (-40°C to +130°C), superior fatigue resistance, and protection against industrial fluids.
• Versatile Internal Widths: Internal widths span from 50mm up to 250mm to organize single large hydraulic lines or multi-layer cable bundles effortlessly.
• Custom Modular Options: Supports vertical internal separators for cable isolation, side optical fiber clamps, steel end mounting brackets, and custom color formulations.

Heavy Industrial Applications

The 65 series bridge cable hose carrier is widely installed on heavy gantry machining centers, large-format laser/plasma cutters, stone processing machinery, gantry grinders, and 6-axis industrial robots. Contact our sales engineering team today for CAD drawings, custom lengths, and direct factory pricing.
