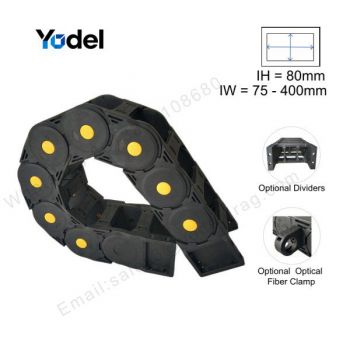

80 Series Drag Chain - Heavy-Duty Bridge Cable Track for Large CNC & Automation

The 80 series drag chain is a premium, open-style cable management solution engineered from high-strength reinforced PA66 nylon. Designed specifically for heavy-duty industrial machinery, this open-bridge energy chain delivers high mechanical tensile strength, outstanding wear resistance, and long service life during continuous high-speed movement. Featuring an 80mm inner height, it organizes and protects large electrical cable bundles, thick hydraulic lines, and pneumatic hoses from structural fatigue and premature friction on demanding CNC equipment.

Item No	Internal Dimensions      (H x W)    mm	External Dimensions       (H x W)           mm	Bending   Radius    (R)          mm	Pitch           mm	Chain Links per Meter     pcs	Opening Principle	Max Cable Diameter               mm
YDLB8075	80X75	106X115	R150     R200    R250   R300   R350   R400	100	10	bridge    type	72
YDLB80100	80X100	106X145
YDLB80125	80X125	106X170
YDLB80150	80X150	106X195
YDLB80175	80X175	106X220
YDLB80200	80X200	106X245
YDLB80225	80X225	106X265
YDLB80250	80X250	106X290
YDLB80300	80X300	106X345
YDLB80350	80X350	106X390
YDLB80400	80X400	106X440

Premium Raw Materials & High-Rigidity Molding

Our 80 series drag chain tracks are manufactured from 100% virgin PA66 raw polymer enriched with anti-wear, flame-retardant, and heat-stabilizing compounds. This high-density construction ensures exceptional torsional stability, preventing chain sagging or deformation across long unsupported travel distances. The material resists chemical degradation from cutting fluids, synthetic oils, and harsh industrial solvents.

Modular Design & Convenient Cable Installation

Featuring a open bridge design with snap-open crossbars on both sides, the 80 series drag chain significantly reduces maintenance downtime. Field technicians can rapidly lay in new wiring, adjust internal vertical separators, or perform routine inspections without disassembling the entire track or disconnecting machinery cables.

Heavy-Duty Application & Factory-Direct Delivery

With inner widths spanning from 75mm to 400mm and bending radii ranging from R150 to R400, this robust track handles long strokes and demanding load capacities seamlessly. Typical applications include heavy gantry machining centers, large-format fiber laser cutters, automated warehouse equipment, gantry robots, and stone carving machinery. For environments exposed to high flying chips, metal swarf, or sparks, consider our 80 series enclosed drag chain for complete internal protection.

As a factory-direct OEM supplier, we maintain extensive inventory for standard configurations to support fast global dispatch, competitive bulk pricing, and custom options like steel mounting brackets, fiber clips, and custom color branding.
