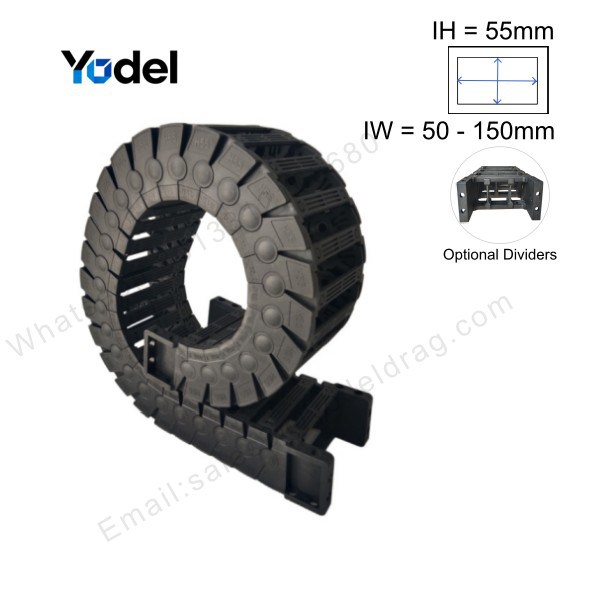

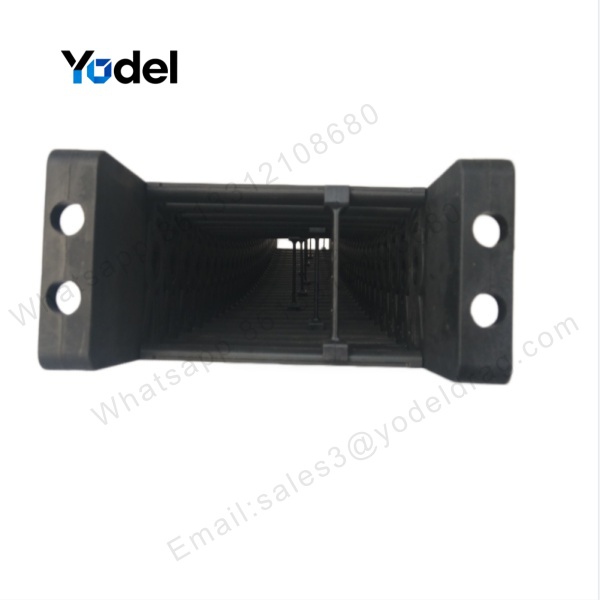

China Cable Drag Chain Factory: 55x100 High-Speed Silent Energy Chain

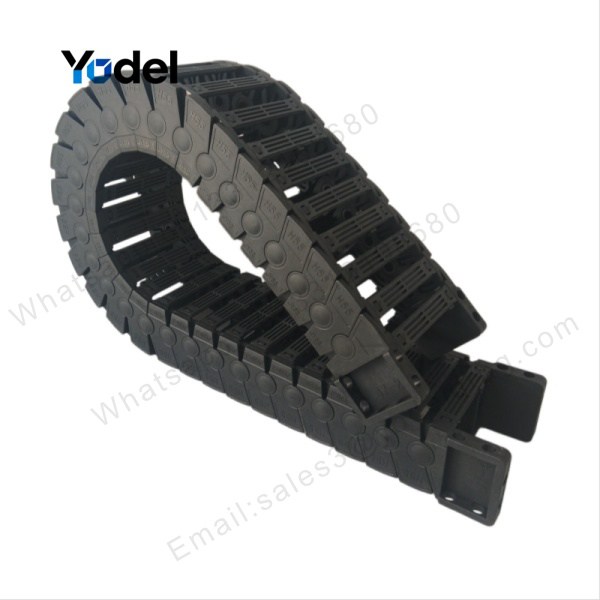

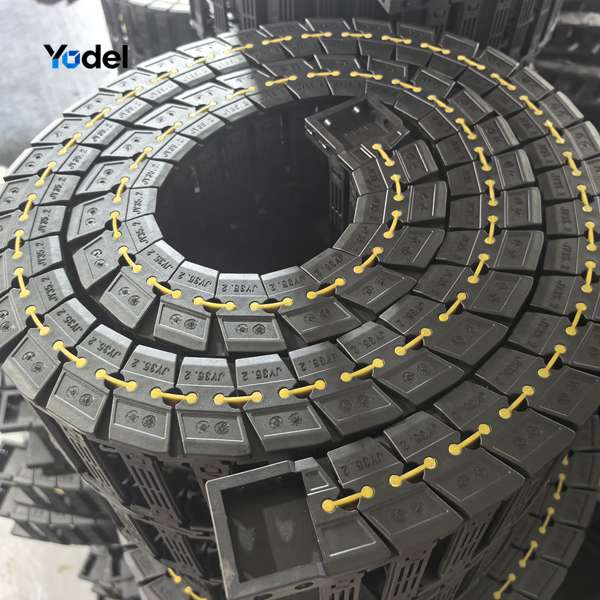

As a leading cable drag chain factory, we manufacture heavy-duty plastic cable track solutions tailored for modern industrial machinery. The 55x100 high-speed silent energy chain (YDLHS55100 model) belongs to our specialized H55 series, featuring an inner height of 55mm and an inner width of 100mm. Engineered with a partially open dual-bridge hinged structure, this mute cable carrier delivers ultra-quiet operation at noise levels as low as 40 dB while supporting high-speed reciprocal translation up to 10 m/s. It safeguards power cables, pneumatic hoses, and signal wiring against mechanical friction, twisting, and physical impact during repetitive long-stroke automation processes.

To explore more dimensional configurations within this bridge series, check out our 55x100 Bridge Type Plastic Cable Drag Chain Carrier for Industrial Equipment.

Advanced Engineering Features & Construction Highlights

Our direct-to-market cable drag chain factory guarantees strict quality control by using high-purity raw materials combined with optimized geometric link designs.

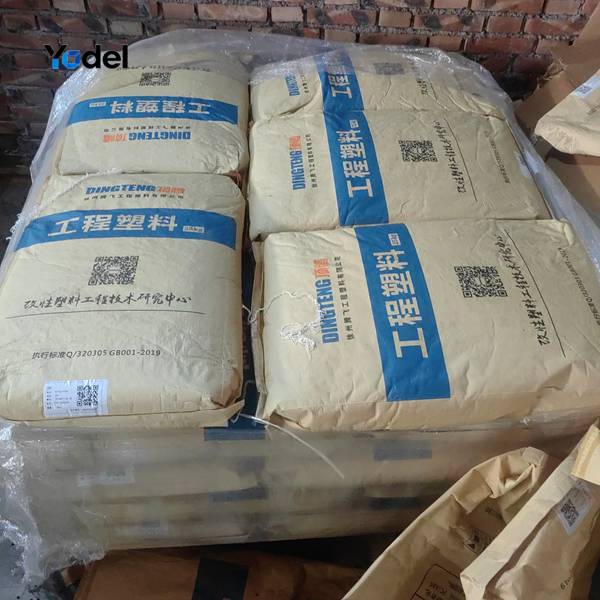

• Reinforced Material Formula: Formulated from 30% glass fiber reinforced PA66 nylon, providing outstanding tensile strength, impact resistance, and structural rigidity.
• Ultra-Low Noise Dampening: Integrated rubber cushioning joints suppress link-to-link impact noise, maintaining an whisper-quiet environment (≤40 dB).
• High-Speed Stability: Precision pitch geometry (30mm) allows continuous linear velocities up to 10 m/s with minimal vibration or mechanical wear.

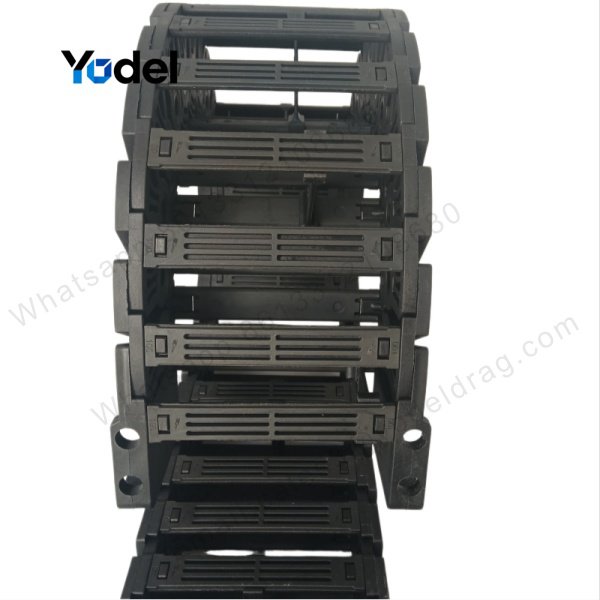

• Dual-Bridge Open Design: Crossbars can be unlatched from either side for effortless installation, maintenance, and wiring layout adjustment.
• Wide Thermal Resilience: Operates reliably under tough ambient conditions ranging from -40°C sub-zero freezing up to +130°C high temperatures.
• International Compliance: Certified CE & RoHS compliant to satisfy worldwide B2B quality and safety export criteria.

55x100 Energy Chain Technical Parameters

Popular Sizes and Application Fields

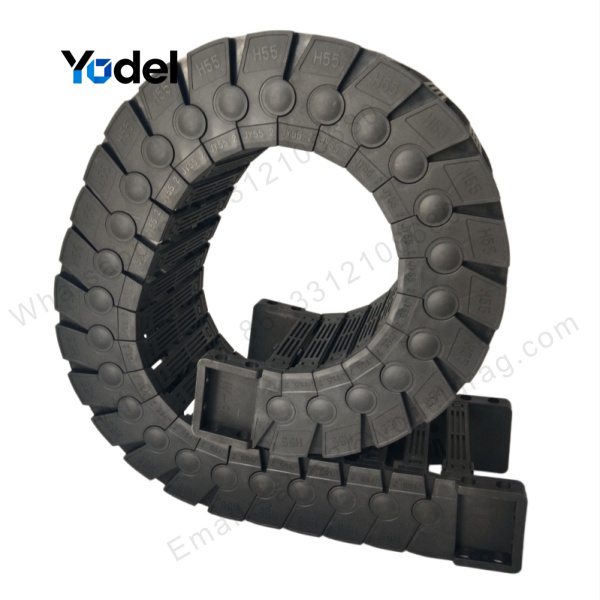

Our H55 series drag chains are widely specified across precision equipment sectors:

• 55x75mm (R100mm): CNC Vertical Machining Centers (VMC), 3-axis CNC turning lathes, and high-speed automated packaging lines.
• 55x100mm (R100/R125mm): Compact CNC routing tables, precision machining centers, single-axis gantry modules, and automated pick-and-place robots.
• 55x125mm (R125/R150mm): Standard 3–4 axis CNC milling machines, medium-duty industrial multi-axis robotic arms, and CNC waterjet cutters.

How to Choose the Right Drag Chain Size

Consulting our technical engineers at the cable drag chain factory ensures proper sizing for long-term uninterrupted operation. Follow these 4 standard engineering calculations:

1. Step 1: Determine Inner Height: Choose an inner chain height greater than 1.2 to 1.5 times the outer diameter of your largest cable or hose ($h \ge 1.2 \times D$).
2. Step 2: Calculate Inner Width: Sum the individual diameters of all internal cables and reserve at least 20% clearance space ($Bi \ge 1.2 \times \sum D$).
3. Step 3: Select Bending Radius: Verify the available mounting envelope radius on your equipment; choosing a larger radius extends cable flex life.
4. Step 4: Compute Chain Length: Calculate total active chain length using $L = \frac{S}{2} + K$, where $S$ is stroke distance and $K$ is the bend radius constant ($R\pi + 2P$).
