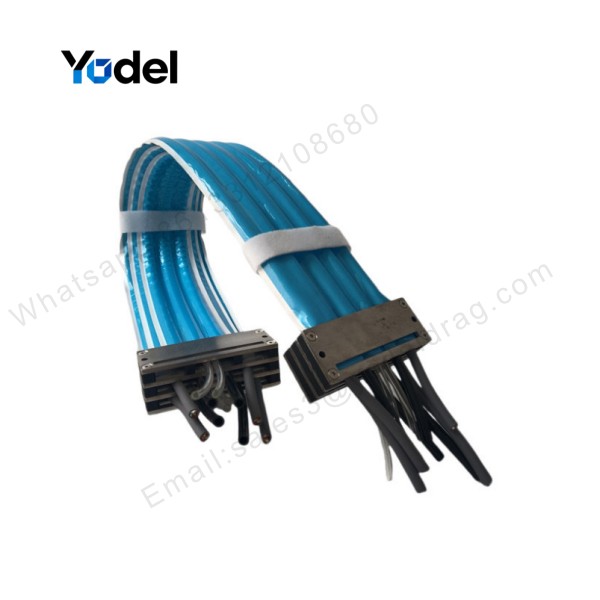

Name : dust free drag chain for cleanroom
Thickness of sheat: 1.3mm
Inner hole width: 20.5/28mm
Max Cable Diameter: φ12mm
Keel materials: nylon
Bending Radii: R40-R100
Service Life: ≥2000 （ten thousand ）
Max running speed: 2m/s
Temp range: -10~80℃
Surface resistance: ＜10Ω
Cleanroom clealiness: 100th level
Environment requirement: ROHS
Certified product: CE,IPA,SGS ,V0
OEM /ODM service: available

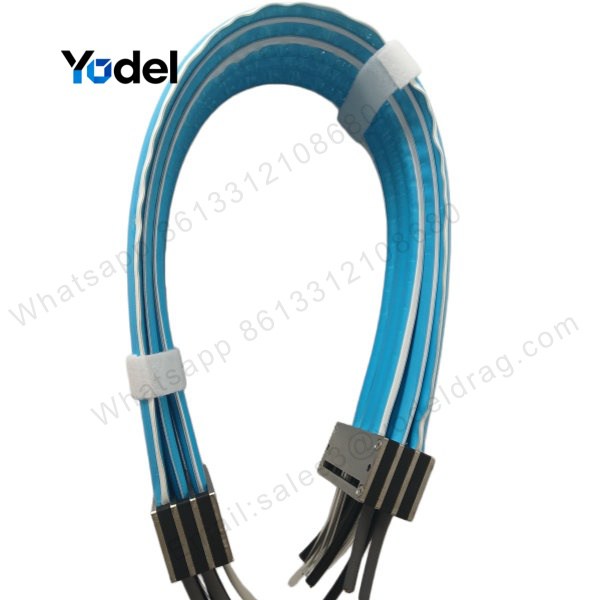

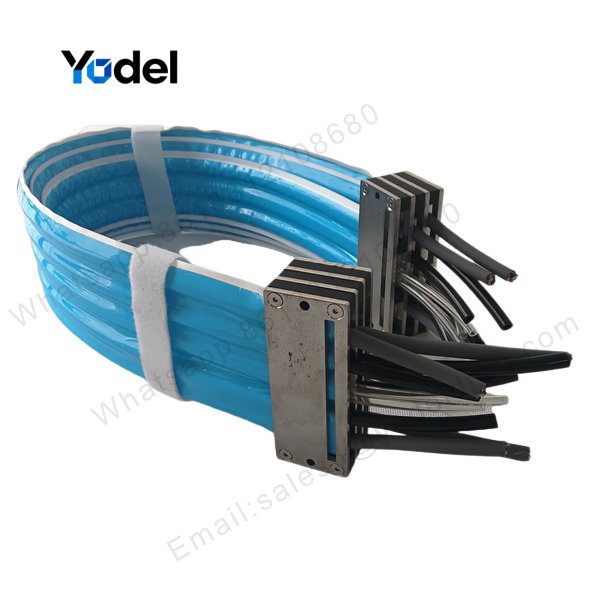

The High-Flexibility Flexible Flat Drag Chain system is engineered specifically for advanced automation equipment operating in strict cleanroom environments (ISO Class 1 to Class 100). Designed as a low-dust, ultra-quiet, and space-saving alternative to traditional plastic cable carriers, this flat cable track integrates high-flex power cables, signal wiring, and pneumatic tubing into a single streamlined sheath. It prevents particle generation caused by joint friction and guarantees smooth, long-life linear motion in semiconductor, display panel, and medical automation devices.

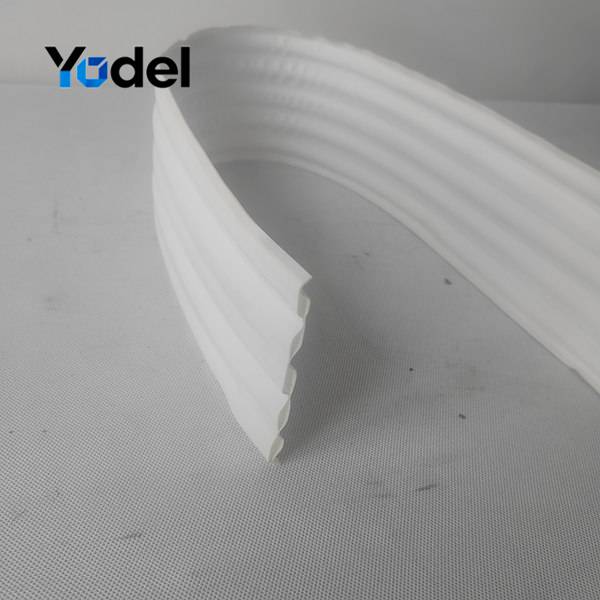

The outer body of the Flexible Flat Drag Chain is fabricated from premium ePTFE / high-purity silicone sleeve material, offering exceptional abrasion resistance, chemical inertness, and zero particle emission during continuous high-speed bending.
Main Body Specifications (Flexible Flat Drag Chain Body)|
Model No |
Number of Holes pcs |
Sheat Thickness mm |
Inner Hole Width
mm |
Overall Width mm |
Max Cable Diameter (single hole ) mm |
|
CL.P205-1 |
1 |
1.3 |
20.5 |
26 |
12 |
|
CL.P205-2 |
2 |
1.3 |
20.5 |
48.5 |
12 |
|
CL.P205-3 |
3 |
1.3 |
20.5 |
71.5 |
12 |
|
CL.P205-4 |
4 |
1.3 |
20.5 |
94.5 |
12 |
|
CL.P205-5 |
5 |
1.3 |
20.5 |
117.5 |
12 |
|
CL.P280-1 |
1 |
1.3 |
28 |
33 |
16 |
|
CL.P280-2 |
2 |
1.3 |
28 |
63.5 |
16 |
|
CL.P280-3 |
3 |
1.3 |
28 |
94 |
16 |
|
CL.P280-4 |
4 |
1.3 |
28 |
124.5 |
16 |

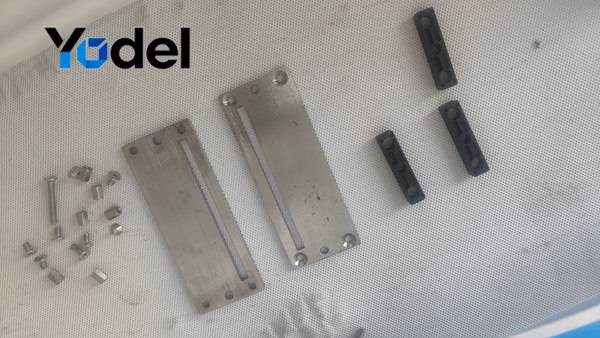

The internal keel (backbone) structure maintains structural integrity, prevents line twisting, and ensures consistent pitch during reciprocated travel. Stainless steel brackets, alignment pins, and low-friction plastic separators maintain precise cable positioning inside the track channels.
Internal KeelTechnical Parameters|
Model No |
Materials |
Bending Radii mm |
Total Height mm |
|
CL.LG40 |
nylon |
R40 |
88 |
|
CL.LG55 |
R55 |
118 |
|
|
CL.LG70 |
R70 |
148 |
|
|
CL.LG100 |
R100 |
208 |

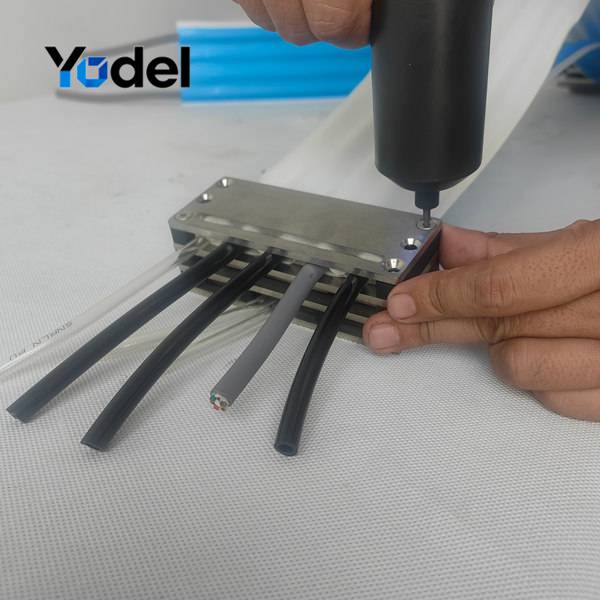

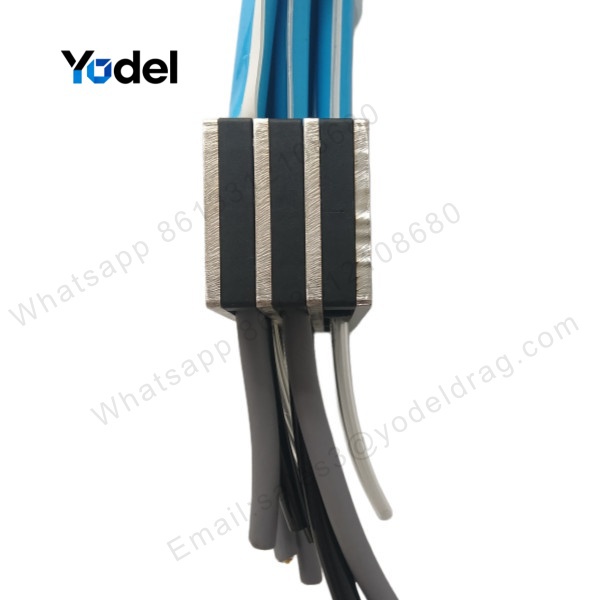

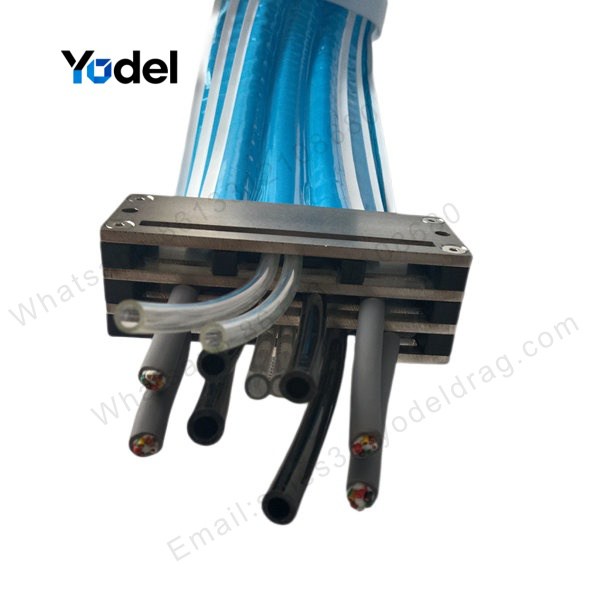

The modular end connector pressure plate system firmly anchors the Flexible Flat Drag Chain to linear motor stages, robots, or stationary frame structures. Designed with precise strain relief slots, the clamp eliminates pull-force on internal cables and air tubes, preventing accidental disconnects or line fatigue at termination points.
End Clamp Mounting Plate Platen Specifications|
Model No |
A |
B |
C |
|
2HL |
57 |
47 |
45 |
|
3HL |
77 |
67 |
45 |
|
4HL |
95 |
85 |
45 |
|
5HL |
115 |
105 |
45 |
|
6HL |
134 |
124 |
45 |
We provide end-to-end custom engineering services for flexible flat drag chains to match your specific equipment travel requirements and cleanroom standards. Follow our streamlined 5-step process below:
| Step | Phase | Detailed Actions |
|---|---|---|
| Step 1 | Demand Analysis | Collect product specifications, operating environment details, and cleanroom requirements. |
| Step 2 | Confirm Needs | Verify key dimensional parameters including height, width, travel stroke length, bending radius, and cable/tubing quantities and models. |
| Step 3 | Scheme Selection | Engineer and generate custom design drawings and channel layouts based on verified parameters. |
| Step 4 | Client Confirmation | Review drawings with the client, discuss necessary technical modifications, and finalize the execution scheme. |
| Step 5 | Delivery & Support | Execute precision manufacturing, complete quality testing, arrange fast shipping, and provide long-term after-sales support. |
|
