China Cable Drag Chain Manufacturer: 35x50 High-Speed Silent Cable Carrier

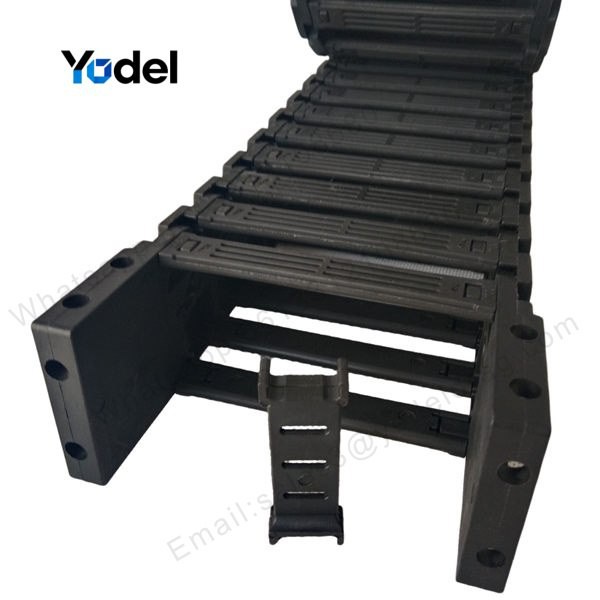

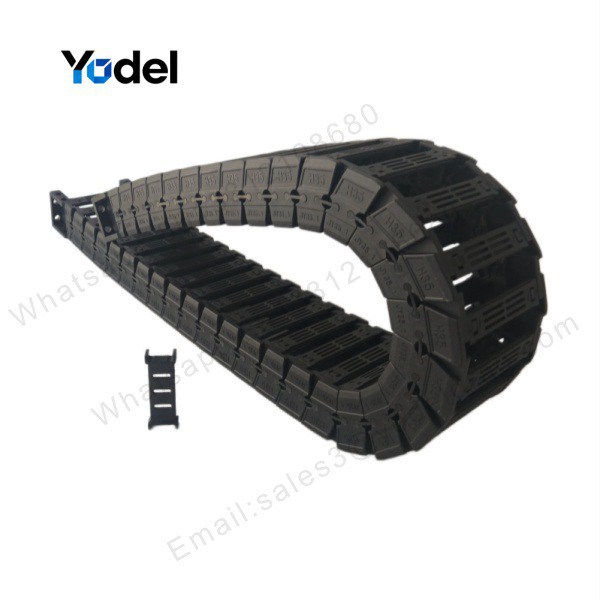

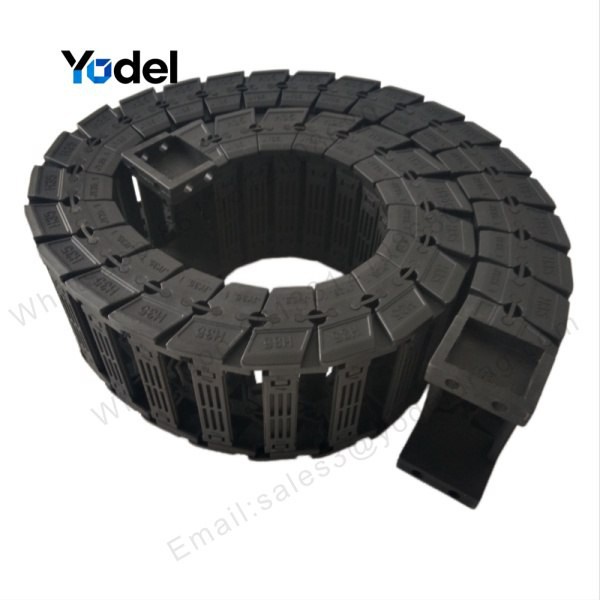

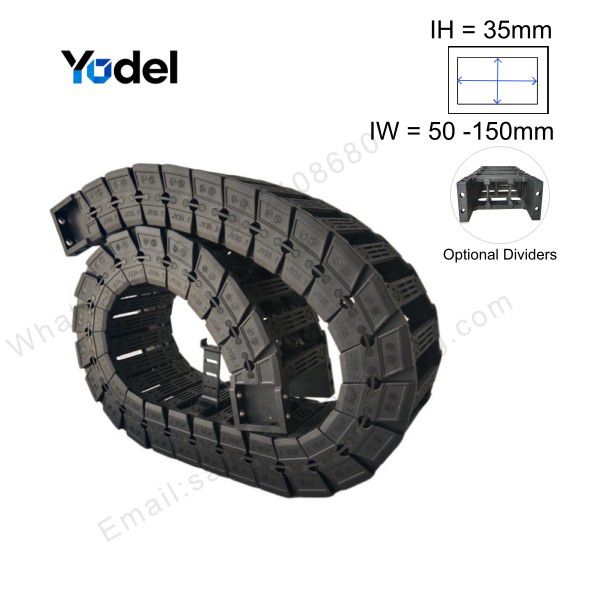

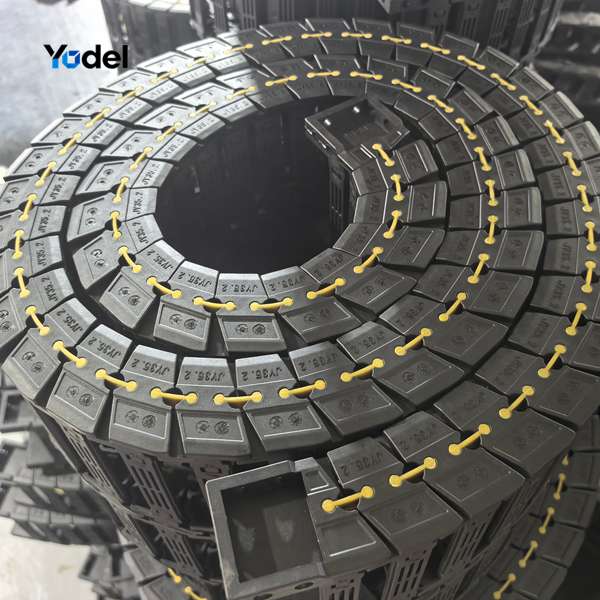

As a specialized B2B cable drag chain manufacturer, we provide high-precision cable tracking solutions engineered for continuous, automated industrial motion. The 35x50 high-speed silent cable carrier (JY35.2 series) features a 35mm inner height and 50mm inner width, specifically built for high-speed cyclic motion requiring low vibration and a compact external profile. Unlike standard drag chains that generate mechanical friction noise, this bridge-type mute cable carrier incorporates specially damped link stoppers and a smooth inner contour that protects power lines, signal wiring, and pneumatic hoses against surface abrasion.

For applications requiring wider internal cabling channels or custom compartmentalization, explore our 35x100 Bridge Type Plastic Cable Drag Chain Carrier.

Key Technical Highlights & Features

As a leading cable drag chain manufacturer, our technical team utilizes 30% glass-fiber reinforced PA66 nylon to form a rigid yet flexible link structure capable of handling extreme acceleration and extended operating cycles.

• Inner Height Envelope: 35mm structural clearance allows routing of medium-duty power cables and pneumatic lines up to 31.5mm outer diameter.
• Noise Reduction (≤55dB): Built-in shock-absorbing stroke limiters at each link joint reduce mechanical impact noise, keeping operation quiet even at elevated speeds.
• High Acceleration & Velocity: Optimized lightweight geometry enables travel speeds up to 5m/s with minimal polygon effect and smooth articulation.

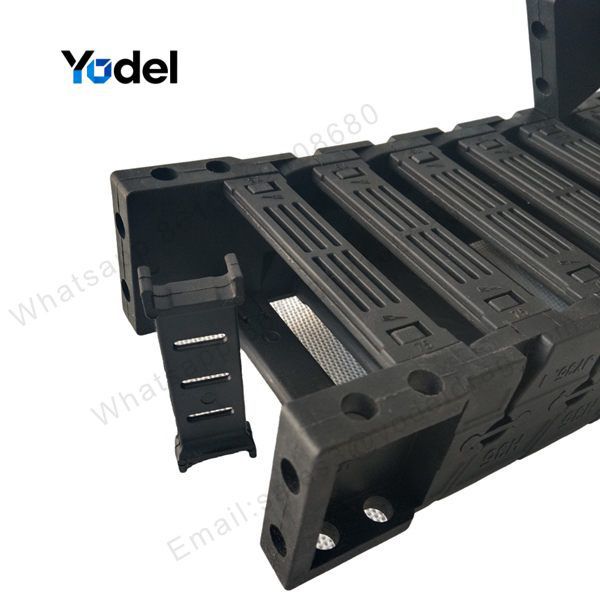

• Open Bridge Structure: Cross-bars snap open easily along the inner or outer radius, streamlining cable installation and field maintenance.

Product Specifications Parameter Table

Popular Sizes and Industrial Applications

Our 35mm series cable carriers are widely deployed across dynamic automation environments where vibration isolation and operational reliability are paramount:

• 35x50mm (R75/R100): Compact pick-and-place gantries, industrial 3D printers, and automated semiconductor testing machines.
• 35x75mm (R100): High-speed 3-axis CNC machining centers and laser cutting auxiliary equipment.
• 35x100mm (R125): Automated SMT PCB assembly lines, high-speed robotic loaders, and packaging machinery.
• 35x125mm (R150): Heavy-duty woodworking CNC routers and multi-axis material handling units.

How to Choose the Right Cable Carrier Size

Working directly with an experienced cable drag chain manufacturer ensures accurate sizing calculations for long cable flex life. Follow these four engineering steps:

1. Step 1: Determine Inner Height: Ensure the inner height of the drag chain is at least the outer diameter of the largest cable or hose.
2. Step 2: Determine Inner Width: Calculate the sum of all cable outer diameters and add a minimum of 20% reserved clearance for heat dissipation and relative movement.
3. Step 3: Select Bending Radius: Match the bending radius to the recommended dynamic flex limit of the enclosed cables. Always prefer a larger radius over a tighter bend to minimize cable fatigue.
4. Step 4: Calculate Operating Length: Determine total required chain length using the dynamic travel formula $L = \frac{S}{2} + K$, where  is stroke length and $K$ is the bend radius arc constant.
