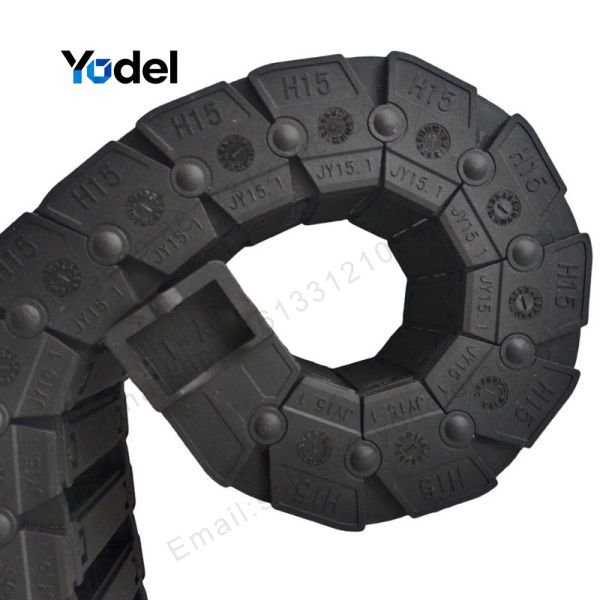

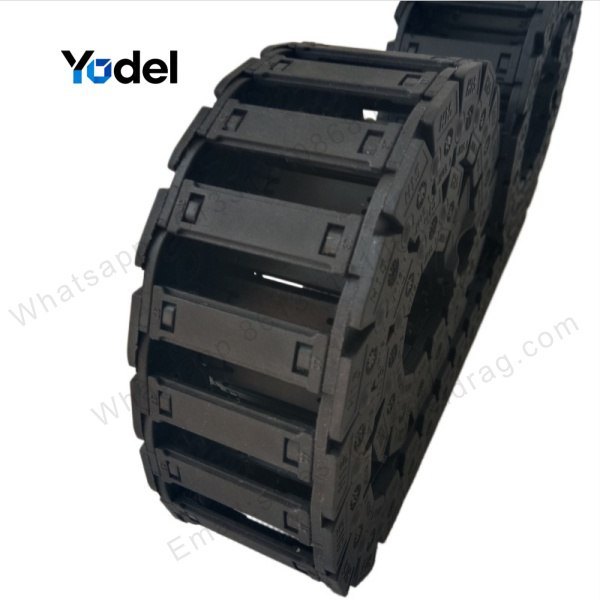

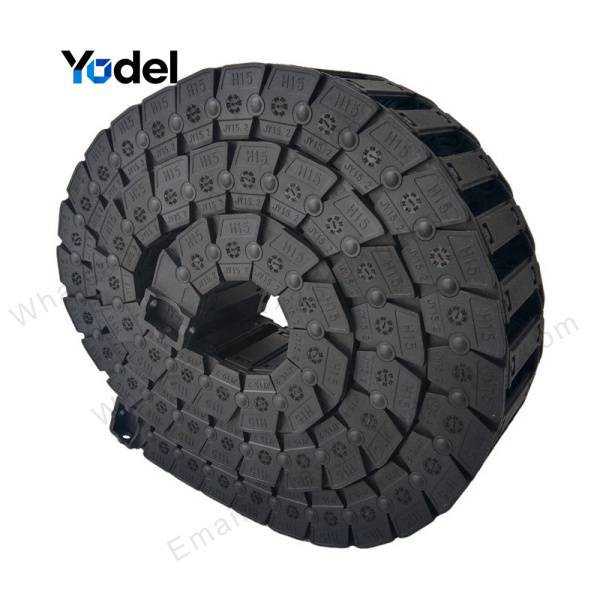

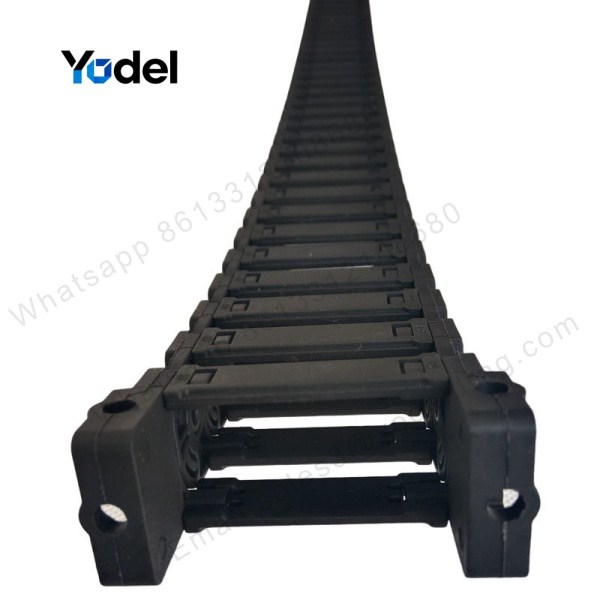

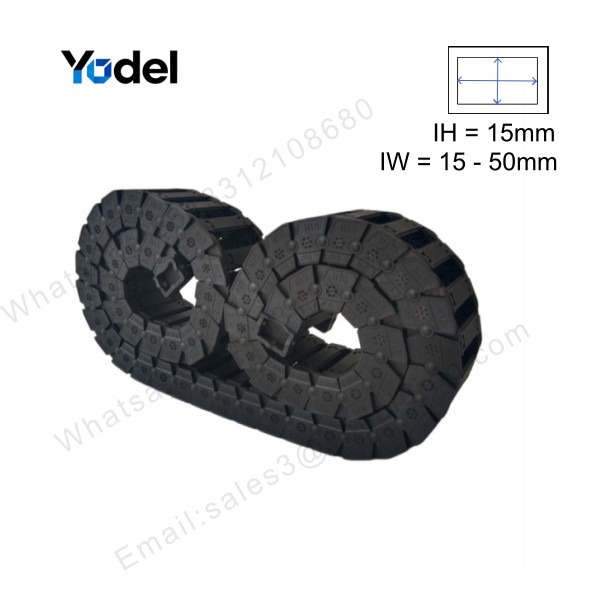

15x25 Silent Cable Drag Chain - Compact Low-Noise Cable Carrier

When your automation equipment must run fast, smooth, and extremely silent, every millimeter of spatial layout counts. As professional cable drag chain suppliers, we manufacture the 15x25 mm inner dimension silent nylon drag chain (Model: YDLHS1525) to satisfy strict low-noise and low-vibration demands in high-speed, compact machinery. Formulated from high-grade 30% glass-fiber reinforced PA66 material, this compact energy chain delivers superior dynamic stability, extended flex life, and thermal resistance ranging from -40°C up to +130°C.

Technical Parameters Matrix

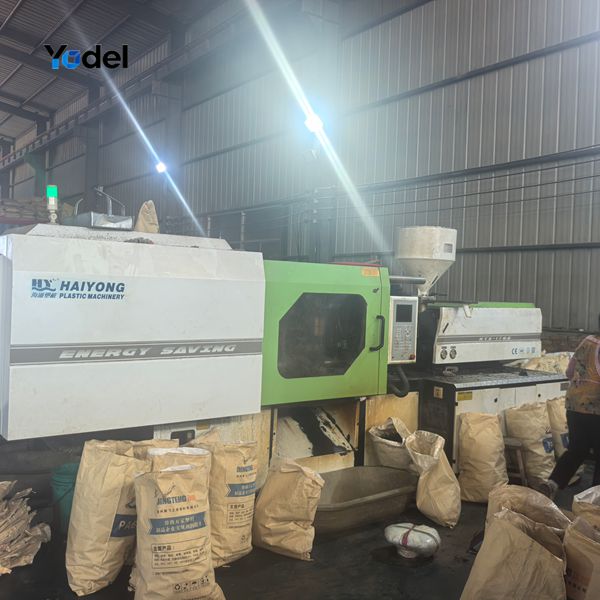

Precision Injection Manufacturing & Silent Performance

Unlike standard noisy carrier links, our 15x25 series utilizes short 17mm pitch pitch-geometry and integrated stroke dampening joints. This structural refinement significantly absorbs joint impact forces during rapid reciprocal flexing, making it ideal for quiet cleanroom environments, desktop machinery, and laboratory automation. Direct control over raw materials and molding precision guarantees seamless articulation without joint binding.

Popular Sizes, Applications & Internal Links

The 15mm inner height series is versatile across various light-to-medium automated handling machines:

• 15x20 mm (R38): Desktop FDM 3D printers, mini linear modules, small PCB engraving units, chip mounter components, and semiconductor handling systems.
• 15x25 mm (R38): Mid-range desktop 3D printing equipment, small automation machinery, 3C electronic sorting equipment, and vision inspection arms.
• 15x30 mm (R38): High-speed industrial 3D printing systems, small laser engravers, mini robotic joints, and AOI inspection gear. Need wider internal cable space? Discover our 15x30 snap-open drag chain model for higher wire bundle capacities.

Assembly Line Quality & Skilled Craftsmanship

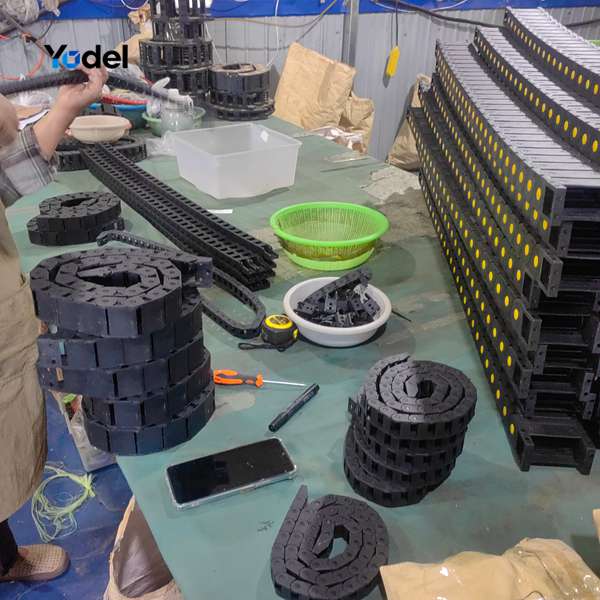

Every meter of our silent cable chain is assembled by trained technicians to verify flexible articulation, link tightness, and pin durability before shipment. As dedicated B2B cable drag chain suppliers, we maintain stringent batch inspection protocols to prevent premature fatigue failures on your automated production line.

Engineering Sizing Guide: How to Select the Correct Carrier

1. Choose Inner Height: Ensure the drag chain inner height is at least 1.2 to 1.5 times greater than the outer diameter of your thickest enclosed cable or hose.
2. Choose Inner Width: Total combined wire width plus at least 20% clearance margin = minimum required inner width (25mm for YDLHS1525).
3. Choose Bending Radius: Verify the available arc turning space on your motion axis; larger bending radii (R38/R48) prolong cable service life.
4. Calculate Cable Carrier Length: Recommended total chain length = (Stroke / 2) + K (bending length constant).

Export Packaging & Fast Global Delivery

We supply custom lengths, internal vertical separators, and specialized mounting brackets tailored to your equipment designs. All orders undergo reinforced export cardboard packaging with itemized product details to ensure safe transit directly to international machinery manufacturers.
