Custom Stainless Steel Cable Carriers & Heavy-Duty Engineering Drag Chains

Welcome to our industrial engineering portal. We are a direct source manufacturer specializing in high-performance custom stainless steel cable carriers and engineered steel drag chains designed for extreme load, high-temperature, and corrosive industrial environments. Whether your application demands massive extra-wide span dimensions, intricate internal cable separation, or specialized mechanical accessories, our engineering team delivers tailor-made OEM and ODM solutions backed by full drawing customization and stringent quality control.

1. Full Dimensional Customization & Technical Specification Table

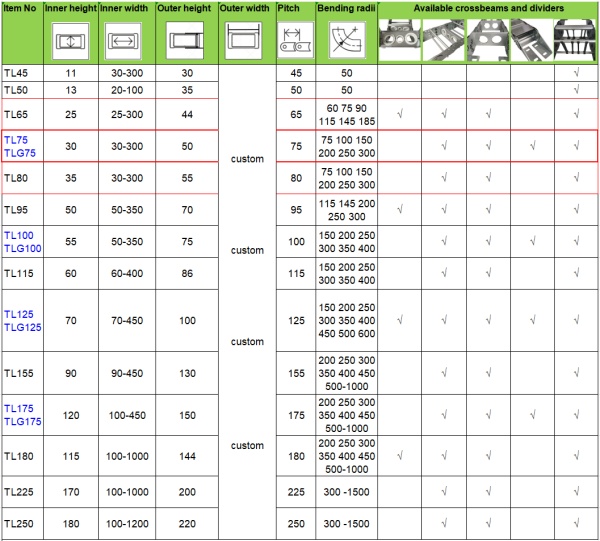

Every industrial movement system presents unique space constraints and cable load configurations. We offer complete customization for all fundamental structural parameters—including inner height, inner width, outer dimensions, chain pitch, and bending radii. Below is our standard engineering matrix. Note that all pitch, radius, and width parameters can be fully customized according to your exact mechanical CAD drawings.

Model	Pitch	Inner Height    (mm)	Outer Height   (mm)	Inner Width     (mm)	Outer Width    (mm)	Bending Radii   (mm)
TL45	45	11	30	30-300	45-315	R50
TL50	50	13	35	20-300	35-315
TL65	65	25	44	25-300	40-315	R60  R75 R90  R115 R145 R185
TL75 TLG75	75	30	50	30-300	45-315	R75  R100 R15 R200 R250  R300
TL80	80	35	55
TL95	95	50	70	50-350	67-367	R115 R145   R200 R250 R300
TL100 TLG100	100	55	75			R150 R200  R250 R300 R350 R400
TL115	115	60	86	60-400	77-417
TL125 TLG125	125	70	100	70-450	90-470	R150 R200  R250 R300 R350 R400  R450 R500 R600
TL155	155	90	130	90-450	110-470	R200-R1000
TL175 TLG175	175	120	150	100-450	130-480
TL180	180	115	144	100-1000	130-1030
TL225	225	170	200	100-1100	130-1130	R300-R1500
TL250	250	180	220	100-1200	135-1235

















































2. Oversized Customization Capabilities

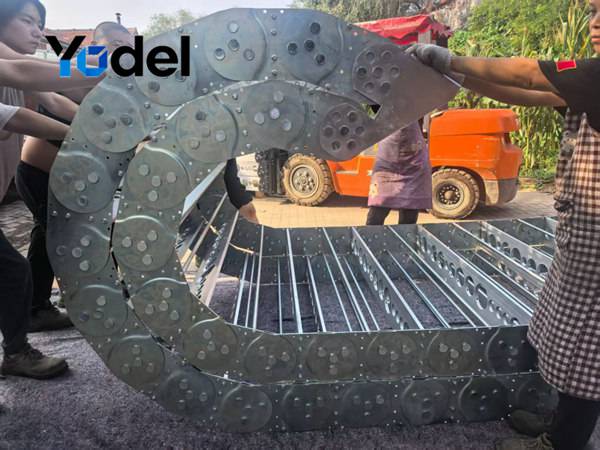

For extra-wide multi-cable conduits, heavy hydraulic hoses, or long-travel overhead cranes, off-the-shelf carriers fail to provide structural stability. We engineer oversized custom steel drag chains featuring precision-drilled integral hole stays. These heavy-duty carriers prevent hose abrasion, eliminate lateral sagging, and withstand immense mechanical strain in steel mills and offshore drilling rigs.

3. End-to-End Manufacturing & Quality Control

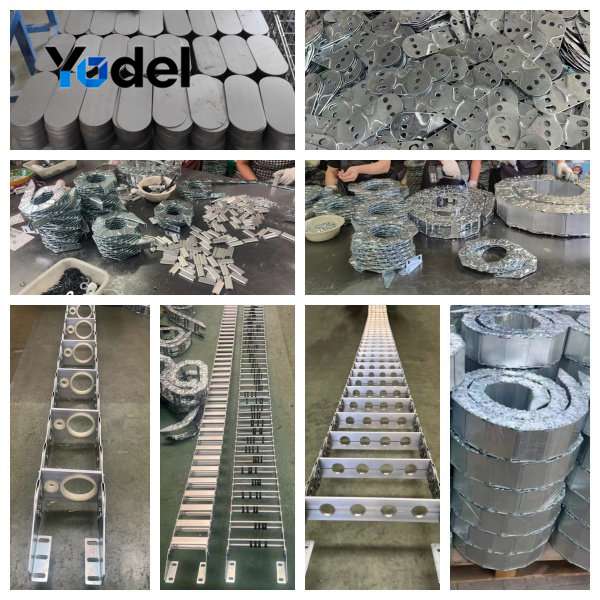

Our state-of-the-art facility manages the entire production lifecycle in-house to guarantee uncompromising structural integrity and dimensional precision:

Phase 1: Raw Material Inspection & Precision Stamping

High-grade steel coils and stainless steel sheets undergo strict chemical and tensile testing before high-precision laser cutting and cold stamping.

Phase 2: Advanced Heat & Surface Treatment

Components pass through automated carburizing furnaces or specialized chemical plating baths to achieve optimal surface hardness and corrosion resistance.

Phase 3: Manual Assembly & Rigorous Testing

Skilled technicians assemble side links, pin connections, and custom stay bars, followed by articulation torque and tensile fatigue testing.

Phase 4: Export Packaging & Global Delivery

Finished carriers are coiled, moisture-proof wrapped, and secured in heavy-duty wooden crates for safe international logistics.

4. Advanced Stay Structures & Internal Separation Systems

Proper cable separation is critical to preventing internal friction and jacket wear. We manufacture specialized horizontal and vertical separation systems tailored to your specific cable package:

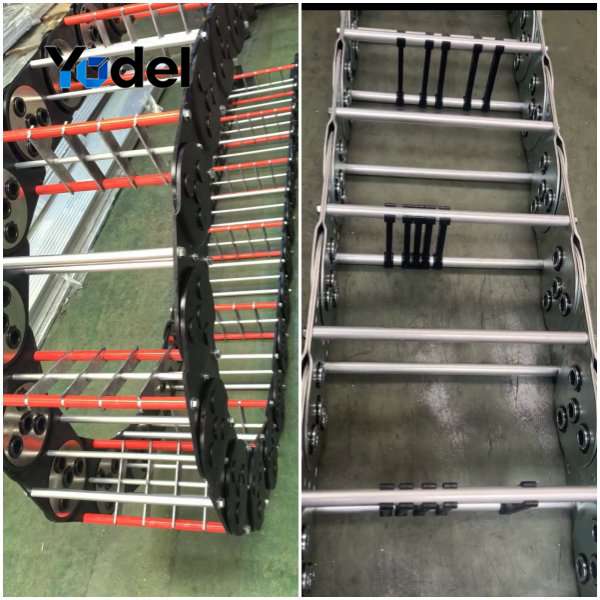

Black Oxide Treated Chains with Multi-Tier Dividers

Engineered with black oxide surface treatment for smooth sliding, combined with adjustable vertical and horizontal steel dividers to create multi-story cable compartments.

Stainless Steel Round Tube Stays with Vertical Dividers

Utilizing high-strength SS304/SS316 round stainless steel tubes as crossbeams fitted with heavy-duty nylon or stainless vertical dividers. This design reduces abrasion on delicate fiber optic cables and flexible hoses during high-speed travel.

5. Specialized Accessories & Surface Finish Options

To meet complex operating conditions, our custom stainless steel cable carriers and steel drag chains can be integrated with advanced functional hardware and tailored surface finishes:

Custom Mechanical Attachments & Hardware

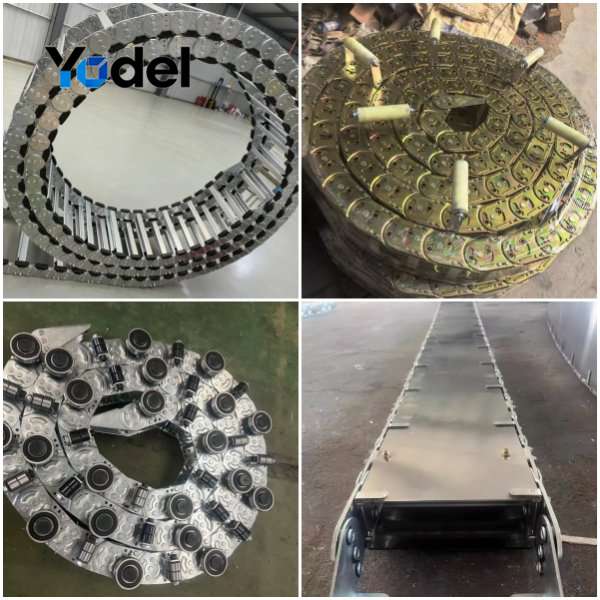

• Slide Shoes (Wear Pads): High-density polyolefin or nylon slide shoes fitted to link sides to extend service life in long-travel glide applications.
• Support Rollers & External Guide Rollers: Colored zinc-plated support rollers and outer glide rollers that minimize friction, reduce noise, and eliminate sagging on long-span installations.

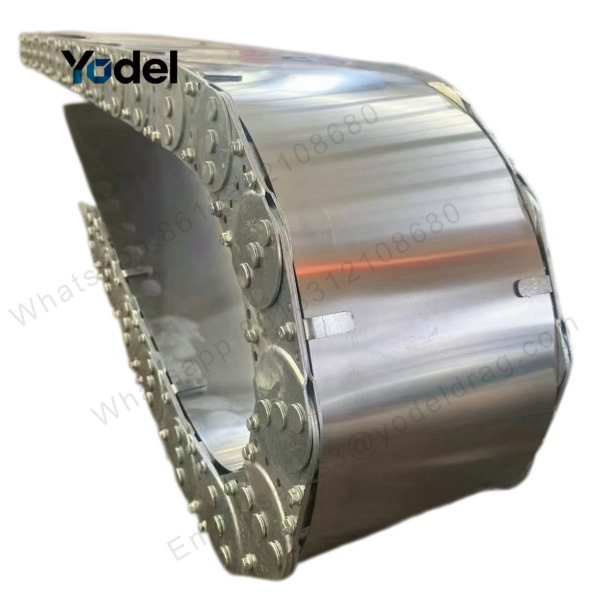

• Closed Band Enclosed Drag Chains: Fully enclosed stainless steel or galvanized covers protecting cables from hot flying chips, welding spatter, and severe industrial debris.
• Custom Dividers & Shelving: Tailored internal layouts engineered to accommodate variable hose diameters.

Material Grades & Protective Finishes

6. Direct OEM/ODM Engineering & Application Advisory

Do you have a non-standard equipment design or extreme operating environment? Our technical team does not just take orders—we review your working envelope, movement acceleration, chemical exposure, and temperature profiles to provide optimized 3D CAD designs and material suggestions. From prototype manufacturing to bulk OEM production, we ensure your custom stainless steel cable carriers deliver zero-downime performance.

Contact our engineering specialists today to request a custom quote or submit your CAD drawings for immediate review!
