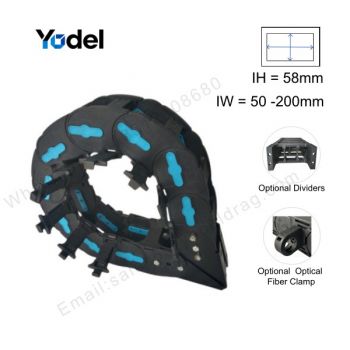

58mm Plastic Cable Carrier Bridge Side-Open Series (Long Travel Heavy-Duty)

Engineered for demanding long travel applications, large-scale CNC machining centers, and dynamic industrial automation, our high-capacity 58mm inner height plastic cable carrier ensures exceptional protection and precise guidance for heavy electrical cables, pneumatic lines, and hydraulic hoses. Fabricated from high-density glass-fiber reinforced PA66 nylon, this heavy-duty carrier combines ultimate tensile strength, wear resistance, and long-span structural rigidity to eliminate sag and twisting over extended stroke paths.

For operations requiring complete seal protection against fine dust, liquid spray, and hot metallic chips, explore our 58mm Enclosed Plastic Cable Carrier Series.

Key Technical Features & Heavy-Duty Performance

• PA66 Glass-Fiber Reinforced Nylon: Precision-molded from premium PA66 polyamide blended with high-percentage glass fiber, offering supreme load-bearing strength, high dynamic impact resistance, and long-term durability under continuous high-speed movement.
• Bridge Snap-Open Architecture: The open bridge-style construction delivers maximum airflow for heat dissipation and immediate visual cable inspection, while the ergonomic side-opening snap bars enable rapid cable laying, simplified maintenance, and reduced machine downtime.
• Interlocking Three-Pin Joint Buckles: Built with multi-point interlocking positioners at pivot joints to absorb vibration, reduce articulation wear, and maintain ultra-quiet, ultra-stable sliding and rolling over heavy mechanical cycles.
• Superior Long-Travel Load Capacity: Reinforced side links and widened crossbars distribute mechanical load evenly, offering exceptional lateral stability and preventing joint disengagement or torsion over extended travel distances.
• Heavy-Gauge Steel Mounting Connectors: Equipped with rugged steel end brackets designed to anchor firmly to machine frames, effortlessly coping with powerful push-pull forces and severe dynamic loads.
• Versatile Interior Cable Separation: Fully compatible with vertical dividers and horizontal shelving units, allowing custom multi-tier compartmentalization to prevent cable abrasion and twisting during rapid operation.

Technical Specifications

Item No	Internal Dimensions      (H x W)    mm	External Dimensions       (H x W)          mm	Bending   Radii    (R)             mm	Pitch           mm	Chain Links per Meter       pcs	Opening Principle	Max Cable Diameter               mm
YDLHSOB5850	58X50	80X80	R100     R125     R150     R200    R250    R300	88	12	bridge snap-open     type	52.00
YDLHSOB5860	58X60	80X90
YDLHSOB5875	58X75	80X105
YDLHSOB58100	58X100	80X130
YDLHSOB58125	58X125	80X155
YDLHSOB58150	58X150	80X180
YDLHSOB58175	58X175	80X205
YDLHSOB58200	58X200	80X230

Industrial Applications & Long Travel Guidance

This heavy-duty 58mm inner height plastic cable carrier is built for demanding long-stroke applications, including large gantry milling machines, automated laser cutting systems, material handling equipment, and stone machinery. Integrating a bridge snap-open structure with reinforced PA66 construction and robust steel mounting brackets, it delivers excellent load capacity and reliable performance for high-speed continuous motion.
