Enclosed CNC Cable Chain – Heavy-Duty Glass-Fiber Reinforced Nylon Protection

Product Overview & Engineering Standards

Our enclosed CNC cable chain series is engineered specifically to deliver maximum protection for delicate wiring, power lines, and hydraulic hoses operating in severe industrial machining environments. Precision-molded from high-grade 30% glass-fiber reinforced PA66 nylon (GFPA), this fully enclosed cable carrier blocks hot metal chips, flying swarf, abrasive dust, and high-pressure coolant spray from penetrating the interior compartment. Known across the industry as a dynamic cable track, energy chain, or closed cable carrier for CNC machines, this series guarantees uninterrupted machine performance during continuous, high-speed travel.

Advanced Material Properties & Key Advantages

Utilizing a specialized 30% glass-fiber reinforced Polyamide 66 matrix, our CNC cable chain offers exceptional mechanical resilience compared to standard unreinforced plastic carriers:

• Complete Contaminant Barrier: Fully enclosed tube structure prevents sharp hot metal turnings, grinding dust, water mist, and cutting fluids from snagging or damaging internal cables.
• High Impact Strength & Structural Rigidity: Reinforced sidewalls prevent sagging over long unsupported spans, even under heavy hydraulic hose loads.
• Extended Flex Fatigue Life: Low internal friction delivers over 10 million dynamic movement cycles in continuous linear motion setups.
• Broad Thermal Bounds: Maintains structural integrity across extreme operating temperatures from -40°C to +130°C.
• Industrial Fluid & Chemical Resistance: Impervious to prolonged exposure to mineral oils, synthetic coolants, and mild acids or alkalis.
• Safe & Quiet Operation: Meets UL94 V-2 flame retardancy standards while keeping operational articulation noise below 60dB.

Enclosed vs. Bridge Open CNC Cable Chain Selection

Choosing the right carrier configuration depends on your specific shop floor conditions:

Feature	Enclosed CNC Cable Chain	Bridge Type (Open) Chain
Contaminant Protection	Full coverage; completely blocks chips, dust & fluids	Top-open; partial protection against non-chip debris
Heat Dissipation	Moderate airflow containment	Maximum airflow & convective cable cooling
Cable Access	Unclip hinged outer lids to inspect lines	Direct visual inspection & instant drop-in routing
Ideal Environment	Heavy metal turning, milling, grinding & stone cutting	Clean automation, wood routing & light assembly

Inner Height Series (20mm – 80mm Specifications)

Choose the matching dimensional cross-section for your machinery layout below:

Model	Inner Height (mm)	Outer Height (mm)	Pitch (mm)	Bending Radius (mm)
YDLRE25	25	40	46	R55    R75    R100    R125    R150    R175   R200

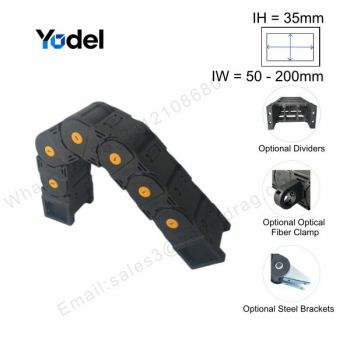

YDLRE35	35	55	68.1	R75    R100    R125    R150    R175 R200   R250   R300

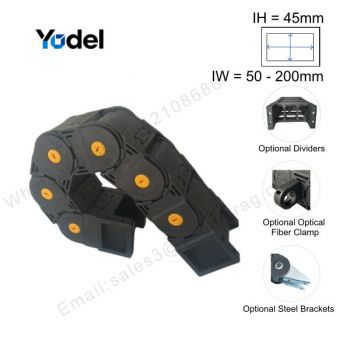

YDLRE45	45	65	68.1

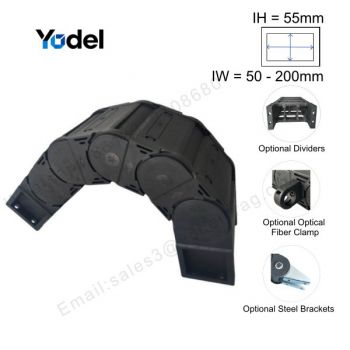

YDLRE55	55	75	80.5	R100    R125    R150    R200   R250   R300

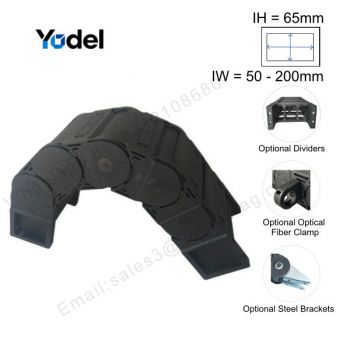

YDLRE65	65	85	80.5

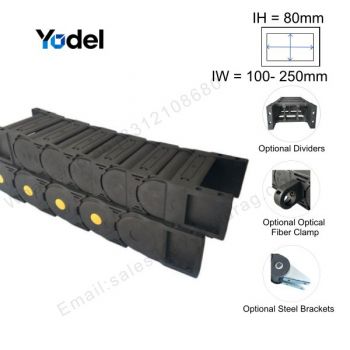

YDLRE80	80	106	100	R150    R200   R250    R300    R350    R400

Primary Machining & Industrial Applications

Our heavy-duty CNC cable chain is the primary sealed protection system for CNC machining centers, turning centers, metal milling machinery, surface grinding equipment, glass and stone cutting tools, plasma/laser cutters, wire EDM machines, and articulated robotic arms in harsh shop environments.

Related Cable Management Lineup

Working in cleaner environments that prioritize rapid heat dissipation and effortless cable inspection? Explore our CNC Drag Chain – Bridge Type (Open) series.
