Cable Drag Chain: Heavy-Duty Snap-Open Bridge Series for Long-Travel Applications

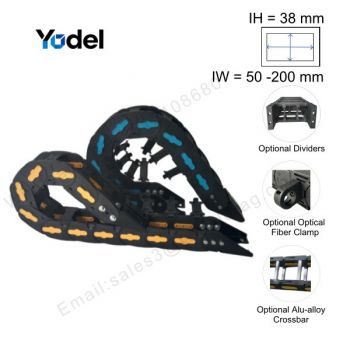

Engineered for high dynamic loads and extended travel distances, this cable drag chain series features a snap-open bridge-type structure constructed from high-grade PA66 reinforced with 30% glass fiber and performance additives. Designed to perform reliably under demanding industrial conditions, this heavy-duty cable drag chain utilizes robust side plates with heavy-duty bolt fasteners, vibration-damping positioning inserts, and solid steel end mounting brackets to maintain precise alignment. The modular links incorporate dual-colored three-pin locking inserts (yellow or blue options) for exceptional torsional stiffness, making it an optimal cable management system for long-travel CNC machining centers, automated warehousing, and heavy industrial automation.

For fully enclosed cable protection requirements, explore our complementary Enclosed Cable Drag Chain Series, designed to seal out hot chips, dust, and cutting debris in harsh machining environments.

Key Technical Advantages & Structural Engineering

1. High-Rigidity PA66 + 30% Glass Fiber Composite Polymer

Formulated with premium virgin PA66 nylon modified with 30% high-tensile glass fibers and heat-stabilizing additives, this cable drag chain delivers enhanced mechanical strength, high fatigue resistance, and excellent creep protection. The composite material retains exceptional stiffness across ambient temperatures from -40°C to +130°C while resisting industrial lubricants, oils, and chemical exposure.

2. Snap-Open Bridge Design with Side-Opening Access

The open-frame bridge structure allows crossbars to snap open effortlessly along the inner or outer radius. Maintenance crews can lay, inspect, or swap out pneumatic hoses, hydraulic lines, and fiber optic cables without disassembling the carrier body or disconnecting pre-wired harnesses, minimizing system downtime during retrofits.

3. Heavy-Duty Reinforced Side Plates with Steel Fasteners

To eliminate lateral sway over multi-meter travels, each link features thick, interlocking side plates secured with heavy-duty bolt fasteners. Combined with vibration-damping positioning inserts, the cable drag chain mitigates resonant chatter at high travel velocities, providing smooth operation during rapid acceleration and deceleration cycles.

4. Heavy-Duty Metal Mounting Brackets & Modular Pin Options

Each drag chain assembly includes hardened steel end-mounting brackets fitted with precision bolt hole patterns for secure tie-down to moving carriages and stationary machine bases. The modular three-pin locking inserts are offered in distinct yellow or blue color options for quick visual identification and flexible inventory organization on the shop floor.

Target Applications & Compatible Machinery

The snap-open long-travel cable drag chain series is engineered for demanding industrial equipment requiring clean cable routing and reliable dynamic load capacity:

• CNC Machining Centers & Gantry Mills: Provides long-travel energy supply for X/Y-axis crossbeams and large-format CNC routers.
• Automated Warehousing & Material Handling: Ideal for high-speed stacker cranes (AS/RS), shuttle vehicles, and linear gantry transfer systems.
• Laser, Plasma & Waterjet Cutting Machinery: Secures heavy power leads, fiber optic lines, and high-pressure water hoses across wide cutting beds.
• Industrial Robotics & Automation Lines: Offers dependable guidance for multi-axis robot tracks and automated assembly platforms.
