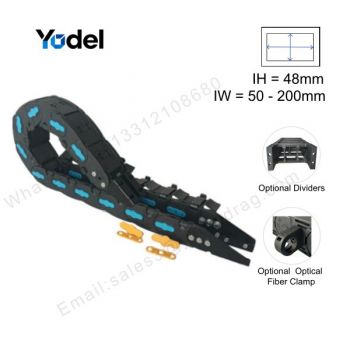

48mm Plastic Cable Carrier Enclosed Side-Open Series (Long Travel )

Engineered for demanding long travel applications, heavy CNC machinery, and high-speed industrial automation systems, our 48mm inner height plastic cable carrier delivers maximum dynamic protection for electrical power cables, control lines, and hydraulic hoses. Fabricated from high-density glass-fiber reinforced PA66 nylon, this heavy-duty enclosed carrier balances high tensile strength with exceptional wear resistance, ensuring ultra-reliable line guidance over extended stroke paths.

Key Technical Features & Heavy-Duty Performance

• PA66 Reinforced Nylon Construction: Molded from premium PA66 polyamide combined with high-percentage glass fiber, offering extraordinary load-bearing capacity, impact resistance, and superior structural rigidity to eliminate chain sag during long-travel continuous motion.
• Enclosed Side-Opening Architecture: The fully enclosed body protects sensitive internal cables from sharp metal chips, abrasive debris, and liquid spray, while the convenient side-open snap mechanism permits rapid cable layout, easy inspection, and quick maintenance.
• Three-Pins Damping Buckles : Engineered with multi-point interlocking three-flower positioners at each joint pivot. This structure reduces articulation friction, absorbs heavy dynamic impacts, and ensures ultra-quiet, stable operation under high acceleration.
• Robust Long-Travel Load Capacity: Specially designed side links and wide crossbars distribute mechanical stress across extended travel lengths, preventing lateral deflection, joint disengagement, and twisting over long strokes.
• Heavy-Gauge Steel Mounting Brackets: Outfitted with high-strength steel end connectors that deliver rock-solid anchoring to machine beds, withstanding dynamic push-pull forces and high mechanical loads.
• Flexible Interior Cable Separation: Fully compatible with vertical dividers, horizontal shelves, and fiber optic clamps to systematically segregate power lines, signal wiring, and fluid hoses, preventing line wear and cable twisting.

Technical Specifications

Item No	Internal Dimensions      (H x W)    mm	External Dimensions       (H x W)          mm	Bending   Radius    (R)             mm	Pitch           mm	Chain Links per Meter       pcs	Opening Principle	Max Cable Diameter               mm
YDLHSOE4850	48X50	70X77	R75       R100     R125     R150     R175     R200    R250	80	13	enclosed snap-open     type	43.00
YDLHSOE4875	48X75	70X102
YDLHSOE48100	48X100	70X127
YDLHSOE48125	48X125	70X152
YDLHSOE48150	48X150	70X177
YDLHSOE48175	48X175	70X202
YDLHSOE48200	48X200	70X227

Industrial Applications & Long Travel Support

This 48mm inner height heavy-duty plastic cable carrier is widely installed on long travel distance gantry machining centers, stone cutting machinery, automated laser processing lines, and heavy-load material handling equipment. Combining a fully enclosed side-opening design with ultra-durable steel end brackets and three-flower joint buckles, it provides comprehensive protection against harsh industrial debris while supporting high-speed reciprocating cycles across extended stroke lengths.
