Heavy-Duty Nylon Drag Chain (Roller & Sliding Long Travel Series)

Engineered specifically for demanding long-travel motion systems, our high-performance nylon drag chain family (Inner Heights 38mm & 48mm) delivers superior cable protection, low operational friction, and extended service life. Manufactured from high-purity PA66 reinforced with 30% glass fiber and specialized toughness additives, this nylon drag chain series achieves exceptional tensile strength and medium-to-heavy duty structural rigidity, guaranteeing strong anti-skew stability across extra-long travel spans without sagging, twisting, or lateral deflection.

The core technological innovation of this nylon drag chain lies in its integrated low-friction roller and sliding system. Specially developed for extra-long travel overlapping operations, as the upper strand glides over the lower strand, built-in side rollers or sliding blocks transform traditional large-area surface friction into point/line rolling or low-coefficient sliding. This dramatically lowers push-pull drive resistance and motor load while extending drag chain operational lifespan. Furthermore, integrated vibration-damping and positioning inserts ensure precise tracking alignment and quiet operation during continuous high-speed movement.

Product Specifications & Technical Data

Model	Inner Height   (mm)	Outer Height (mm)	Pitch (mm)	Bending RadiI                                    (mm)

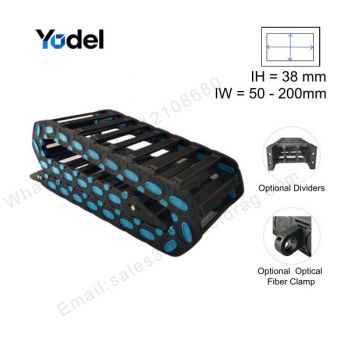

YDLLTRB38	38	60	80	R75    R100    R125    R150    R175    R200    R250

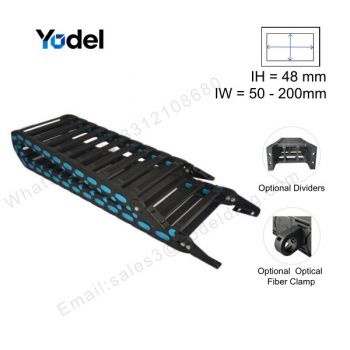

YDLLTRB48	48	70	80
Features	1.Bridge  2.Roller / Sliding System 3.Vibration-Damping / Positioning Inserts 4. Steel mounting brackets  5.Materials :PA66 + 30% Glass Fiber+additives  6.Medium and heavy-duty high-toughness reinforcement 7.Optional configurations : inner dividers /optical fiber clamps /stainless steel rollers

Core Structural Features & Technical Advantages

• Bridge Type Open Structure: Features lightweight, hollowed-out bridge crossbars that deliver exceptional heat dissipation and ventilation. While securely locked during operation, both upper and lower crossbars can be detached by inserting a flathead screwdriver to pry open the side snap latches, allowing rapid cable laying, field inspection, and wire replacement on site.
• Roller / Sliding System (Friction Reduction): Specially engineered for extra-long travel overlapping runs. When the drag chain folds back and glides over itself, side-mounted rollers or sliders replace traditional face-to-face friction with point/line rolling or low-coefficient sliding contact, significantly reducing drive push-pull resistance, easing motor load, and vastly prolonging drag chain service life.
• Medium & Heavy-Duty High-Toughness Reinforcement: Molded from 30% glass-fiber reinforced PA66 with toughness additives, offering high tensile durability, excellent impact resistance, and strong anti-skew structural integrity under high towing loads.
• Heavy-Duty Steel Brackets & Modular Separation: Equipped with robust steel mounting end joints for rigid machine anchoring. Supports customizable inner dividers, fiber optic clamps, and stainless steel rollers for clean multi-layer cable isolation.

Primary Applications & Machinery

This long-travel roller-sliding nylon drag chain series is widely deployed across automated industrial applications requiring long stroke distances, heavy dynamic cable loads, and fast linear speeds:

• Fiber Laser Cutting Equipment: Extra-long bed (12m–30m+) sheet metal laser cutting machines requiring reliable dynamic power and gas feed.
• Automated Warehousing & Logistics: High-bay AS/RS stacker cranes, RGV shuttle cars, and long-stroke truss manipulators.
• Heavy CNC Gantry Machinery: Large CNC gantry milling equipment, woodworking CNC nesting centers, and stone bridge saws.
• Linear Automation & Industrial Robotics: 7th-axis robot transfer tracks, automated welding line gantries, and long-distance material handling systems.
