China Drag Chain Manufacturer: 25x77 High-Speed Silent Nylon Cable Carrier

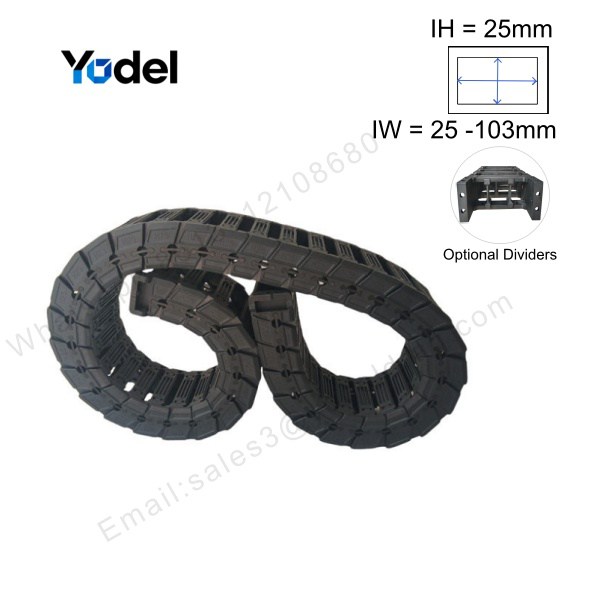

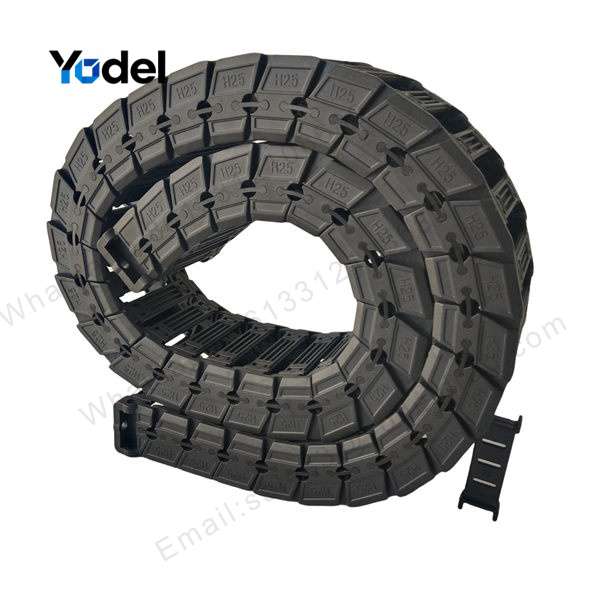

As a leading B2B drag chain manufacturer in China, we specialize in high-performance cable tracking solutions engineered for demanding industrial motion applications. The 25x77 series high-speed silent nylon drag chain is designed to route and safeguard delicate power lines, dynamic encoder cables, pneumatic hoses, and fluid tubes against continuous friction, mechanical strain, and environmental wear. Featuring a compact 25mm inner height and an expansive 77mm inner width, this bridge-type silent cable carrier integrates seamless structural support into high-precision machinery operating under continuous reciprocating motion. For applications requiring smaller lateral mounting spaces or budget-friendly routing, explore our 25x38 Cost-effective Nylon Drag Chain Cable Carrier.

Whether integrated into automated pick-and-place systems, CNC machining centers, high-speed UV flatbed printers, or robotic production lines, choosing a direct factory supplier guarantees rigorous manufacturing standards, reliable material composition, and extended operating cycles.

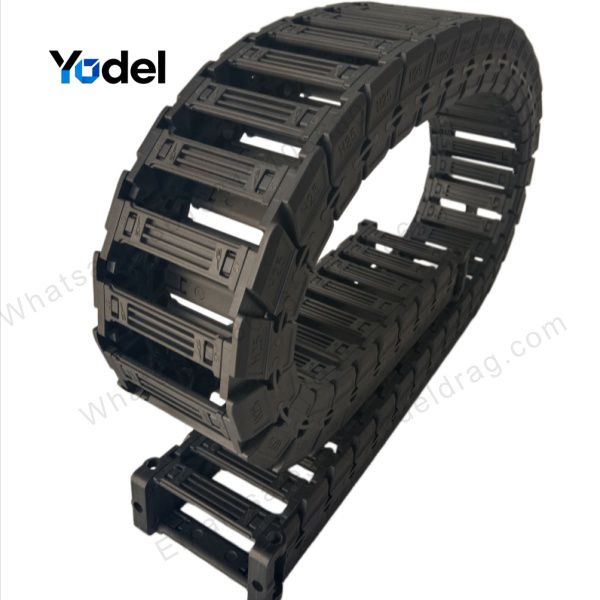

Key Features & Engineering Superiority

As an established drag chain manufacturer, our engineering team formulates each series from 30% glass fiber reinforced PA66 nylon. This custom material composite guarantees ultra-high tensile strength, flame retardancy, low thermal expansion, and exceptional durability across extreme industrial environments.

Performance Advantages

• Multi-Point Silent Damping: Specially engineered rubberized or multi-point stroke stops at each joint link dramatically reduce mechanical impact noise and vibration during high-speed travel.
• High-Speed Stability: Built with a short 24mm pitch to minimize the polygon effect during articulation, allowing smooth and stable movement at acceleration speeds up to 50 m/s².
• Robust Chemical Resistance: High-grade PA66 construction resists lubricants, cutting fluids, hydraulic oils, salts, and mild acids within operating temperatures ranging from -40°C to +130°C.

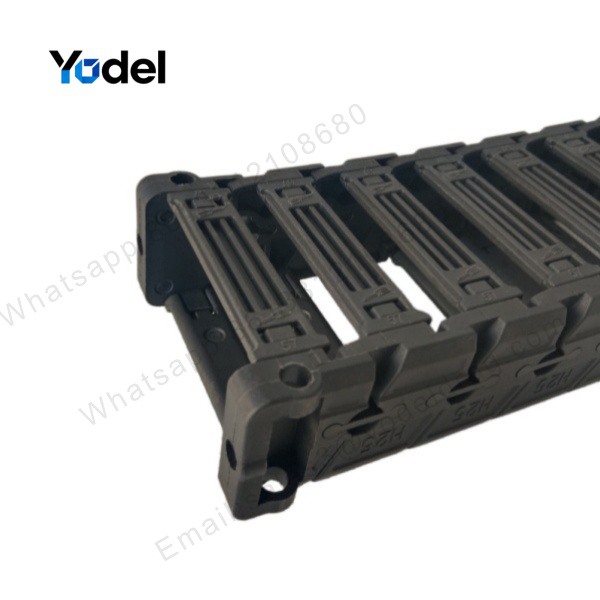

• Flexible Openable Cross-bars: Dual-sided openable bridge construction allows technical personnel to snap open cross-bars quickly with a screwdriver, reducing downtime during cable upgrades or field maintenance.

Product Specifications Parameter Tables

As a professional drag chain manufacturer, we offer two distinct mold structure configurations for the 25x77 series to match different outer dimension requirements and bending radius options on customer machinery.

Optional sizes 1: Standard Outer Profile (97mm Outer Width)

Optional sizes 2: Compact Outer Profile (92mm Outer Width)

Industrial Applications

The 25x77 open-type silent energy chain provides an ideal routing envelope for dynamic setups where multiple cables and hoses must be compartmentalized cleanly side by side:

• CNC Machine Tools / Machining Centers: Protect power cables, signal wires, and hydraulic hoses to prevent pulling, friction wear, and chip damage during high-speed movement.

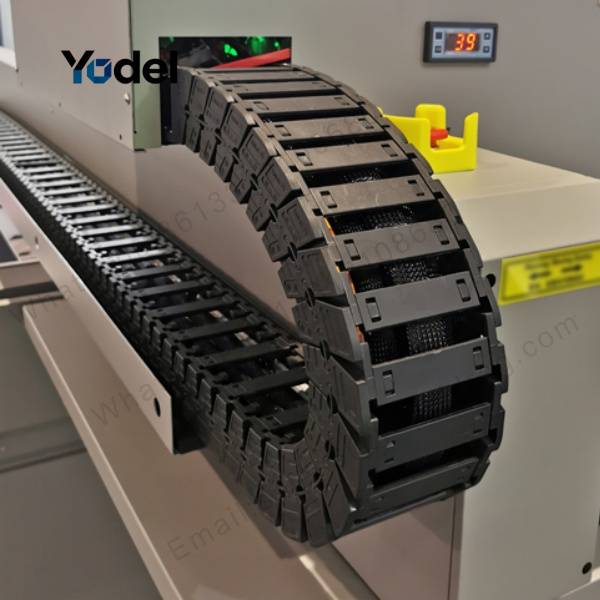

• 3D Printers / Engraving Machines: Silent drag chains serve as essential equipment components to satisfy high-acceleration and ultra-quiet motion demands.
• Pick-and-Place Machines / Electronic Equipment: Cable guidance for precision machinery, including specialized drag chains for Panasonic CM series pick-and-place equipment.
• Automated Production Lines / Robotic Arms: Protect continuously moving cables to enhance operational equipment stability and maximize total service lifespan.

Direct Factory Production & Quality Control

Partnering with an OEM/ODM drag chain manufacturer ensures full control over dimensional precision, raw material integrity, and delivery timelines. Our state-of-the-art facility adheres to strict ISO-certified production protocols:

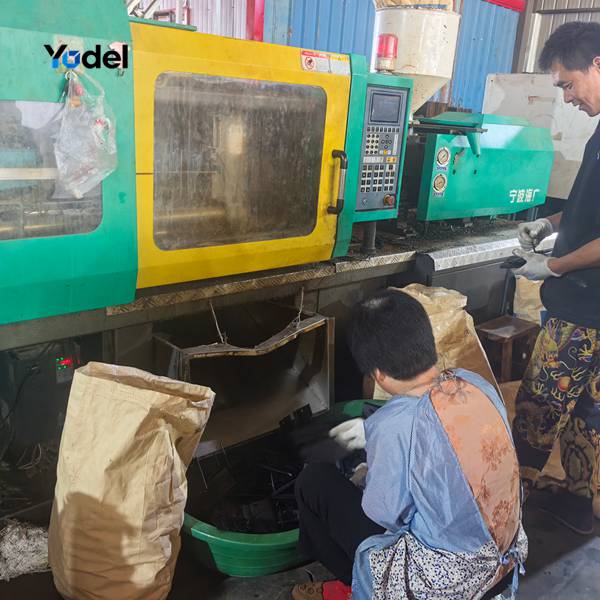

1. Injection Molding Production: Precision injection molding machines utilize pure PA66 GF30 compound under precise temperature regulation to produce high-density links with maximum fatigue strength.

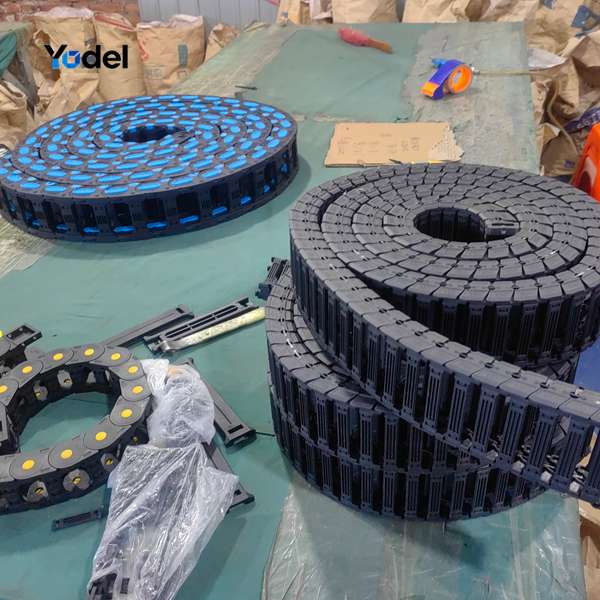

2. Component Assembly & Quality Inspection: Experienced technicians hand-assemble cross-bars, side links, and separators, dynamically inspecting pitch articulation to ensure quiet, friction-free movement.

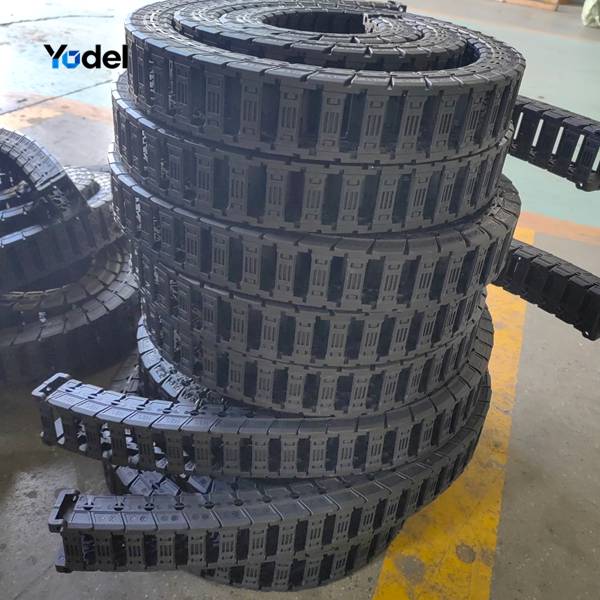

3. Finished Goods Packaging: Completed chain sections undergo final length testing before being wrapped and packed into reinforced export cartons or palletized for international ocean and air freight.

Selection & Sizing Guide

To ensure optimal long-term cable protection, follow standard engineering formulas when selecting your cable carrier:

1. Height Margin: Select an inner chain height at least 10%–15% larger than the maximum cable or hose diameter. For a 22.5mm cable, the 25mm inner height provides ideal clearance.
2. Width Allocation: Add up the outer diameters of all enclosed cables/hoses and include at least a 20% overall clearance space for heat dissipation and smooth articulation. Use vertical separators for mixed cable sizes.
3. Bending Radius: Select a bend radius based on the largest cable manufacturer's recommended dynamic bend radius specification to maximize flex life.
4. Length Calculation: Calculate required chain length using the standard dynamic formula, where equals total travel stroke distance and represents the bend radius arc constant.
