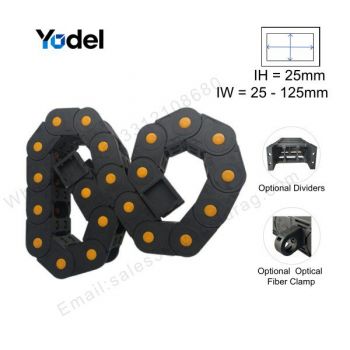

25 Series Double Bending Radius Cable Carrier (H25)
Engineered for non-linear motion trajectories and tight operational spaces, the 25 Series Double Bending Radius Cable Carrier (H25) provides exceptional bi-directional flexibility and robust dynamic protection for flexible cables and hoses. Unlike traditional single-direction drag chains, this series features an innovative dual-directional bending mechanism, allowing seamless "S-shape" movements along opposing axes. It is the premier guidance solution for modern multi-joint robotic arms, medical articulated scanners, dual-axis gantries, and compact automated machinery.
Key Engineering Features & Technical Advantages
- Precision Bi-Directional Motion (R55 Bending Radius): Specially designed with an R55 mm reverse bending radius, enabling smooth forward and backward flex patterns without compromising structural integrity or cable wear limits.
- Optimized Structural Dynamics: Standardized with a precise 46 mm pitch requiring exactly 22 links per meter, delivering quiet operation, low friction, and long-service-life performance during high-speed reciprocating movement.
- Bridge Openable Architecture: Features a user-friendly bridge openable principle across both inner and outer radii, allowing rapid cable installation, effortless line inspection, and hassle-free maintenance without disconnecting whole assemblies.
- High Capacity Inner Clearance: Accommodates a maximum external cable/hose diameter of up to 22.5 mm, providing optimal internal space utilization and efficient heat dissipation for power, control, and pneumatic lines.
- Versatile Material Options (Standard PA66 & Glass Fiber Reinforced PA66): Available in both standard unreinforced Polyamide (PA66) for cost-effective standard operations, and high-performance Glass Fiber Reinforced Polyamide (PA66+GF) for demanding environments requiring extreme tensile strength, higher load capacity, and enhanced fatigue resistance under high-speed acceleration.
Series Specifications & Dimension Chart
Our H25 Series offers a comprehensive selection of internal widths ranging from 25mm to 125mm to accommodate various multi-cable bundles:
| Item No |
Internal Dimensions (H x W) mm |
External Dimensions (H x W) mm |
Bending Radius (R) mm |
Pitch mm |
Chain Links per Meter |
Opening Principle |
Max Cable Outer Dia. mm |
| YDLDW2525 |
25 x 25 |
40 x 44 |
R55 |
46 |
22 pcs |
Bridge Openable Type |
22.5 |
| YDLDW2538 |
25 x 38 |
40 x 57 |
| YDLDW2550 |
25 x 50 |
40 x 69 |
| YDLDW2557 |
25 x 57 |
40 x 76 |
| YDLDW2560 |
25 x 60 |
40 x 79 |
| YDLDW2570 |
25 x 70 |
40 x 90 |
| YDLDW2575 |
25 x 75 |
40 x 94 |
| YDLDW2577 |
25 x 77 |
40 x 96 |
| YDLDW25103 |
25 x 103 |
40 x 122 |
| YDLRB25125 |
25 x 125 |
40 x 144 |
Typical Industry Applications
The 25 Series Double Bending Radius Cable Carrier is optimized for specialized motion profiles across multiple industrial sectors, including:
- Articulated Industrial Robotics: Routing feedback and servo cables across 6-axis manipulator arms requiring multi-directional torsion and bending.
- Medical Imaging & Surgical Systems: Managing complex wiring inside CT scanners, X-ray elevation arms, and motorized examination tables.
- Automated Warehousing (AGV / RGV): Providing compact, bi-directional energy supply for vertical lifting shuttles and automated guided vehicles.
- Advanced CNC & Laser Equipment: Supporting cross-axis laser cutting heads and multi-spindle engraving platforms.
- Specialized Lifting & Telescopic Platforms: Ideal for aerial work platforms, dual-direction telescopic handlers, and stage lifting equipment where cables coil bi-directionally.
