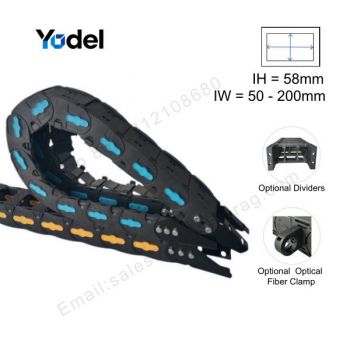

58mm Plastic Drag Chain Enclosed Side-Open Series (Heavy Duty & Long Travel)

Designed for demanding industrial environments, extended travel distances, and heavy-duty mechanical loads, our 58mm inner height plastic drag chain delivers superior continuous protection for power cables, control lines, and hydraulic conduits. Constructed from high-rigidity glass-fiber reinforced PA66 nylon, this fully enclosed drag chain offers exceptional tensile strength, impact absorption, and wear resistance, making it an ideal cable management solution for high-speed CNC machinery and automated production lines.

Key Performance Features & Engineering Advantages

• Glass-Fiber Reinforced PA66 Nylon: Manufactured using high-grade PA66 polyamide blended with 30% glass fiber, providing high load-bearing structural integrity, thermal stability, and low abrasion to prevent chain sag and wear over long travel paths.
• Enclosed Side-Opening Architecture: The all-black fully enclosed profile seals sensitive cabling away from flying metal chips, dust, and corrosive liquid splashes, while the ergonomic side-opening mechanism enables quick cable lay-in, fast inspection, and effortless maintenance.
• Three-Pins Damping Buckles : Integrated multi-point interlocking three-flower positioners at each link pivot drastically decrease articulation friction, dampen dynamic operational noise, and prevent joint detachment under rapid acceleration.
• Heavy-Duty Long Travel Stability: Reinforced side links and sturdy crossbars distribute mechanical stresses evenly across long strokes, resisting lateral deflection, twisting, and vibration during high-speed reciprocating cycles.
• Heavy-Gauge Steel End Brackets: High-strength steel mounting brackets ensure rock-solid mechanical anchoring to machine foundations, safely absorbing massive push-pull dynamic forces.
• Optimized Interior Cable Management: Supports internal vertical dividers and horizontal separators to cleanly compartmentalize high-voltage power cables, signal lines, and pneumatic hoses, preventing cable tangling and premature jacket fatigue.

Technical Specifications (58mm Inner Height Series)

Industrial Applications

Engineered for high-capacity applications, this 58mm plastic drag chain excels in gantry machining centers, heavy CNC cutting equipment, automated material handling systems, and stone/glass processing machinery. The combination of a fully enclosed side-opening structure, shock-absorbing three-flower buckle connections, high-load PA66 reinforced nylon, and heavy steel end brackets delivers long-term durability and operational efficiency across extended stroke runs.
