China Drag Chain Suppliers: 45x75 High-Speed Silent Energy Chain

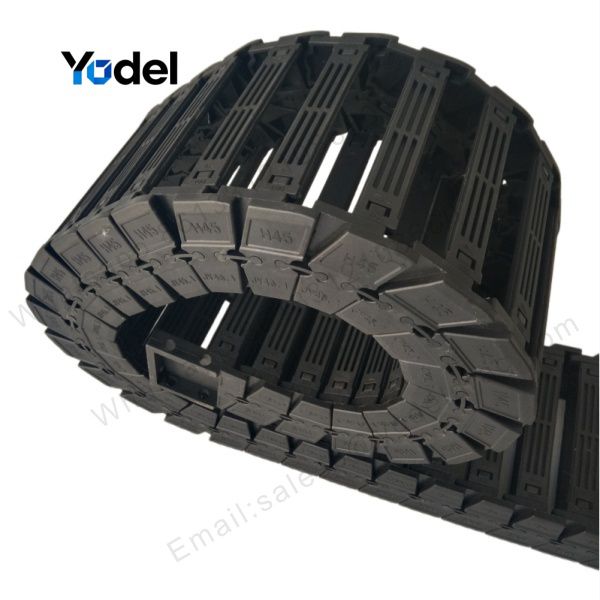

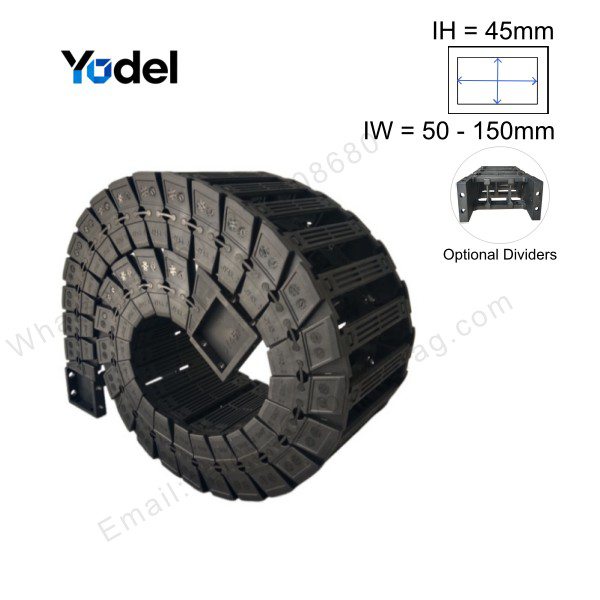

As premier drag chain suppliers, we manufacture high-performance cable tracking systems for demanding industrial automation environments. The 45x75 high-speed silent energy chain (JY45 series) features a 45mm inner height and 75mm inner width, specifically engineered for precision linear motion applications requiring ultra-quiet operation and dynamic cable protection. Constructed from high-rigidity glass fiber reinforced PA66 nylon, this open bridge cable track runs smoothly with an ultra-low noise level of ≤55dB, effectively shielding power lines, control cables, and air hoses from friction and bending fatigue during high-speed reciprocating movement.

For applications requiring wider internal cable distribution, view our 45x100 Bridge Drag Chain - Cost-effective Nylon Cable Carrier for CNC & Automation.

Key Technical Highlights & Features

As trusted B2B drag chain suppliers, we integrate specialized mechanical design features to ensure superior wear resistance and operational longevity across automated production lines.

• Engineered PA66 Construction: Formulated with 30% glass fiber reinforcement to withstand high mechanical tensile loads, ambient impact, and extreme operational temperatures.

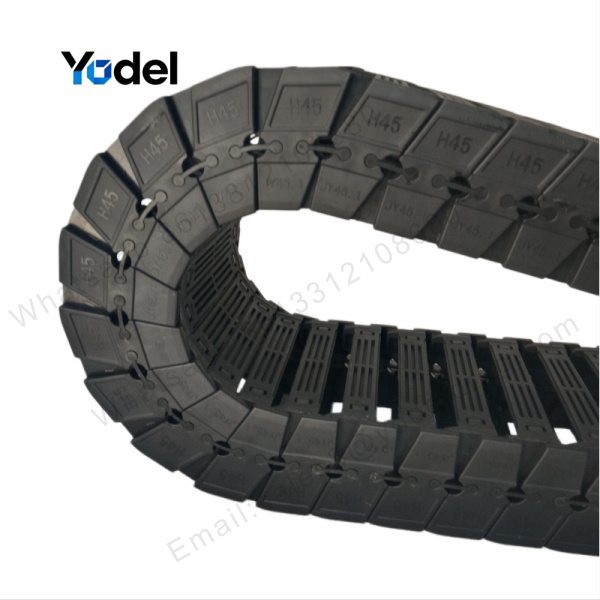

• Silent Running Joint Mechanism: Optimized hinged rubber spring stoppers dampen link-to-link impact, holding operational noise under 55dB during rapid cycling.

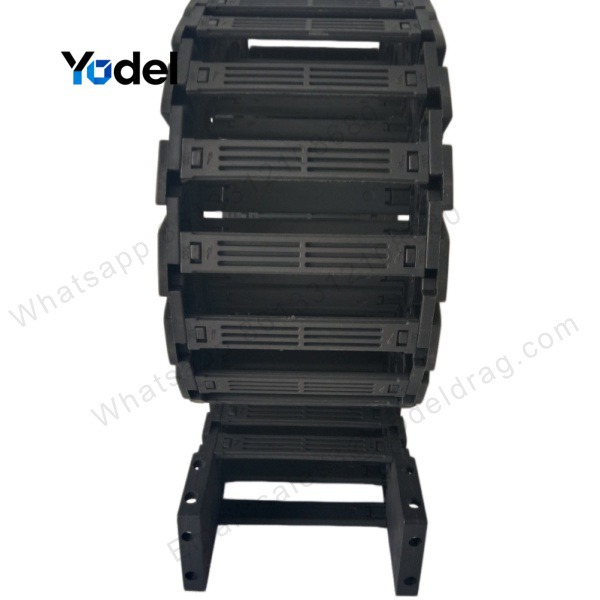

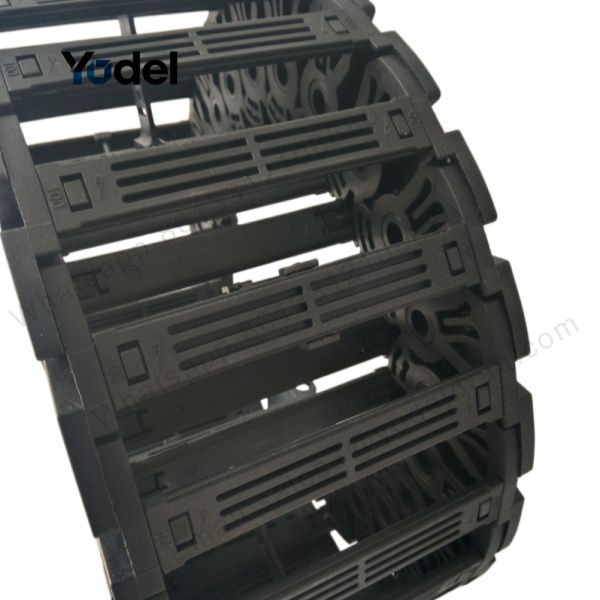

• Modular Open-Bridge Structure: Hinged cross-bars snap open along either side, allowing quick layout, inspection, and replacement of internal wiring.
• Low Operating Resistance: Reduced polygon effect design minimizes energy loss, extending the service life of long-stroke automated machinery.

Product Specifications Parameter Table

Popular Sizes and Industrial Applications

Our 45mm series energy chains provide versatile protection across automated motion systems with varied space constraints:

• 45x50mm (R80): Compact CNC lathes, electrical control enclosures, and automated electronic assembly units.
• 45x75mm (R100): Industrial multi-axis robots, high-speed pick-and-place gantries, and semiconductor handling machines.
• 45x100mm (R150): Heavy-duty gantry systems, plastic injection molding machinery, and automated material transfer lines.

How to Choose the Right Size

Partnering with reliable drag chain suppliers ensures your machinery receives optimal chain sizing for maximum cable lifespan. Follow these 4 engineering guidelines:

1. Step 1: Choose Inner Height: Select an inner height larger than 1.2 to 1.5 times the outer diameter of the largest cable or hose ($h \ge 1.2 \times D$).
2. Step 2: Choose Inner Width: Calculate total internal cable width and add 20% extra clearance to allow free cable displacement ($Bi \ge 1.2 \times \sum D$).
3. Step 3: Choose Bending Radius: Inspect the turning radius allowance on your machine frame. Always opt for a larger radius to prevent conductor stress.
4. Step 4: Confirm Installation Length: Calculate active chain length using $L = \frac{S}{2} + K$, where $S$ is stroke distance and $K$ represents bending radius geometry ($R\pi + 2P$).
