100mm Inner Height Series

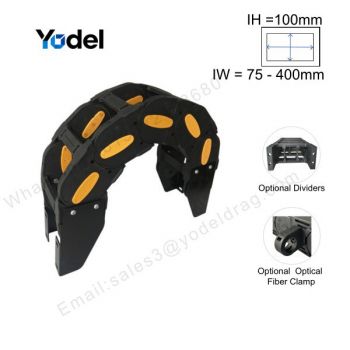

100 Series Drag Chain - Heavy-Duty Cable & Hose Carriers

The 100 series drag chain (100mm internal height) is an industrial-grade, heavy-duty cable carrier designed to protect dynamic power cables, signal wiring, hydraulic lines, and pneumatic hoses in demanding automated environments. Engineered with premium reinforced polyamide (Nylon PA66), this series delivers exceptional tensile strength, impact resistance, and an extended operational life under high-speed acceleration and long-travel conditions.

Featuring a robust bridge type open structure, the 100 series cable carrier ensures efficient heat dissipation and clear visual inspection of internal conduits. The snap-open crossbars on both sides allow rapid cable insertion and hassle-free maintenance, drastically cutting down operational downtime across CNC machinery, gantry equipment, automated material handling, and heavy-duty industrial plant systems.

Key Features & Structural Advantages

• 100mm Internal Height: Provides high load capacity for large-diameter power cables and industrial hoses (accommodating up to 90mm outer diameter).
• Heavy-Duty Steel Brackets: Equipped with reinforced steel mounting joints (end brackets) to guarantee ultra-rigid anchoring and mitigate vibration wear at connection points.
• Internal Separator System: Supports vertical and horizontal internal separators (dividers) to create customized compartments, preventing multi-layer cable friction, tangling, and uneven wear during continuous movement.
• Side Fiber Optic Clamps: Optional side cable clips / fiber optic attachments allow delicate communication lines, fiber optics, or auxiliary sensors to be routed securely along the outer frame without occupying internal cavity space.
• High-Grade Nylon PA66 Construction: Flame-retardant, UV-resistant, and highly resilient against industrial oils, chemical solvents, and harsh operating environments.
• Versatile Bending Radii: Multiple radius options (R175 to R500) cater to custom spatial limits and dynamic bend motion.

Technical Specifications: 100 Series Cable Carrier

Customization & OEM / ODM Manufacturing Services

As a direct manufacturer, we provide tailored solutions to meet specialized engineering requirements. Our OEM and ODM manufacturing services cover custom dimensions, special structural modifications, and full-brand integration:

• Custom Colors & Branding: Standard color is black (PA66). Custom colors (yellow, red, gray, blue) and laser-engraved or molded brand logos are available upon request.
• Modular Internal Partitioning: Custom vertical/horizontal divider layouts configured based on your cable schedule to maximize internal lifespan.
• Custom End Brackets: Tailored steel connection brackets with specialized mounting hole patterns for seamless machine integration.

Applications & Selection Guide

The heavy-duty 100 series drag chain is widely utilized across various automated industries, including CNC gantry machining centers, steel mill equipment, glass processing lines, port cranes, and automated warehouse logistics systems. When selecting the right model, ensure that the total outer diameter of all internal cables and hoses does not exceed 10% to 15% of the 100mm internal height (max recommended cable diameter: 90mm) to maintain optimal mechanical clearance during long-stroke reciprocating motion.
