Inner Height: 35mm(1.38in)
Inner Width: 50-200mm(1.97-7.87in)
Outer Height: 55mm(2.17in)
Outer Width: 75-225mm(2.95-8.86in)
Bending Radius: R75/100/125/150/175/200/250/300mm(2.95/3.94/4.92/5.91/6.89/7.87/9.84/11.81in)
Pitch : 68.1mm(2.68in)
Links per Meter: 15 pcs
Max cable diameter:31.5mm

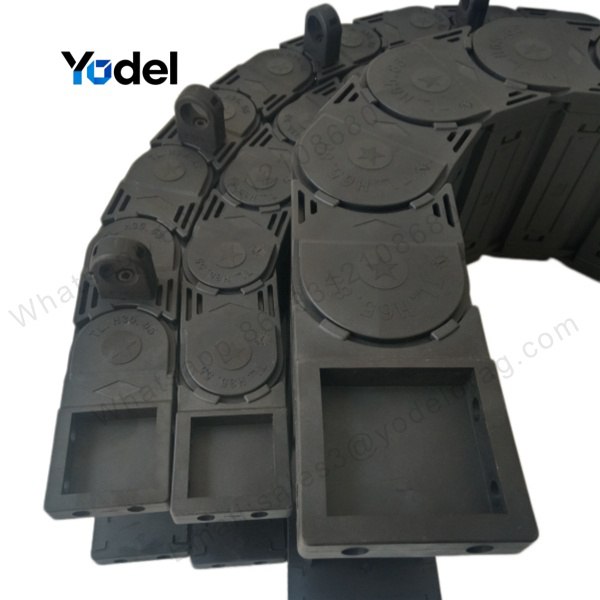

Structure: enclosed cover type
End brackets :rectangular connectors
Material: 30% glass fiber +nylon PA66
Length: cut to length / customization

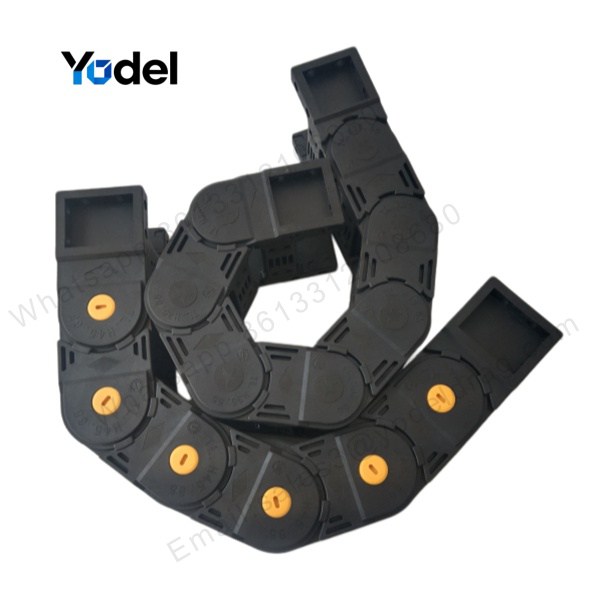

Color :black body with yellow pins/fully black

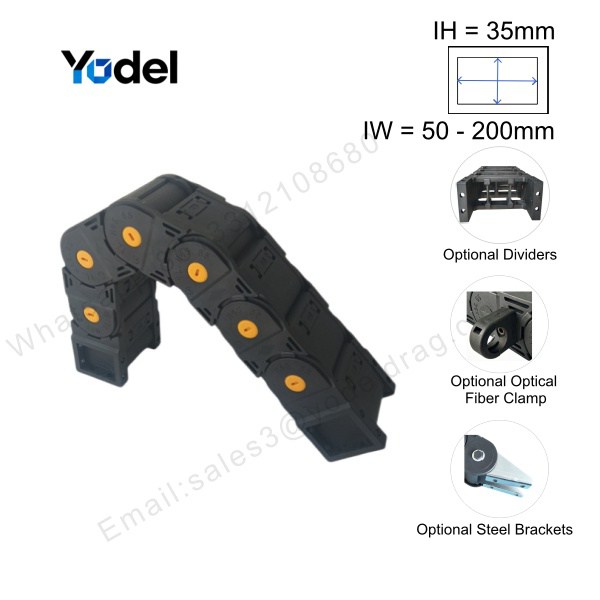

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link/steel mounting brackets
MOQ : 1Meter or Set
Custom available (logo /color )

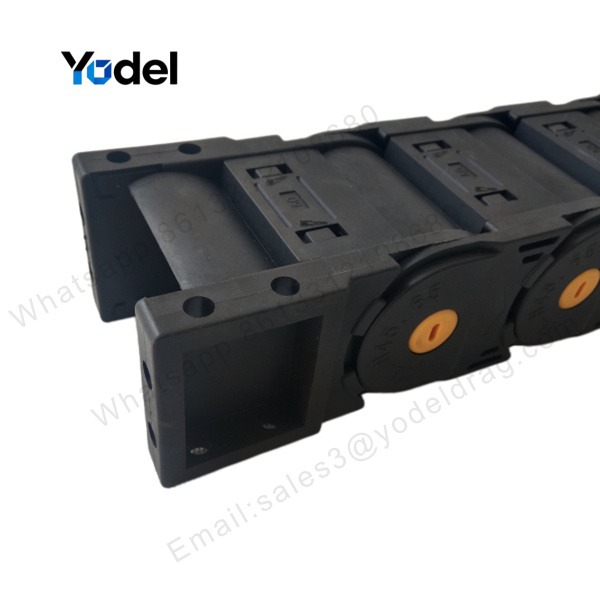

The medium-duty cable chain CNC 35x75 enclosed series is specifically designed to provide high-level protection for power cables, signal wiring, and pneumatic lines in modern automated machinery. Molded from premium reinforced nylon PA66 blended with 30% glass fiber, this cable carrier exhibits exceptional structural strength, fatigue resistance, and thermal stability in continuous operating environments.

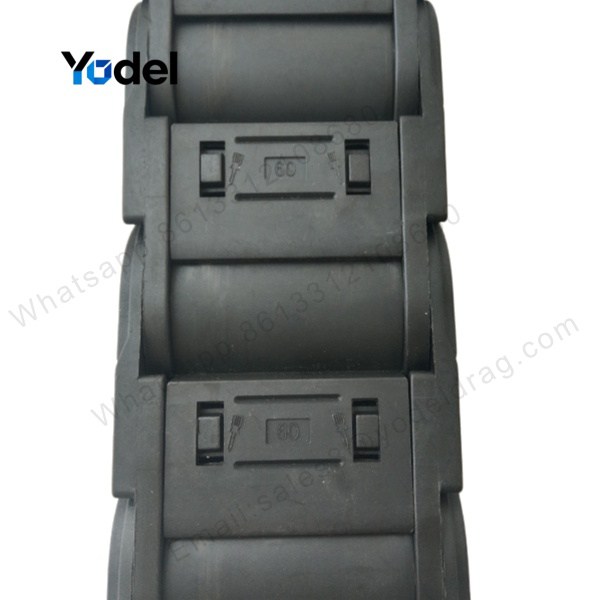

Featuring a fully enclosed outer structure, this cable carrier shields interior components against flying metal chips, wood dust, grinding debris, and oil coolants. The snap-open top and bottom covers enable seamless maintenance, allowing operators to insert or inspect cables without dismantling the chain. For open-frame setups requiring high internal clearance, check out our 35x150 Bridge Type CNC Drag Chain for alternative routing options.
|
Parameter |
Value |
|
Inner Height |
35 mm |
|
Inner Width |
75 mm |
|
Outer Height |
55 mm |
|
Outer Width |
100 mm |
|
Pitch |
68.1 mm |
|
Bend Radius |
R75 R100 R125 R150 R175 R200 R250 R300 |
|
Max Cable OD |
31.5 mm |
|
Material |
30% GF + PA66 |
|
Operating Temp |
-40°C to +130°C |
|
Structure |
Enclosed cover type |
|
Configurations |
Standard rectangular mounting brackets / Optional steel end brackets /inner separators /optical fiber clamps /custom logo /color |
We enforce strict quality control standards throughout raw material processing, injection molding, and final product packaging to guarantee reliable dynamic performance.

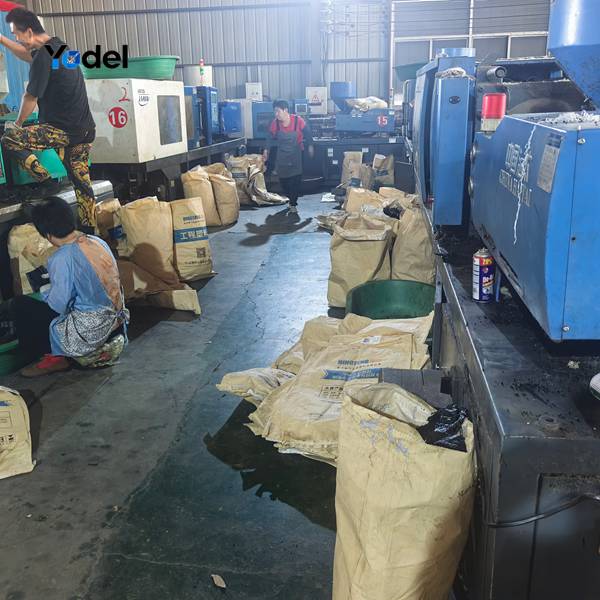

Our workshop operates high-tonnage automated injection molding machines. Each individual link and crossbar is produced under strict temperature and pressure controls to ensure uniform density and eliminate internal stress.

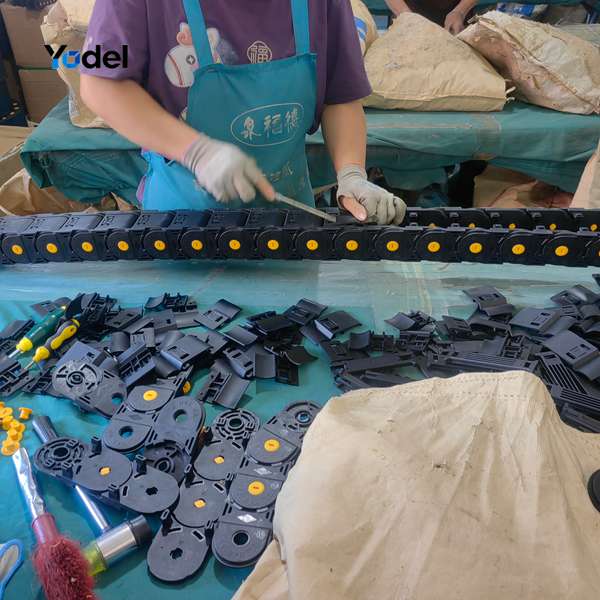

Experienced technicians meticulously fit chain links together, install yellow pin covers, and test joint flexibility by hand. Every section is inspected for smooth articulation and dimensional accuracy before proceeding to packing.

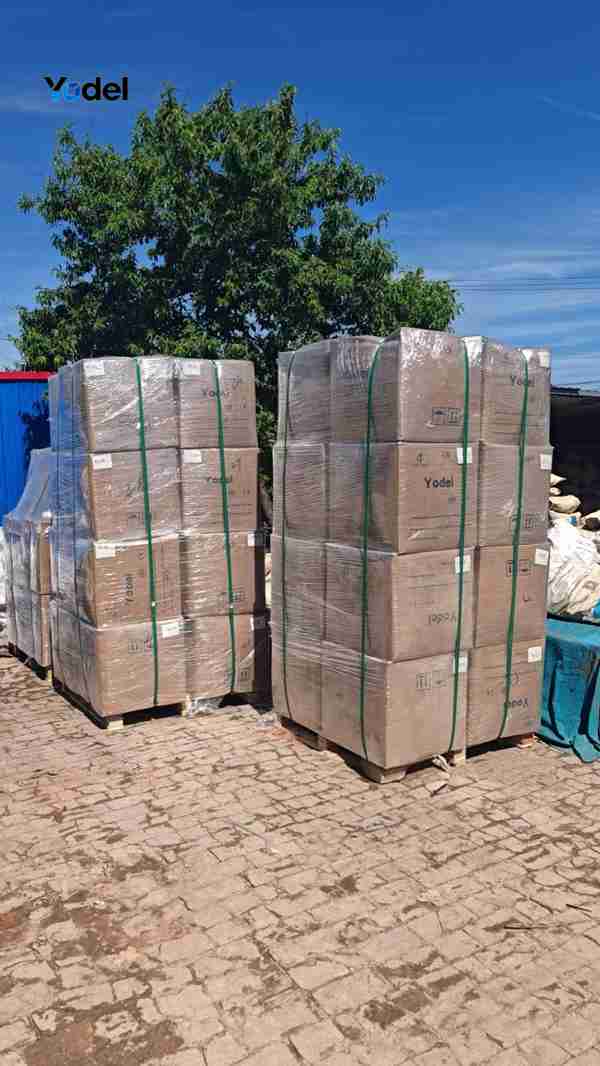

Assembled drag chains are packaged in durable corrugated cartons and secured onto wooden pallets with heavy-duty strapping and protective stretch wrap to prevent transit damage during international freight.
● Light-Duty Series (18mm, 20mm): Suited for compact machinery, low weight capacity, and short-stroke application environments.
● Medium-Duty Series (25mm, 35mm, 45mm): Ideal for medium-to-heavy cable loads, high acceleration rates, mid-length travel, and general automation systems.
● Heavy-Duty Series (55mm, 65mm, 80mm): Built for extreme payload requirements, long travel distances, harsh industrial conditions, and heavy machinery support.
|
