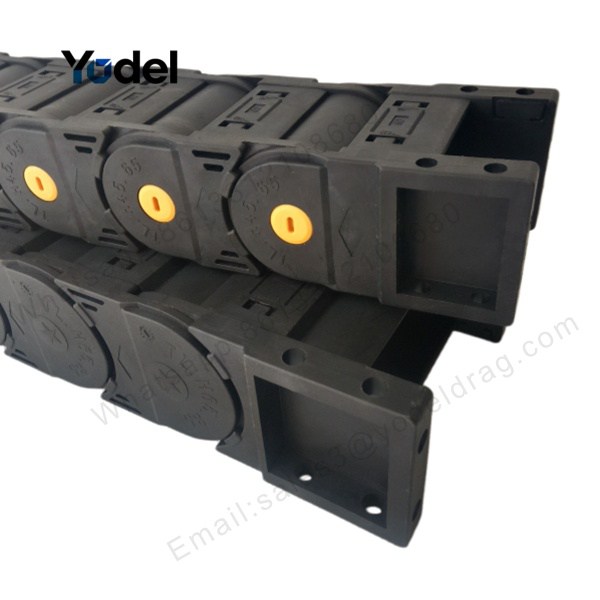

Inner Height: 80mm(3.15in)
Inner Width: 100-250mm(3.94-9.84in)
Outer Height: 106mm(4.17in)
Outer Width: 145-290mm(5.71-11.42in)
Bending Radius: R150/200/250/300/350/400mm(5.91/7.87/9.84/11.81/13.78/15.75in)
Pitch : 100mm(3.94in)
Links per Meter: 10 pcs
Max cable diameter: 72mm
Structure: enclosed cover type

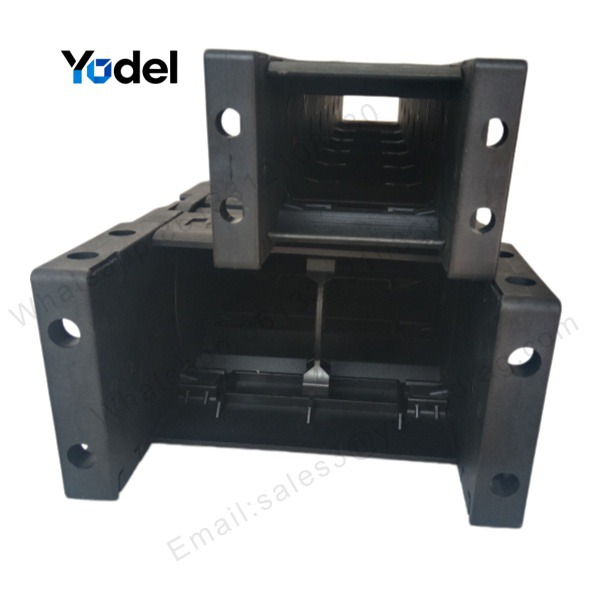

End brackets :rectangular connectors
Material: 30% glass fiber +nylon PA66
Length: cut to length / customization
Color :black body with yellow pins/fully black

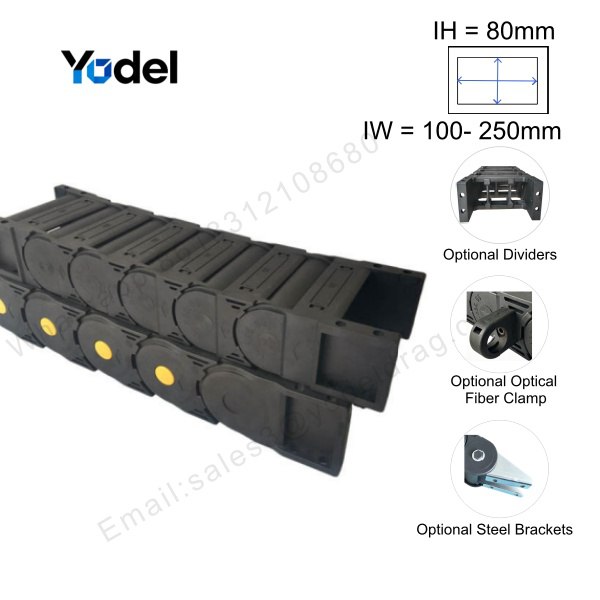

Available accessaries :inner separators (dividers )/optical fiber clamps on one side link/steel mounting brackets
MOQ : 1Meter or Set
Custom available (logo /color )

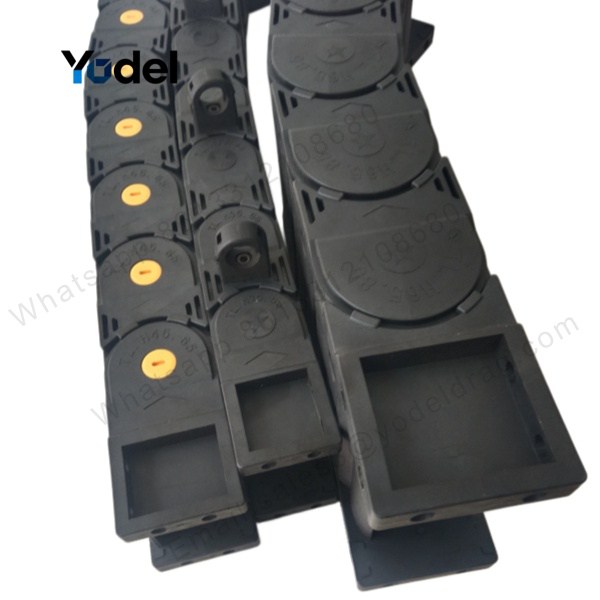

The heavy-duty drag chain cable tray 80x150 enclosed series is engineered to provide superior physical protection for high-flex power cables, servo feedback lines, hydraulic hoses, and pneumatic piping in heavy-duty automated machinery. Molded exclusively from high-grade 30% glass fiber reinforced PA66 nylon (PA66+30% GF), this cable carrier delivers exceptional tensile strength, elevated flexural modulus, creep resistance, and long-term anti-sagging performance required for heavy payload capacities and extended dynamic travel distances.

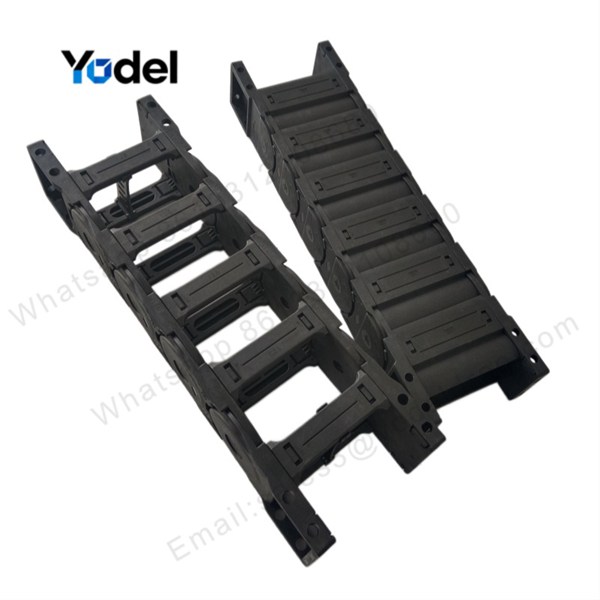

Featuring a fully enclosed outer structure, this heavy-duty cable tray seals internal conductors against hot metal chips, abrasive grinding dust, chemical coolants, and aggressive industrial debris. The snap-open cover mechanism allows maintenance engineers to easily remove lids along either side for fast cable installation, separation, and inspection. For setups requiring wider internal space or alternative clearance options, explore our 80X200 Heavy-Duty CNC Cable Track for customized routing layouts.
|
Parameter |
Value |
|
Inner Height |
80 mm |
|
Inner Width |
150mm |
|
Outer Height |
106 mm |
|
Outer Width |
195 mm |
|
Pitch |
100 mm |
|
Bend Radius |
R150 R200 R250 R300 R350 R400 |
|
Max Cable OD |
72 mm |
|
Material |
30% GF + PA66 |
|
Operating Temp |
-40°C to +130°C |
|
Structure |
Enclosed cover type |
|
Configurations |
Standard rectangular mounting brackets / Optional steel end brackets /inner separators /optical fiber clamps /custom logo /color |
Our manufacturing facility strictly controls raw material compounding, precision steel tooling, and high-pressure injection molding to unleash the maximum mechanical strength of glass-fiber reinforced nylon.
Our warehouse stores high-grade modified PA66 virgin resin compounded with 30% glass fiber pellets (PA66+30% GF). This glass-fiber formulation significantly boosts tensile strength, flexural modulus, and heat distortion temperature compared to standard unreinforced nylon drag chains.

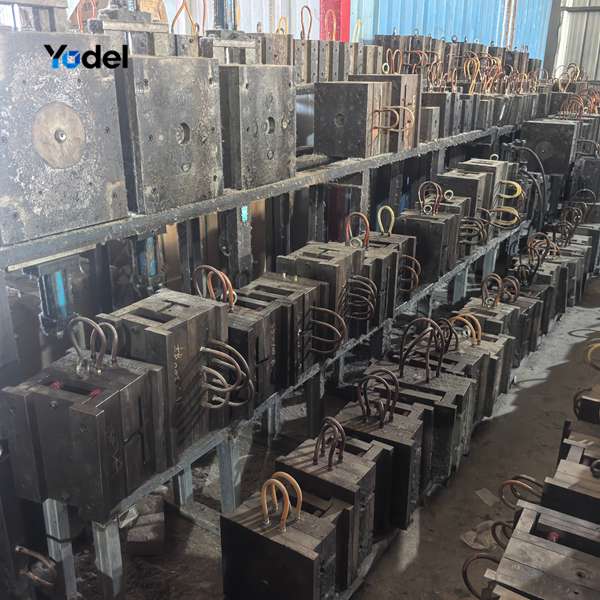

Our factory utilizes high-precision custom steel molds to withstand high injection pressures when forming glass-fiber reinforced nylon. This robust tooling ensures precise pitch length, smooth joint rotation, and minimal shrinkage for every 80x150 drag chain link.

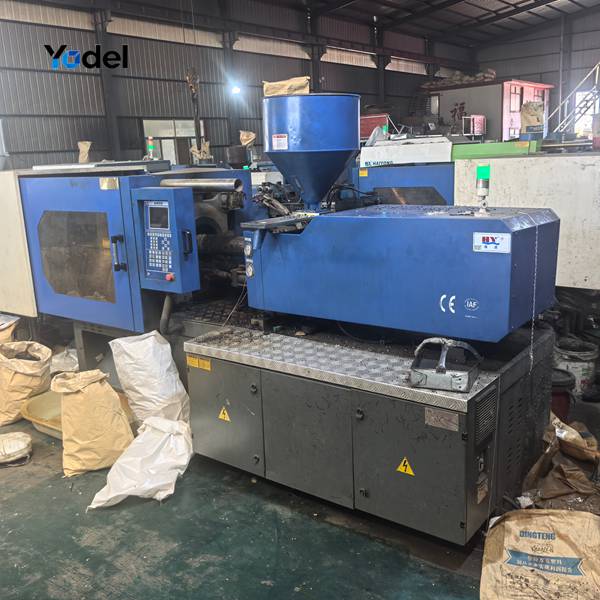

Heavy-tonnage injection molding machinery processes glass-fiber reinforced PA66 resin under strict melt temperature and holding pressure controls, producing solid, defect-free 80x150 enclosed drag chain links with uniform wall thickness and wear-resistant pin connections.
● Light-Duty Series (18mm, 20mm): Engineered for compact machine enclosures, lightweight control wiring, short travel distances, and economical automation setups.
● Medium-Duty Series (25mm, 35mm, 45mm): Formulated with 30% glass fiber reinforced nylon for medium cable payloads, high acceleration rates, and general factory machinery.
● Heavy-Duty Series (55mm, 65mm, 80mm): Built with thick-walled 30% glass fiber reinforced nylon for heavy cable/hose payloads, long unsupported travel spans, aggressive environments, and continuous heavy-duty cycles.
|
