Inner Height: 55mm(2.17in)
Inner Width: 50-200mm(1.97-7.87in)
Outer Height: 75mm(2.95in)
Outer Width: 80-230mm(3.15-9.06in)
Bending Radius: R100/125/150/175/200/250/300mm(3.94/4.92/5.91/6.89/7.87/9.84/11.81in)
Pitch : 80.5mm(3.17in)
Links per Meter: 13 pcs
Max cable diameter:49.5mm
Structure: enclosed cover type
End brackets :rectangular connectors
Material: 30% glass fiber +nylon PA66
Length: cut to length / customization
Color :black body with yellow pins/fully black

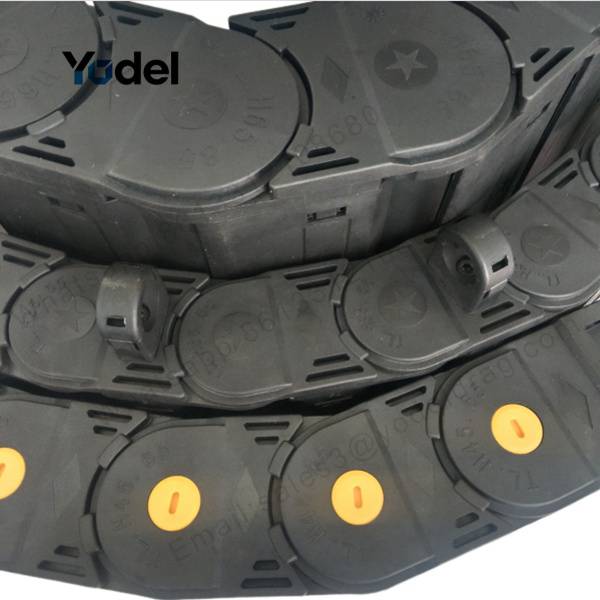

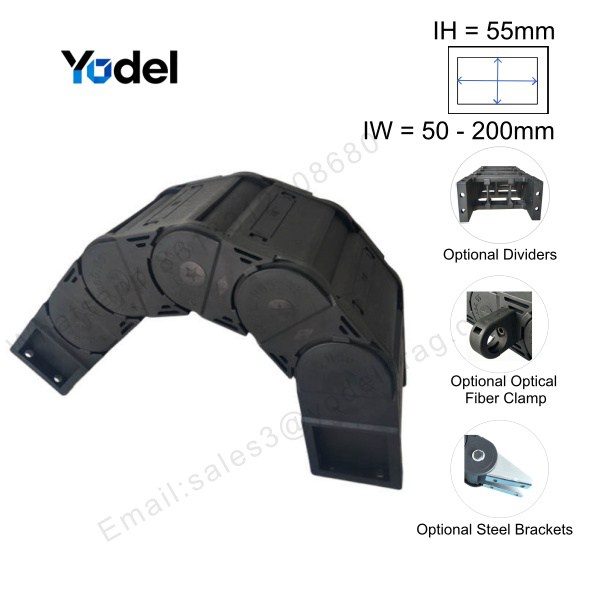

Available accessaries :inner separators (dividers )/optical fiber clamps on one side link/steel mounting brackets
MOQ : 1Meter or Set
Custom available (logo /color )

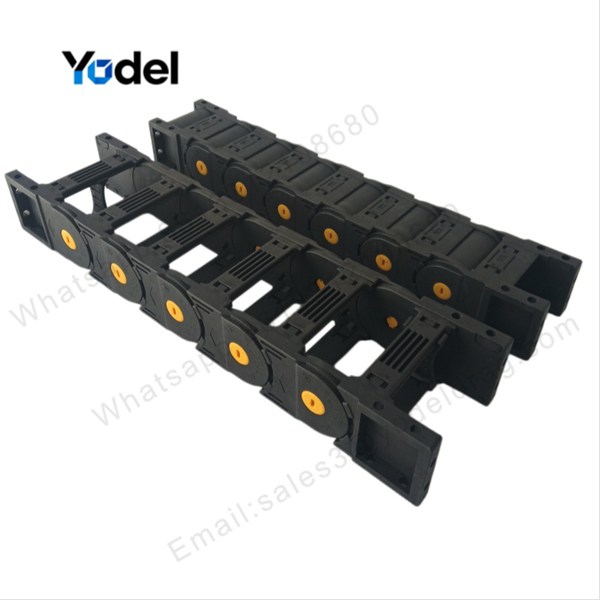

The heavy-duty cable carrier chain 55x200 enclosed series is engineered to deliver superior mechanical protection for heavy electrical cables, hydraulic hoses, and pneumatic lines in large-scale automated machinery. Molded exclusively from high-performance 30% glass fiber reinforced PA66 nylon (PA66+30% GF), this cable carrier provides maximum tensile strength, elevated flexural modulus, and anti-sagging stability necessary for extreme load capacities and long-stroke dynamic travel.

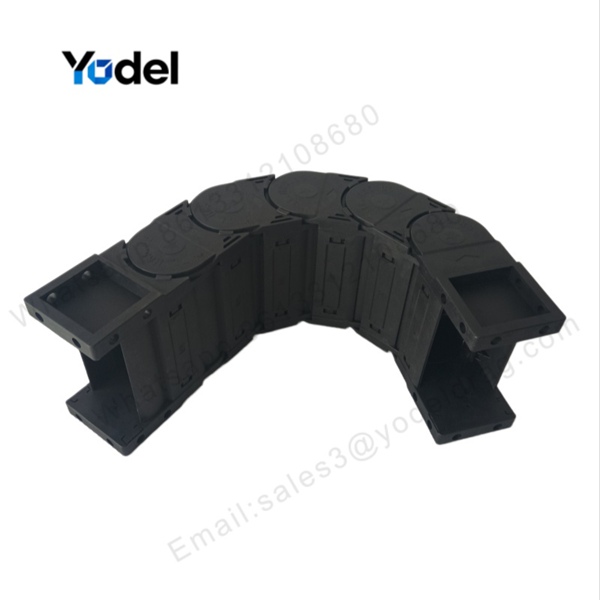

Featuring a fully enclosed outer structure, this heavy-duty cable carrier completely seals internal wiring against hot metal chips, grinding dust, coolant splash, and aggressive environmental contaminants. The snap-open cover mechanism allows maintenance engineers to easily remove lids along either side for fast cable installation and inspection. For setups requiring open-frame layouts or narrower internal clearance options, explore our 55x150 Bridge CNC Cable Carrier for customized routing requirements.
|
Parameter |
Value |
|
Inner Height |
55 mm |
|
Inner Width |
200 mm |
|
Outer Height |
75 mm |
|
Outer Width |
230 mm |
|
Pitch |
80.5 mm |
|
Bend Radius |
R100 R125 R150 R200 R250 R300 |
|
Max Cable OD |
49.5 mm |
|
Material |
30% GF + PA66 |
|
Operating Temp |
-40°C to +130°C |
|
Structure |
Enclosed cover type |
|
Configurations |
Standard rectangular mounting brackets / Optional steel end brackets /inner separators /optical fiber clamps /custom logo /color |
Our manufacturing facility strictly controls raw material compounding, precision tooling, and high-pressure molding to maximize the structural strength of glass fiber reinforced nylon.

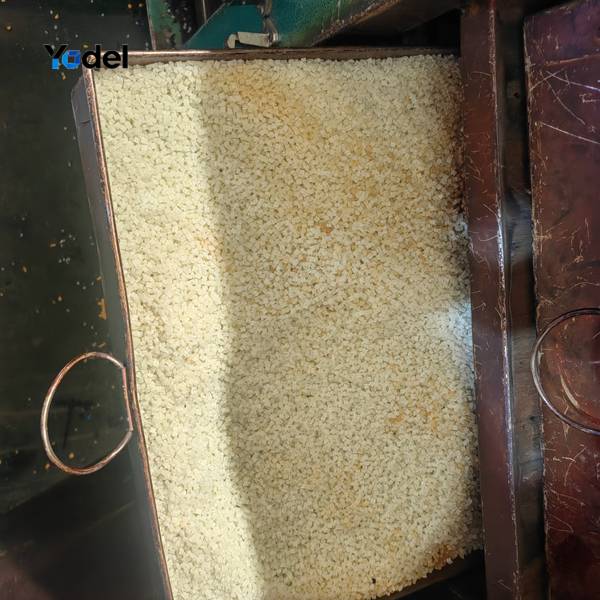

We use virgin PA66 raw material compounded with 30% glass fiber reinforcement pellets (PA66+GF30). This high-performance material matrix provides superior mechanical strength, high impact resistance, and long-term dimensional stability compared to standard unreinforced nylon.

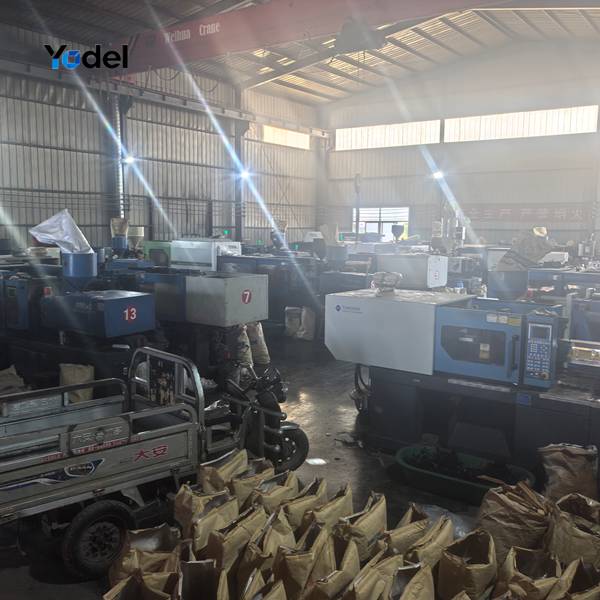

Our workshop is equipped with high-tonnage injection molding machines designed to process 30% glass fiber reinforced nylon under precise temperature and pressure controls, ensuring dense, defect-free structure and uniform wall thickness for every 55x200 chain link.

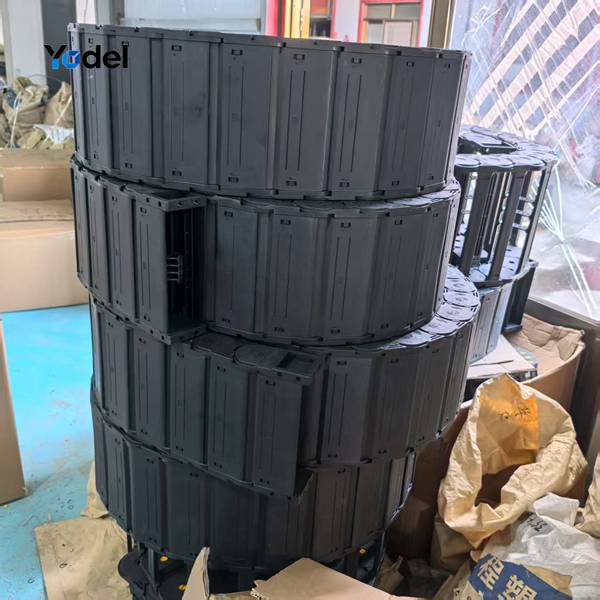

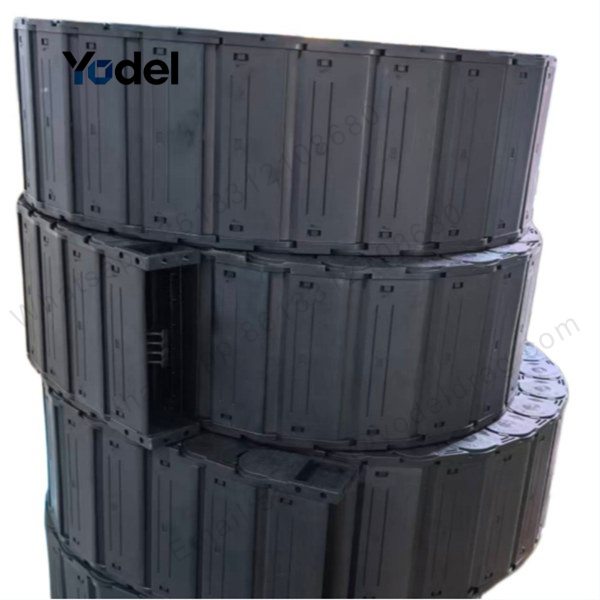

Fully assembled heavy-duty 55x200 enclosed cable carrier chains stacked and undergo 100% quality inspection. The 30% glass fiber reinforced nylon construction ensures non-deforming, high-load carrying performance during long-stroke dynamic operations.It is available to install dividers or separators to avoid entanglement or interference between cables.
● Light-Duty Series (18mm, 20mm): Designed for compact spaces, lightweight cables, short stroke lengths, and standard economical automation equipment.
● Medium-Duty Series (25mm, 35mm, 45mm): Molded with 30% glass fiber reinforced nylon for medium cable loads, moderate-to-high speeds, and versatile industrial applications.
● Heavy-Duty Series (55mm, 65mm, 80mm): Engineered with thick-walled 30% glass fiber reinforced nylon for extreme payloads, long travel distances, aggressive environments, and continuous high-frequency heavy machinery operation.
|
