Inner Height: 25mm(0.98in)
Inner Width: 25-125mm(0.98-4.92in)
Outer Height: 40mm(1.57in)
Outer Width: 44-144mm(1.73-5.67in)
Bending Radius: R 55/75/100/125/150/175/200mm(2.17/2.95/3.94/4.92/5.91/6.89/7.87in)
Pitch :46.00mm(1.81in)
Links per Meter:22 pcs
Structure: enclosed cover type
End brackets :rectangular connectors
Material: 30% glass fiber +nylon PA66
Length: Cut to length / Customization
Color :black body with yellow pins/fully black

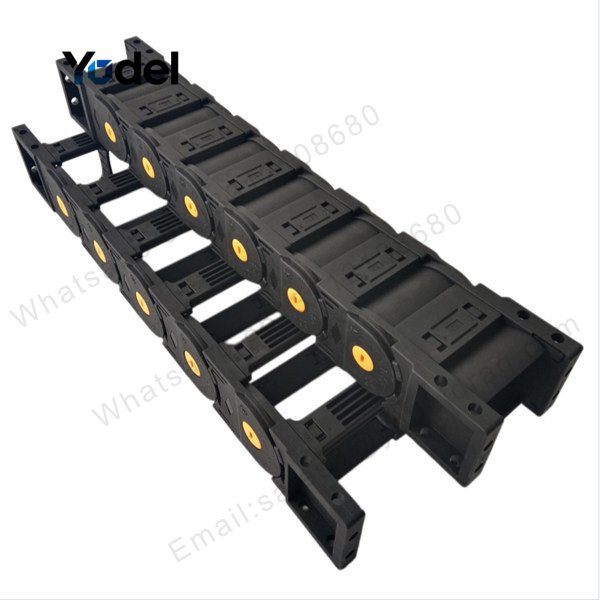

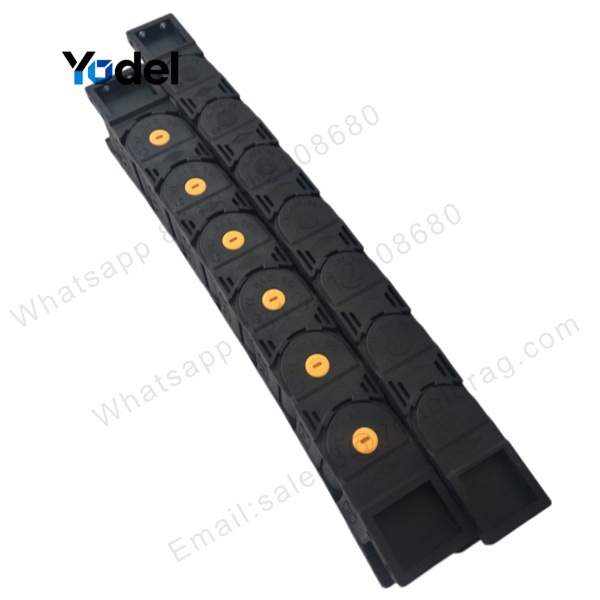

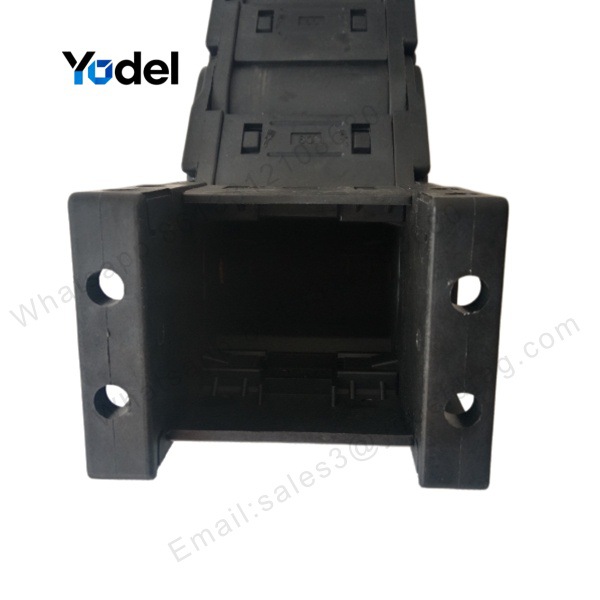

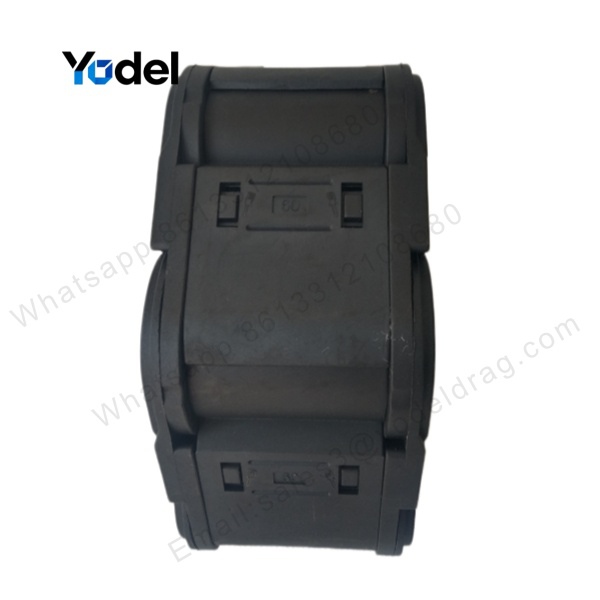

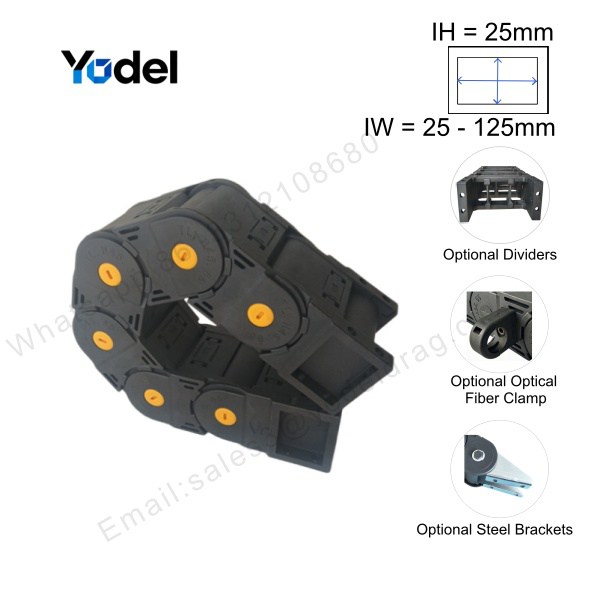

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link/steel end brackets
MOQ : 1Meter or Set
Custom service : Logo /color
The medium-duty CNC cable chain (25x57mm enclosed series) is engineered to deliver reliable protection for hydraulic hoses, electrical cables, and pneumatic lines operating in precision industrial equipment. Constructed from high-rigidity reinforced nylon (PA66 mixed with 30% glass fiber), this fully enclosed cable carrier blocks foreign contaminants like metal chips, dust, and coolant spray while supporting smooth, high-frequency linear movement.
Designed for long service life, balanced load capacities, and minimal pitch wear, the snap-open enclosed cover structure enables quick access for fast maintenance and hassle-free wiring. For applications requiring an open frame layout with enhanced visibility, explore our 25x75 CNC Drag Chain R55 for similar versatile performance.
|
Parameter |
Value |
|
Inner Height |
25 mm |
|
Inner Width |
57 mm |
|
Outer Height |
40 mm |
|
Outer Width |
76 mm |
|
Pitch |
46 mm |
|
Bend Radius |
R55 R75 R100 R125 R150 R175 R200 |
|
Max Cable OD |
22.5 mm |
|
Material |
30% GF + PA66 |
|
Operating Temp |
-40°C to +130°C |
|
Structure |
Enclosed cover type |
|
Configurations |
Standard rectangular mounting brackets / Optional steel end brackets /inner separators /optical fiber clamps /custom logo /color |
To ensure consistent performance and structural strength in automated machinery, our manufacturing process follows strict ISO standards across all production stages.

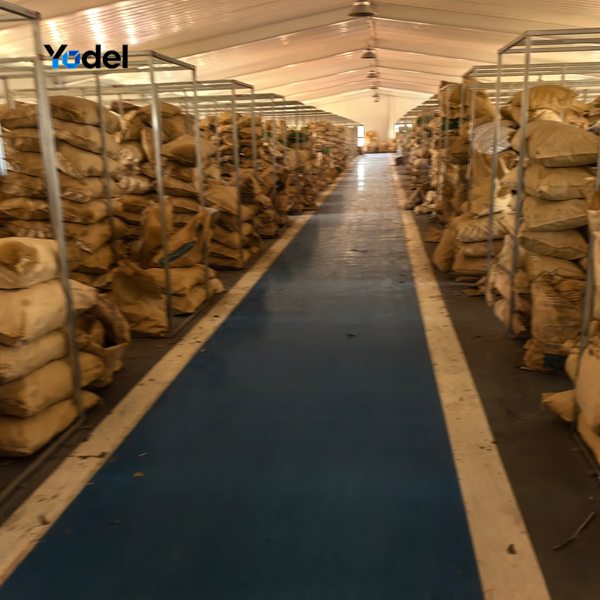

We exclusively source high-purity PA66 resin reinforced with 30% glass fiber. Raw materials are organized in climate-controlled storage to maintain optimal moisture levels and physical stability prior to molding.

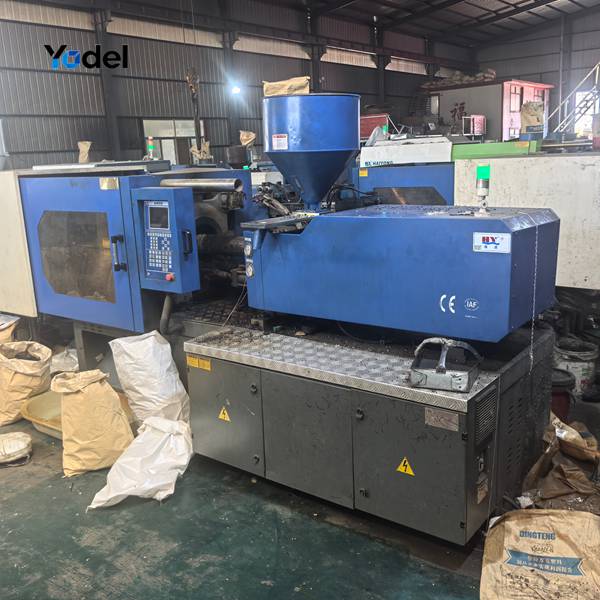

Utilizing advanced high-pressure injection molding machines, each chain link and cover plate is formed with precise dimensional tolerances. This ensures uniform wall thickness, smooth joint articulation, and excellent impact resistance.

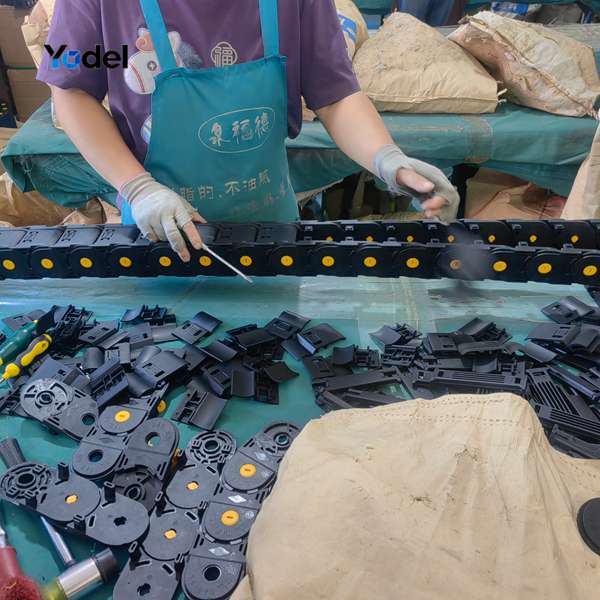

Trained technicians inspect each link, assemble snap-fit components, and verify flexibility manually. Every section undergoes strict tensile and operational testing prior to final packaging.
● Light-Duty Series (18mm, 20mm): Best for light loads, compact spaces, short stroke lengths, and cost-effective standard setups.
● Medium-Duty Series (25mm, 35mm, 45mm): Ideal for medium loads, moderate-to-high speeds, mid-range travel distances, and versatile industrial automation systems.
● Heavy-Duty Series (55mm, 65mm, 80mm): Engineered for ultra-heavy cable/hose loads, long travel strokes, harsh industrial environments, and continuous high-frequency heavy machinery operation.
|
