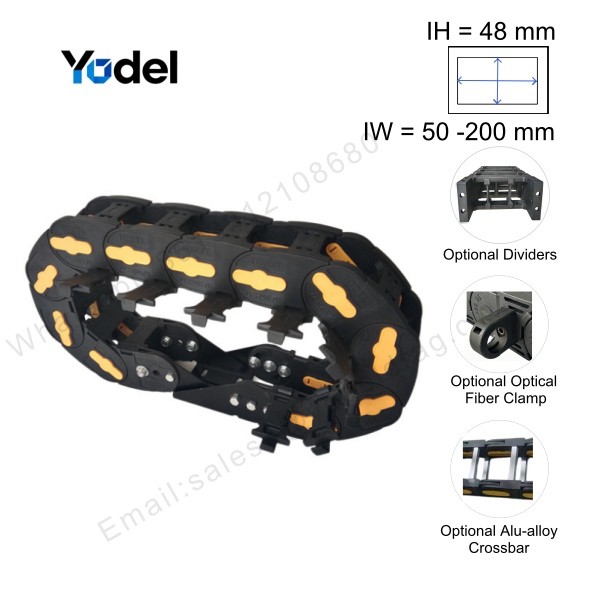

Heavy Duty 48x125 Snap-Open Bridge Type Plastic Cable Chain Track

Heavy Duty 48x125 Snap-Open Bridge Type Plastic Cable Chain Track

Product Attributes :

Inner Height: 48mm(1.89in)

Inner Width: 50-200mm(1.97-7.87in)

Outer Height: 70mm(2.76in)

Outer Width: 77-227mm(3.03-8.94in)

Bending Radius: R75/100/125/150/175/200/250mm(2.95/3.94/4.92/5.91/6.89/7.87/9.84in)

Pitch : 80mm(3.15in)

Links per Meter: 13 pcs

Max cable diameter:43mm

Structure: snap open bridge type

End brackets :steel brackets +strengthening bolts

Material: 30% glass fiber +nylon PA66

Length: cut to length / customization

Color : black body +yellow/blue three-pins

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link/alu-alloy crossbars

MOQ : 1Meter or Set

Custom available (logo /color )

Product Description

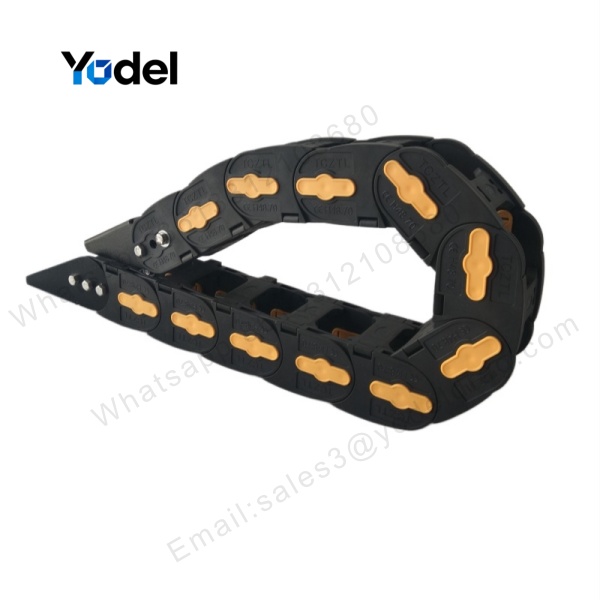

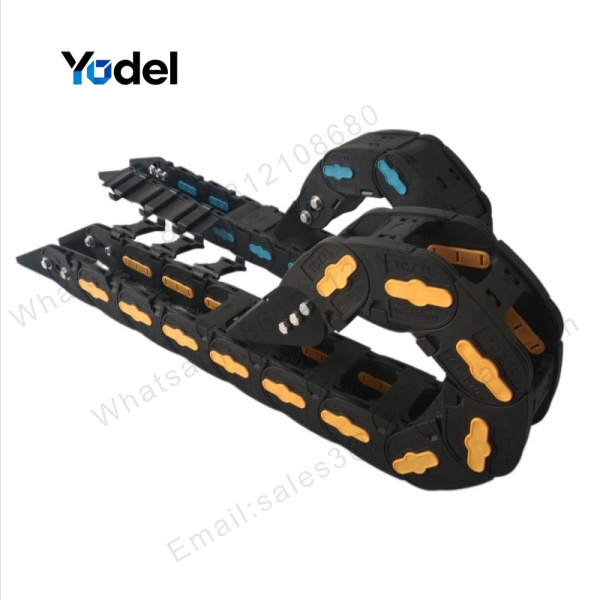

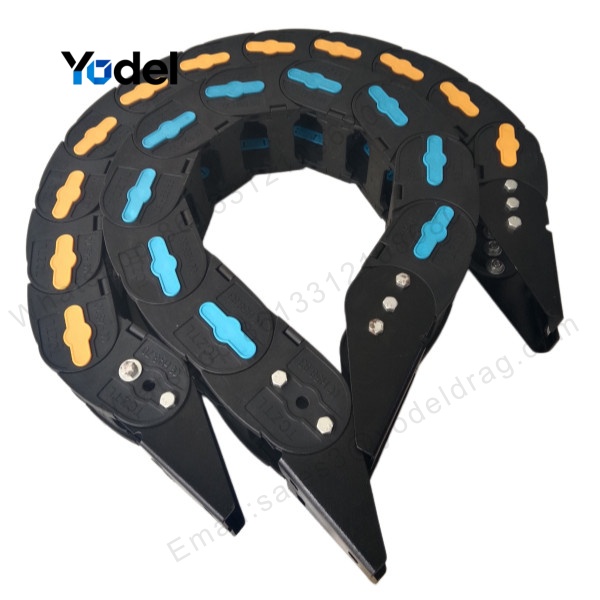

Heavy Duty 48x125 Snap-Open Bridge Plastic Cable Chain Track

Engineered for long-travel industrial automation and high mechanical loads, our YDLHSOB48125 plastic cable chain track delivers reliable protection for power cables, control harnesses, and pneumatic hoses. Featuring a robust snap-open bridge structure, this heavy-duty cable carrier simplifies wire routing and daily maintenance without needing to disassemble end connectors.

Key Features & Performance

Reinforced Nylon Material: Injection molded from 30% glass-fiber reinforced PA66 for maximum tensile strength, high rigidity, and thermal endurance (-40°C to +130°C).

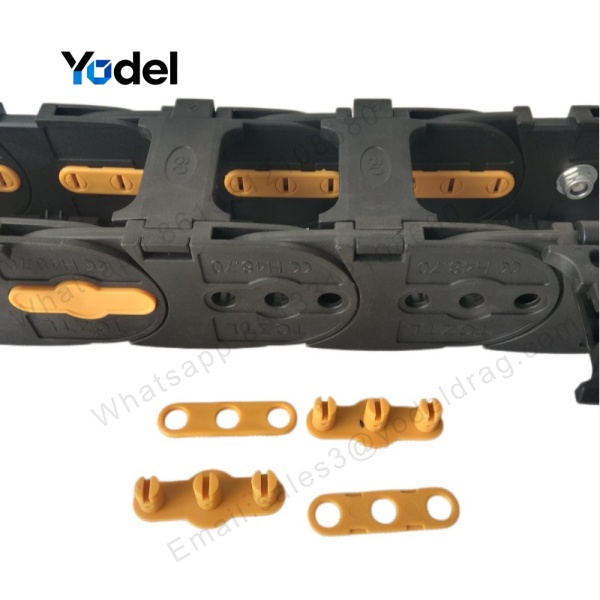

Snap-Open Bridge Design: Quick-release crossbars along the inner or outer radius allow effortless cable laying and fast system inspection.
Versatile Customization:
- Optional Inner Separators: Organize hydraulic lines, power cables, and optical fibers in multi-layer channels.
- Replaceable Aluminum Alloy Crossbars: Available for extra-wide spans and severe mechanical strains.
- Steel Mounting Brackets: Heavy-gauge end brackets with secure bolt-locking to withstand rapid acceleration.
OEM & ODM Capabilities: Full support for custom body colors, pin accents (yellow/blue), crossbar lengths, and brand logos.

Product Specifications (Model: YDLHSOB48125)

Parameter	Value
Model	YDLHSOB48125
Inner Height	48 mm
Inner Width	125 mm
Outer Height	70 mm
Outer Width	152 mm
Pitch	80 mm
Bend Radius	R75 R100 R125 R150 R175 R200 R250
Max Cable OD	43 mm
Material	30% GF + PA66
Operating Temp	-40°C to +130°C
Structure	snap-open bridge type + steel mounting brackets
Color	black body + yellow /blue three-pins
Configurations	steel end brackets /optional inner separators /optional optical fiber clamps/optional alu-alloy crossbars /custom logo /color

Need fully enclosed protection against hot metal chips and debris? Check out our (48x150mm / R200) Enclosed Side-Open Plastic Nylon Cable Carrier.

Manufacturing Process & Quality Control

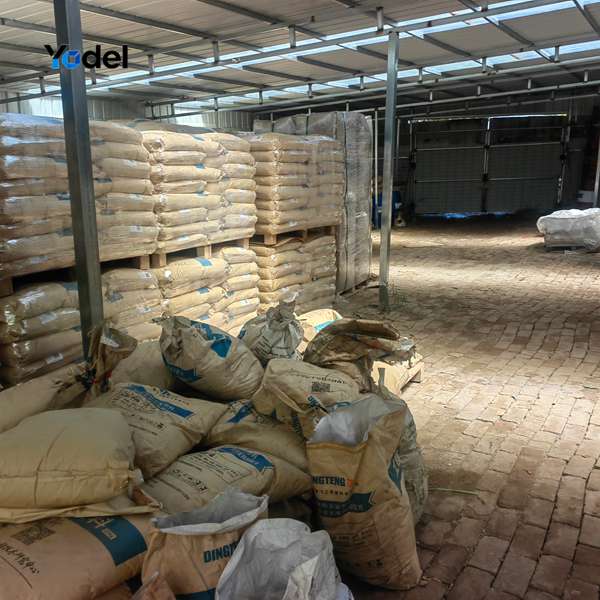

1. High-Grade Raw Material Storage

We stock premium PA66 reinforced with 30% glass fiber to guarantee that every batch of our 48x125 plastic cable chain tracks achieves high dynamic strength, wear resistance, and long-lasting performance in heavy-duty automated environments.

Plastic cable chain track 48x125 raw material warehouse PA66 30% GF stock

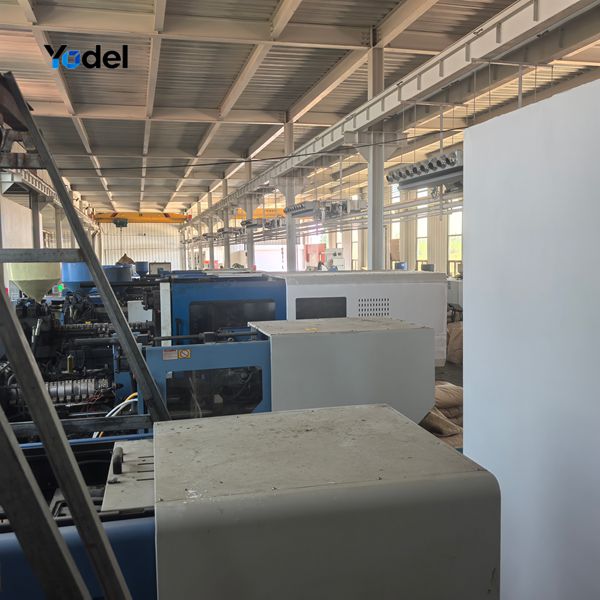

2. Precision Production Workshop

Equipped with automated high-tonnage injection molding machinery, our production workshop maintains tight dimensional tolerances across all link components to ensure smooth joint movement and minimal operating noise.

Plastic cable chain track 48x125 precision injection molding production line

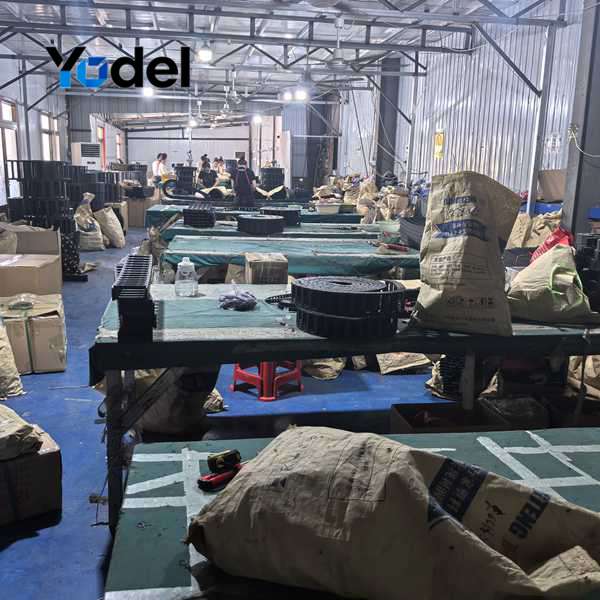

3. Standardized Assembly Line

Our skilled assembly team builds and inspects each 48x125 plastic cable chain track, verifying crossbar locking mechanisms, link flexibility, and mounting bracket fits to ensure instant installation upon delivery.
