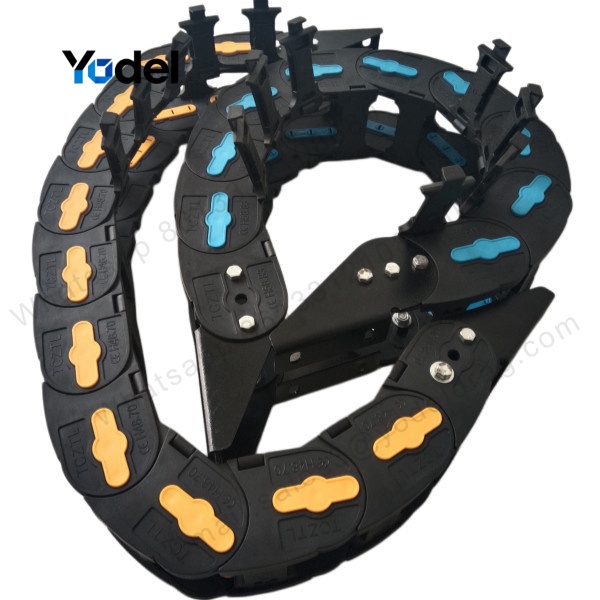

Heavy Duty 38x125 Snap-Open Bridge Wire Carrier Drag Chain

Heavy Duty 38x125 Snap-Open Bridge Wire Carrier Drag Chain

Product Attributes :

Inner Height: 38mm(1.50in)

Inner Width: 50-200mm(1.97-7.87in)

Outer Height: 60mm(2.36in)

Outer Width: 75-225mm(2.95-8.86in)

Bending Radius: R75/100/125/150/175/200/250mm(2.95/3.94/4.92/5.91/6.89/7.87/9.84in)

Pitch : 80mm(3.15in)

Links per Meter: 13 pcs

Max cable diameter:34mm

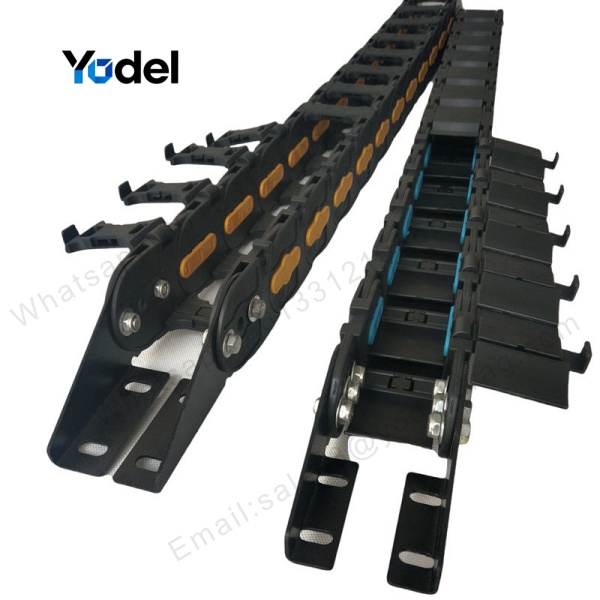

Structure: snap-open type +bridge crossbars

End brackets :steel brackets +strengthening bolts

Material: 30% glass fiber +nylon PA66

Length: cut to length / customization

Color : black body +yellow/blue three-pins

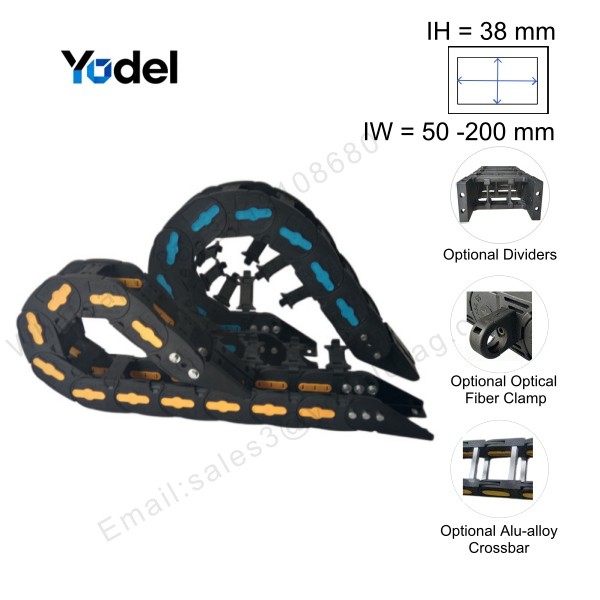

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link/alu-alloy crossbars

MOQ : 1Meter or Set

Custom available (logo /color )

Product Description

Heavy Duty 38x125 Snap-Open Bridge Wire Carrier Drag Chain

Engineered for high-load and long-travel industrial automation, our YDLHSOB38125 wire carrier drag chain provides superior cable protection in demanding environments. Featuring a snap-open bridge structure, this heavy-duty cable carrier simplifies installation and maintenance, allowing for quick cable routing without disassembling connectors.

Key Features & Configurations

Heavy-Duty Construction: Molded from 30% glass-fiber reinforced PA66 for exceptional tensile strength, rigidity, and high-temperature resistance (-40°C to +130°C).

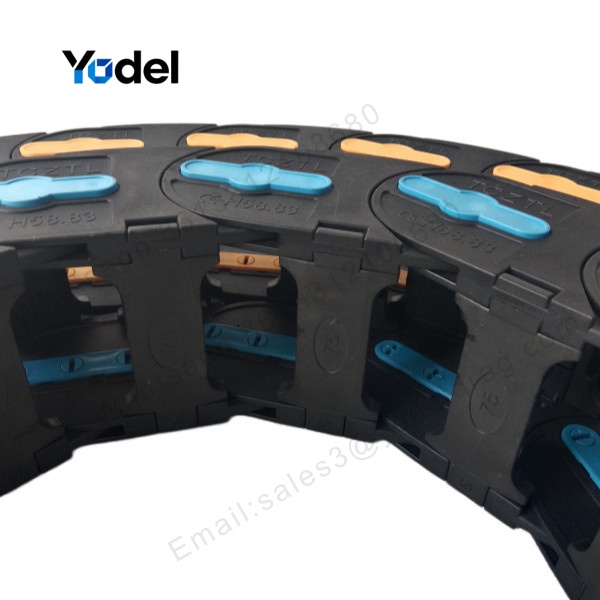

Snap-Open Bridge Design: Crossbars snap open easily along the inner or outer radius for hassle-free cable placement and fast maintenance.
Versatile Modular Upgrades:
- Optional Inner Separators: Keep power cables, control lines, and pneumatic hoses organized and separated.
- Side Optical Fiber Clamps: Secure delicate optical fibers on the outer chain link.
- Replaceable Aluminum Alloy Crossbars: Available for extra-wide custom spans and heavy mechanical loads.

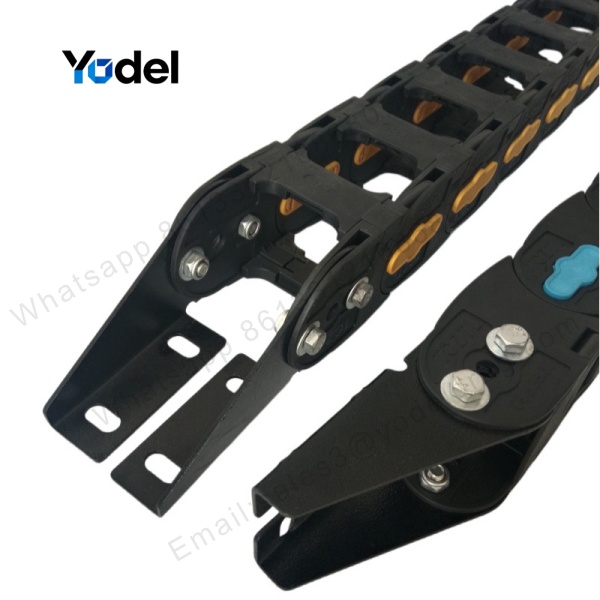

- Steel Mounting Brackets: Heavy-duty end brackets with bolt locking to ensure rigid fixing during rapid acceleration.
OEM & ODM Customization: Custom body colors, pin accents (yellow/blue), crossbar lengths, and custom brand logos are fully supported.

Product Specifications

Parameter	Value
Model	YDLHSOB38125
Inner Height	38 mm
Inner Width	125 mm
Outer Height	60 mm
Outer Width	150 mm
Pitch	80 mm
Bend Radius	R75 R100 R125 R150 R175 R200 R250
Max Cable OD	34 mm
Material	30% GF + PA66
Operating Temp	-40°C to +130°C
Structure	snap-open bridge type + steel mounting brackets
Color	black body + yellow /blue three-pins
Configurations	steel end brackets /optional inner separators /optional optical fiber clamps/optional alu-alloy crossbars /custom logo /color

Looking for full enclosure protection against hot chips and flying debris? Check our 38x75 Enclosed Drag Chain for enclosed cable solutions.

Manufacturing Excellence & Quality Assurance

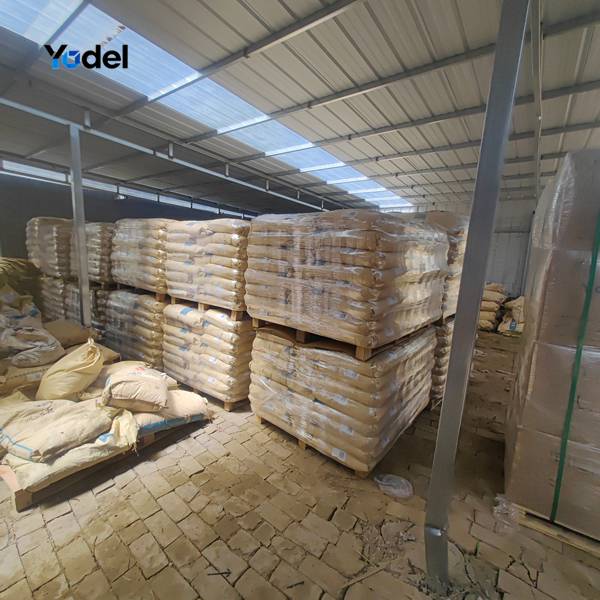

High-Grade Raw Materials Storage

We strictly source premium PA66 reinforced with 30% glass fiber to ensure our wire carrier drag chain products withstand heavy loads, high dynamic acceleration, and continuous flex wear over millions of motion cycles.

Wire Carrier Drag Chain 38x125 PA66 30% GF Raw Material Warehouse

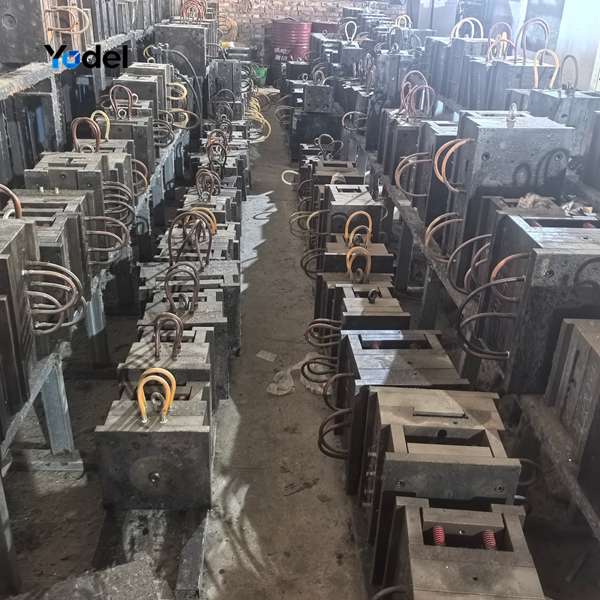

Precision Injection Molds Center

Our in-house mold processing center maintains tight tolerances on every link component. This guarantees smooth articulation, low-noise operation, and long-term structural integrity even on long-travel gantries and high-load machinery.

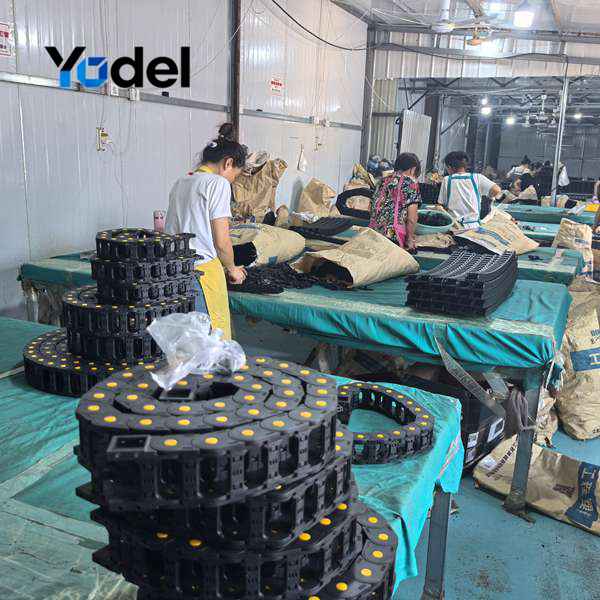

Standardized Assembly & Quality Control

Every batch of our 38x125 cable tracks is assembled and tested in our standardized workshop, ensuring instant clip locking, smooth hinge rotation, and quick delivery times for standard and custom OEM/ODM orders.
