Heavy-Duty Hydraulic Hose Drag Chain (58x150mm Snap-Open Bridge Type)

Engineered for demanding industrial applications, our 58x150mm heavy-duty hydraulic hose drag chain delivers superior performance in guiding and protecting large hydraulic hoses, heavy power cables, and multi-line bundles. Constructed from high-rigidity 30% glass fiber reinforced PA66 nylon, this snap-open bridge-style cable carrier provides exceptional mechanical strength, heat endurance, and wear resistance. Its quick-release side-opening crossbars ensure swift cable routing and effortless maintenance during long stroke travel operations in heavy machinery, CNC centers, and automated manufacturing lines.

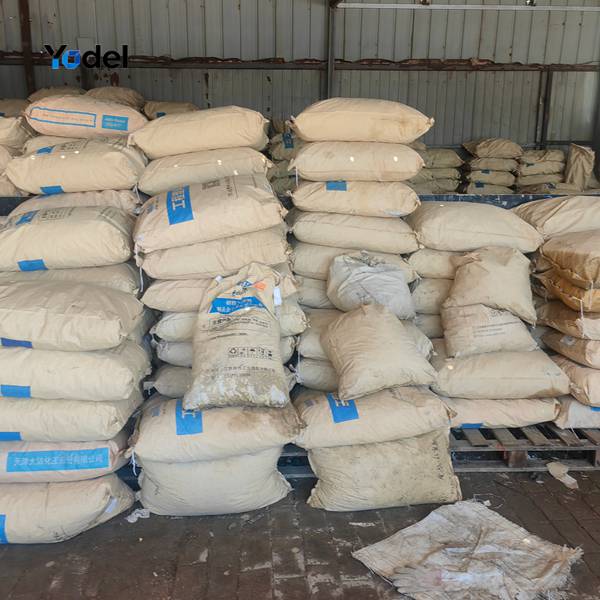

Figure 1: High-grade PA66 raw material with 30% glass-fiber reinforcement ensuring long-term strength and non-sagging support for heavy hydraulic hose drag chains.

Key Features & Performance Advantages

• Reinforced Nylon Construction: Molded from premium PA66 reinforced with 30% glass fiber, capable of withstanding heavy impact, chemical corrosion, oil exposure, and temperatures from -40°C to +130°C.
• Snap-Open Bridge Design: Features dual-side opening crossbars that allow rapid installation, inspection, and replacement of hydraulic hoses without dismantling the entire assembly.
• High Load Capacity & Long Travel: Specially structuralized to support heavy hydraulic hose bundles over long travel distances with stable movement speed up to 5 m/s.
• Heavy-Duty Steel Mounting Brackets: Comes with robust steel end connectors that provide rock-solid anchoring and eliminate joint play under rapid continuous acceleration.

Product Specifications (Model: YDLHSOB58150)

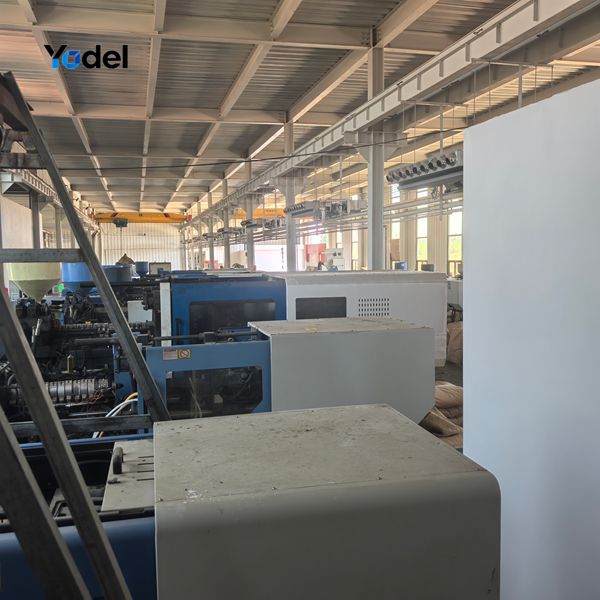

Figure 2: Advanced injection molding workshop for manufacturing robust 58x150mm nylon hydraulic hose drag chain components.

Industrial Applications & Sizing Options

The 58x150mm hydraulic hose drag chain is widely utilized across heavy industrial manufacturing sectors, including gantry CNC machining centers, automated welding equipment, automotive stamping lines, port machinery, and large-scale hydraulic excavators. Its heavy-load capacity makes it ideal for guiding stiff hydraulic lines and high-density power cables.

• 58x100mm Inner Dimensions: Ideal for standard CNC machine tools, automated conveying units, and medium hydraulic setups.
• 58x150mm Inner Dimensions: High-capacity model optimized for long-stroke industrial gantries and heavy multi-hose hydraulic systems.
• 58x200mm Inner Dimensions: Extra-wide design for maximum cable capacity; for harsh or dust-filled environments, check out our 58x200mm enclosed Cable Chain Drag chain for complete chip and debris protection.

Figure 3: Assembly line where each 58x150mm snap-open hydraulic hose drag chain section is hand-assembled, fitted with steel brackets, and quality tested.

Selection Advice: Bridge Type vs. Enclosed Type

• Snap-Open Bridge Type (58x150mm): Best suited for clean to general factory settings requiring optimal heat dispersion for hydraulic hoses, easy visual inspection, and rapid maintenance access.
• Fully Enclosed Type: Recommended for environments with hot metal sparks, wood dust, cutting fluid splashes, or intense abrasive debris to fully guard sensitive lines inside.
