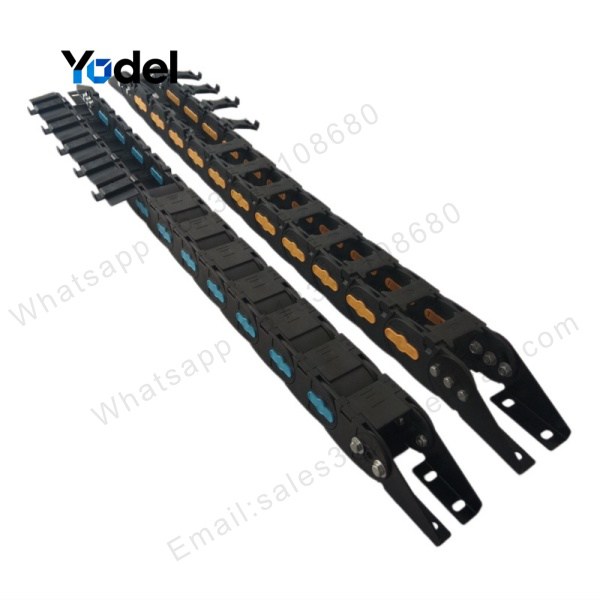

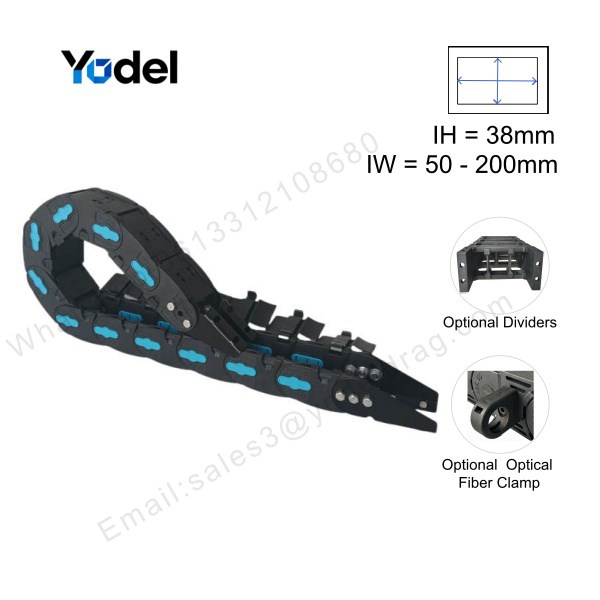

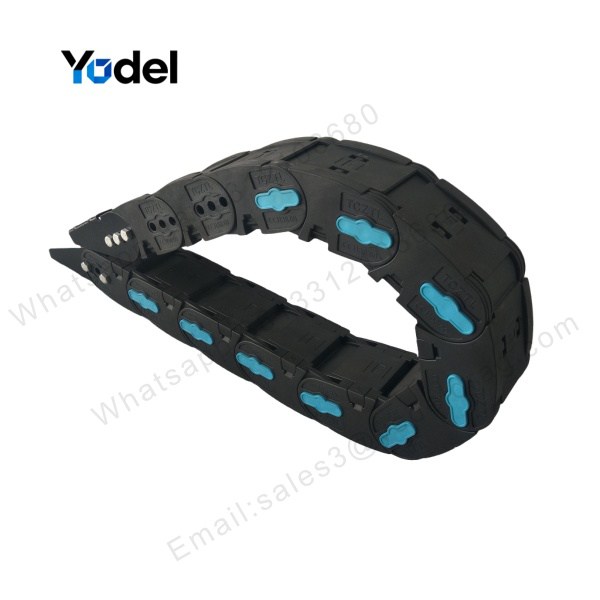

Plastic Drag Chain Cable Carrier (38x75mm Enclosed Side-Open Series)

Our heavy duty energy chain reinforced plastic drag chain cable carrier is specially engineered with a snap-open enclosed side-opening structure for efficient wiring, seamless installation, and daily maintenance. Adopting a robust 3-pin and pocket body link design, this openable plastic drag chain cable carrier maintains stable, high-speed operation without distortion or joint disengagement during frequent reciprocating motions. Equipped with heavy-gauge steel end connectors, it offers extraordinary tensile resistance, firm anchoring, and long-term durability. Operating effectively in temperatures ranging from -40°C to +130°C, this plastic drag chain cable carrier is flexible, wear-proof, oil-resistant, and ideal for heavy dynamic loads over long travel distances.

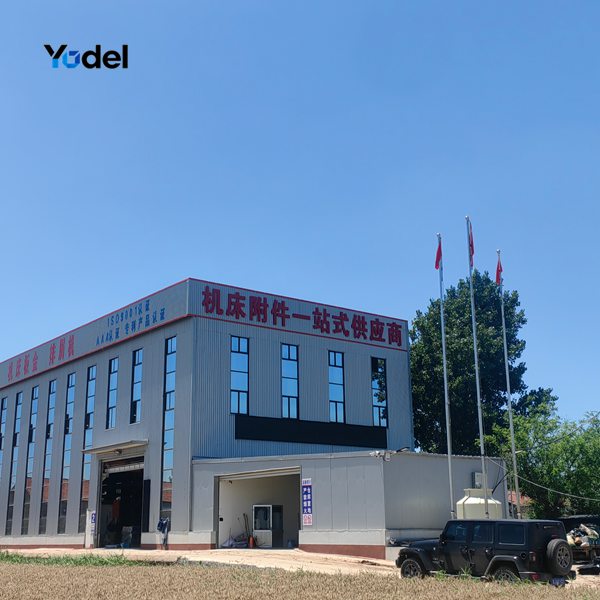

Figure 1: State-of-the-art manufacturing facility and finished goods storage area for plastic drag chain cable carriers, ensuring large-scale production capacity and rapid order dispatch.

Product Specifications (Model: YDLHSOE3875)

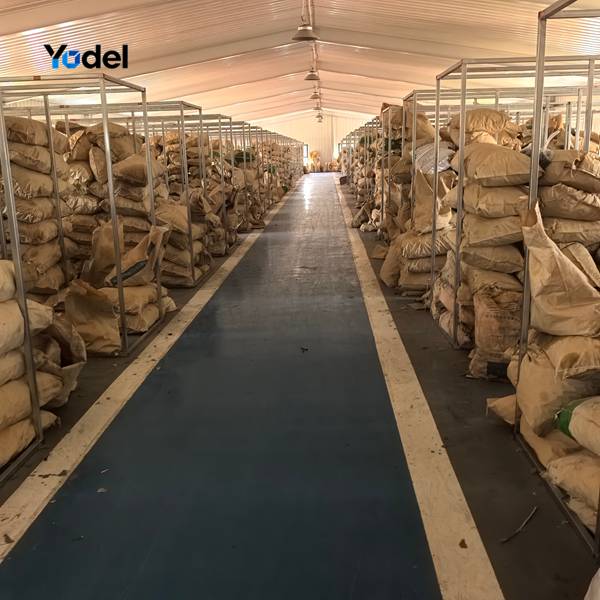

Figure 2: Premium 30% glass-fiber reinforced PA66 raw material stock, guaranteeing high mechanical strength, wear resistance, and long service life under extreme environmental conditions.

Popular Sizes & Machine Applications

• 38x50mm Inner Dimensions: Accommodates 2 to 4 small electrical cables, air hoses, control wires, and signal lines. Ideal for small CNC lathes, engraving and milling machines, small robotic arms, dispensing units, 3D printers, and compact packaging machinery.
• 38x75mm Inner Dimensions: Perfect for standard power cables, control harnesses, and 2 to 4 oil or air pipes designed for medium wire harness layouts. Extensively used in CNC milling equipment, machining centers, laser cutting machines, press brakes, punching machines, automated conveyor lines, and gantry manipulators.
• 38x100mm Inner Dimensions: Handles multi-cable bundles combined with multiple hydraulic hoses for heavy harness capacity. Requires internal vertical separators for organized routing in gantry machining centers, overhead cranes, plasma cutters, woodworking machinery, and automated spray lines.
• 38x125mm Inner Dimensions: Designed for complex multi-wire setups mixing varied cable diameters into layered pathways. Suitable for large automated assembly systems, solar photovoltaic equipment, lithium battery assembly machines, and heavy-duty gantry robotics.

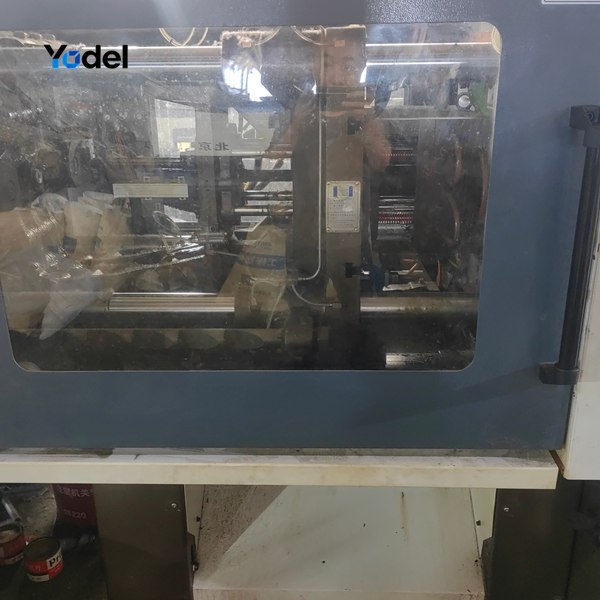

Figure 3: High-precision automated injection molding machinery molding side-open drag chain link components with tight dimensional tolerances and uniform wall thickness.

Series Selection Guide

• Bridge Open Type Cable Chain (Steel Brackets): Recommended for clean manufacturing environments free of metal chips and heavy oil contamination. Features excellent thermal dissipation, full cable visibility for quick inspection, low operational noise, lightweight construction, and high cost-efficiency.
• Enclosed Side-Opening Cable Carrier (Steel Brackets): Specifically built for harsh industrial environments with iron filings, liquid coolants, oil spray, and heavy airborne dust. Provides full protection against debris and water ingress for outdoor sites, gantry cranes, and welding automation.
