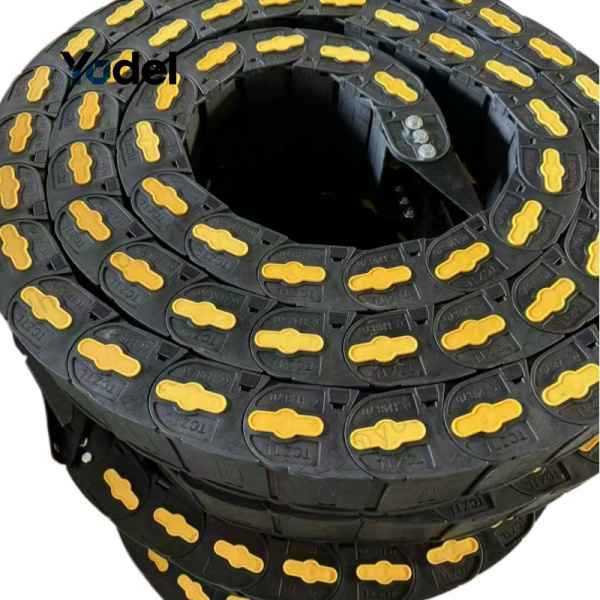

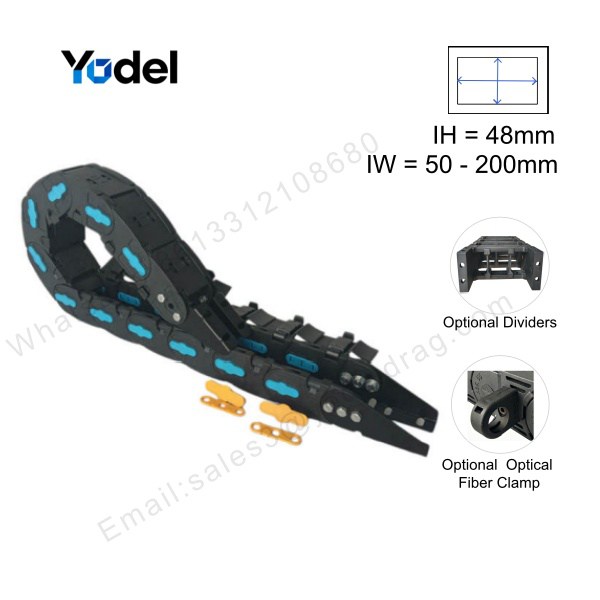

200mm Radius Cable Carrier (48x150mm Heavy-Duty Enclosed Series)

The C48mm series heavy load bearing plastic nylon cable chain is specifically engineered for high-demand industrial automation, long stroke travel, and heavy-duty reciprocating motion. Built from premium 30% glass fiber reinforced PA66 nylon, this 200mm radius cable carrier delivers exceptional tensile strength, impact resistance, and long-term mechanical stability. Featuring a snap-open enclosed side-opening structure, it allows operators to rapidly lay, inspect, and replace cables or hydraulic hoses without disassembling the entire carrier system. Coupled with heavy-gauge steel end connectors, this side-open plastic drag chain guarantees maximum joint reliability, firm anchoring, and zero deformation under heavy cable loads operating at speeds up to 5 m/s.

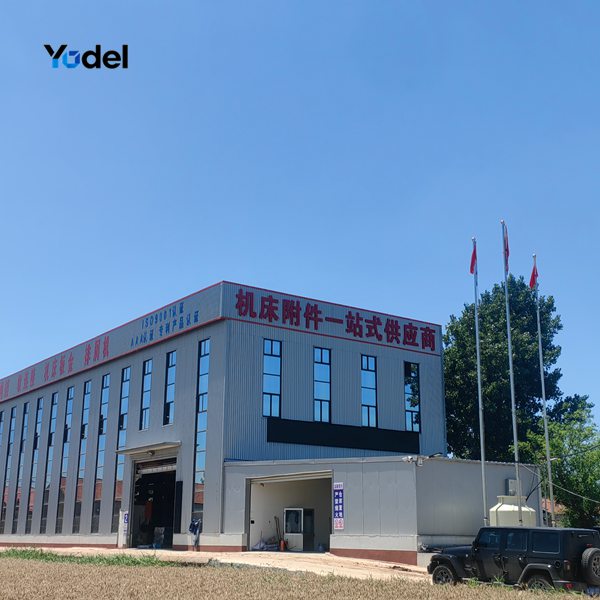

Figure 1: Our modern manufacturing factory facility specialized in high-performance 200mm radius cable carrier and industrial drag chain production.

Key Performance Features

• High Load Strength & Reinforcement: Made of 30% glass-fiber reinforced PA66, providing outstanding wear resistance, oil proofing, acid-alkali durability, and smooth self-lubricating operation with low noise (≤60dB).

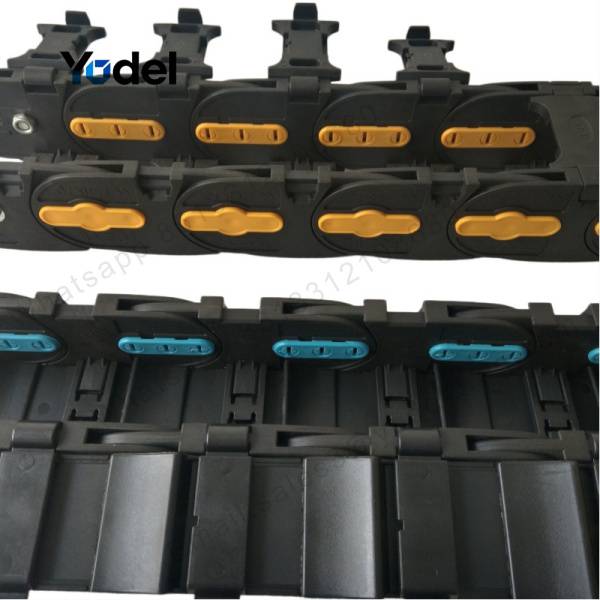

• Side-Open Enclosed Protection: Side-opening crossbars enable fast wire harness laying without threading cables link by link. The fully enclosed outer shell seals out dust, hot metal chips, coolants, and environmental debris.

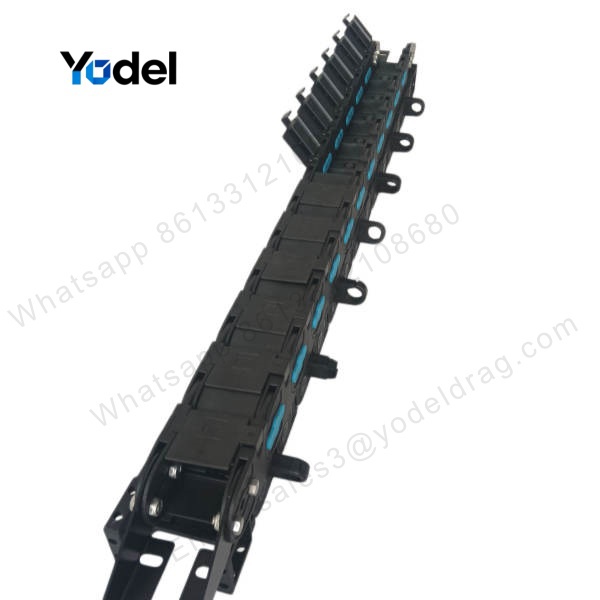

• Heavy-Duty Steel End Connectors: High-impact steel joints deliver superior load-bearing capacity and fatigue resistance compared to standard plastic joints, ensuring safer long travel distance performance.
• Wide Temperature Range: Operates stably across challenging ambient conditions from -40°C to +130°C.

Product Specifications (Model: YDLHSOE48150 / R200)

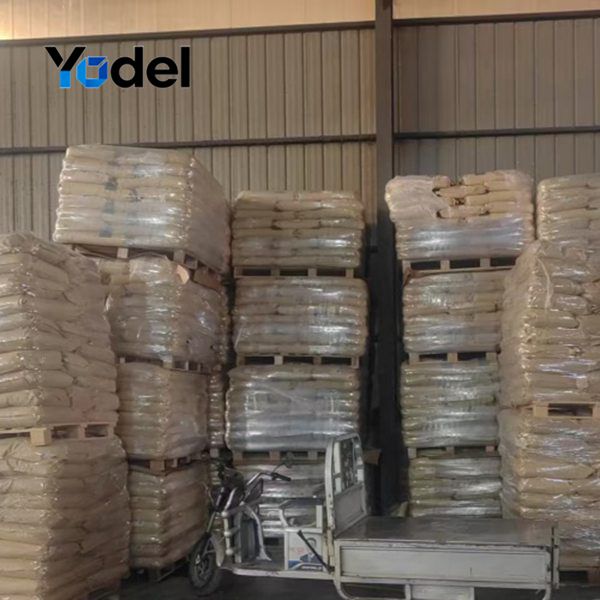

Figure 2: Ample stock of high-purity PA66 nylon raw material blended with 30% glass fiber to ensure rigidity, heavy load support, and non-sagging performance across long travel lengths.

Popular Sizes & Machine Applications

• 48x75mm Inner Dimensions: Compact bestseller suited for CNC lathes, small fiber laser cutting machines, CNC woodworking routers, injection molding machines, and packaging machinery.
• 48x100mm Inner Dimensions: Universal model for gantry CNC machining centers, vertical CNC centers, fiber laser cutters, plasma cutting machines, 6-axis industrial robots, and stone polishing equipment.
• 48x125mm / 48x150mm Inner Dimensions (R200 Bend Radius): Wide-format heavy-bearing type for long stroke travel applications, automotive welding and stamping production lines, photovoltaic module manufacturing, lithium battery coating equipment, gantry manipulators, waterjet cutters, and glass processing machinery.
• 48x200mm Inner Dimensions: Heavy-duty wide model designed for massive gantry machining centers, port hoisting equipment, large forging presses, and tunnel boring auxiliary units.

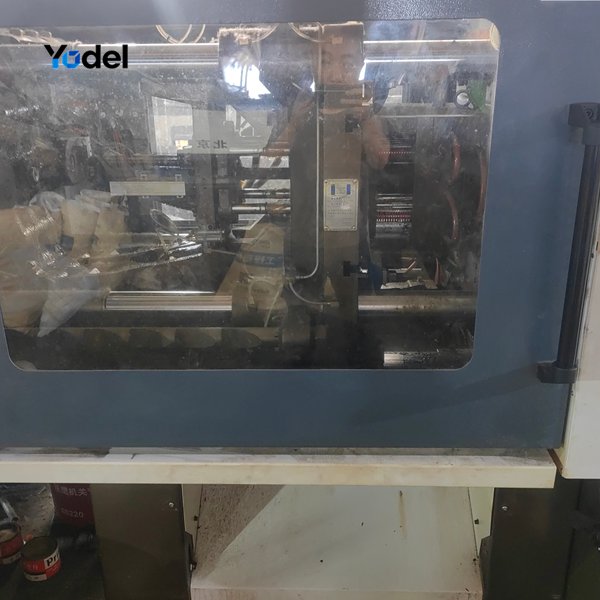

Figure 3: Heavy-duty automated injection molding press producing precision side-open cable carrier links with smooth inner walls to prevent cable abrasion.

Series Selection Guide

• Bridge Side-Opening Cable Chain (Steel Brackets): Best for clean indoor environments requiring frequent cable inspections, rapid cable replacement, high cost efficiency, and effective heat dissipation for high-current cables.
• Enclosed Side-Opening Cable Carrier (Steel Connectors): Engineered for harsh outdoor, coastal, or chip-heavy factory conditions. Ideal for protecting optical fibers, signal wiring, and hydraulic hoses from hot debris, dust, fluids, and mechanical impact.
