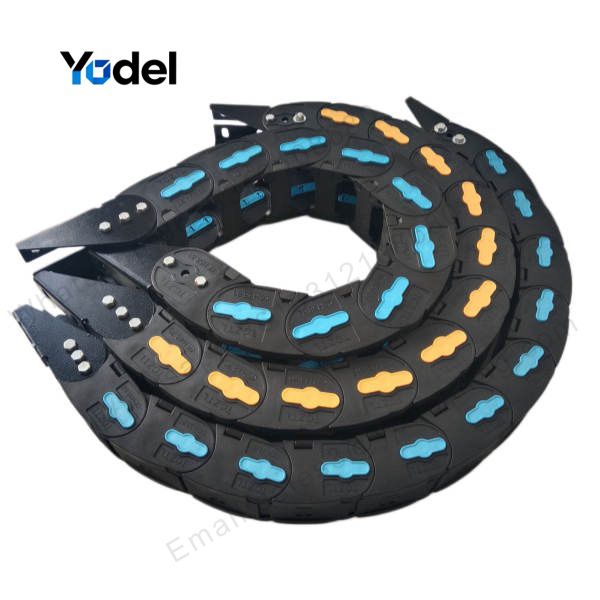

Heavy-Duty Cable Chain Drag (58x200mm Enclosed Side-Open Series)

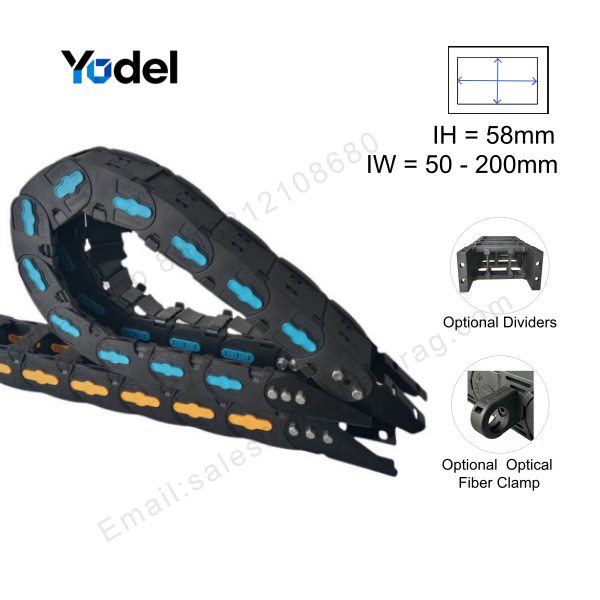

Engineered for demanding industrial environments, this high-performance cable chain drag system provides exceptional protection and guidance for heavy cable bundles, large hydraulic lines, and pneumatic hoses in long-stroke dynamic motion systems. Featuring a generous 58mm inner height and 200mm inner width, this enclosed cable chain drag carrier is built from 30% glass fiber reinforced PA66 nylon, delivering superior structural stability, high wear resistance, and long-term durability. Equipped with heavy-duty steel mounting brackets and a convenient snap-open side-opening structure, it offers effortless cable installation, inspection, and maintenance without triggering unwanted machine downtime.

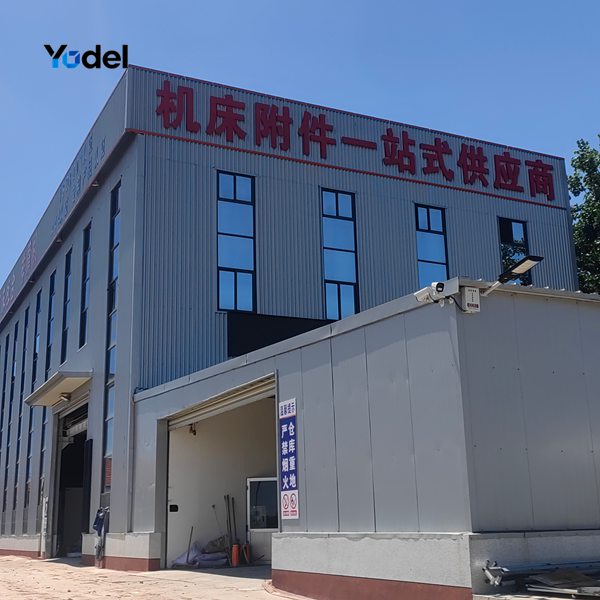

Figure 1: Our modern manufacturing factory facility specialized in high-capacity cable chain drag carriers and industrial cable management systems.

Product Specifications (Model: YDLHSOE58200)

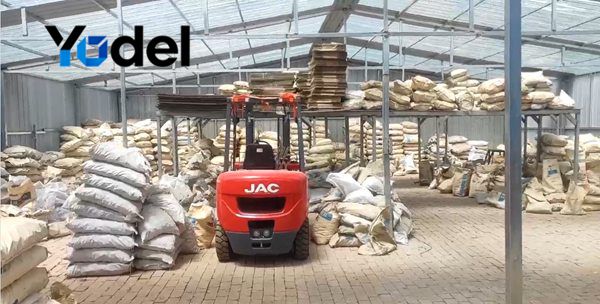

Figure 2: Stocked raw material warehouse containing high-purity PA66 nylon modified with 30% glass fiber to ensure maximum rigidity and load capability for large 58x200 cable chain drag units.

Popular Sizes & Machine Applications

• 58x75mm (R100): Suited for vertical machining centers, CNC lathes, fiber laser welding stations, 6-axis welding robot cells, and woodworking CNC routers.
• 58x100mm (R100): Ideal for large-format fiber laser cutters, gantry manipulators, stone engraving units, marble bridge cutting saws, and 100T–500T injection molding machines.
• 58x125mm (R125): Suitable for heavy gantry machining centers, CNC gantry milling equipment, large laser cutting beds, and automated truss manipulator systems.
• 58x200mm (Heavy-Duty Wide Series): High-capacity model built for long travel distance systems, heavy-duty gantry machinery, automated automotive welding lines, large industrial manipulators, and high-load hydraulic hose guidance.

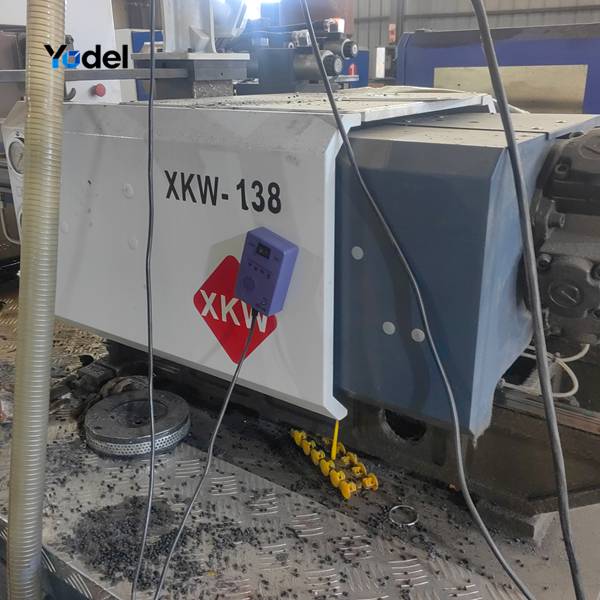

Figure 3: Heavy-duty injection molding machinery crafting precision side-open 58x200 cable chain drag components with seamless structural integrity and smooth inner surfaces.

Series Selection Guide

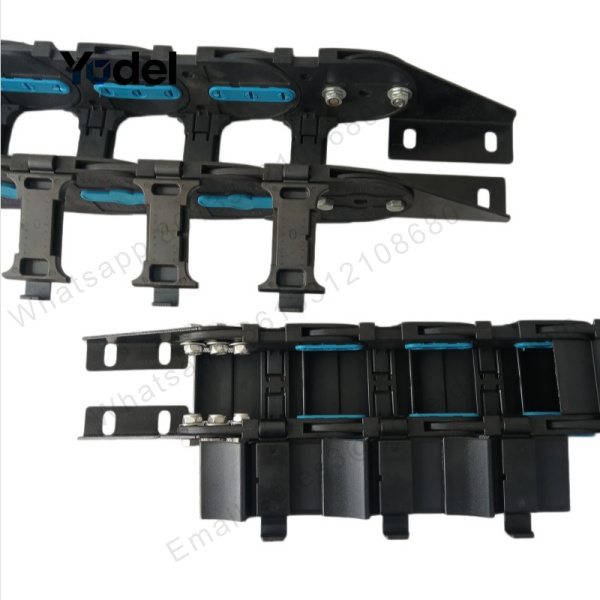

• Bridge Type Side-Opening Cable Carrier (Steel Brackets): Best suited for clean manufacturing spaces free of flying debris and dust, providing quick cable status inspections, rapid cable replacement, superior thermal dissipation, and light weight.

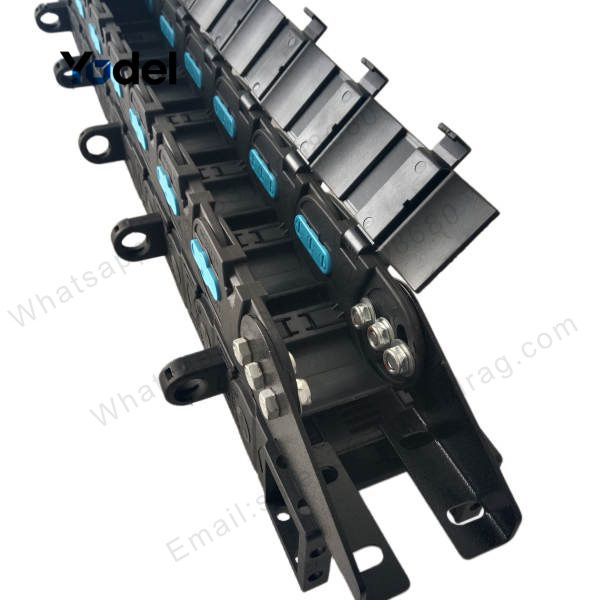

• Enclosed Side-Opening Cable Towline (Steel End Connectors): Built specifically for hostile industrial environments filled with hot metal filings, flying wood chips, abrasive stone dust, and liquid splash, ensuring full protective enclosure for critical cables and high-pressure hoses.
