25x103 S-Shape Flexible Cable Carrier (YDLDW25103)

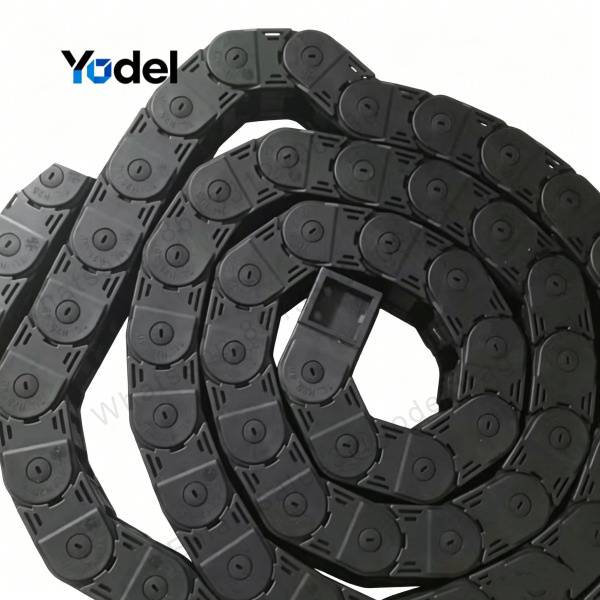

The YDLDW25103 Flexible Cable Carrier is a heavy-duty, bi-directional S-shape drag chain specifically engineered for complex motion pathways in tight spaces. Featuring an internal dimension of 25mm inner height by 103mm inner width and an R55 mm double bending radius, this flexible cable carrier achieves effortless dual-directional S-curve movements. Constructed from premium PA66 nylon or optional 30% glass-fiber reinforced nylon, it delivers superior wear resistance, structural stability, and exceptionally low operating noise.

Key Features & Technical Advantages

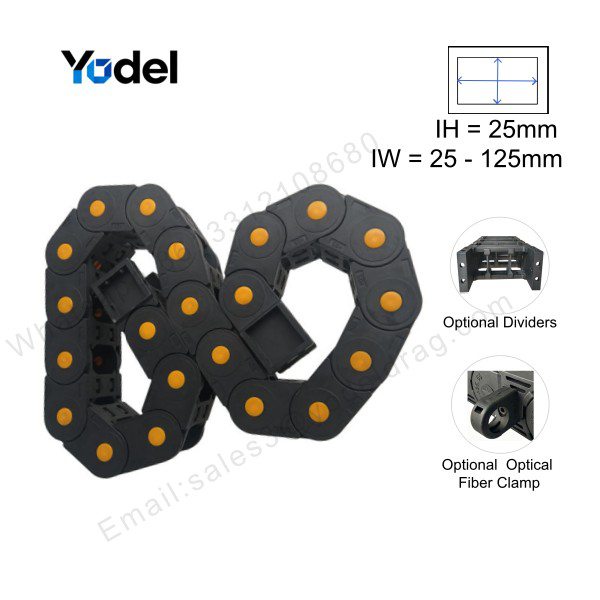

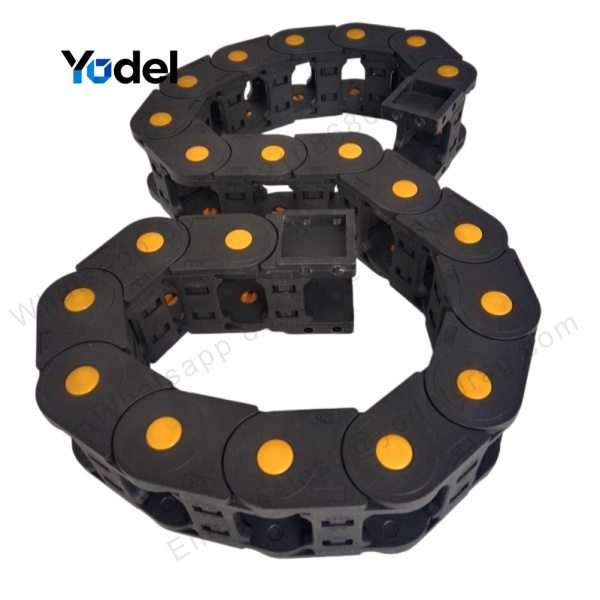

• Bi-Directional S-Shape Bending: The unique dual-pin hinge design enables multi-axis flexure both upwards and downwards, creating a smooth S-curve motion profile impossible with standard single-direction carriers.
• Industrial-Grade Material Options: Available in high-toughness pure Nylon PA66 or 30% Glass-Fiber Reinforced PA66 (PA66+30%GF) for demanding application environments requiring high tensile strength and extended fatigue resistance.
• Bridge Openable Structure: Open-style crossbars across the links provide fast cable installation, heat dissipation, and quick visual inspection.
• Versatile Configurations: Internal vertical separators are available to organize power lines, signal lines, and pneumatic hoses separately, preventing cable friction and tangling.

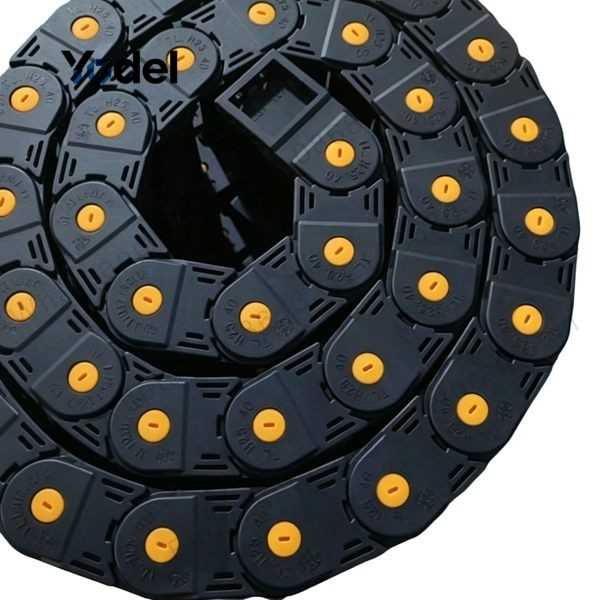

• Customizable Color & Aesthetics: Comes standard with a sleek black body accented by yellow side locking pins. Fully custom body colors and custom logo branding can be tailored to match your equipment branding.

Technical Specifications Table

Versatile Applications & Real-World Use Cases

Thanks to its wide 103mm internal space and compact 25mm inner height, the YDLDW25103 flexible cable carrier excels in routing multi-cable bundles within low-profile equipment enclosures.

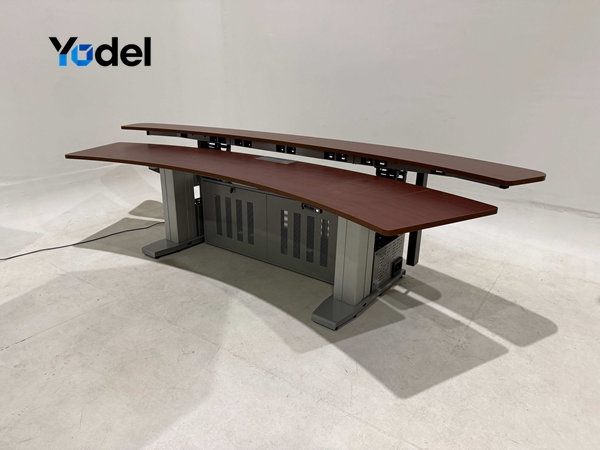

Application in Action: S-shape flexible cable carrier installed inside motorized monitoring tables and control consoles for clean, bi-directional wire management.

Key application sectors include:

• Control Room Consoles & Monitoring Tables: Provides quiet, concealed cable management under height-adjustable command desks and dual-tier monitoring stations.
• Telescopic & Sit-Stand Workstations: Protects power cords and monitor signal lines during smooth vertical lifting and horizontal extension.
• Industrial Automation & Robotics: Ideal for pick-and-place robots, 2D gantries, and CNC machinery requiring complex trajectory cable guidance.

Manufacturing Quality & Packaging

Every unit of our flexible cable carrier series is precision-molded using high-capacity automated injection molding machinery. We enforce strict raw material testing and dimensional checks to ensure each link meets exact tolerance standards for low friction and noise-free operation.

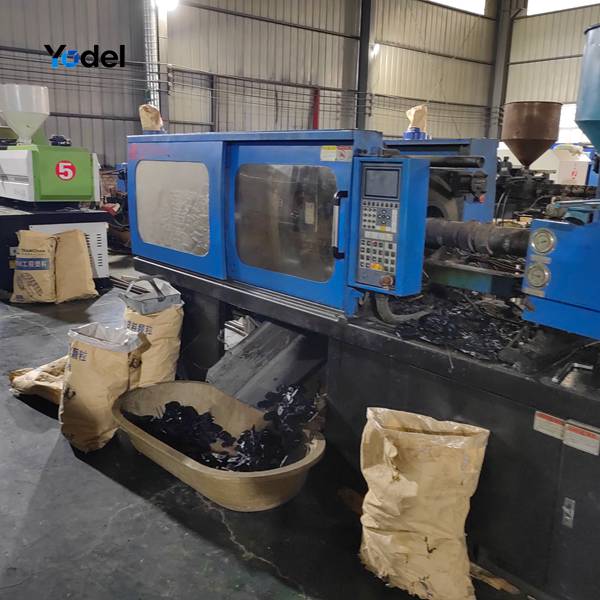

In-House Injection Molding: Precision production lines ensuring high material density and uniform link quality.

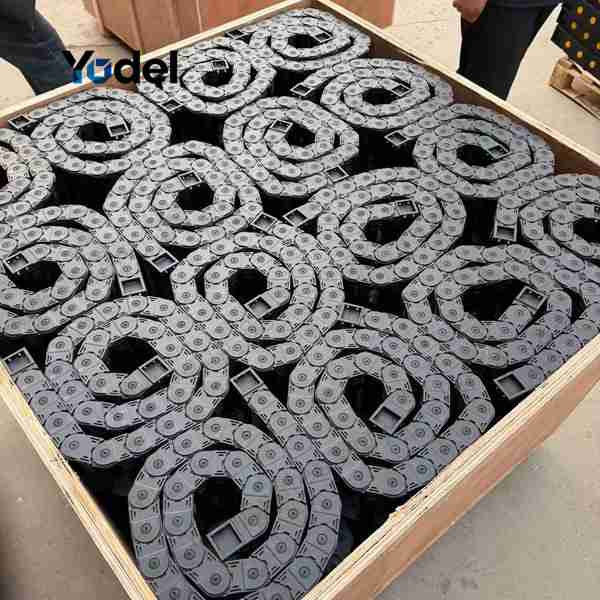

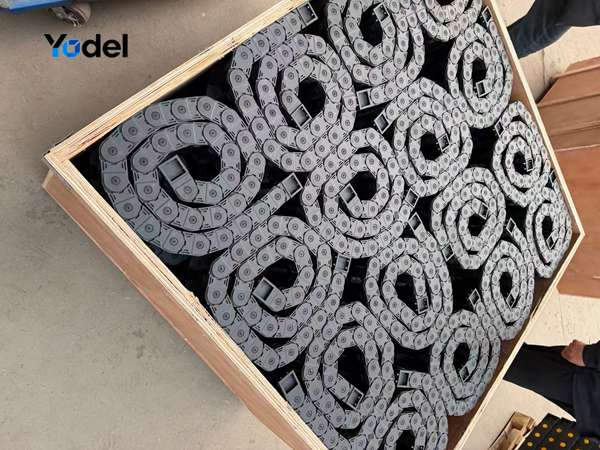

Export Packaging: Carefully arranged and packaged in sturdy wooden cases to prevent damage during long-distance transport.

How to Choose the Right Cable Carrier Size

1. Determine Inner Height: Select a carrier with an inner height that is at least 1.2 to 1.5 times greater than the diameter of your thickest cable or hose.
2. Calculate Inner Width: Sum up the outer diameters of all enclosed cables plus an additional 20% clearance margin for unrestricted movement.
3. Select Bending Radius (R): Measure the turning space inside your machine. Always choose a slightly larger radius to reduce flex fatigue on sensitive cables.
4. Calculate Required Travel Length: Use the formula L = S/2 + K (where K = R × π + 2P) to establish the total carrier length needed.
