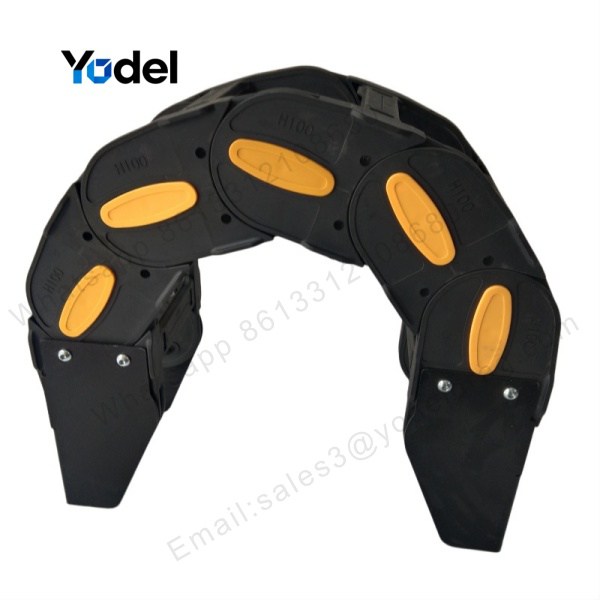

YDLB100400 Heavy-Duty Cable and Hose Carrier Systems

The YDLB100400 cable and hose carrier systems are specifically engineered to provide ultra-wide, heavy-duty guidance and protection for power cables, signal wiring, and dynamic pneumatic/hydraulic hoses in high-stress industrial applications. Built from premium-grade reinforced polyamide (Nylon PA66 blended with 30% glass fiber), the chain body exhibits exceptional structural rigidity, superior wear resistance, and high mechanical fatigue strength—boasting a 40% increase in tensile strength compared to standard nylon carriers. Each link section is precision-molded to sustain dynamic loads ranging from 50kg to 70kg without sagging or deformation, maintaining continuous operational stability over a fatigue lifespan exceeding 5 million reciprocating cycles.

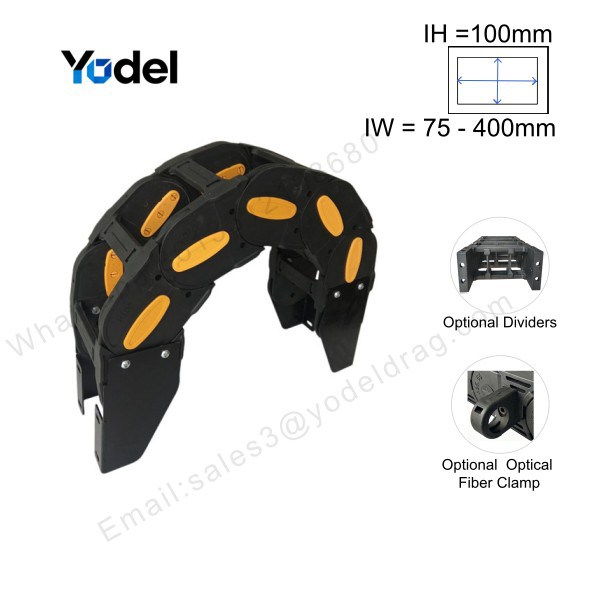

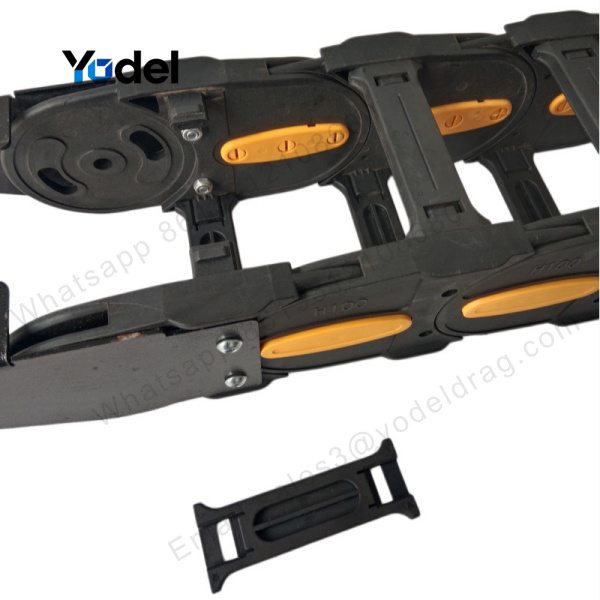

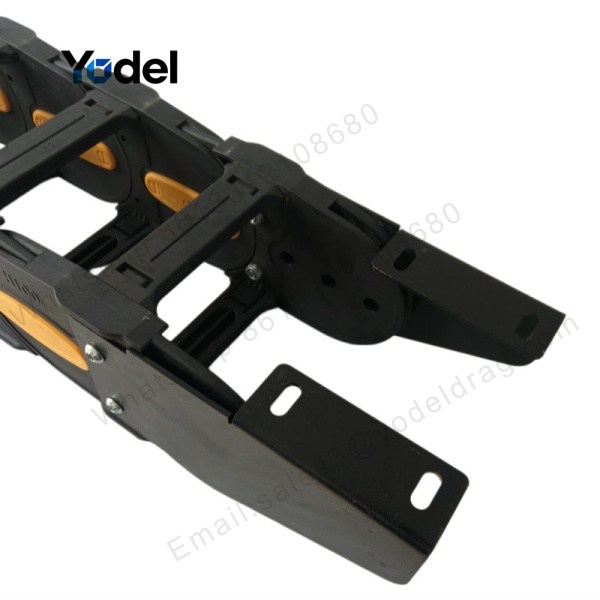

Featuring a spacious internal clearance of 100mm inner height and 400mm inner width, this heavy-duty bridge-type energy chain allows multi-layer cable arrangement and promotes optimum airflow for heat dissipation during rapid movements. To withstand strong vibrations, sudden acceleration, and high tension over long travel distances, the YDLB100400 system comes standard with heavy-duty galvanized steel (or optional stainless steel) mounting brackets. Secured with high-tensile bolts, these metal end connectors provide an end-connection tensile strength of ≥1200N, successfully eliminating bracket fracture and joint loosening risks commonly observed in conventional all-plastic connectors.

Product Specifications & Performance Metrics

Technical Parameters: Model YDLB100400

Architectural & Performance Highlights

Unlike standard energy chains, engineered cable and hose carrier systems must deliver precise motion control while preserving inner media integrity. The YDLB100400 series integrates several critical design enhancements:

• Modular Separator Layout: Internal vertical and horizontal dividers prevent power cables and fluid lines from twisting or rubbing against each other, drastically reducing friction-induced jacket wear.

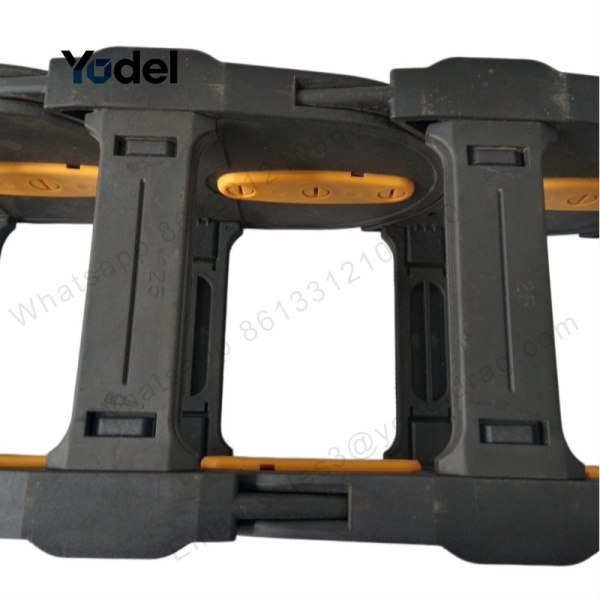

• Quick-Opening Crossbars: The snap-open bridge crossbars allow technicians to quickly insert, remove, or inspect cables along any section of the stroke without disassembling the entire carrier track.
• Reinforced Pin Connections: Multi-point interlocking pin structures distribute tensile stress evenly across every joint, ensuring smooth articulation under high speed and acceleration.

Industrial Applications for Extra-Wide Drag Chains

Due to its generous 400mm inner width, the YDLB100400 heavy-duty cable carrier is widely deployed in large-scale machinery handling multi-cable bundles:

• Port Cranes & Material Handling: Container gantry cranes, bulk handling stackers, shipboard davits, and steel mill overhead travelers operating over long travel lengths.
• Heavy CNC Machinery: Multi-axis gantry milling centers, large laser cutting rigs, plasma cutters, and automated robotic transfer units.
• Automated Manufacturing Lines: Photovoltaic wafer processing gear, lithium battery coating equipment, and automotive stamping transfer systems.

Factory Production & Supply Chain Excellence

Manufacturing Strength & Quality Control

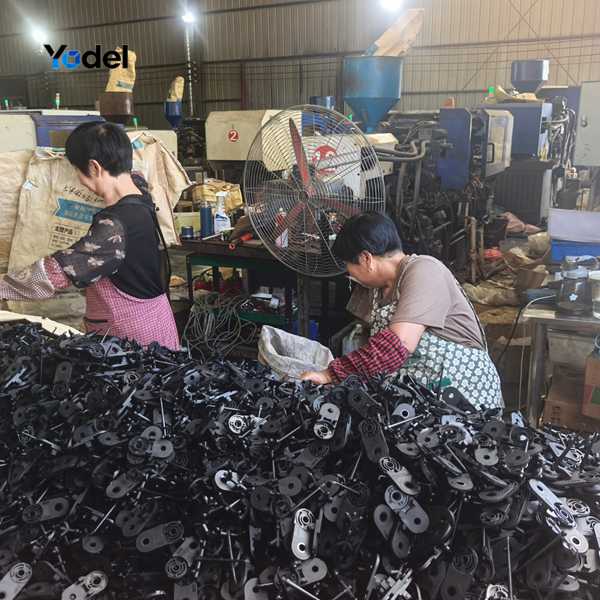

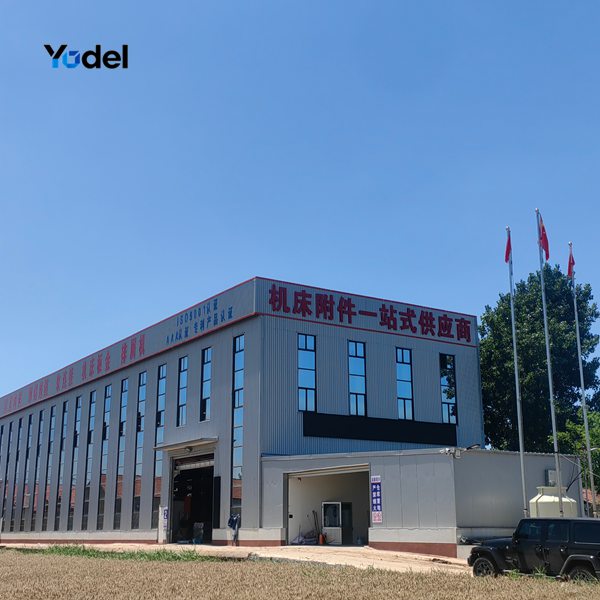

As a professional manufacturer of industrial cable and hose carrier systems, our modern facility utilizes high-tonnage precision injection molding machines to guarantee structural integrity and tight dimensional tolerances across every batch. Raw materials are strictly tested for raw PA66 density, fiber blending ratio, and thermal stability.

Every batch undergoes stringent quality inspections, including dynamic fatigue life cycling, high/low-temperature bending resilience, and load bearing capacity tests. OEM and ODM customization services—ranging from custom chain colors to branded laser engraving—are fully supported to meet specific project demands.

Export Packaging & Global Delivery

All finished products are carefully packed using multi-layer heavy-duty corrugated cartons and wrapped with plastic strapping to prevent damage during international transport. Whether shipping via ocean container, air freight, or express delivery, our packaging guarantees safe arrival at your facility or job site.

Selection & Structure Options

• Bridge Crossbar Open Style: Ideal for indoor factory automation requiring max ventilation, lightweight operation, clear cable inspection, and efficient heat release.
• Enclosed Cover Plate Style: Recommended for harsh outdoor or machining environments exposed to hot metal chips, welding spatter, liquid coolant spray, and abrasive dirt.
