Product Attributes :

Inner Height(ID): 37mm(1.46in)

Outer Height(OD): 43.50mm(1.71in)

Bending Radius: R60mm(2.36in)

Pitch: 13.70mm(0.54in)

Links per Meter: 73 pcs

Max cables diameter: 10mm

Structure: side-open type +ball-and socket

Number of chambers: 2pcs

Material: 30% glass fiber +nylon PA66

Length: cut to length / customization

Color: fully black

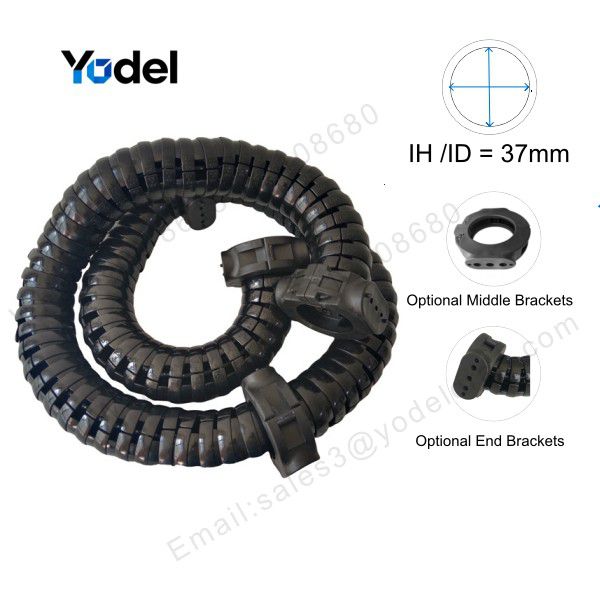

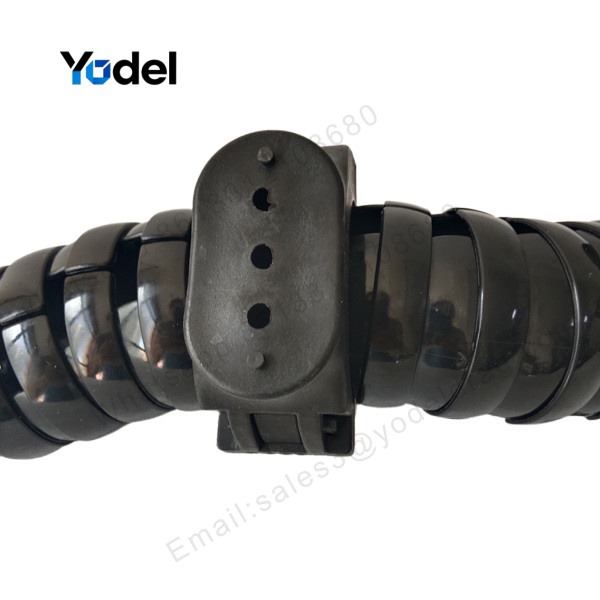

Available accessaries : middle support brackets /end mounting brackets

OEM /ODM service: available

Product Description

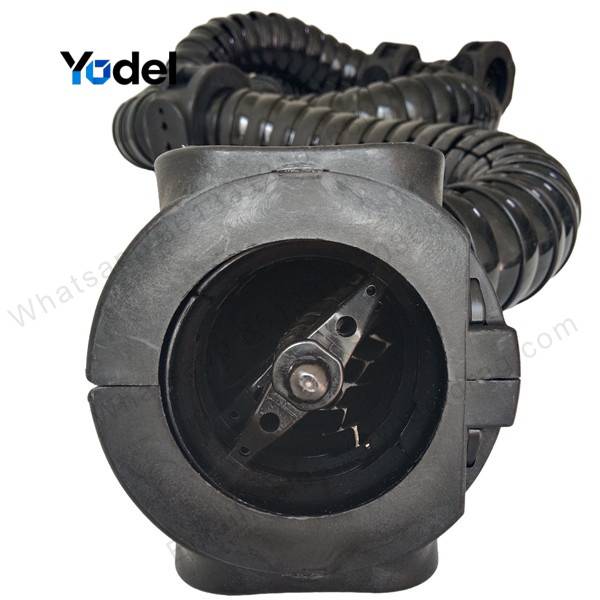

YDLE40 Flexible Drag Chain: 37mm ID Side-Open 3D Cable Carrier

The YDLE40 flexible drag chain is an industrial-grade, multi-axis cable guidance system tailored for high-dynamic articulated motion on 6-axis robots, SCARA arms, and automated workcells. Engineered with a 37mm inner diameter and a dual-chamber internal profile, this robust flexible drag chain safeguards high-flex servo leads, encoder wires, and pneumatic supply lines against continuous axial rotation, multi-directional bending, and ambient friction.

YDLE40 Technical Specifications

Parameter

Value

Product Name

Three-dimensions flexible drag chain cable carrier for robotic system

Model Number

YDLE40

Availability Status

Hot Product

Inner Diameter (ID)

37 mm

Outer Diameter (OD)

43.50 mm

Bending Radius (R)

R60 mm

Max Cable Outer Diameter

10 mm

Number of Chambers

2 pcs (Internal Separation)

Pitch per Link

13.70 mm

Chain Links per Meter

73 pcs/m

Standard Material

30% Glass Fiber Reinforced Polyamide (PA66 + 30% GF)

Operating Temperature

-40°C to +130°C

Structural Design

Side-open press-in slit + Ball-and-socket hinge matrix

Surface Finish & Color

Fully Black (UV-stabilized)

System Configurations

Middle support brackets / End mounting brackets without strain relief comb

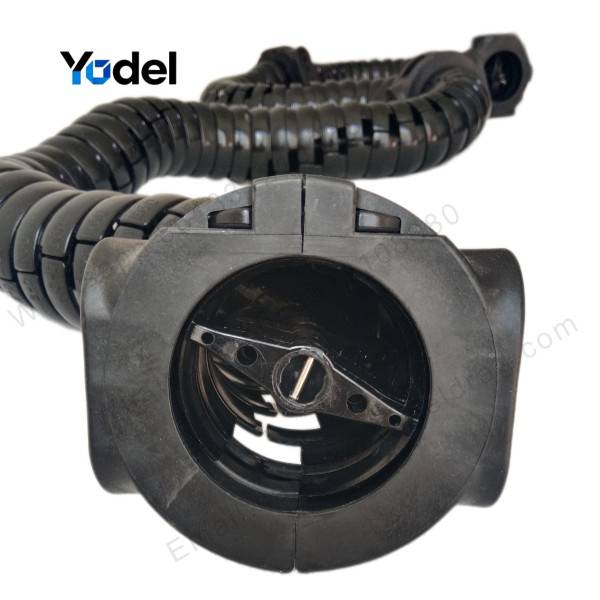

Structural Engineering & Internal Chamber Separation

The YDLE40 flexible drag chain features a specialized ball-and-socket hinge construction that delivers uninterrupted spherical turning and torsional freedom up to ±12° per chain link. Unlike standard single-cavity tracks, the YDLE40 incorporates a dual-chamber internal partition. This dual-compartment layout enables plant engineers to separate sensitive low-voltage data encoder wires from pneumatic supply lines or power leads, eliminating internal electromagnetic interference (EMI) and preventing cable friction during high-speed rotational sweeps.

With a compact pitch of 13.70mm (requiring 73 individual link elements per meter), the YDLE40 achieves exceptionally smooth, low-vibration dynamic motion. Its tight bending radius of R60mm allows for tight installation envelopes along robot wrist joints (Axes 4, 5, and 6) without subjecting internal cables to excessive strain.

Injection molding machine workshop manufacturing YDLE40 flexible drag chain links

Figure 1: Precision injection molding workshop dedicated to producing YDLE40 multi-axis cable carriers.

Raw Material Grade & In-House Manufacturing Rigor

Every YDLE40 flexible drag chain is produced in our ISO-certified facility utilizing advanced precision injection molding machinery. We exclusively formulate our components from 100% virgin Polyamide (PA66) compounded with 30% premium glass fiber reinforcement (GF) and anti-UV carbon black additives. We strictly avoid recycled polymer scraps, ensuring that every batch meets rigorous mechanical benchmarks:

  • High Thermal Stability: Maintains structural rigidity and dynamic flex memory across extreme operational temperatures ranging from -40°C to +130°C.
  • Superior Tensile & Fatigue Endurance: Reinforced glass fiber matrix delivers high mechanical strength, resisting link elongation, pin wear, and torsional cracking during millions of flex cycles.
  • Chemical & Oil Resistance: Impervious to cutting fluids, synthetic lubricants, hydraulic oils, and mild industrial solvents.
High-grade 30% glass fiber reinforced black PA66 raw material granules for flexible drag chain production

Figure 2: Premium 30% glass-fiber reinforced PA66 virgin granules ensuring high fatigue and impact resistance.

Rapid Side-Open Installation & Packaging Specifications

The YDLE40 model utilizes an offset side-slit opening style along its outer links. Maintenance personnel can quickly snap pre-assembled wire harnesses with industrial multi-pin plugs directly into the carrier cavity without disassembling electrical connectors, reducing equipment integration time by over 60%.

For global export and logistics protection, all manufactured YDLE40 flexible drag chains are inspected, coiled, and packed in reinforced, multi-layer corrugated cartons. Every box is sealed against moisture and labeled with detailed batch numbers, link counts, and dimensional tags to streamline receiving and inventory management for OEMs and system integrators.

Black YDLE40 37mm ID flexible drag chain coiled and packed in a heavy-duty export carton

Figure 3: YDLE40 flexible drag chains coiled and packed into heavy-duty corrugated cartons for secure international shipping.

Selecting the Right Carrier Size & Internal Capacity

While the YDLE40 with a 37mm inner diameter provides optimal protection for compact robot dress packs, applications requiring slightly higher cable volumetric capacity or thicker multi-conductor leads should consider upgrading to our larger YDLE50 ID47 flexible cable carrier model for seamless routing and extra clearance margin.

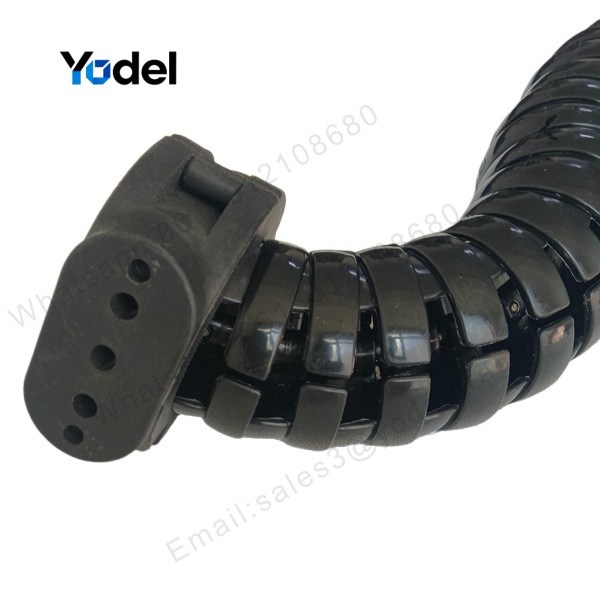

Installation & End Bracket Mounting Guidance

When installing the YDLE40 flexible cable track, ensure that all internal conductors do not exceed 10mm in outer diameter (OD). Maintain a total internal cable clearance margin of at least 10–15% inside both internal chambers to allow natural displacement during 3D spatial motion. Secure both moving and stationary ends using our matching YDLE40 end mounting brackets (supplied without strain relief combs) to maintain continuous tension control across dynamic work envelopes.
