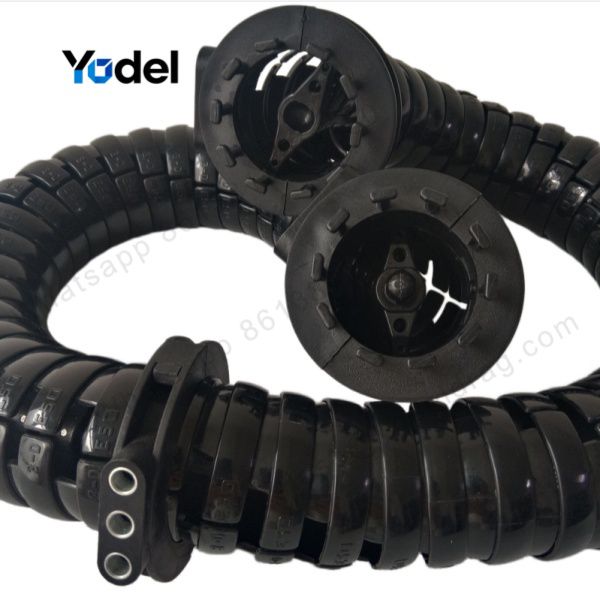

47mm Flexible Cable Carrier YDLE50 3D Side-Opening Robotic Cable Track for Sale

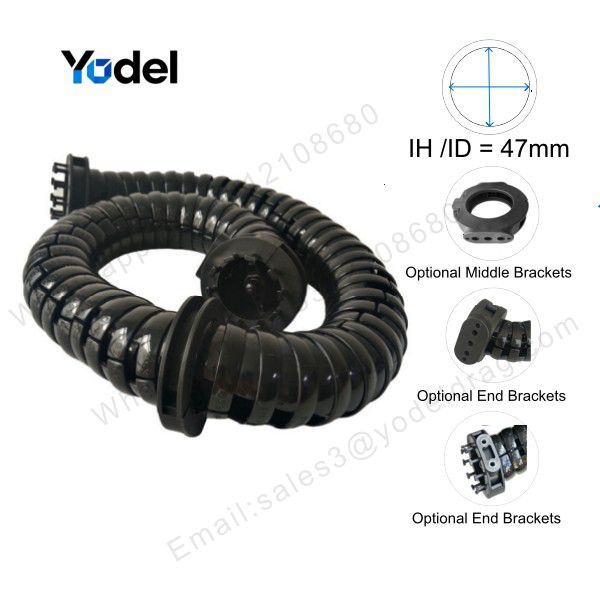

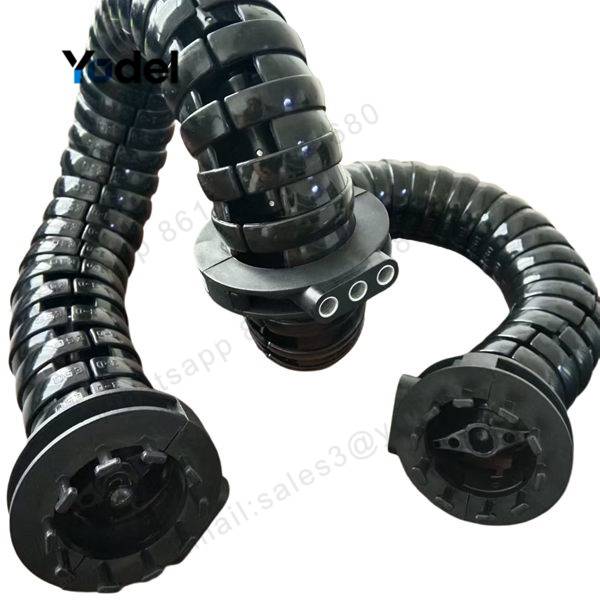

The ID47mm side-opening 3D universal drag chain (Model: YDLE50) is an advanced, high-performance flexible cable carrier specifically engineered for high-flexibility robotic arms, 6-axis articulated robots, and complex multi-axis automation machinery. Unlike conventional linear cable tracks that are constrained to single-axis bending, this multi-axis flexible cable carrier system utilizes a ball-and-socket joint mechanism that allows rotational freedom, torsional flexibility, and omnidirectional bending of up to ±10° per individual chain link.

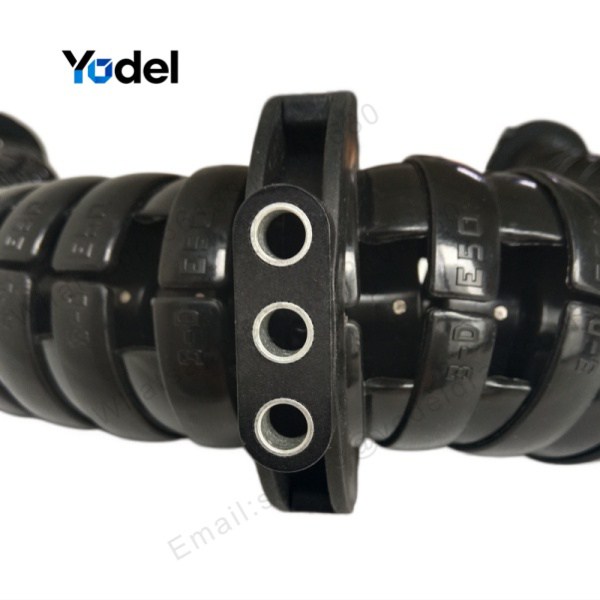

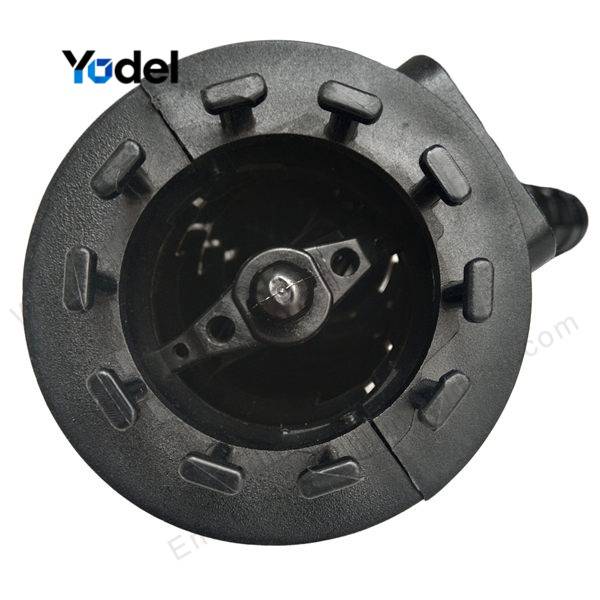

The standout design feature of this ID47mm flexible cable carrier lies in its side-opening structure. Every individual link features a tool-less side latch system, enabling technicians to open the chain body instantly for rapid cable insertion, line replacement, or maintenance inspection. This eliminates time-consuming cable threading, minimizes factory downtime during maintenance, and protects interior lines against excessive abrasion and tension during complex 3D robotic motion paths.

Product Specifications & Technical Data

If your automation setup requires a larger cross-section for heavier harness bundles or high-density pneumatic lines, consider our heavy-duty YDL60 ID57 flexible cable tray chain, designed for high-payload multi-axis robotic systems.

Raw Material Precision & Manufacturing Quality

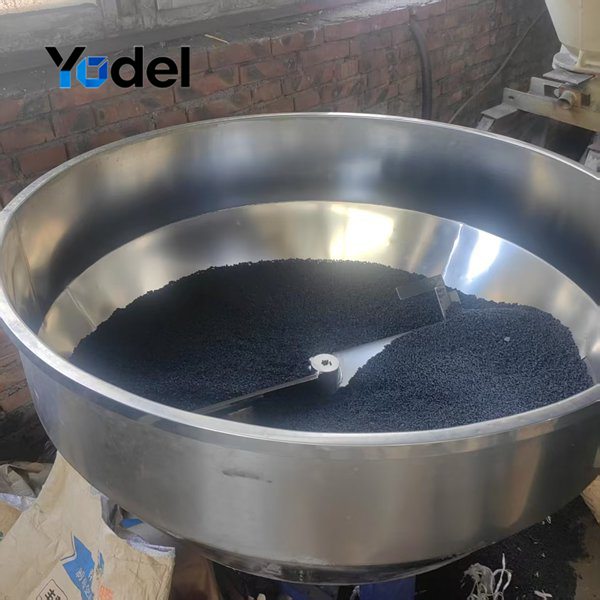

To ensure long-term wear resistance, high tensile strength, and impact durability under continuous high-speed movement, our flexible cable carrier units are manufactured using premium-grade raw materials. We mix pure Polyamide 66 (PA66) with 30% reinforced glass fiber using precise thermal blending equipment before injection molding. This process guarantees exceptional torsional stability and heat resistance ranging from -40°C up to +130°C.

Packaging and Quality Control

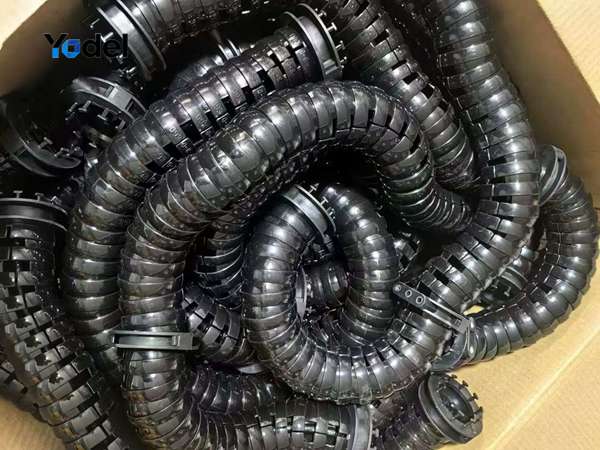

Every batch of YDLE50 flexible cable carrier systems undergoes thorough dimensional verification and tensile strain testing before packaging. Standard assemblies are coiled, secured, and packed into reinforced export cartons to prevent structural deformation during overseas transit, ensuring products arrive ready for immediate installation on your automation equipment.

How to Choose the Right Size and Length for a 3D Flexible Cable Carrier

1. Determine the Inner Dimensions

• Inner Height (ID): ID ≥ (Max Cable/Hose Outer Diameter × 1.1)
• Inner Width: Width ≥ (Sum of outer diameters of all populated lines + internal clearance) × 1.1

2. Calculate Chain Length

• Standard Horizontal Travel: Length = (Stroke S / 2) + Offset ΔM + K (where ΔM is the distance from the fixed mounting point to the center of travel).
• Multi-Axis Robotic Motion: Utilize empirical calculation or joint angle testing to determine maximum trajectory deflection angles across motion profiles using 3D simulation software or physical axis calibration.

3. Select the Critical Bending Radius

Always prioritize the minimum bend radius specifications provided by your cable or hose manufacturer. If unavailable, use the following empirical benchmarks:

• Highly Flexible Cables: Bend Radius ≥ 7.5 × Cable Outer Diameter
• Standard Flexible Cables: Bend Radius ≥ 10 × Cable Outer Diameter
• Pneumatic/Air Hoses (< 1000 psi): Bend Radius ≥ 10 × Hose Outer Diameter
• Hydraulic Hoses (> 1000 psi): Bend Radius ≥ 12 × Hose Outer Diameter

4. Evaluate Load Capacity and Operating Environment

Factor in dynamic acceleration speeds, exposure to cutting fluids, ambient operating temperatures, and abrasive debris to select optional strain relief combs, middle guide brackets, or upgraded material formulations.
