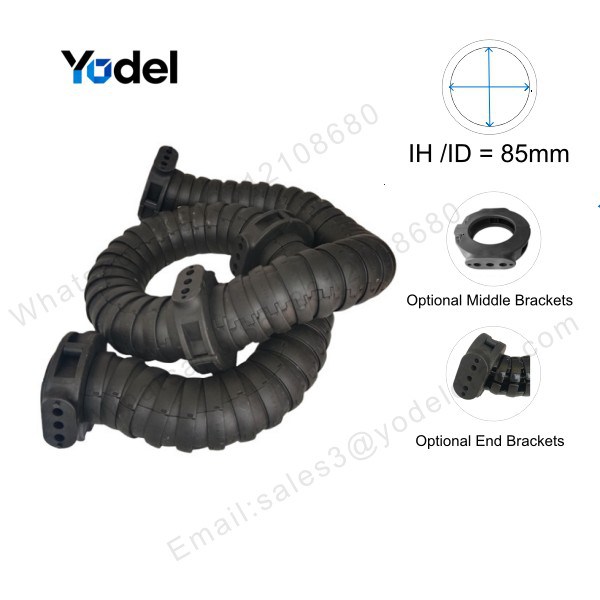

85mm ID Enclosed Flexible Cable Tray Chain YDLF85 for Multi-Axis Robots

The YDLF85 ID85 enclosed flexible cable tray chain is an advanced, heavy-duty cable management solution designed specifically for multi-axis industrial robots, automated machining centers, and heavy flexible automation systems. Engineered to protect complex cable assemblies, hydraulic hoses, and pneumatic lines from intense twisting stresses, mechanical friction, and harsh external debris, this high-performance flexible cable tray chain guarantees uninterrupted operation and long service life in demanding industrial environments.

Unlike open-frame cable carriers, the YDLF85 features a fully closed outer tube construction combined with an innovative snap-open latch design. Each chain link is constructed with a dynamic ball-and-socket hinge mechanism that delivers 3D multi-directional flexibility (±10° rotational deflection per link). Maintenance technicians can quickly open the lateral snap locks using standard tools to inspect, add, or replace internal cables without disconnecting heavy-duty end connectors or disassembling the entire robot arm setup.

YDLF85 ID85 Technical Specifications

If your robotic setup requires a smaller, light-duty cable protection system for compact payload cobots or localized wiring, consider our smaller variant: the YDLE40 ID37 flexible drag chain, engineered specifically for tight bending radii and space-constrained automation cells.

Key Structural Features of the YDLF85 Flexible Cable Tray Chain

• Enclosed Sealed Protection: The tubular closed-shell design shields delicate internal power leads, fiber optics, and pneumatic conduits against metal shavings, hot welding spatter, ambient dust, and liquid coolants.
• Quick-Open Latch Mechanism: Unlike permanently closed flexible carriers, the lateral seam can be opened easily using a flat screwdriver. This allows rapid cable laying, simplified maintenance, and reduced machine downtime.
• High-Flex 3D Motion Capability: Built with an advanced ball-and-socket universal pivot joint, every link permits combined bending, pitching, and torsional twisting required by 6-axis robotic arms during complex spatial trajectories.
• Dual-Chamber Interior Separation: The built-in 2-chamber divider prevents interior cables and hoses from tangling or rubbing against one another, minimizing friction and extending cable life.
• 30% Glass-Fiber Reinforced PA66 Material: Formulated with premium engineering polyamide, offering high tensile strength, high impact absorption, and stable performance across extreme working temperatures from -40°C up to +130°C.

Special Industrial Applications & Harsh Operating Environments

The YDLF85 ID85 flexible cable tray chain is engineered for heavy-duty industrial tasks where open drag chains fail to offer sufficient mechanical protection:

• Automotive Robotic Arc & Spot Welding: Prevents hot welding spatter and slag from burning or adhering to sensitive power lines and sensor cables along axis 3 through axis 6.
• Heavy CNC Machining & Milling Centers: Completely blocks sharp aluminum or steel flying chips, abrasive dust, and high-pressure chemical cutting fluids.
• Foundry, Forging & Metal Casting Automation: Withstands high ambient radiant heat (up to +130°C continuous) and heavy particle contamination in metalworking shops.
• Palletizing & Material Handling Robots: Accommodates rapid multi-directional acceleration and high torsional torque during high-speed pick-and-place operations.

Precision Injection Molding Workshop & Raw Material Quality Control

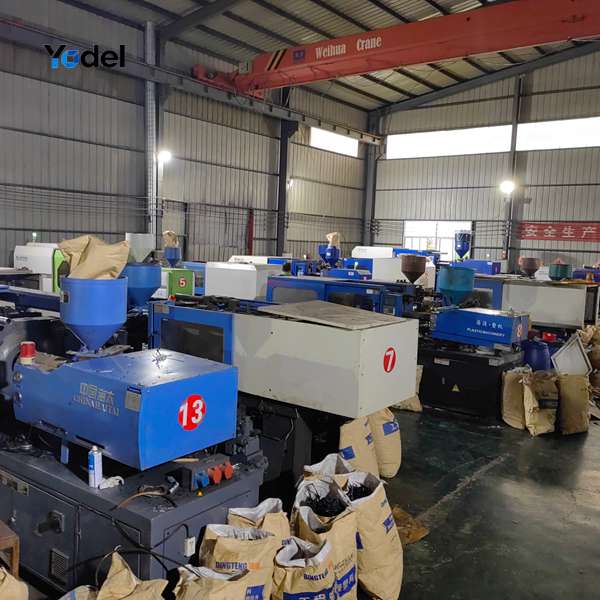

Our manufacturing facility utilizes advanced automated injection molding machines to produce highly uniform chain links with tight dimensional tolerances. Every production batch of the YDLF85 flexible cable tray chain undergoes strict mechanical testing for tensile strength, torsional wear, and impact toughness.

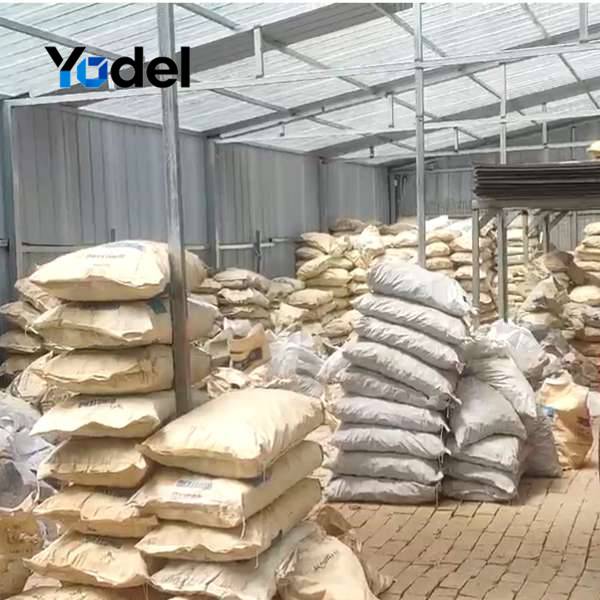

We strictly source high-grade raw materials: 30% glass-fiber modified PA66 engineering nylon pellets. This specialized material compound provides optimal rigidity and flexible toughness, preventing cracking or warping even under intense dynamic cycles.

Export Packaging Standards & Worldwide Shipping

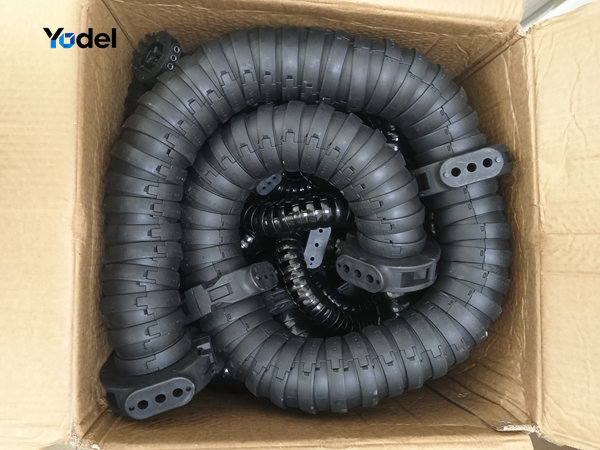

To prevent structural damage or scratching during international sea and air freight transport, completed YDLF85 flexible cable tray chain assemblies are bundled into compact coils, protected with shock-absorbing stretch wrapping, and packaged inside heavy-duty corrugated export cartons. Custom end mounting brackets and guide accessories are safely secured to ensure immediate installation upon arrival at your factory.
