57mm ID Side-Opening 3D Flexible Cable Tray Chain YDLE60 for Industrial Robots

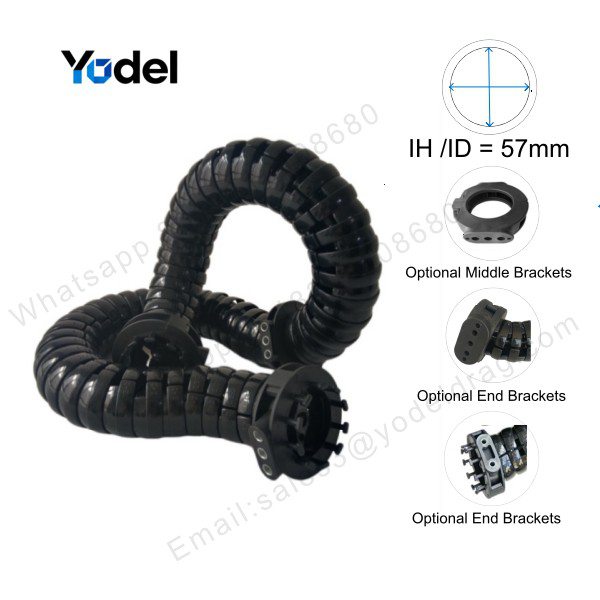

The YDLE60 ID57 side-opening 3D flexible cable tray chain is a heavy-duty, high-performance protection solution engineered specifically for complex multi-axis industrial articulated arms, cobots (collaborative robots), and automated production systems. Designed to protect vital power cables, signal lines, pneumatic hoses, and fluid conduits against dynamic fatigue, twisting stress, and mechanical abrasion, this multi-axis flexible cable tray chain ensures continuous operational uptime in high-speed industrial environments.

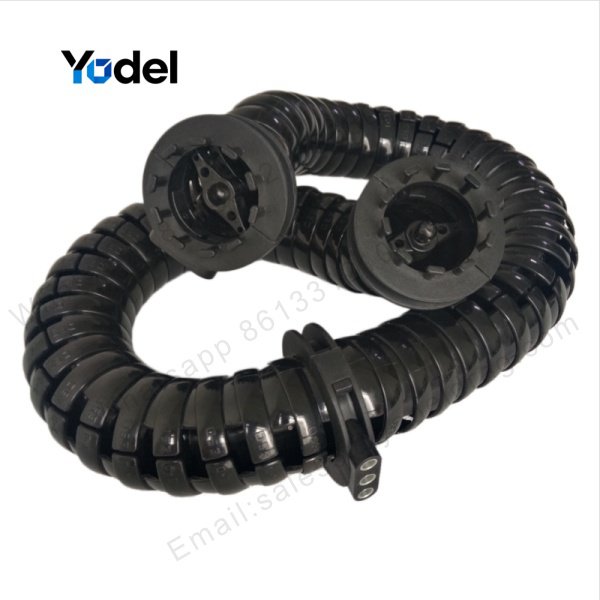

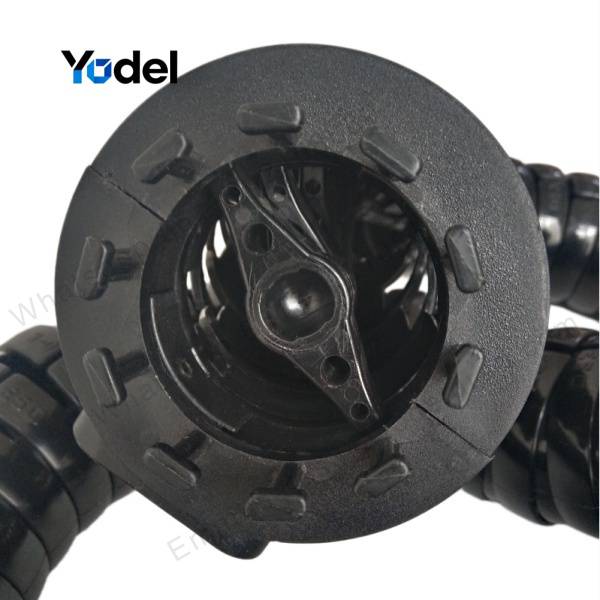

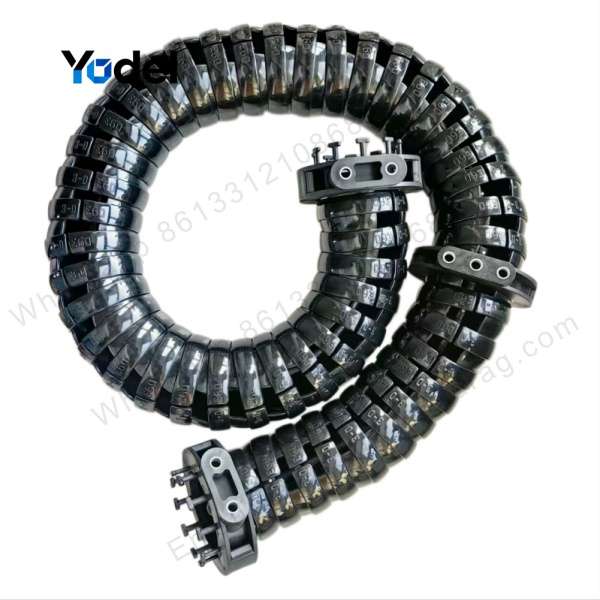

Featuring an inner diameter of 57mm, the YDLE60 flexible cable tray chain utilizes an advanced ball-and-socket universal hinge design for each individual chain link. This ball-and-socket mechanism delivers multi-directional freedom, achieving up to ±10° three-dimensional rotation per link. Unlike traditional 1D linear drag chains, this universal 3D flexible cable tray chain seamlessly accommodates horizontal bending, vertical swinging, and complex torsional movement required by 6-axis industrial robots during high-velocity trajectories.

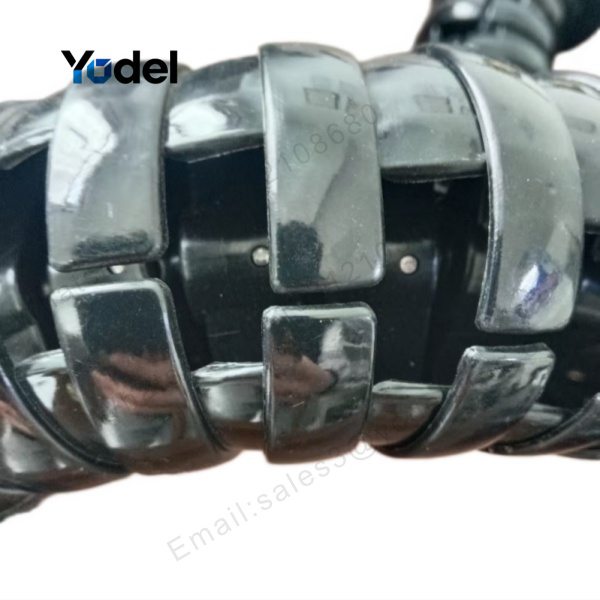

The innovative side-opening structure allows maintenance engineers to snap open the lateral latches quickly without dismantling mounted end connectors or unthreading existing cable runs. This quick-access feature dramatically simplifies cable installation, retrofit procedures, and routine maintenance inspections, directly reducing downtime on modern automated production lines.

YDLE60 ID57 Technical Specifications

For larger multi-axis robotic applications requiring expanded internal capacity for thicker power leads or higher cable counts, explore our larger-sized specification: the YDLE70 ID71 flexible cable chain, providing a 71mm inner diameter and enlarged bend radius for heavier dynamic loads.

High-Grade Nylon Material & Structural Durability

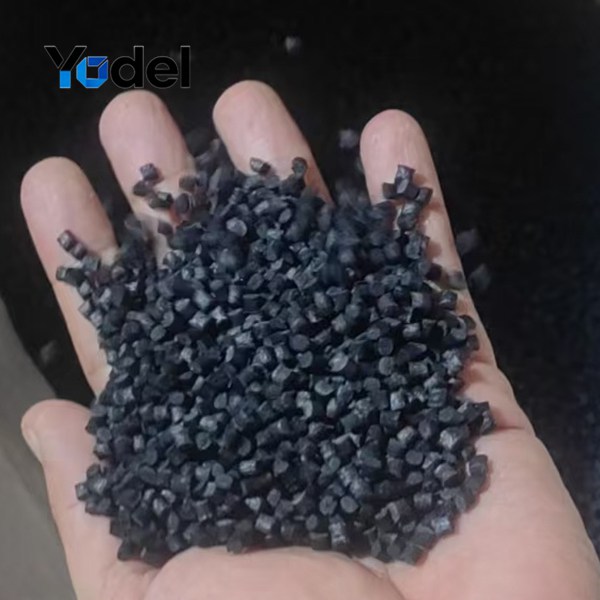

Each link of the YDLE60 flexible cable tray chain is injection-molded using high-purity Polyamide 66 (PA66) compounded with 30% reinforced glass fiber pellets. This modified engineering polymer yields outstanding tensile strength, impact absorption, and mechanical wear resistance. The material maintains structural rigidity across extreme thermal cycles ranging from -40°C to +120°C, offering reliable flame retardancy, oil resistance, and resistance to chemical cutting fluids in welding, automotive assembly, and CNC machining lines.

Packaging Standards and Quality Assurance

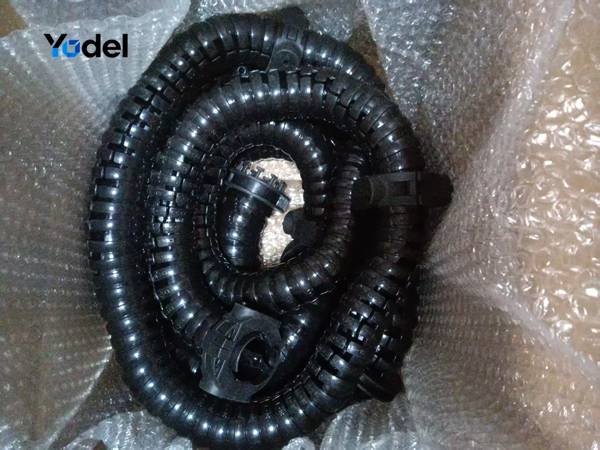

To preserve structural integrity during international freight shipping, completed YDLE60 flexible cable tray chain assemblies are bundled into compact coils, wrapped in protective shock-absorbing film, and packed into reinforced export boxes. Middle guide brackets and flange end connectors are securely attached or categorized to facilitate immediate assembly upon unboxing.

How to Choose the Right Size and Length for a Robotic Flexible Cable Tray Chain

1. Determine Inner Dimensions

• Inner Height (ID): Inner Height ≥ (Maximum Cable or Hose Outer Diameter × 1.1)
• Inner Width: Inner Width ≥ (Sum of Outer Diameters of All Interior Lines + Required Clearance) × 1.1

2. Calculate Chain Length

• Standard Horizontal Motion: Length = (Stroke S / 2) + Offset ΔM + K (where ΔM represents the distance from the fixed end to the stroke midpoint).
• Multi-Axis Robotic Motion: Calculate dynamic trajectory curves by measuring physical joint rotation limits or utilizing 3D motion simulation software to determine maximum multi-axis angular deflection.

3. Select Critical Bending Radius

Always verify the minimum dynamic bend radius specified by your cable or hose supplier first. Alternatively, apply these standard industry benchmarks:

• High-Flex Robotic Cables: Bending Radius ≥ 7.5 × Cable Outer Diameter
• Standard Industrial Flexible Cables: Bending Radius ≥ 10 × Cable Outer Diameter
• Pneumatic Air/Water Hoses (< 1000 psi): Bending Radius ≥ 10 × Hose Outer Diameter
• High-Pressure Hydraulic Hoses (> 1000 psi): Bending Radius ≥ 12 × Hose Outer Diameter

4. Assess Load Capacity and Environmental Factors

Evaluate maximum dynamic acceleration rates, operational duty cycles, exposure to hot slag or oils, and need for strain relief accessories to ensure optimal continuous protection throughout the robot's service life.
