YDLE70 ID71 Side-Opening Universal Flexible Cable Chain for Industrial Robots

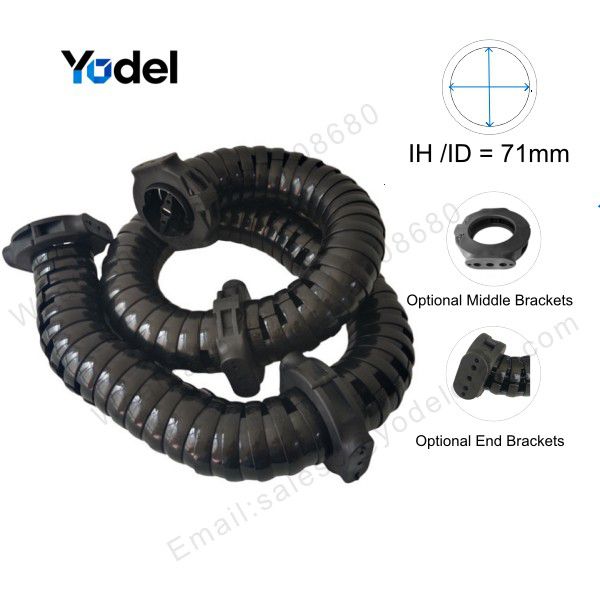

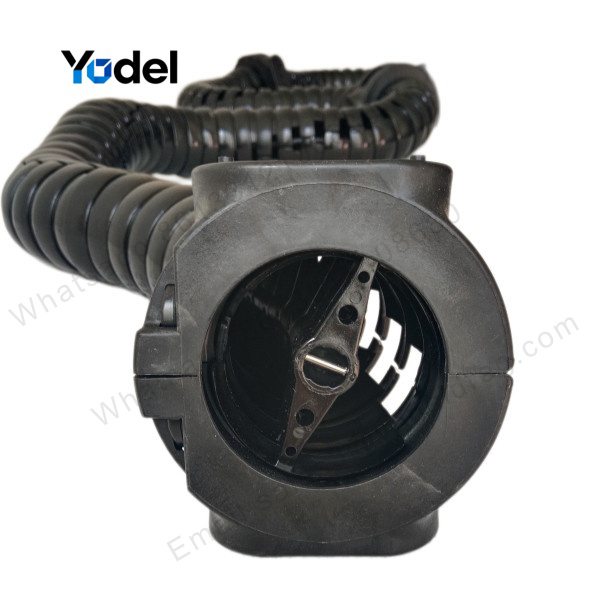

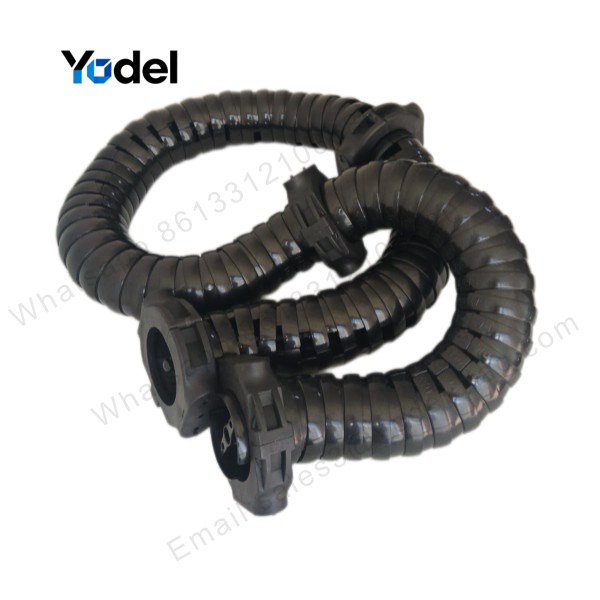

The YDLE70 ID71 side-opening universal flexible cable chain is an advanced, high-durability cable management system specifically built for 6-axis articulated robots, automated work cells, and complex multi-axis motion machinery. Engineered with an enlarged 71mm inner diameter (ID), this 3D flexible cable chain accommodates thick power lines, high-frequency control signals, pneumatic tubes, and fluid conduits, protecting them against torsional fatigue, extreme abrasion, and continuous tensile stress during dynamic movements.

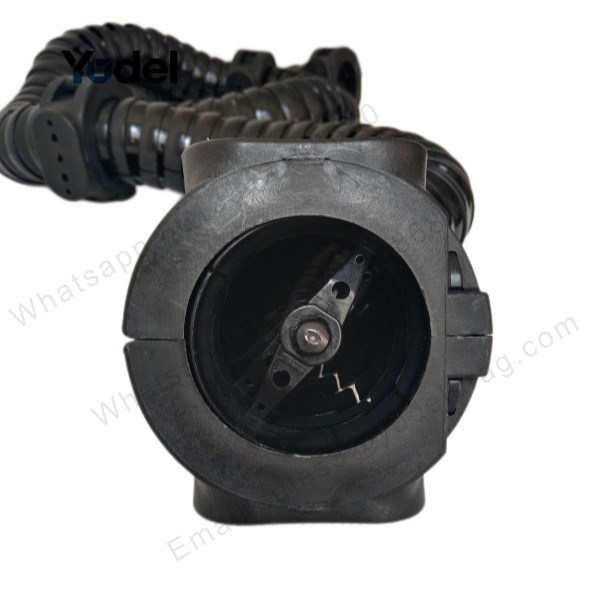

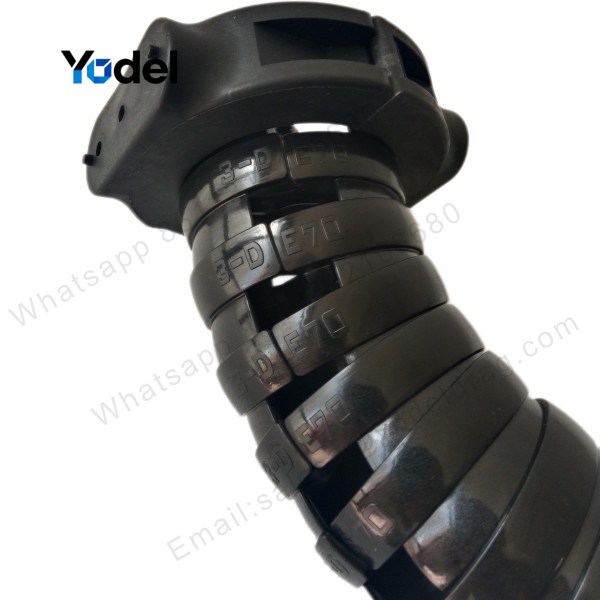

Constructed with a specialized ball-and-socket hinge mechanism between each link, the YDLE70 flexible cable chain provides full 3D spatial articulation with multi-directional bending capabilities. Unlike conventional single-axis cable carriers, this universal system follows complex rotational paths without binding or twisting internal lines. The user-friendly side-opening structure features robust snap-latch mechanisms that allow technicians to lay cables directly into individual chambers without unthreading end connectors, drastically minimizing installation overhead and line maintenance downtime.

YDLE70 ID71 Technical Specifications

For applications requiring fully closed dust proofing against heavy debris or metal chips, check out our enclosed variant: YLDF85 ID85 flexible cable tray chain, offering high-grade sealed protection for sensitive lines.

Precision Tooling and Advanced Molding Quality

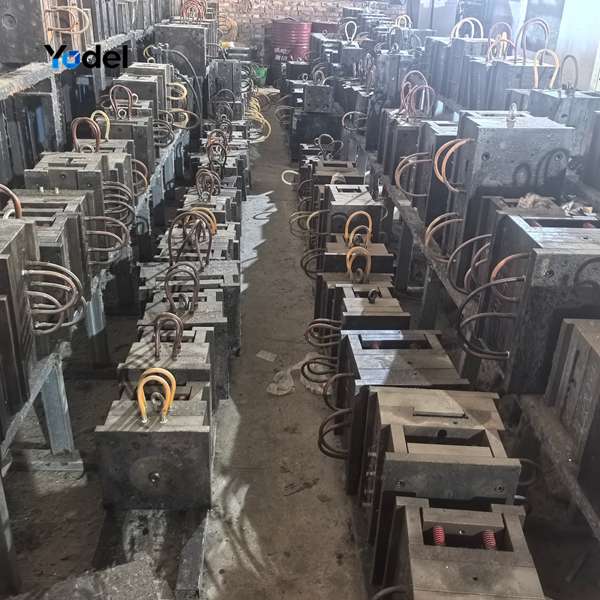

The reliable operation of each YDLE70 flexible cable chain link relies heavily on high-precision injection tooling. Our factory utilizes multi-cavity, hardened-steel mold tooling designed to maintain strict tolerances down to micrometers. This exact process ensures smooth rotational ball-and-socket action without mechanical play, preventing premature wear during millions of high-speed flex cycles.

Compounded with 30% short glass fiber reinforced polyamide 66 (PA66), the molded links withstand extreme operating temperatures from -40°C up to +130°C. The modified nylon raw material exhibits high tensile strength, resistance to chemical cutting fluids, and enhanced UV stability, making this flexible cable chain ideal for automotive welding lines and heavy machining environments.

Export Packaging Standards and Safe Handling

To ensure that every YDLE70 flexible cable chain arrives in perfect condition without link deformation, completed chain assemblies undergo rigorous quality inspection before being coiled and packaged. Each assembly is tightly wrapped in shock-absorbing bubble film and packed in heavy-duty multi-layer corrugated export cartons to prevent shipping damage during international freight.

Robotic Flexible Cable Chain Sizing and Selection Guide

1. Internal Space and Chamber Clearance

• Internal Diameter Calculation: Ensure Inner Diameter ≥ (Maximum Cable Outer Diameter × 1.15). For YDLE70 ID71, max single cable diameter is 24mm.
• Dual Chamber Layout: Utilize the 2 built-in chambers to segregate sensitive signal/bus lines from high-voltage power cables, preventing electrical interference and friction wear.

2. Determining Minimum Bending Radius

• Always match the minimum bend radius required by the most rigid cable installed inside the chain.
• Robotic High-Flex Cables: Bending Radius ≥ 8 × Cable Outer Diameter.
• Pneumatic Air Hoses: Bending Radius ≥ 10 × Hose Outer Diameter.
• The YDLE70 features a standardized bend radius of R115mm, ideal for dynamic multi-axis movement.

3. Calculating Total Chain Length for 3D Articulation

For 6-axis articulated robots, calculate total length by considering maximum joint rotation ranges (±180° to ±360°). Incorporate dynamic safety margins (+10% extra chain links) to prevent over-tensioning during extreme arm stretches.
