Black Drag Chain Size 100/35 Heavy-Duty Snap-Open Enclosed Cable Carrier

Black Drag Chain Size 100/35 Heavy-Duty Snap-Open Enclosed Cable Carrier

Product Attributes :

Inner Height: 35mm(1.38in)

Inner Width: 50-200mm(1.97-7.87in)

Outer Height: 55mm(2.17in)

Outer Width: 75-225mm(2.95-8.86in)

Bending Radius: R75/100/125/150/175/200/250mm(2.95/3.94/4.92/5.91/6.89/7.87/9.84in)

Pitch : 80mm(3.15in)

Links per Meter: 13 pcs

Max cable diameter:31.5mm

Structure: snap open enclosed type

End brackets :rectangular connectors

Material: 30% glass fiber +nylon PA66

Length: cut to length / customization

Color : fully black

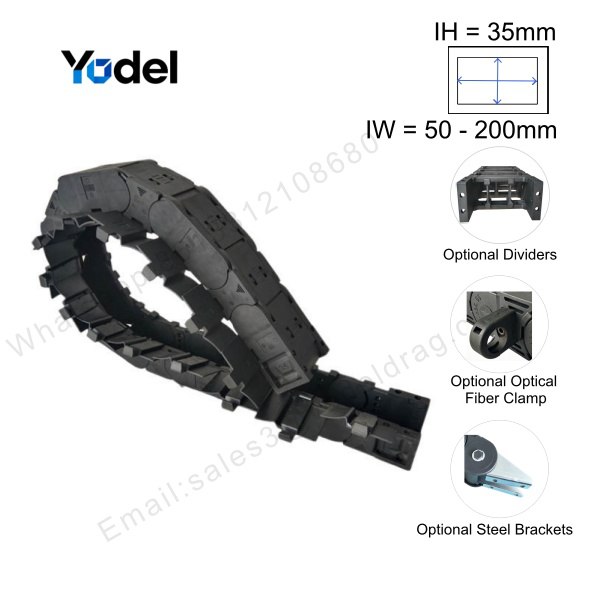

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link/steel mounting brackets

MOQ : 1Meter or Set

Custom available (logo /color )

Product Description

Heavy-Duty Snap-Open Enclosed Drag Chain Size 100/35

The drag chain size 100/35 is engineered as a premium heavy-duty and fully enclosed cable protection system designed to perform in demanding industrial environments. Featuring a generous inner height of 35 mm and an inner width of 100 mm, this robust cable carrier provides full-coverage protection for electrical cables, pneumatic hoses, and hydraulic lines, shielding them from hot chips, debris, grinding dust, and mechanical impacts during continuous linear movement.

Parameter	Value
Inner Height	35 mm
Inner Width	100 mm
Outer Height	55 mm
Outer Width	125 mm
Pitch	80 mm
Bend Radius	R75 R100 R125 R150 R175 R200 R250
Max Cable OD	31.5 mm
Material	30% GF + PA66
Operating Temp	-40°C to +130°C
Structure	snap-open enclosed type
Color	fully black
Configurations	Standard rectangular mounting brackets / Optional steel end brackets /inner separators /optical fiber clamps /custom logo /color

Heavy-Duty Construction with Precision Mold Engineering

Built for long travel distances, high accelerations, and heavy load capacities, every link of our drag chain size 100/35 is injection-molded using high-precision tool steel molds. The structural integrity is rigorously tested to ensure low noise, smooth articulation, and high wear resistance under continuous operation.

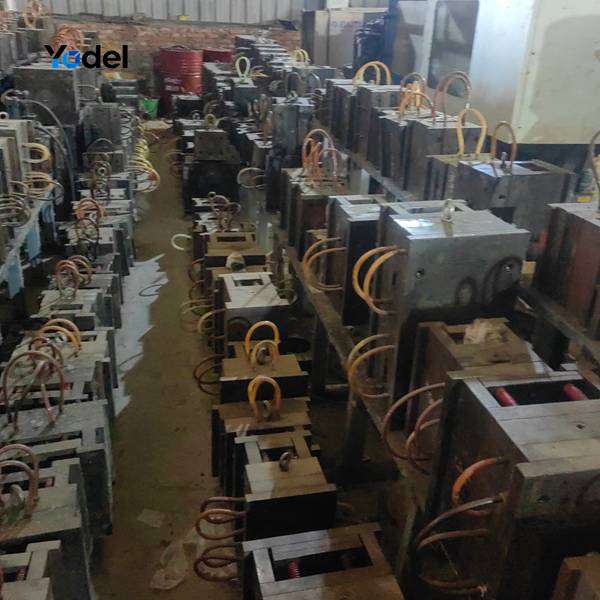

Precision steel injection molds used for manufacturing heavy-duty drag chain size 100/35 parts — Precision injection tooling workshop dedicated to high-strength heavy-duty drag chain manufacturing.

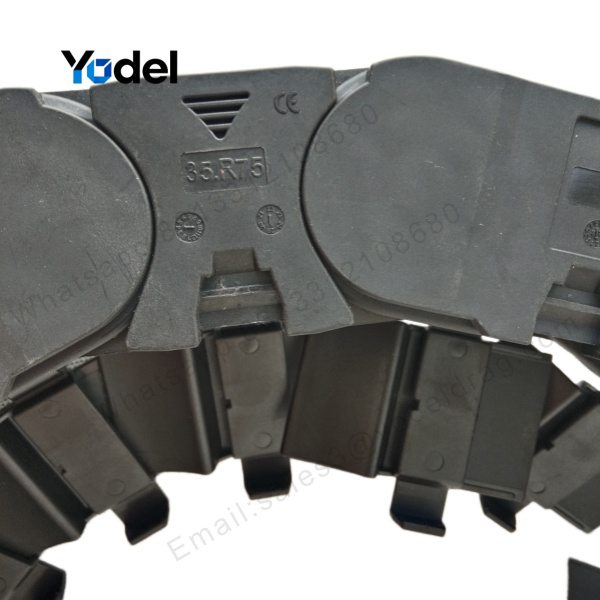

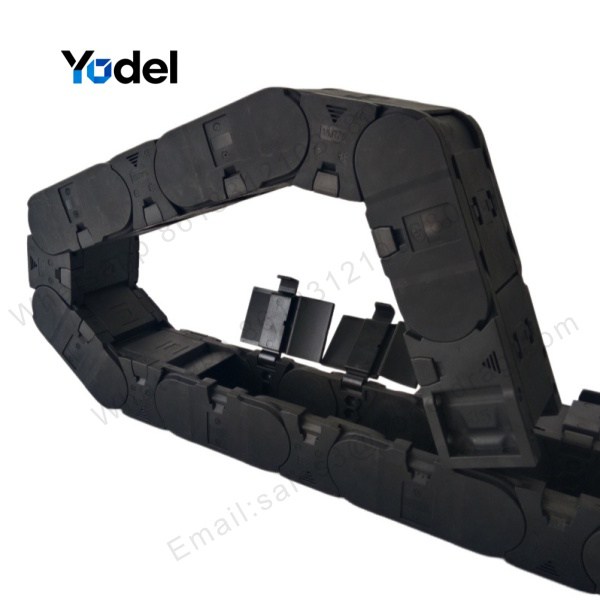

Snap-Open Convenience Combined with Fully Enclosed Defense

Made from high-grade reinforced nylon (30% GF + PA66), this carrier achieves high tensile strength while maintaining excellent flexural modulus. The defining feature of this model is its user-friendly snap-open mechanism along the side outer radius. Maintenance personnel can quickly snap open the covers using a standard screwdriver, allowing fast cable routing, retrofitting, or inspection without dismantling the drag chain assembly from machinery.

Looking for an open-style carrier for heat dissipation in clean industrial setups? Check out our Drag Chain 75x35 Snap Open Bridge Heavy-Duty Series for an open, highly ventilated cable management solution.

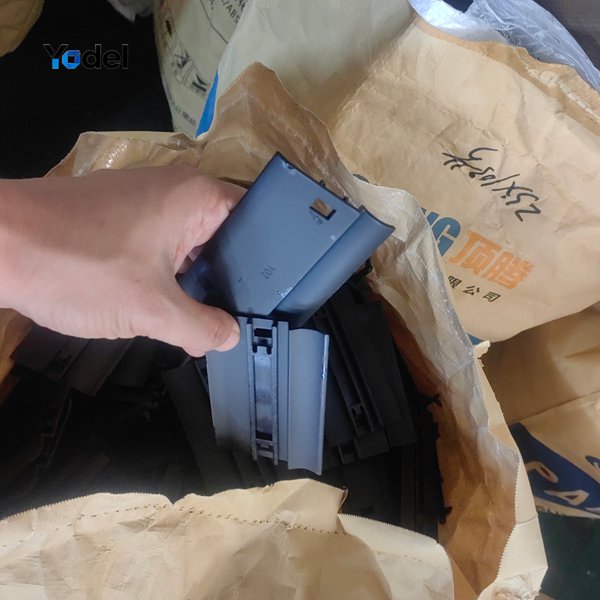

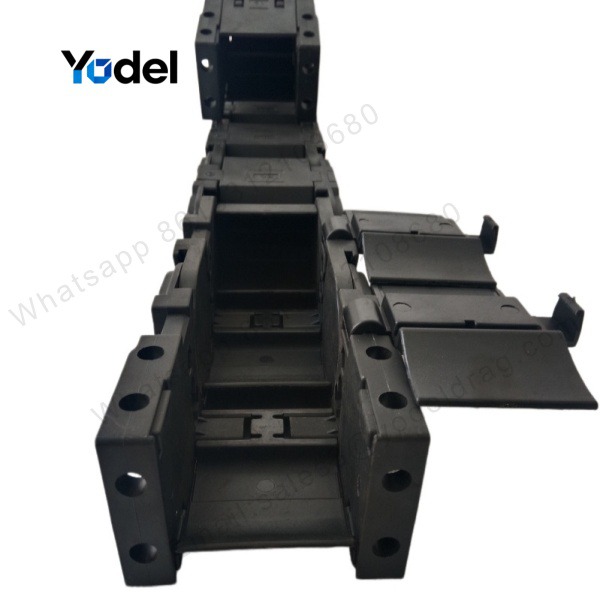

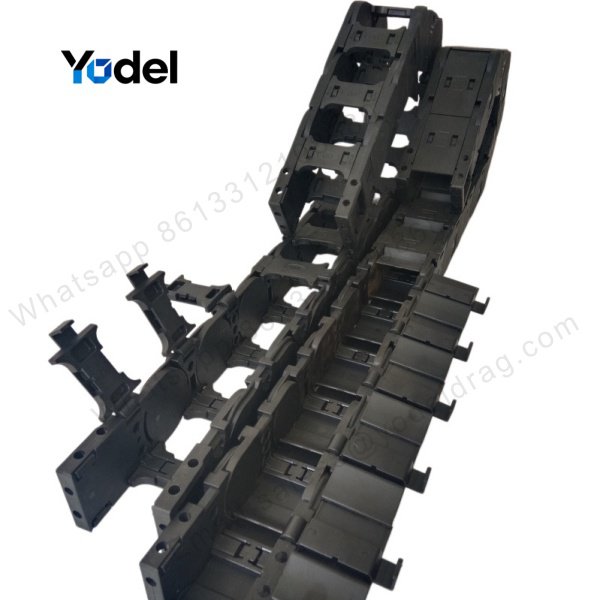

Modular unassembled components of drag chain size 100/35 highlighting snap-open side lids and enclosed structure — Modular unassembled components showing the snap-open side lid mechanism and heavy-duty enclosed links.

Concurrently, its fully enclosed structure creates a sealed protective channel. It isolates sensitive conductors (supporting max cable OD up to 31.5 mm) from external hazards like flying wood chips, metal cuttings, coolant splashes, and abrasive dust, drastically prolonging cable service life.

Key Performance Advantages

Snap-Open Side Access: Easy-to-operate side lids significantly reduce machine installation time and maintenance downtime.
Heavy-Duty Nylon Material: Formulated with 30% glass-fiber reinforced PA66 for exceptional load-bearing capacity, impact toughness, and heat resistance (-40°C to +130°C).
Fully Enclosed Protection: Blocks contaminants and debris from entering the inner chamber, preventing cable chafing and premature failure.
Flexible Modular Layout: Compatible with internal vertical/horizontal separators to neatly organize power, signal, and fluid lines.

Strict Inspection & Heavy-Duty Export Packaging

Every batch of drag chain size 100/35 undergoes strict quality controls, including snap-latch endurance, torsional rigidity, and bending strength tests. To guarantee safe delivery to global customers, products are securely packaged in multi-layer corrugated cartons reinforced with heavy-duty packing straps.
