Drag Chain 75x35 Snap Open Bridge Heavy-Duty Series

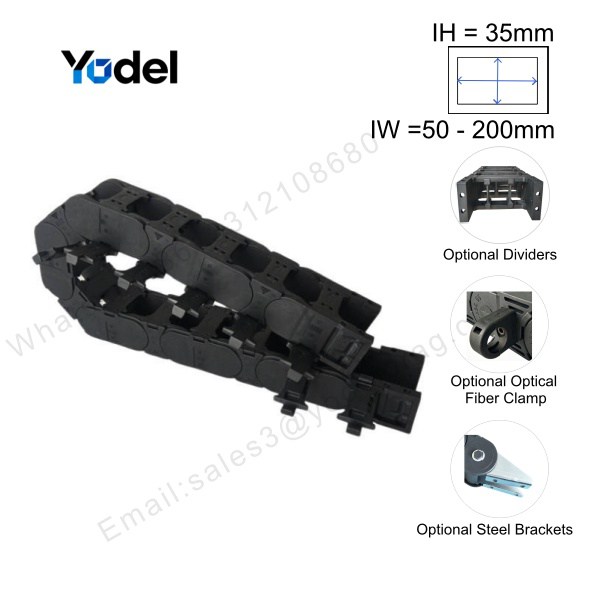

Engineered for high-speed dynamic automation equipment, our premium drag chain 75x35 (35mm inner height x 75mm inner width) snap open bridge type cable carrier provides smooth, low-noise line guidance for electrical power cables, pneumatic hoses, and hydraulic lines. Molded in an all-black aesthetic finish from premium 30% glass-fiber reinforced PA66 nylon, this robust energy chain delivers exceptional tensile strength, impact resistance, and high-load bearing capacity without sagging during extended long-stroke movement.

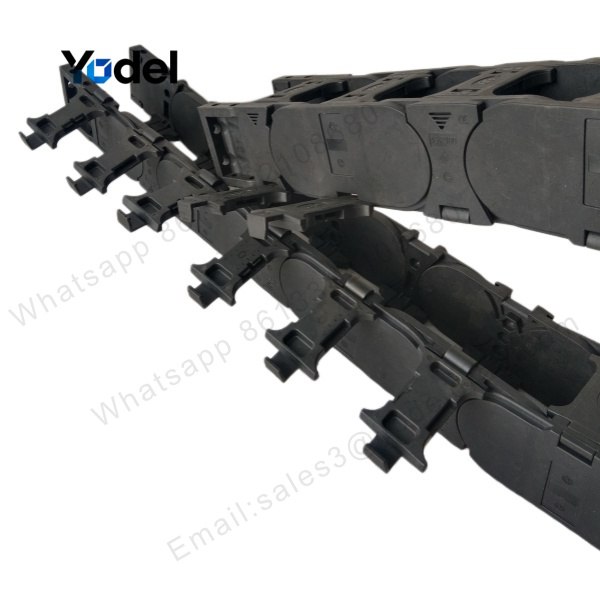

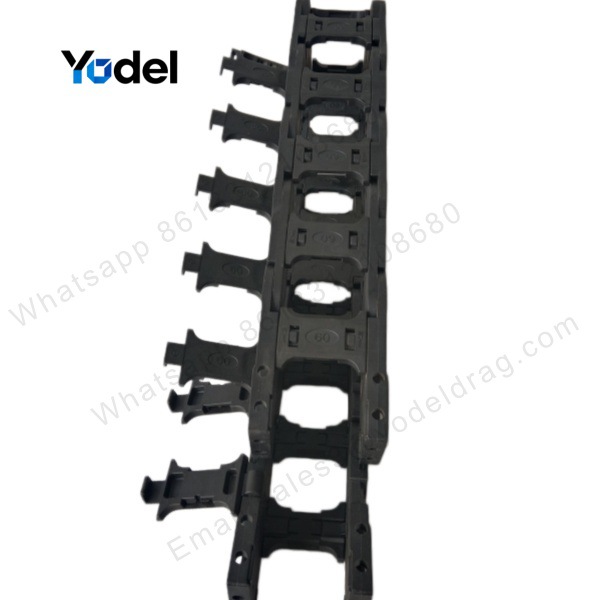

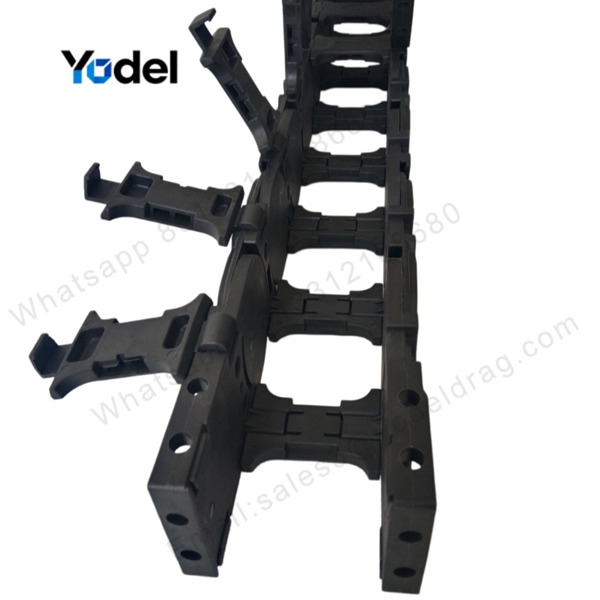

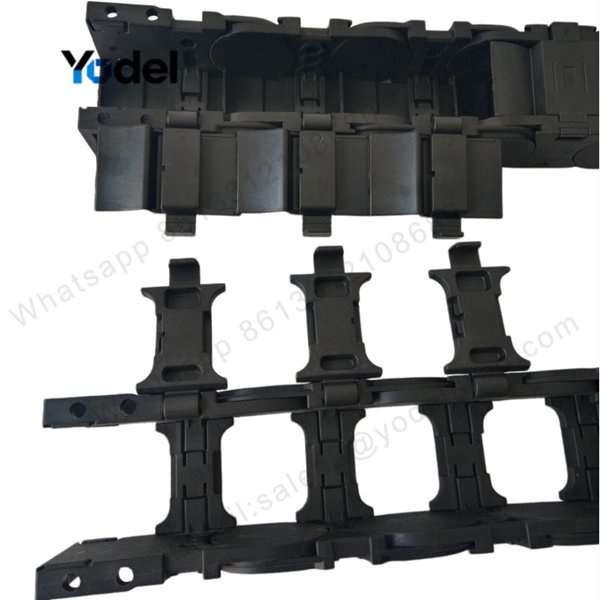

Featuring a convenient snap-open side structure, maintenance operators can unlatch crossbars quickly using a standard flathead screwdriver to route, inspect, or replace internal cables without disassembling the entire carrier system. The open-frame bridge structure promotes rapid heat dissipation and continuous airflow around dynamic cables, preventing thermal buildup in high-frequency reciprocating operations. For severe machining environments exposed to heavy hot metal chips, flying swarf, or aggressive coolant spray, we recommend upgrading to our fully enclosed drag chain size 35x100 enclosed type for 360-degree seal protection.

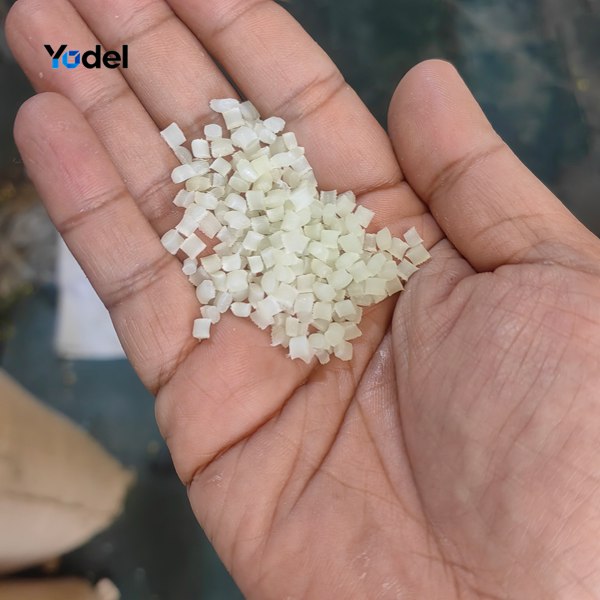

Virgin PA66 engineering resin compounded with 30% high-tensile glass fibers, providing high rigidity and long-term wear resistance for drag chain 75x35 manufacturing.

Technical Specifications

Heavy-Duty Construction & Advanced Manufacturing

Our drag chain 75x35 series is manufactured under strict quality standards using virgin PA66 modified with 30% high-purity glass fiber filler. This material formulation delivers superior tensile resistance, high thermal tolerance (-40°C to +130°C), and low dynamic friction. Every link undergoes precision high-pressure injection molding to guarantee smooth joint rotation, minimal pitch noise, and precise bending motion under heavy dynamic loads.

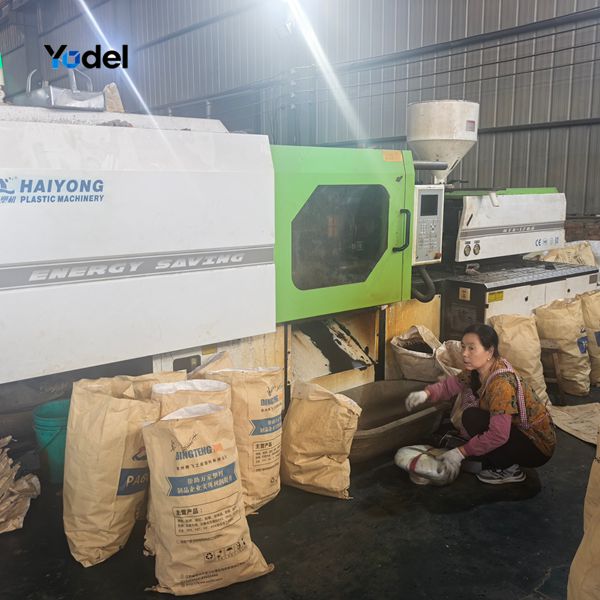

High-tonnage automatic injection molding machine producing 35mm heavy-duty plastic drag chains with rigorous dimensional tolerances.

Primary Industrial Applications

• Metalworking Machinery: Compact CNC lathes, milling machines, and small machining centers.
• Woodworking & Stone Equipment: CNC engravers, woodworking routers, and stone carving machinery.
• Robotics & Automation: Multi-axis manipulators, robotic pick-and-place arms, and linear gantry systems.
• Packaging & Printing: High-speed packaging machinery, flexographic printing presses, and automated assembly lines.
• Plastic Processing: Injection molding machines, auxiliary handling equipment, and light-to-medium reciprocating tools.

35mm Series Dimensional Selection Guide

• 35x50 mm / 35x75 mm: Ideal for compact CNC lathes, desktop engraving units, electronic assembly apparatus, laser marking heads, and small robotic arms.
• 35x100 mm: Suited for standard CNC machining tools, laser cutting gantries, woodworking routers, injection molding machines, and automated packaging channels.
• 35x125 mm / 35x150 mm: Designed for long-stroke truss manipulators, heavy gantry robotics, and multi-conduit systems with complex cable/hose bundles.

Selection Guide: Bridge Type vs. Fully Enclosed Drag Chains

Snap-Open Bridge Drag Chain (75x35): Optimal for industrial environments with minimal debris or flying chips. Offers low self-weight, superior heat dissipation, and effortless side-access cable laying. Best for automated assembly, packaging, and woodworking routers.

Fully Enclosed Cable Carrier: Provides complete sealed protection against hot metallic swarf, grinding dust, aggressive oil splatters, and heavy coolant spray. Recommended for heavy CNC metal cutting centers and automated welding stations.

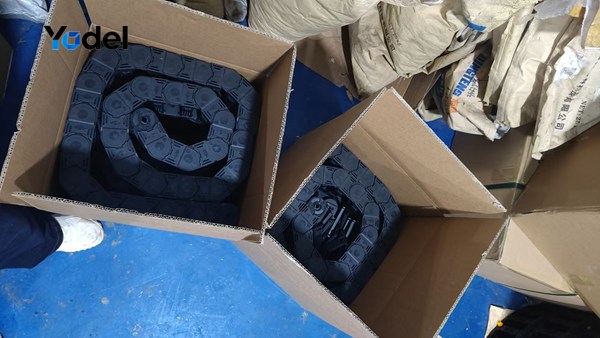

Heavy-duty corrugated export cartons protecting pre-assembled drag chain 75x35 units during overseas transportation.
