25x38 Cost-effective Nylon Drag Chain Cable Carrier

25x38 Cost-effective Nylon Drag Chain Cable Carrier

Product Attributes :

Inner Height: 25mm(0.98in)

Inner Width: 25-125mm(0.98-4.92in)

Outer Height: 40mm(1.57in)

Outer Width: 44-144mm(1.73-5.67in)

Bending Radius: R 55/75/100/125/150/175/200mm(2.17/2.95/3.94/4.92/5.91/6.89/7.87in)

Pitch :45.7mm(1.80in)

Links per Meter:22 pcs

Structure: non-openable bridge type

End brackets :rectangular connectors

Material: Engineering Nylon

Length: Cut to length / Customization

Color :black body with yellow pins

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link

MOQ : 1Meter or Set

Product Description

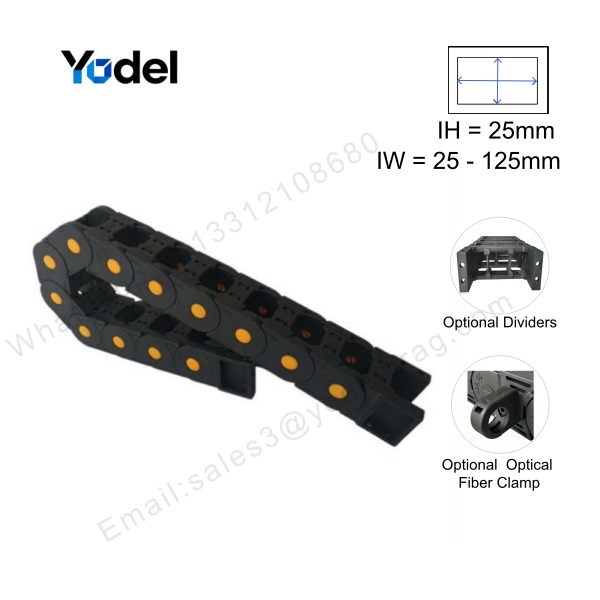

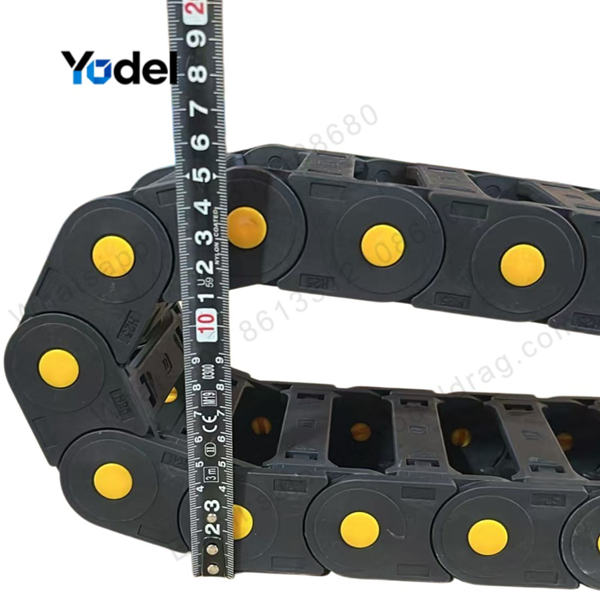

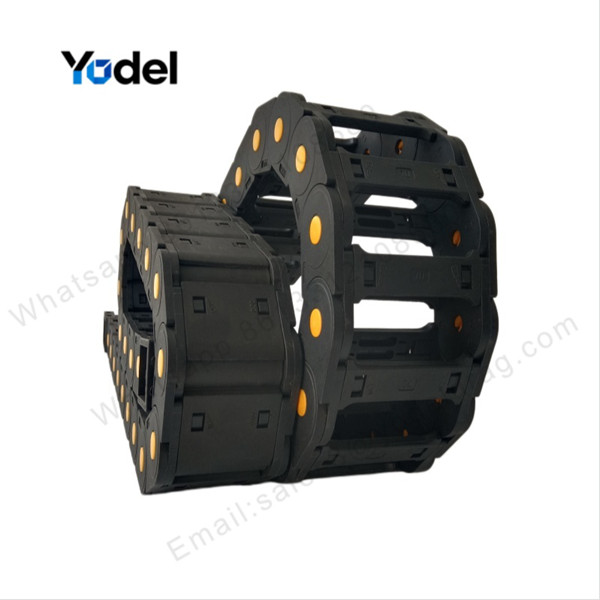

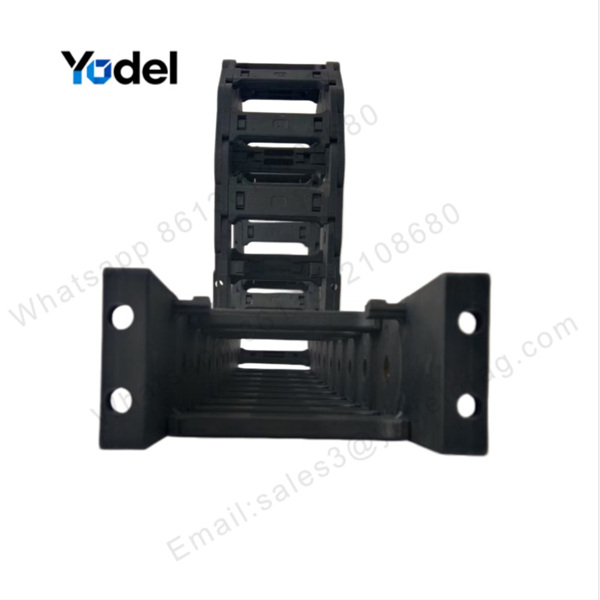

25x38 Drag Chain - Open Bridge Nylon Cable Carrier

The drag chain 25x38 is an open-bridge cable carrier engineered with a 25mm inner height and a 38mm inner width. Precision-molded from 100% virgin PA66 engineering nylon, this versatile 25mm series delivers high tensile strength, exceptional wear resistance, and long service life at a cost-effective price point. Its snap-open crossbar construction allows for quick cable routing, visual inspection, and routine maintenance without dismantling the entire chain, significantly reducing machinery downtime during operation.

Designed to accommodate cables or pneumatic hoses up to 22mm in outer diameter, the drag chain 25x38 features external dimensions of approximately 57mm width and 40mm height. The open bridge architecture ensures continuous air circulation around moving cables, dissipating heat effectively during high-speed travel. Available in multiple bending radii from R55 to R200, this series easily satisfies various stroke lengths and tight spatial enclosure requirements. We also offer customizable options, including internal vertical separators, side optical fiber clips, custom colors, and heavy-duty steel mounting brackets.

Technical Specifications & Dimension Data

Review the standard structural parameters for the 25x38mm bridge cable carrier below:

Parameter	Value
Inner Height	25 mm
Inner Width	38 mm
Outer Height	40 mm
Outer Width	57 mm
Pitch	45.7 mm
Bend Radius	R55 R75 R100 R125 R150 R175 R200
Max Cable OD	22 mm
Material	PA66
Structure	Bridge Type
Operating Temp	-40°C to +130°C
Optional Configurations	Inside separators / optical fiber clamps / steel mounting brackets / Color / Logo

Precision Injection Production Process

Every drag chain 25x38 link is produced using advanced injection molding machinery under strict process controls. Standardized mold tooling ensures tight dimensional tolerances and uniform wall thickness, enabling smooth hinge movement and precise snap-fit assembly across continuous high-speed movement cycles.

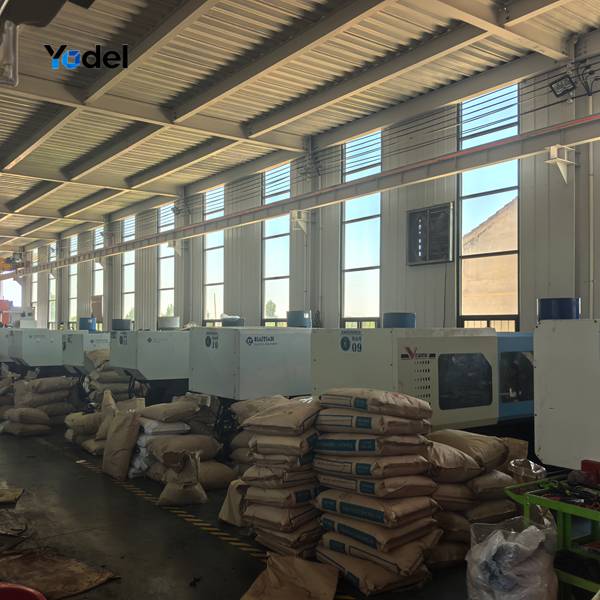

Industrial injection molding machines and stacked PA66 raw material bags in drag chain manufacturing factory

Strict Packaging & Weight Verification

To guarantee complete shipment accuracy and safe international transit, assembled drag chain 25x38 products are bundled, film-wrapped, and packed into reinforced corrugated cartons. Each package undergoes weight verification on precision scales prior to labeling and dispatch to avoid quantity discrepancies.

Quality control team weighing packaged drag chain 25x38 cartons on digital scale before export shipping

Industrial Field Applications

The drag chain 25x38 model is widely installed on laser cutting machinery, glass processing tools, stone cutting equipment, packaging machinery, machining centers, and automated material handling systems. For operations requiring full defense against flying debris, metal chips, or liquid coolants, consider our 25x57 enclosed drag chain featuring sealed top and bottom covers.

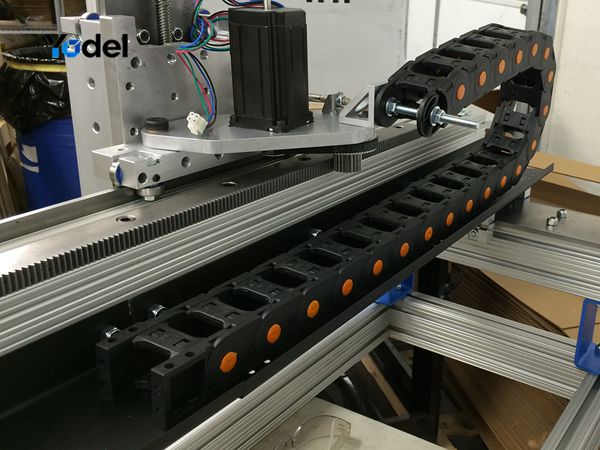

Open bridge drag chain 25x38 installed on linear motion axis of automated machinery for cable guidance
