80x200 Bridge Type CNC Cable Track – Reinforced Heavy-Duty Carrier

Product Overview

The 80x200 bridge open cnc cable track is an extra heavy-duty dynamic cable carrier system molded from premium 30% glass-fiber reinforced PA66 nylon. Featuring a generous 80mm internal height and 200mm internal width, this model accommodates thick power lines, multi-core signal wires, and heavy pneumatic or hydraulic lines up to 72mm outer diameter, easily housing 25 to 30+ conduits in a single cable chain. The open-top bridge configuration maximizes ambient thermal dissipation while allowing fast cable layout access.

This high-capacity cnc cable track is purpose-built for the most demanding dynamic motion applications where standard 45mm, 55mm, or 65mm series carriers reach structural limits. Thickened side-link profiles, high-precision pin connections, and reinforced crossbars deliver maximum flexural rigidity. This prevents structural deformation, "snaking," or sagging over long travel distances, providing smooth linear tracking for heavy industrial gantries.

Technical Specifications

Precision Component Sorting & Quality Control

To ensure high dynamic reliability under severe operating conditions, all molded link components for our 80x200 cnc cable track undergo rigorous manual inspection and sorting. Every side plate and crossbar is checked for wall thickness uniformity, flash-free surfaces, and pin-to-hole tolerances before final assembly.

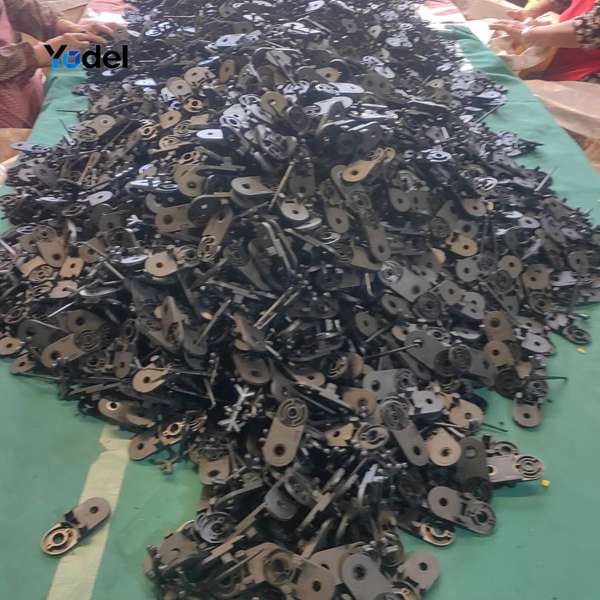

Figure 1: Quality inspection and sorting of high-strength nylon side link components prior to chain assembly.

Material Performance Advantages

• Extreme Load Support & Structural Rigidity: Glass-fiber PA66 construction handles massive multi-cable weight without joint sagging or lateral deflection.
• Exceptional Dynamic Fatigue Life: Rated for over 10 million flex cycles in high-speed long-travel motion setups.
• Broad Operating Temperature Tolerance: Maintains mechanical impact resistance and flexibility from -40°C up to +130°C.
• Low Moisture Absorption: Retains dimensional stability and tight pitch tolerances in high-humidity industrial environments.
• Superior Wear Resistance: Hardened pivot points minimize internal friction, extending total service life and reducing machine maintenance.

Finished Product Assembly & Coiling

Once assembled, every section of the 80x200 cnc cable track is tested for smooth articulation, crossbar locking security, and flex radius consistency. Pre-assembled lengths are coiled tightly to streamline shipping and on-site machine integration.

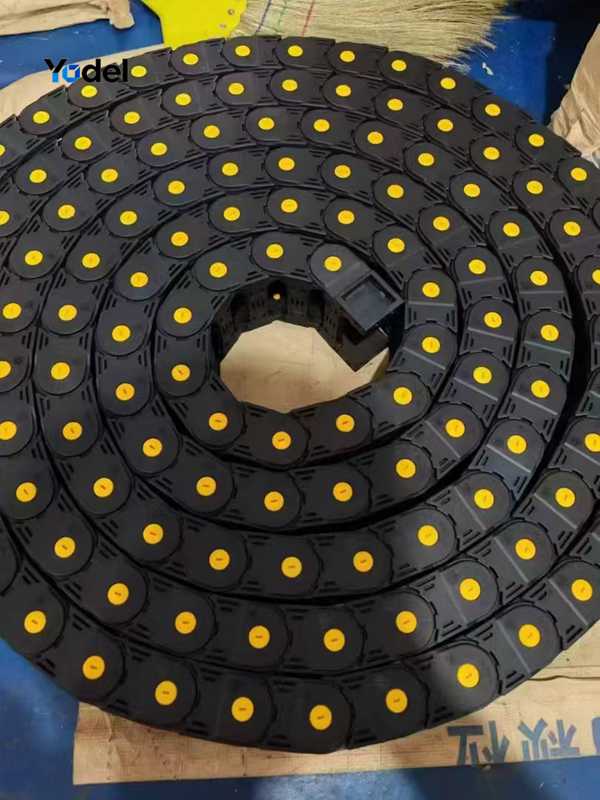

Figure 2: Completed 80x200 heavy-duty cable chain pre-assembled and coiled for immediate deployment.

Customization Options

We offer comprehensive customization services for the 80x200 cnc cable track series:

• Internal Separators: Adjustable vertical and horizontal dividers to prevent cable tangling and jacket friction.
• Side-Mounted Fiber Clips: Isolated outer clips to keep sensitive fiber optic lines separated from high-voltage power conduits.
• Heavy-Duty Steel Brackets: High-strength steel mounting brackets engineered for ultra-heavy dynamic loads and intense vibration.
• Custom Color Schemes: Available in custom RAL colors (Standard: all-black body or black links with high-visibility yellow pins).
• Laser Logo Printing: Permanent brand identification etched directly onto link side plates.

Applications

The 80x200 cnc cable track is purpose-built for heavy-duty industrial machinery requiring substantial hose and cable capacity over long movement paths. Operating smoothly as a dynamic energy chain, typical applications include:

• Heavy-Duty Gantry Systems: Large-format CNC gantry mills, industrial gantry robots, and automated 3D printing equipment.
• Extreme-Load Machine Tools: Large machining centers, heavy CNC lathes, and specialized metalworking equipment.
• Cutting Tables: Long-stroke plasma, waterjet, and laser cutting machines.
• Material Handling & Ports: Container cranes, shuttle transfer systems, and 7th-axis robot transfer units (RTUs).

For machines with smaller routing clearances or lighter loads, explore our 55mm or 65mm series models.

Heavy-Duty Export Packaging

To withstand long-distance maritime transport and safeguard heavy polymer components, finished 80x200 cnc cable track orders are packed inside reinforced export plywood crates.

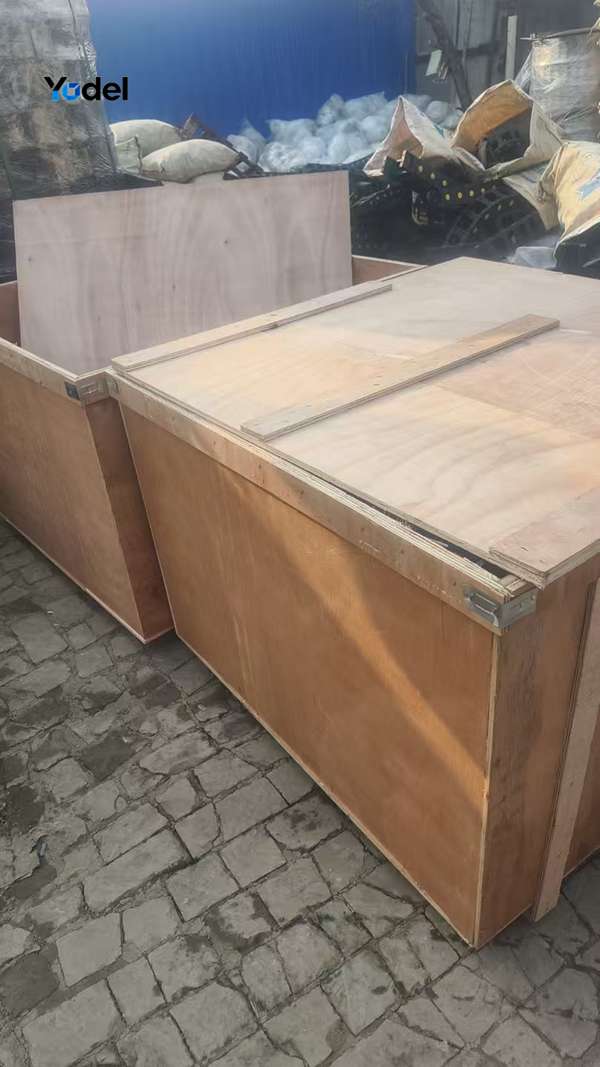

Figure 3: Secure plywood crate packaging providing maximum protection during global transport.

Related Product

Operating in environments exposed to hot flying swarf, sharp metal chips, or heavy coolant sprays? Check out our enclosed protection model:

Enclosed Protection Option: 80x200 Enclosed Type CNC Cable Track
