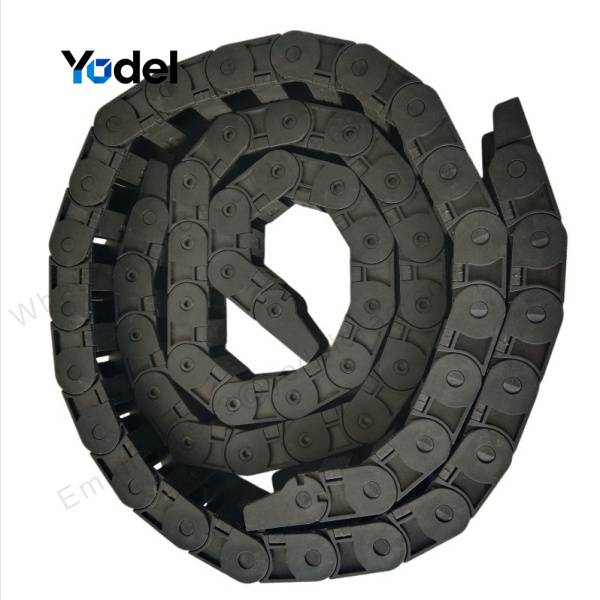

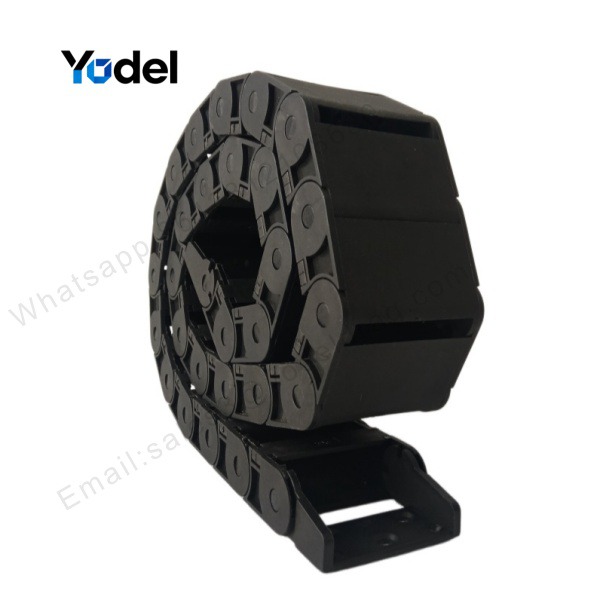

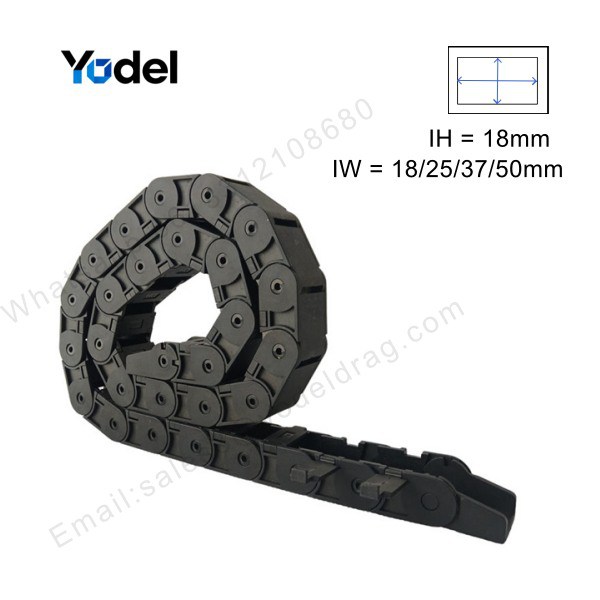

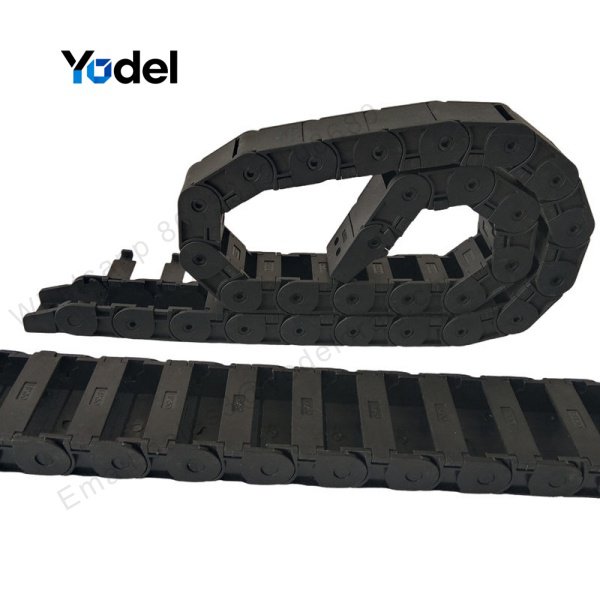

18x37 Drag Chain - Side-Openable Nylon Cable Carrier for CNC Routers

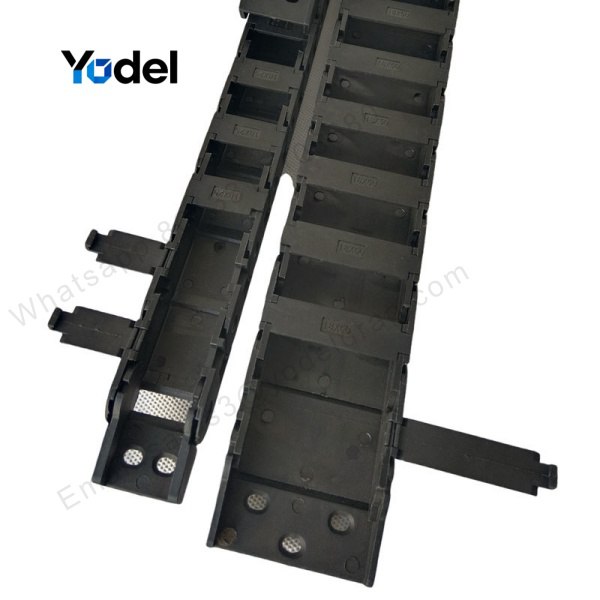

Our premium drag chain 18 x 37 series is an engineered cable management track crafted specifically for CNC routers, engravers, laser cutters, and dynamic automation machinery. Featuring an 18x37mm internal chamber, this 18mm series accommodates medium-to-large cable bundles—including spindle power cords, high-flex data lines, and pneumatic air hoses. Designed with a 90-degree side-opening crossbar mechanism, technicians can easily snap open the track from one side to install, inspect, or replace cables without dismantling pre-assembled harness connectors, significantly cutting down machine downtime.

Molded from virgin high-density PA66 engineering nylon, the drag chain 18 x 37 model offers exceptional wear resistance, chemical protection, and smooth, low-noise operation. Its robust snap-open crossbars provide instant interior access while maintaining a secure closure during high-speed reciprocating motions. In addition to the popular 18x37 size, our 18mm series also includes 18x18, 18x25, and 18x50 footprints to meet diverse spatial and cable capacity requirements.

Technical Specifications & Dimension Matrix

Review the detailed structural dimensions and bending radius parameters for our 18mm inner height drag chain series below:

Raw Material Quality & Manufacturing Excellence

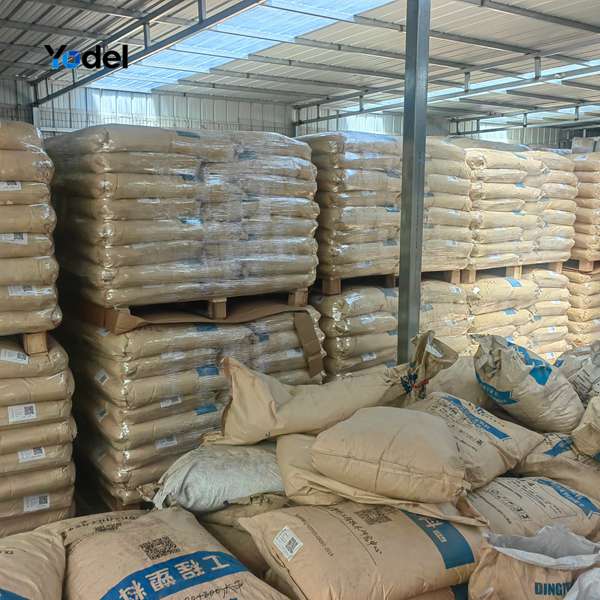

Every drag chain 18 x 37 unit is manufactured using high-purity PA66 nylon raw material granules. Our strict raw material inspection guarantees superior material toughness, low-temperature elasticity, and resistance to industrial oils, coolants, and UV exposure. This premium polymer base ensures the drag chain maintains structural integrity under continuous dynamic loads.

Component Sorting & Assembly Process

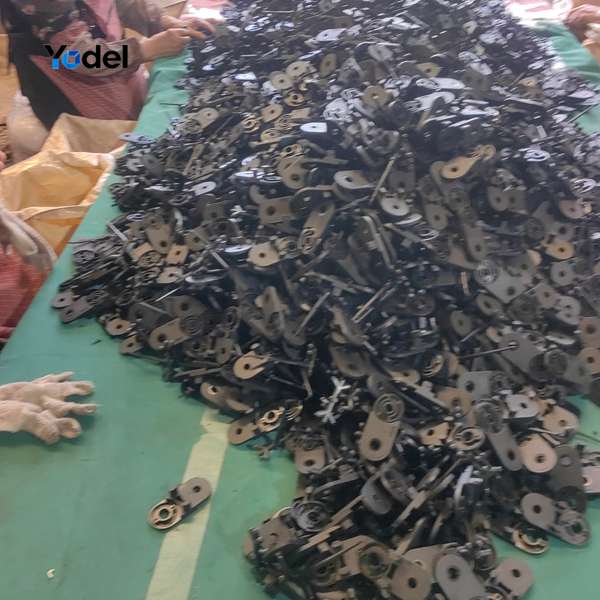

Following high-precision injection molding, individual chain links, side bars, crossbars, and triangular mounting brackets undergo rigorous manual inspection and sorting. Skilled assembly operators verify pitch consistency, snap-open tolerances, and link flexibility, ensuring each assembled drag chain 18 x 37 track articulates smoothly with zero binding or joint stiffness.

Industrial Equipment Applications

The 18mm height nylon cable carrier (18x37mm) strikes an ideal balance between generous cable capacity and a compact exterior footprint. It is widely applied across modern industrial machinery:

1. CNC Routers & Engraving Machines: Protects stepper/servo power cords and limit sensor lines against flying wood chips and metal dust.
2. CNC Laser Cutters & Plasma Systems: Guiding high-flex optical fiber lines and assist-gas tubing along high-speed X/Y linear gantries.
3. Robotic Arms & Automated Production Lines: Prevents line twisting, snagging, and tensile strain during continuous multi-axis motion.

For machinery requiring a lower clearance profile, check out our compact 15x30 side-openable drag chain series.

Secure Warehouse Packaging & Shipping

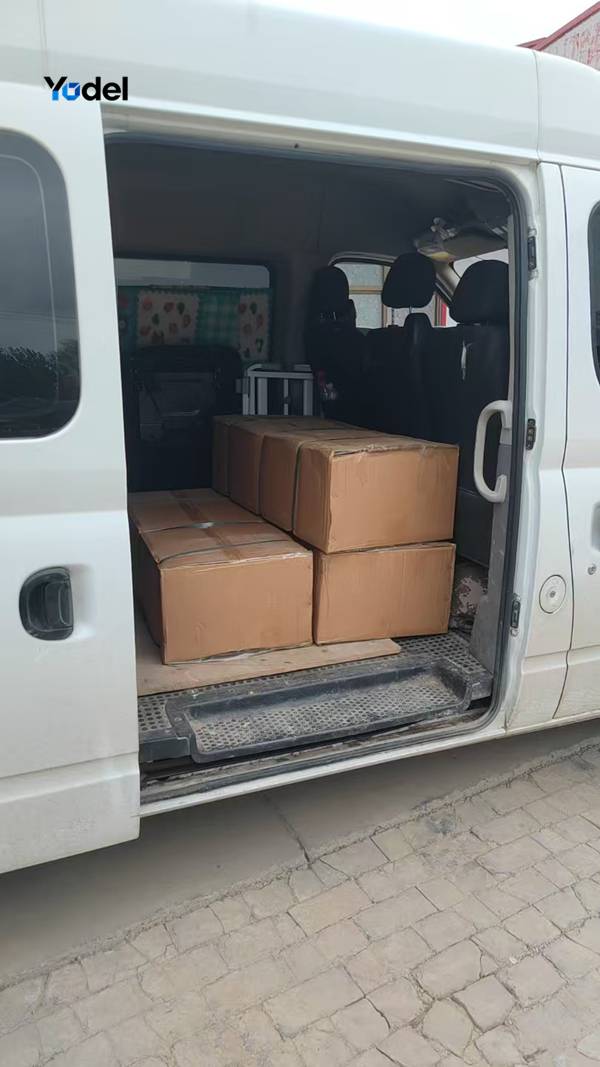

To ensure your orders arrive undamaged, finished drag chain 18 x 37 products are coiled, strapped, and packed into heavy-duty corrugated cartons or reinforced bulk crates. Our dispatch teams carefully load shipments onto transport vehicles for fast, safe delivery to local logistics centers and international shipping ports.

Custom lengths, specific bending radii (R28/R38/R48), and specialized mounting bracket configurations are available upon request. Contact us today for technical specifications, CAD models, or immediate price quotes.
