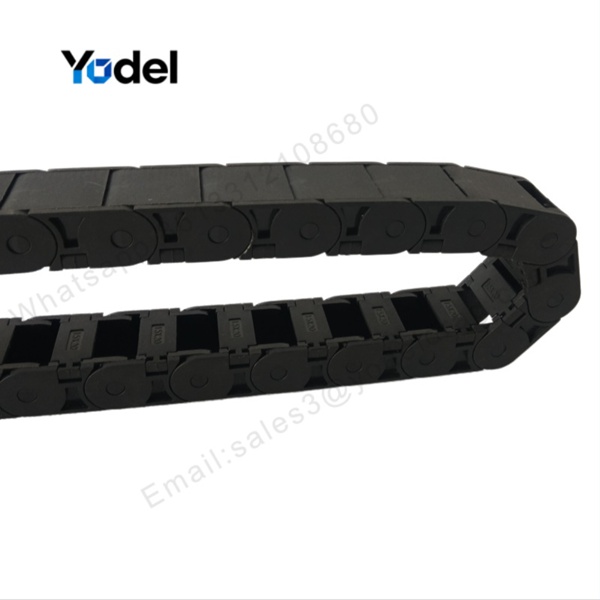

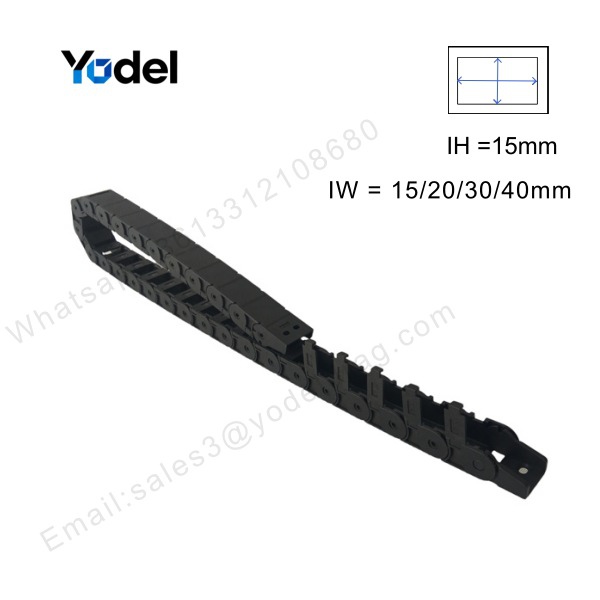

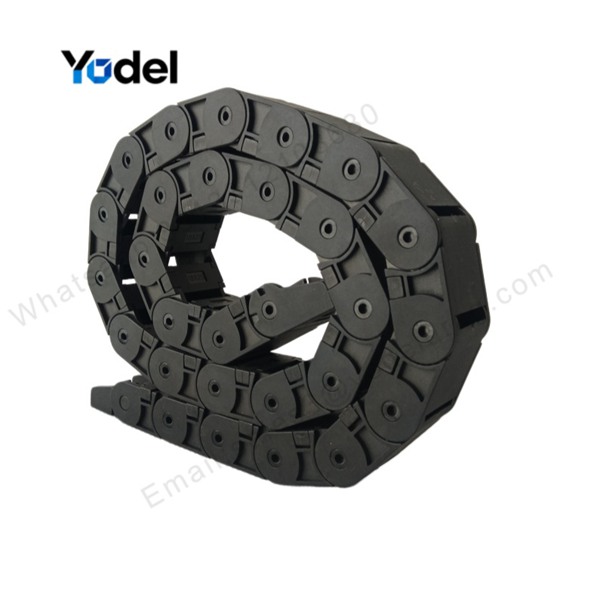

15x30 Side-Openable Drag Chain - High-Flexibility Cable Carrier

Our premium drag chain 15x30 model is an engineered nylon cable carrier built specifically for dynamic automation environments that demand frequent cable maintenance and rapid assembly. Featuring an internal dimension of 15x30mm, this high-performance drag chain provides an ideal spatial ratio for housing medium-sized cable bundles, including servo power lines, encoder wiring, and pneumatic hoses. Designed with multiple bending radii options (R28, R38, R48), it delivers smooth, low-vibration operation along linear motion axes.

Constructed entirely from premium PA66 engineering nylon, the drag chain 15x30 series offers outstanding wear resistance, high tensile strength, and self-lubricating link joints for extended flex life. Its standout side-opening crossbar mechanism allows technicians to press cables directly into the track or perform wiring replacements without disconnecting pre-assembled harness end-connectors, drastically reducing operational downtime during equipment maintenance.

Technical Specifications & Dimension Matrix

Review the comprehensive structural parameters for our 15mm inner height series to verify clearance requirements for your cable routing setup:

Key Advantages & Structural Features

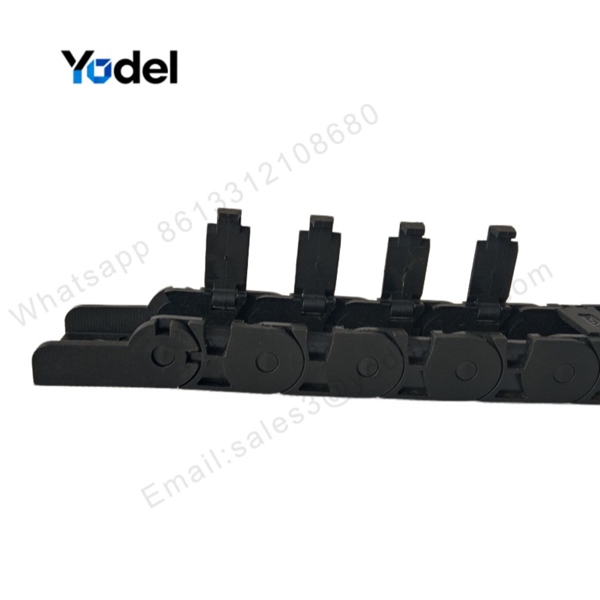

• Snap-Open Side Access: Crossbars pop open easily along the side frame, enabling quick cable installation, inspection, or retrofitting without dismantling connectors.
• Heavy-Duty PA66 Nylon: Resistant to oil, abrasion, and thermal degradation, guaranteeing long-term durability during continuous high-speed strokes.
• Precision Joint Design: Optimized link pitch (27mm) ensures quiet motion and reduced mechanical friction along linear gantries.

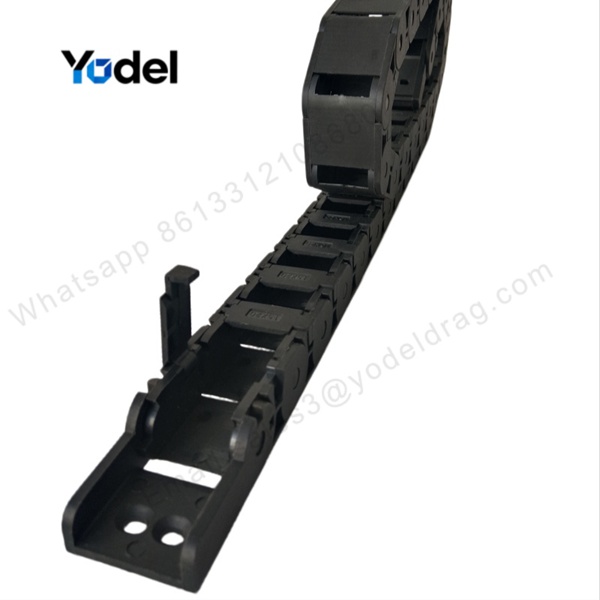

• Strain Relief Brackets: Fitted with angled mounting connectors to secure cables at both ends, preventing fatigue and tension damage.

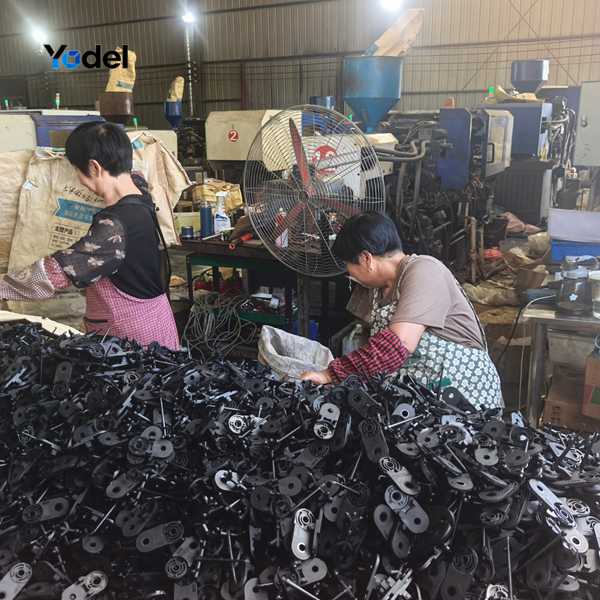

Precision Manufacturing & Sorting

Our state-of-the-art injection molding facilities produce each drag chain 15x30 component under strict quality control standards. Every batch of PA66 nylon links, side bars, and mounting brackets undergoes rigorous dimensional testing and mechanical stress evaluation. Components are categorized and organized systematically to guarantee exact tolerances and flawless snap-fit assembly across large production runs.

Industrial Applications

The drag chain 15x30 carrier is widely integrated into precision automated machinery, including:

1. CNC Routers & Engravers: Shields motor and sensor wires from fine dust, flying chips, and coolant spray.
2. Automated Pick-and-Place Systems: Ensures smooth, low-vibration cable guiding along rapid X/Y positioning axes.
3. Laser Cutting & Packaging Lines: Prevents line snagging and strain in continuous multi-axis motion paths.

For applications requiring higher cable bundle capacities, explore our 18x37 side-openable drag chain series.

Export-Grade Packaging

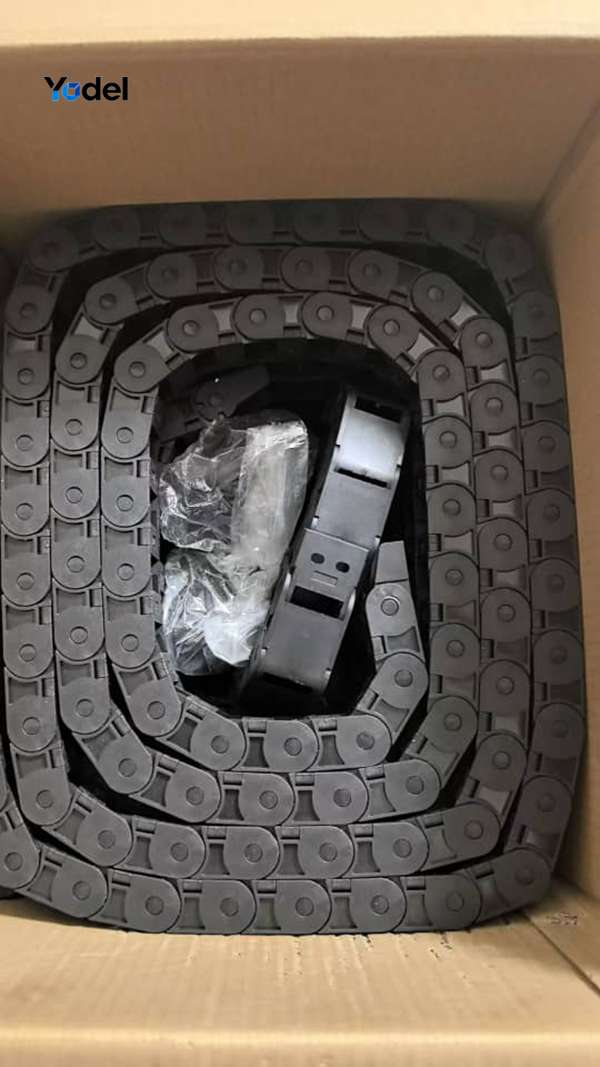

To ensure all products reach your facility in pristine condition, every order of drag chain 15x30 units is meticulously bundled, wrapped in protective moisture-proof film, and packaged into reinforced multi-layer corrugated cartons or custom wooden crates for bulk shipments. Clear labeling and organized batching make inventory handling effortless upon delivery.

Global Shipping & Logistics

We maintain streamlined shipping procedures to support worldwide industrial clients with reliable lead times. Whether shipping via ocean freight, air express, or overland logistics, our warehouse teams ensure fast order dispatch and secure container loading for safe international transit.

Custom chain lengths, specific bending radii, and specialized color formulations are available upon request. Contact our technical sales team today for instant quotes and CAD specifications.
