CNC Drag Chain 35x150 – Bridge Reinforced Nylon Type

Product Overview

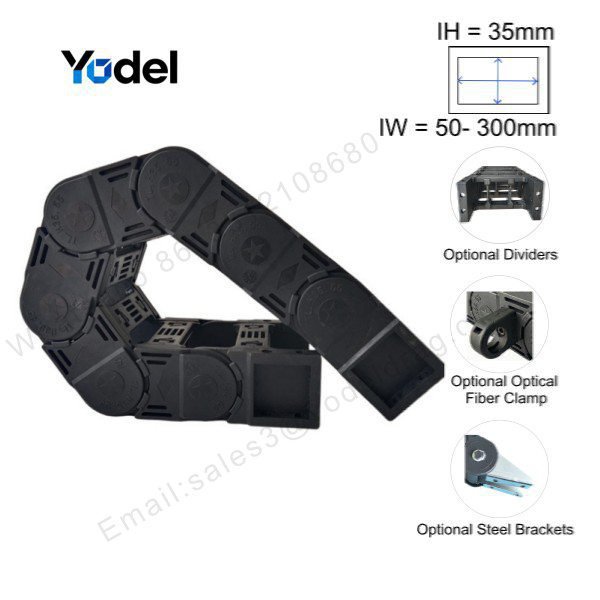

The 35x150 bridge openable type cnc drag chain is high-precision engineered and molded from 30% glass-fiber reinforced PA66 nylon. Featuring a 35mm inner height and 150mm inner width, this high-capacity cnc drag chain accommodates up to 12–14 standard cables or dynamic air lines, making it the ideal cable protection solution for CNC machining centers, milling equipment, and laser cutting machinery. The open bridge design ensures fast heat dissipation and swift, screwdriver-assisted cable laying without thread-through hassle. Also known as 35x150 cable carrier, cable track, or energy chain.

Compared to compact 25mm series tracks, the 35x150 cnc drag chain provides double the internal routing width (150mm vs. 75mm). This enlarged internal cross-section allows for cleaner cable separation, reduced frictional wear between lines, and superior cable bundle organization.

Technical Specifications

Material & Performance Advantages

By utilizing 30% glass-fiber reinforced PA66 instead of standard plastic compounds, our cnc drag chain delivers distinct structural and mechanical benefits:

• Higher Rigidity & Load Capacity: Withstands heavy dynamic cable loads without sagging over long travel distances.
• Exceptional Fatigue Resistance: Engineered for continuous high-speed motion with over 10 million dynamic flex cycles.
• Broad Temperature Stability: Functions smoothly in temperatures ranging from -40°C up to +130°C.
• Low Moisture Absorption: Retains precise dimensional stability and mechanical strength even in humid plant environments.
• Enhanced Wear Resistance: Significantly lowers friction at link connections, drastically reducing wear over time.
• Reduced Maintenance Costs: Delivers a longer service life, minimizing equipment downtime and replacement frequency.

Factory & Production Workshop

Our state-of-the-art production facility is equipped with automated injection molding lines dedicated to high-precision cable carrier manufacturing. Every cnc drag chain is produced under strict quality management protocols to ensure uniform strength, flawless link articulation, and exact dimensional consistency.

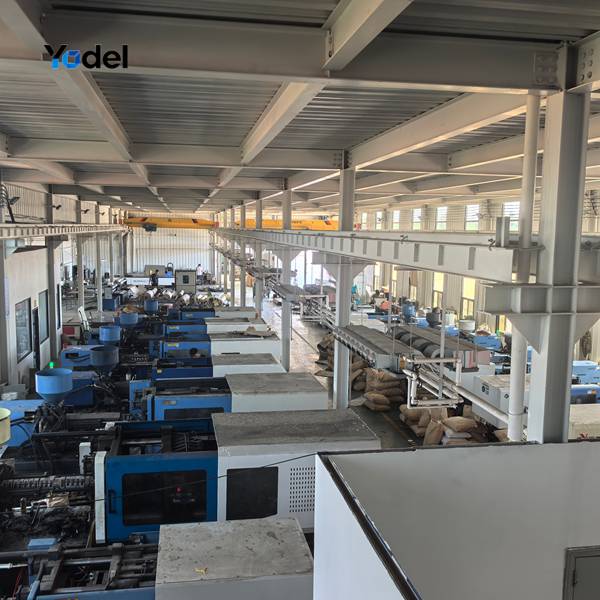

Figure 1: Advanced manufacturing workshop equipped with modern injection molding machinery for large-scale CNC drag chain production.

Quality Assurance & Load Capacity Testing

To guarantee maximum operational reliability in harsh industrial environments, each batch of 35x150 cnc drag chain undergoes rigorous physical stress tests. We test structural integrity, impact resistance, and dynamic flexibility—ensuring the chain withstands heavy static and dynamic loads without cracking or twisting.

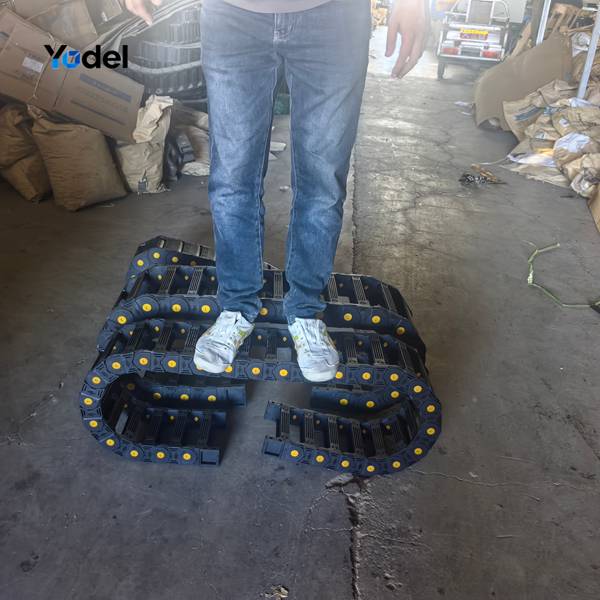

Figure 2: Real-world load-bearing and toughness evaluation demonstrating the high structural strength of our 30% glass-fiber reinforced PA66 drag chains.

Customization Options

We provide complete OEM/ODM customization services for the 35x150 cnc drag chain:

• Custom Brand Marking: Laser printing or molded logos on chain link side plates.
• Color Matching: Available in custom RAL colors to match your machine aesthetics (MOQ = 1,000 meters).
• Vertical Separators: Adjustable inner dividers for distinct power and signal line separation.
• Fiber Optic Clips: Side-mounted clips to route delicate fiber optic cables independently.
• Steel Mounting Brackets: High-strength steel end brackets to replace standard plastic brackets for heavy load connections.

Packaging & Safe Delivery

Before dispatch, all 35x150 cnc drag chain assemblies are neatly coiled, securely strapped, and packed in heavy-duty export cartons. This prevents damage during transit and ensures your order arrives organized and ready for immediate machine installation.

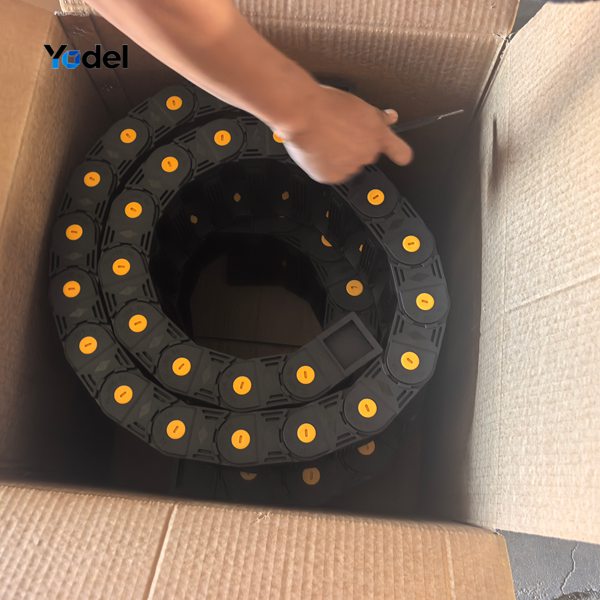

Figure 3: Export-grade carton packaging protecting pre-assembled 35x150 cable tracks during global transit.

Related Products

Need full chip, coolant, and debris protection for your application? Explore our enclosed version:

Enclosed Variant: 35x150 Enclosed Type CNC Drag Chain Carrier
