CNC Cable Carrier 55x150 – Bridge Open Type

Product Overview

The 55x150 bridge open type cnc cable carrier is engineered as a robust, high-capacity dynamic guidance solution molded from premium 30% glass-fiber reinforced PA66 nylon. Featuring a generous 55mm inner height and a 150mm inner width, this heavy-duty cnc cable carrier comfortably accommodates thick power lines, pneumatic hoses, and hydraulic conduit up to 50mm outer diameter, housing 20 to 25 standard cables simultaneously. Its openable bridge structure provides fast thermal dissipation and allows effortless cable placement using a standard screwdriver.

Compared to smaller 45x150 models, the 55x150 cnc cable carrier provides an additional 10mm of internal clearance height along with significantly higher structural rigidity. This makes it the ideal choice when dense cable bundles exceed the weight capacity or volume limits of medium-duty tracks.

Technical Specifications

Precision Mold Tooling & Manufacturing

Our production facility maintains a comprehensive matrix of hardened steel injection molds dedicated to producing each link of the 55x150 cnc cable carrier. By utilizing precision tooling alongside high-grade 30% glass-fiber reinforced PA66 raw materials, every component achieves strict dimensional tolerance, high tensile strength, and dependable joint alignment.

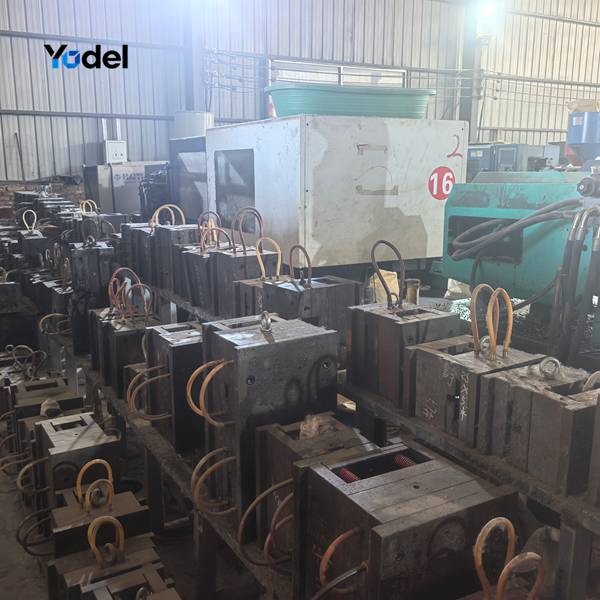

Figure 1: Dedicated industrial injection molds engineered for reinforced nylon cable track production.

Material Advantages of Reinforced PA66

• Enhanced Structural Rigidity: Supports heavy static and dynamic loads across long unsupported travel lengths without sagging.
• Exceptional Fatigue Resistance: Resists dynamic mechanical stress, delivering a flex life exceeding 10 million movement cycles.
• High Temperature Stability: Retains full mechanical integrity across a wide thermal operating range from -40°C to +130°C.
• Low Moisture Absorption: Resists environmental humidity changes to maintain tight dimensional tolerances during continuous operation.
• Superior Wear & Friction Resistance: Hardened surfaces minimize friction at connection pins, extending overall operational life.

Precision Manual Assembly & Quality Inspection

To meet custom machine configurations, every 55x150 cnc cable carrier is assembled by skilled technicians. Vertical inner separators, side fiber clips, and crossbars are installed with precision to verify smooth joint rotation and robust latching mechanisms before dispatch.

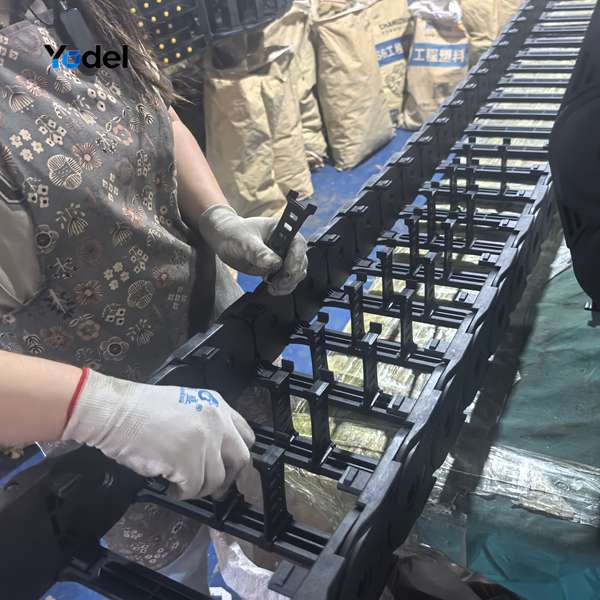

Figure 2: Dedicated assembly line configuring internal dividers and crossbars for optimal cable separation.

Customization Options

We provide comprehensive customization services for the 55x150 cnc cable carrier to align with your specific machine layout:

• Vertical Internal Separators: Modular interior dividers to prevent cable tangling and eliminate jacket abrasion.
• Side Fiber Optic Clips: External clip mounts to isolate delicate communication lines from heavy power cables.
• Heavy-Duty Steel Brackets: High-strength steel end brackets designed to replace plastic brackets for high-vibration applications.
• Custom Color Coding: Available in full black, black body with yellow pins, or custom RAL tones (subject to MOQ).
• Brand Marking: Laser-etched or molded customer logos directly on link side plates.

Applications

The 55x150 cnc cable carrier is engineered specifically for large-scale industrial machinery requiring long axis travel and dense cable bundles. Typical equipment includes heavy gantry machining centers, long-bed CNC lathes, large laser cutting tables, automated material transfer gantries, and robotic motion tracks. For compact machines with constrained mounting spaces, consider our 45mm series models.

Export Packaging & Shipping

Finished long-length 55x150 cnc cable carrier chains are carefully coiled, bound with heavy-duty straps, and overwrapped with protective stretch film before being palletized to guarantee damage-free transit during long-distance transport.

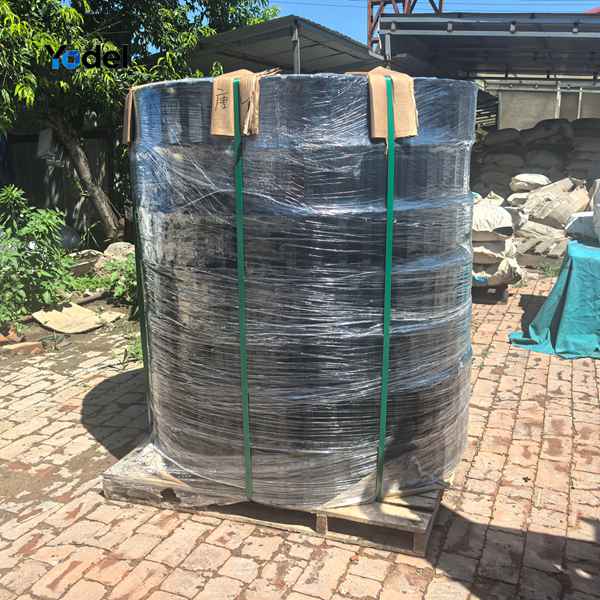

Figure 3: Secure palletized coil packaging prepared for worldwide export delivery.

Related Product

Operating in environments with airborne hot metal swarf or direct coolant spray? Check out our enclosed protection model:

Enclosed Protection Option: 55x200 Enclosed Type CNC Cable Carrier
