35x100 Bridge Cable Drag Chain - Cost-Effective Nylon Carrier for CNC & Automation

The 35x100 bridge cable drag chain (model YDLB35100) is a medium-duty, open-style cable track featuring a 35mm inner height and a 100mm inner width. Molded from 100% virgin PA66 engineering nylon—without low-grade recycled additives—this high-capacity cable drag chain delivers superior mechanical strength, excellent oil resistance, and long service life under high-speed reciprocating movement. Its openable crossbar design allows for fast cable insertion, visual inspection, and routine maintenance directly on the machine axis, reducing downtime and maintenance overhead.

With its generous 100mm internal width, the 35x100 cable drag chain accommodates up to 8 standard power leads, servo feedback wires, or pneumatic hoses up to 31.5mm in outer diameter. The open-bridge architecture facilitates continuous airflow around internal wiring, dissipating operational heat during continuous travel cycles. Available in bending radii from R75 to R300, it ensures whisper-quiet articulation and low vibration across medium-to-large automated machine gantries.

35x100 Specifications & 35 Series Sizing Matrix

Review the specific structural parameters for the 35x100 model alongside the complete 35 series dimension matrix below:

Precision Injection Molding Manufacturing

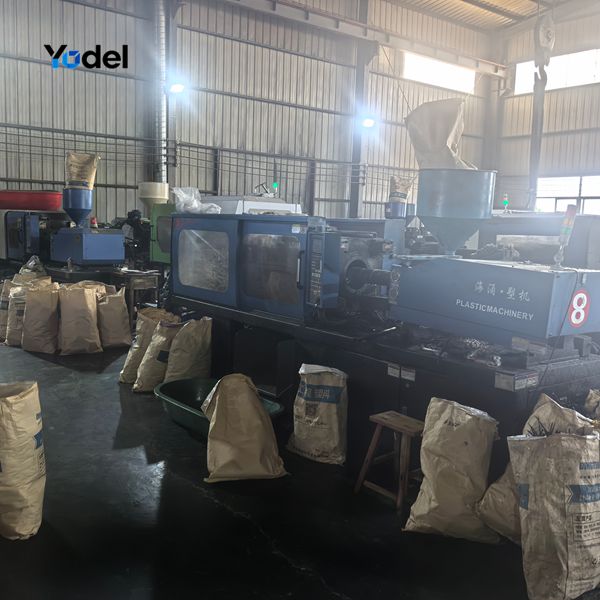

Our 35x100 cable drag chain links are manufactured using heavy-duty plastic injection molding machinery in a standardized factory environment. Pure virgin PA66 material granules are processed under strict thermal controls, guaranteeing tight dimensional tolerances, uniform wall density, and crack-resistant joint hinges.

Manual Link Assembly & Component Integration

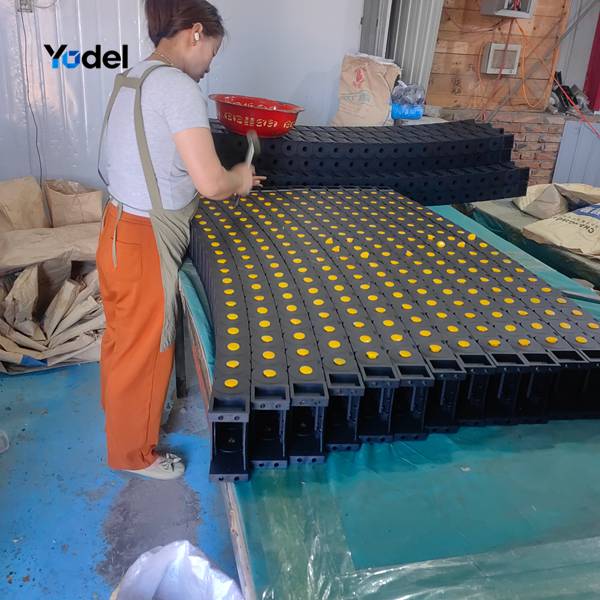

Experienced technicians assemble individual molded links into custom chain lengths, integrating optional vertical separators, optical fiber clips, or steel mounting brackets according to client specifications. Every assembled cable drag chain segment undergoes manual articulation checks to ensure smooth joint flexation.

Industrial Applications & Heavy-Duty Pallet Delivery

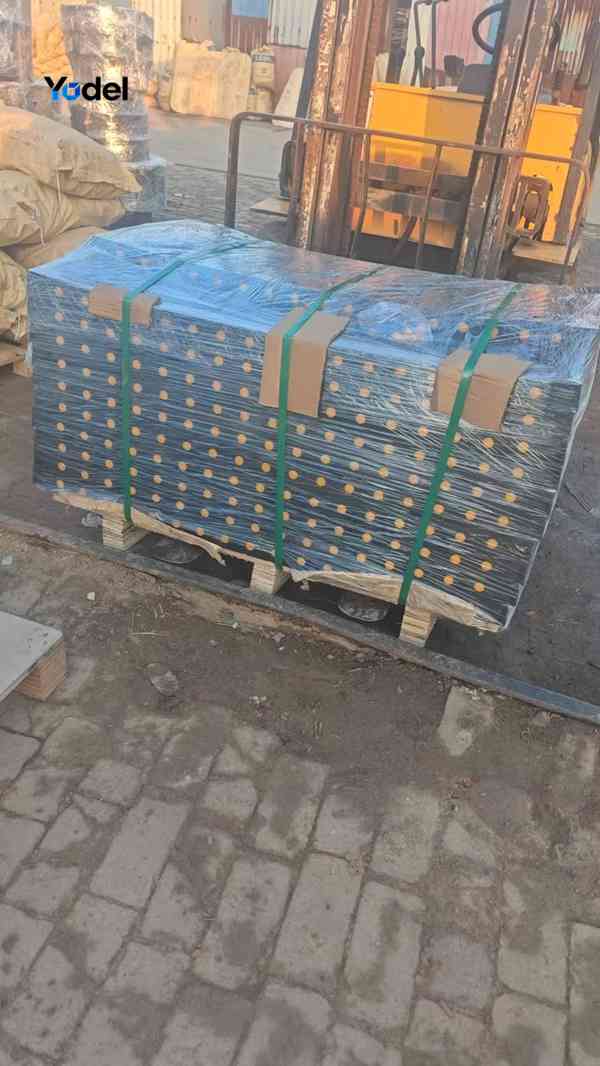

The 35x100 cable drag chain is widely installed across CNC machining centers, woodworking routers, stone/glass cutters, robotic welding cells, and plastic injection machines. Finished orders are bundled, boxed, and strapped onto fumigation-free wooden pallets for safe international transport. For environments with flying chips or cutting fluid, consider our 35x90 enclosed drag chain range.

Contact our engineering sales team for CAD models, custom length quotes, and factory-direct pricing.
