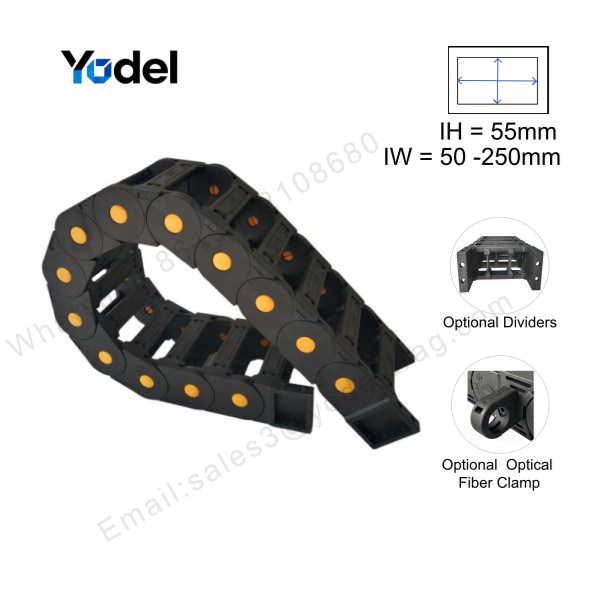

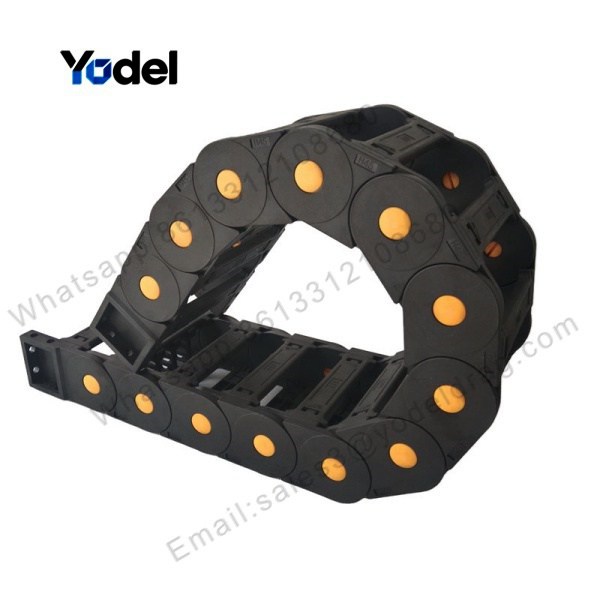

55x100 Bridge Type Plastic Cable Drag Chain Carrier for Industrial Equipment

55x100 Bridge Type Plastic Cable Drag Chain Carrier for Industrial Equipment

Product Attributes :

Inner Height: 55mm(2.17in)

Inner Width: 50-250mm(1.97-9.84in)

Outer Height: 75mm(2.95in)

Outer Width: 80-280mm(3.15-11.02in)

Bending Radius: R100/125/150/200/250/300mm(3.94/4.92/5.91/7.87/9.84/11.81in)

Pitch : 80.5mm(3.17in)

Links per Meter: 13 pcs

Max cable diameter: 50mm

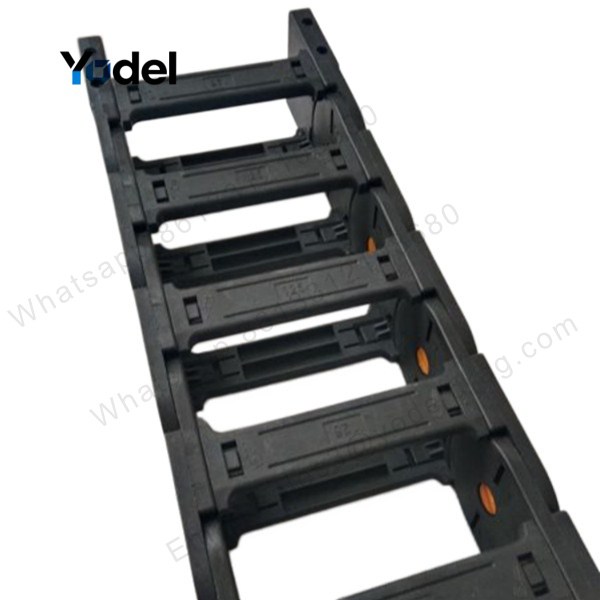

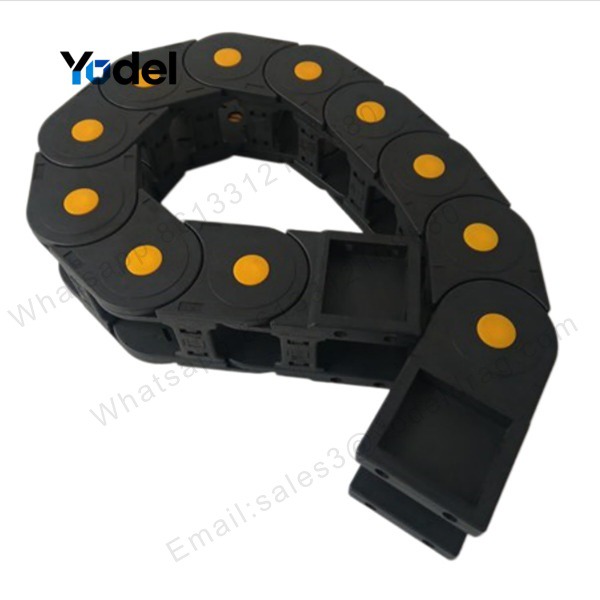

Structure: openable bridge type

End brackets :rectangular connectors

Material: engineering Nylon

Length: cut to length / customization

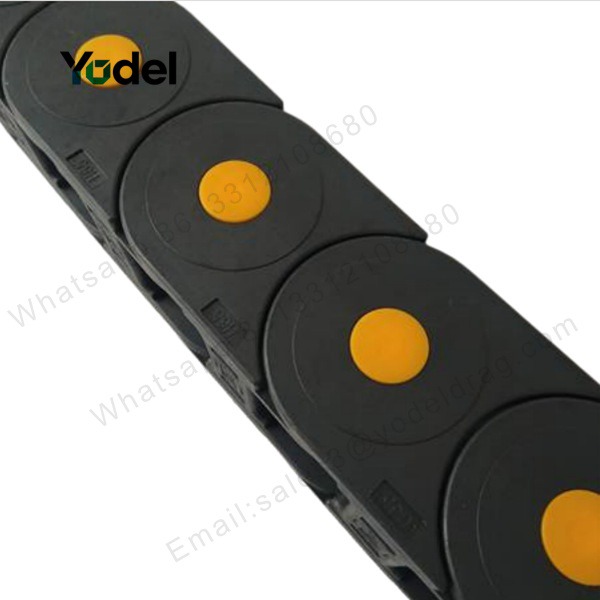

Color :black body with yellow pins

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link

MOQ : 1Meter or Set

Custom available (logo /color )

Product Description

55x100 Bridge Drag Chain - High-Performance Cable Drag Chain 55x100 for CNC & Automation

The cable drag chain 55x100 is an open-bridge plastic cable carrier engineered with a 55mm internal height and a 100mm internal width. Molded exclusively from high-grade PA66 engineering nylon, this heavy-duty cable track provides exceptional tensile strength, impact toughness, and wear resistance under high-speed reciprocating movement. Its openable crossbar design allows for quick cable insertion, visual inspection, and easy routine maintenance directly on the machine frame without dismantling the entire chain assembly.

Designed to accommodate up to 10 standard power leads, servo feedback wires, or pneumatic hoses with outer diameters up to 50mm, the cable drag chain 55x100 features robust outer dimensions of 75mm height and 130mm width. The open-bridge architecture ensures continuous airflow around moving conductors, preventing heat buildup during continuous travel cycles. Available in bending radii from R100 to R300, it offers quiet articulation and low-vibration performance across large automated machinery and CNC gantries.

55x100 Structural Parameters & Technical Specifications

Review the exact dimensional parameters for the 55x100 bridge cable carrier model in the table below:

Parameter	Value
Inner Height	55 mm
Inner Width	100 mm
Outer Height	75 mm
Outer Width	130 mm
Pitch	80.5 mm
Bend Radius	R100 R125 R150 R200 R250 R300
Max Cable OD	50 mm
Material	PA66
Structure	Bridge Type
Operating Temp	-40°C to +130°C
Optional Configurations	Inside separators / optical fiber clamps /steel mounting brackets /Color /Logo

100% Pure Virgin PA66 Raw Material Batch

Every meter of our cable drag chain 55x100 is produced using pure PA66 nylon raw material granules stored directly in our plant. We avoid low-grade recycled plastic blends, guaranteeing high impact resistance, wide thermal tolerance (-40°C to +130°C), and chemical immunity to industrial oils and coolants.

Pure virgin PA66 black nylon raw material granules for cable drag chain 55x100 manufacturing

Automated Precision Injection Production

Molded using heavy-duty industrial injection machinery, individual links of the cable drag chain 55x100 are crafted with uniform wall thickness and precise hinge joints. This ensures effortless articulation, tight pin engagement, and long-term fatigue resistance during continuous dynamic operations.

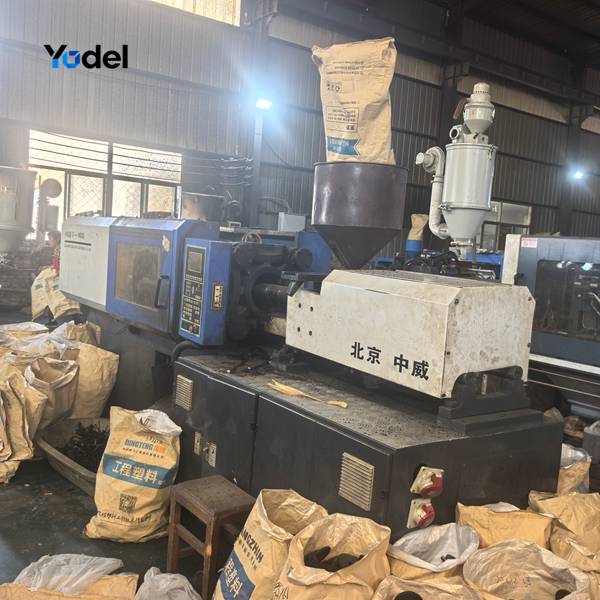

Heavy duty plastic injection molding machinery producing cable drag chain 55x100 components in factory workshop

Export-Grade Pallet & Carton Packaging

To prevent shipping damage during international transit, completed cable drag chain 55x100 units are bundled, boxed in heavy corrugated cartons, wrapped in protective stretch film, and securely strapped onto wooden pallets. For operations requiring full dust, coolant, or spark protection, consider our 55x150 enclosed drag chain range.

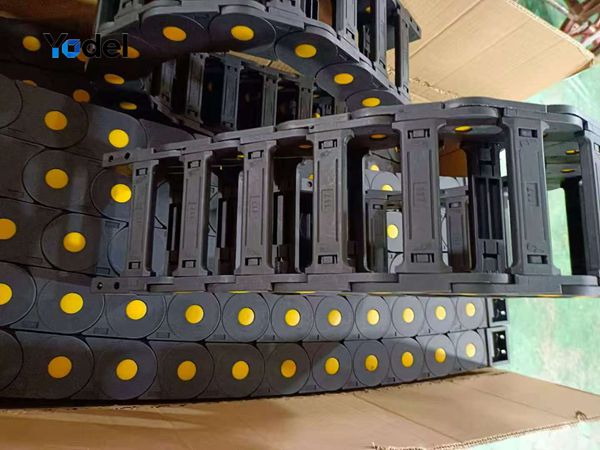

Assembled bridge style cable drag chain 55x100 neatly coiled inside export cardboard box
