Cable Drag Chain 55x150 - Dust-Proof Cable Carrier for Harsh Industrial Environments

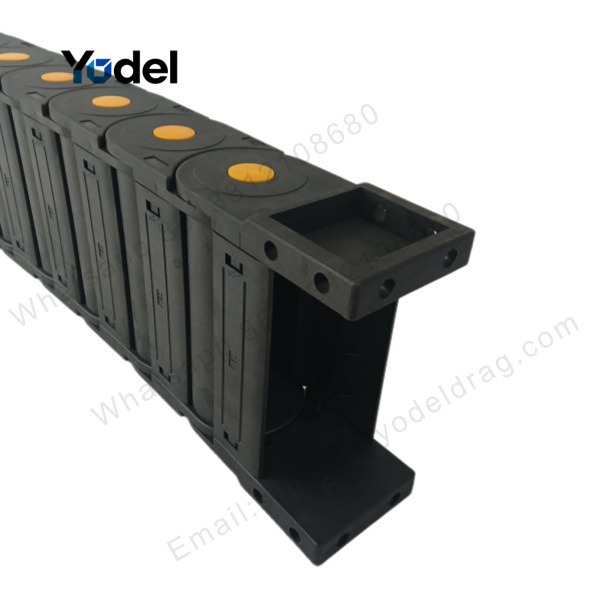

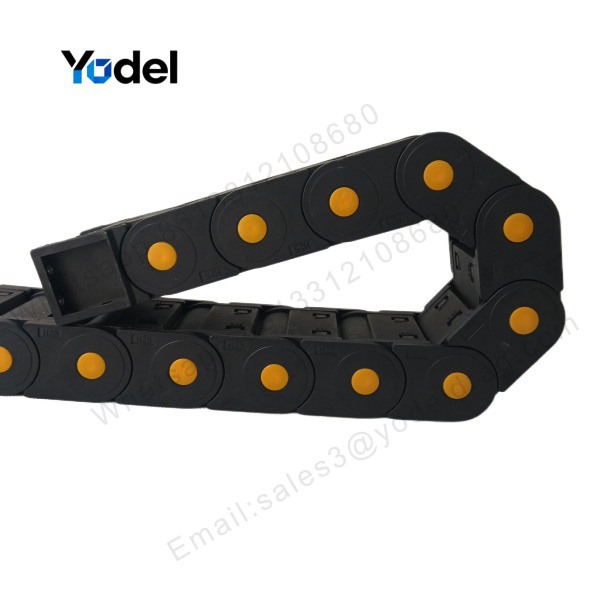

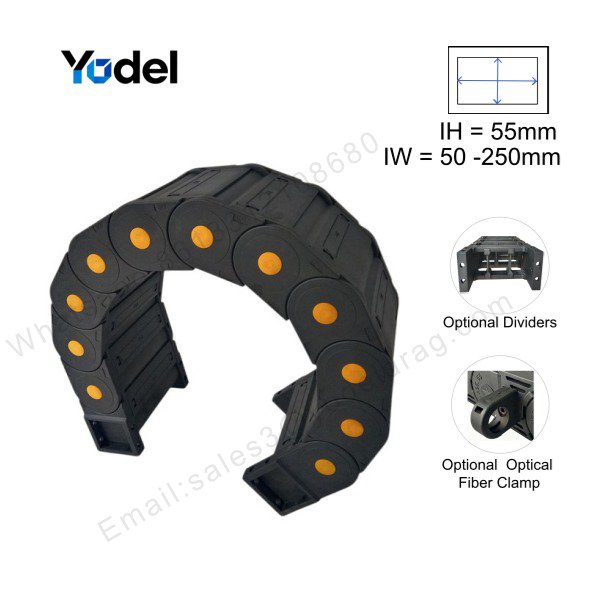

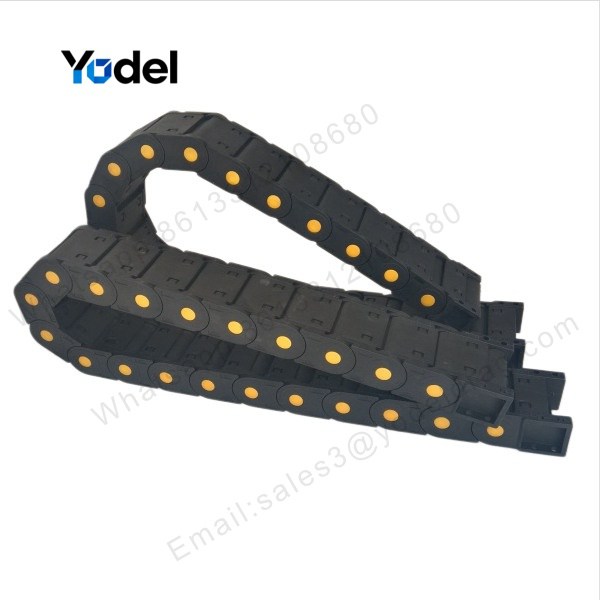

The cable drag chain 55x150 is a heavy-duty, dust-proof, and fully sealed cable management carrier engineered from 100% virgin PA66 engineering nylon—delivering high mechanical strength, exceptional wear resistance, and long-term oil resistance in dusty, debris-laden industrial worksites. Featuring a 55mm inner height and a 150mm inner width, this enclosed cable track accommodates up to 12 standard power lines, control cables, or hydraulic hoses up to 50mm in outer diameter. If your equipment specifications call for a drag chain 50 mm inner height—such as a drag cable chain 50x150, energy cable chain 50x150mm, or a drag chain 125 x 50mm—our 55mm series serves as a direct, higher-capacity engineering alternative, providing increased internal clearance while maintaining superior structural rigidity.

Technical Specifications

Injection Molding Excellence & Raw Material Selection

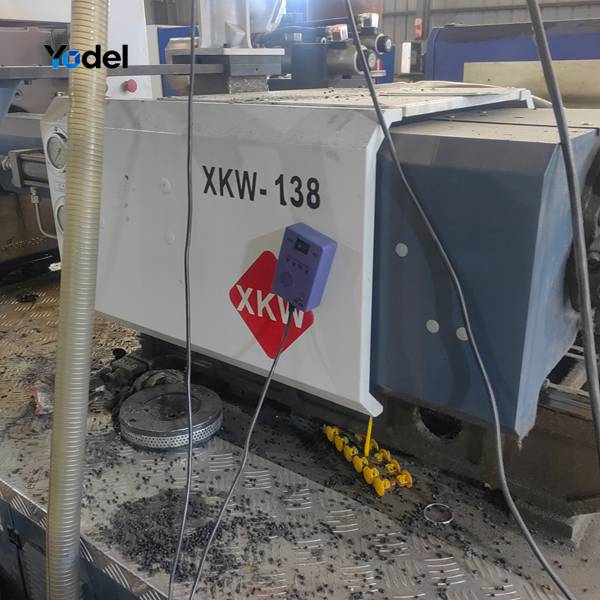

Every link of the cable drag chain 55x150 is molded in our automated workshop using pure virgin PA66 engineering nylon, eliminating the risk of brittleness associated with recycled plastic blends. This material guarantees high tensile strength, resistance to oil and cutting fluids, and reliable operation across extreme temperature ranges (-40°C to +130°C). For applications requiring compact dimensions, we offer 55x75, 55x90, and 55x125 models; for broader cable loads, the flagship cable drag chain 55x150 provides superior capacity, alongside 55x200 and 55x250 variants.

Engineers seeking non-standard 50mm inner height profiles—such as a drag cable chain 50x150 or an energy cable chain 50x150mm—can seamlessly utilize our 55mm series. Alternatively, for tight spatial constraints where a smaller profile is mandatory, our 45 series enclosed cable carrier (45mm inner height) offers a compact solution, while this 55mm series provides extra breathing room for oversized lines.

Precision Assembly & Custom Separator Options

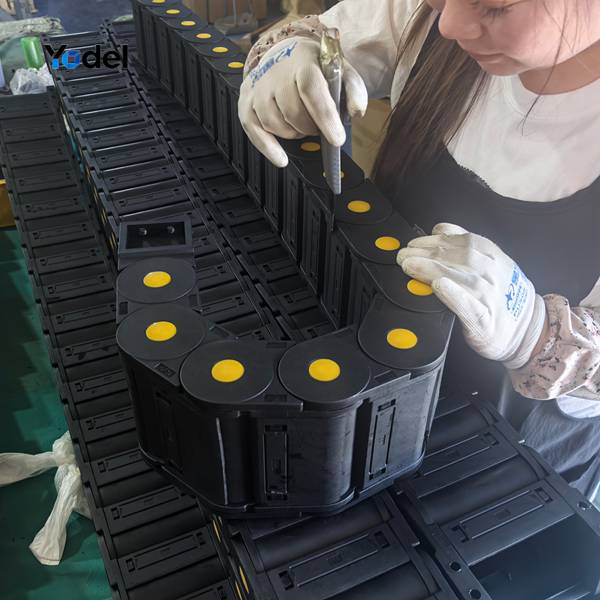

On our assembly line, experienced technicians assemble each cable drag chain 55x150 track, verifying joint flexibility and latching security. The snap-open covers along the inner radius permit fast cable insertion and field maintenance without dismantling the main machine structure. Optional vertical dividers and horizontal shelving allow complete physical separation between high-voltage power leads and sensitive feedback control lines, preventing jacket abrasion and signal interference.

Available bending radii range from R100 to R300, with R150 and R250 being the most frequently specified options for long unsupported travel lengths. For cleanroom environments where debris protection is unnecessary, consider our open-style 55x100 bridge drag chain.

Industrial Applications & Factory Stocking

The cable drag chain 55x150 is widely deployed in multi-axis CNC machining centers, heavy woodworking routers, stone cutting bridge saws, 6-axis articulated robotics, overhead cranes, and automated container handling equipment. Replacing damaged cables in hostile operating conditions causes expensive production downtime—our fully enclosed structure seals out 100% of flying metal chips, abrasive swarf, and coolant spray to keep your equipment running continuously.

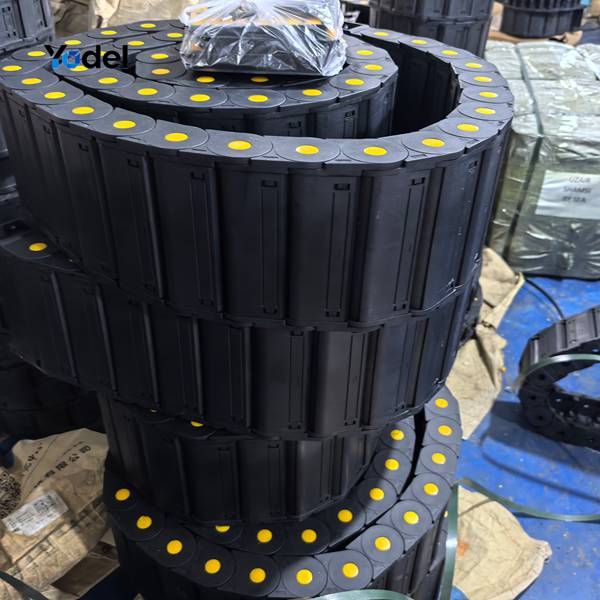

As a direct factory manufacturer, we maintain substantial stock of assembled tracks and component links to ensure quick order turnaround and reliable global delivery. Contact our technical team today for CAD models, custom dimensional recommendations, or factory-direct volume pricing!
