TLG125 Enclosed Steel Drag Chain – Heavy-Duty Cable Carrier
The TLG125 series steel drag chain is designed to provide maximum protection for hydraulic hoses, electric cables, and pneumatic lines in extreme industrial environments. Featuring a robust, fully enclosed structural design with a pitch of 125mm, inner height of 70mm, outer height of 100mm, and inner width of 200mm, this galvanized steel drag chain prevents abrasive dust, hot flying metal chips, and debris from damaging your critical utility lines.
High-grade steel coils ready for precision stamping and processing.TLG12570100200 Technical Specifications
| Series | TLG125 |
| Model | TLG12570100200 |
| Inner Height (mm) | 70 |
| Outer Height (mm) | 100 |
| Inner Width (mm) | 200 |
| Outer Width (mm) | 220 |
| Bending Radii (mm) | R200, R250, R300, R350, R400, R450, R500, R600 |
| Pitch (mm) | 125 |
| Material Options | Galvanized Steel / Zinc Coated Steel / Stainless Steel |
| Max Cable/Hose OD | 50 - 60 mm |
| Qty of Cables/Hoses | 5 - 6 pcs |

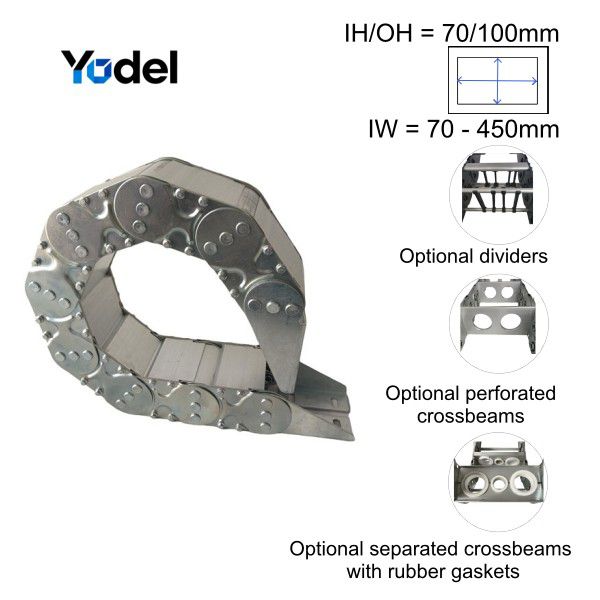

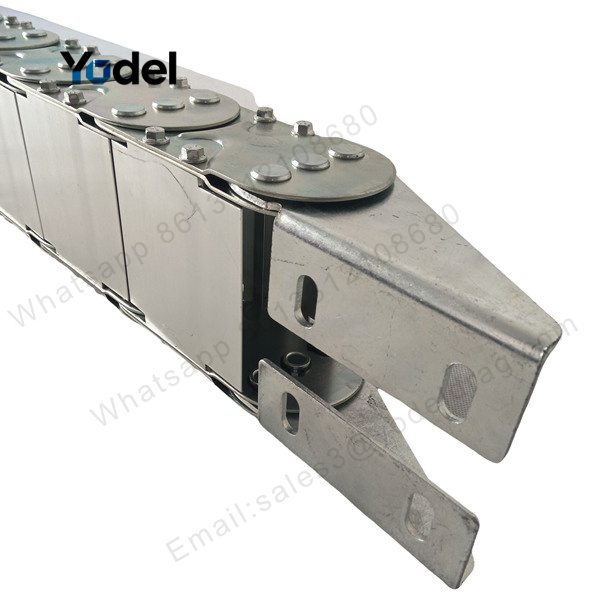

| Configurations | 1. Side plate: Galvanized steel / zinc-coated steel 2. Fully covered aluminum or steel plates on top and bottom 3. Heavy-duty steel mounting brackets 4. Interior: Vertical dividers / perforated crossbeam plates with option for protective rubber rings 5. Full OEM & ODM customization available |
| Working Conditions | 1. Heavy dust, sand, and abrasive particle atmospheres 2. Outdoor and highly humid industrial environments 3. Oil, hydraulic fluid, and aggressive coolant splashing 4. High-protection, hot chip-prone metalworking operations |
| Key Advantages | 1. Fully enclosed structure for ultimate external shield 2. Superior load capacity supporting exceptionally long unsupported lengths 3. Outstanding durability in severe industrial conditions 4. Tailored internal compartmentalization for optimal hose management |
Precision Engineering and Assembly Process
Our manufacturing standards for every galvanized steel drag chain strictly follow rigorous quality control protocols. From selecting high-yield carbon steel sheets to surface zinc-plating treatments, every component is crafted for high fatigue resistance and structural stability.

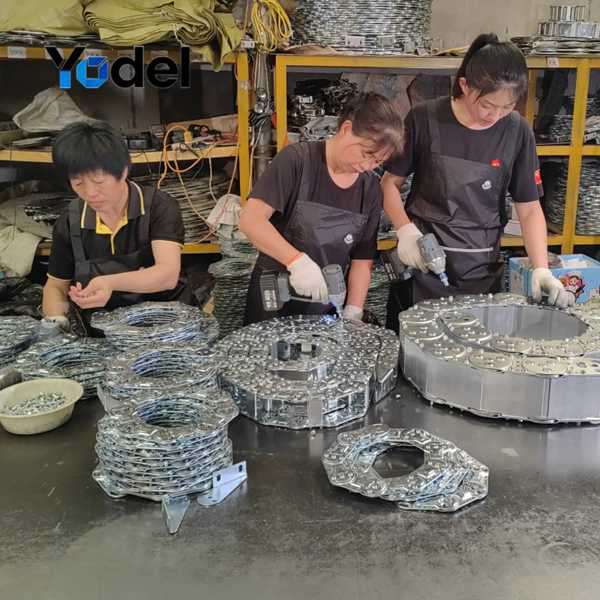

Skilled technicians precision-assembling individual links and side joint plates.Why Choose TLG125 Enclosed Steel Drag Chains?
1. Superior Mechanical Strength & Load Capacity
Unlike standard plastic cable carriers, a steel drag chain delivers unprecedented torsional rigidity and tensile strength. The 125mm pitch design optimizes weight distribution while allowing long unsupported travel distances without sag, making it the ideal cable protection system for heavy machinery, steel mills, and foundry equipment.

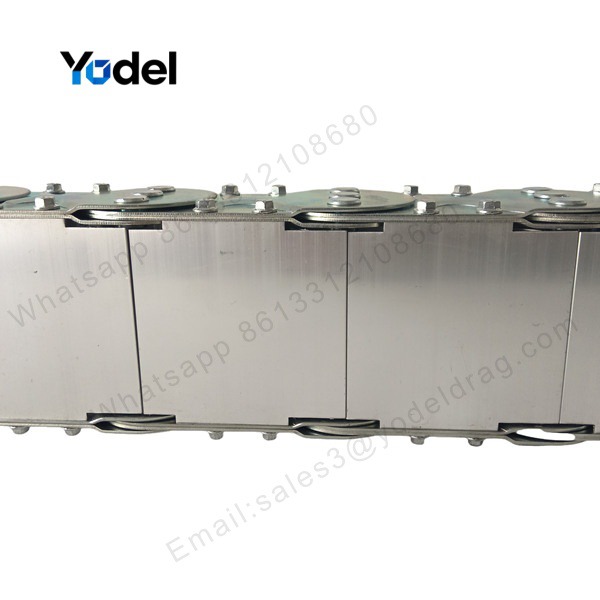

2. Complete Enclosed Environmental Protection
The continuous top and bottom metal covers form a sealed shield against glowing hot metal shavings, sharp cutting debris, welding spatter, and aggressive synthetic coolants. By isolating internal cables (up to 60mm outer diameter) from harsh physical impacts, the TLG125 chain significantly reduces unexpected downtime and extends cable service life.
3. Custom Internal Separators & Layout Options
To prevent friction and tangling between moving lines, the TLG125 features modular vertical dividers and aluminum crossbeam plates. Custom rubber inserts can be integrated into the crossbeam perforations to prevent outer jacket wear on rubber hoses and sensitive optical fibers during high-speed reciprocating cycles.

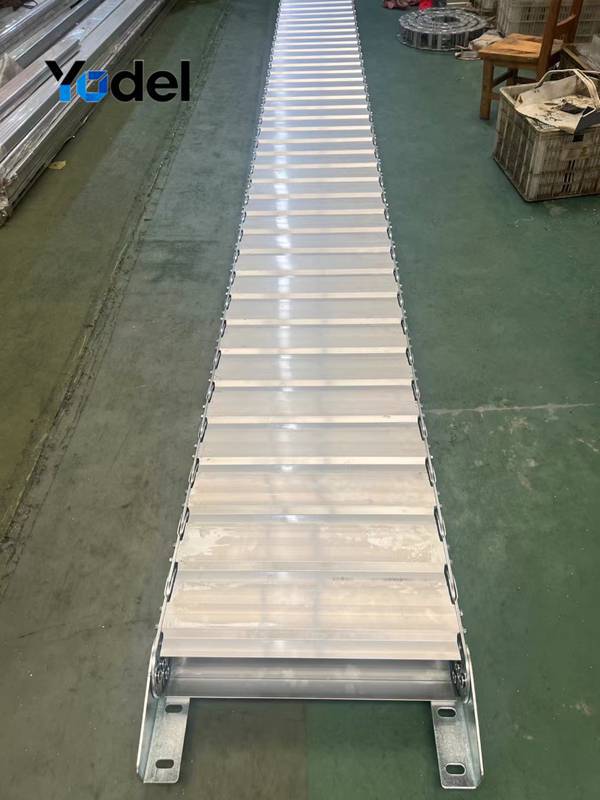

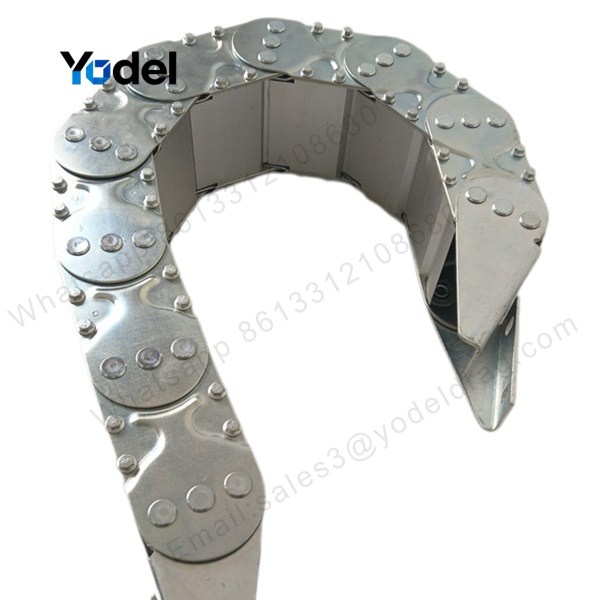

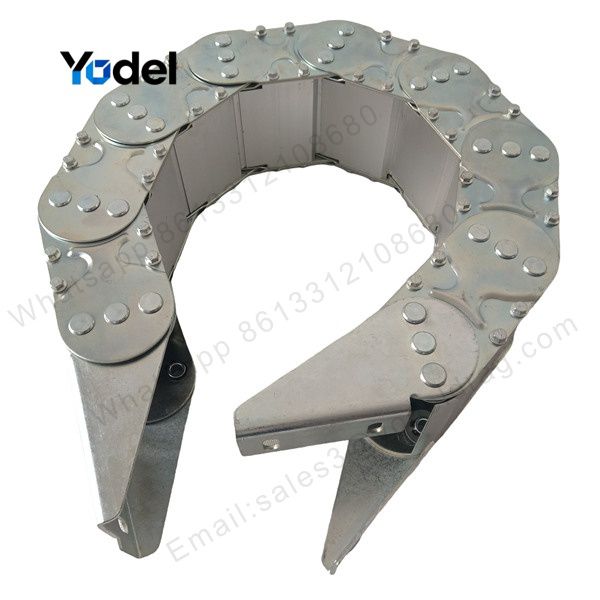

Fully assembled TLG125 heavy-duty enclosed steel drag chain ready for industrial deployment.Typical Applications
The TLG125 series steel drag chain is extensively deployed in demanding sectors requiring extreme cable longevity:
- Heavy CNC machining centers and metal lathe cutting tools
- Automotive manufacturing lines and robotic welding cells
- Metallurgical equipment, steel rolling mills, and forging presses
- Mining machinery and bulk material handling systems
