TL955070150 Steel Cable Drag Chain for Steel Mills | TL95 Heavy-Duty Manufacturers
TL955070150 Steel Cable Drag Chain for Steel Mills | TL95 Heavy-Duty Manufacturers TL955070150 Steel Cable Drag Chain for Steel Mills | TL95 Heavy-Duty Manufacturers TL955070150 Steel Cable Drag Chain for Steel Mills | TL95 Heavy-Duty Manufacturers TL955070150 Steel Cable Drag Chain for Steel Mills | TL95 Heavy-Duty Manufacturers TL955070150 Steel Cable Drag Chain for Steel Mills | TL95 Heavy-Duty Manufacturers

TL955070150 Steel Cable Drag Chain for Steel Mills | TL95 Heavy-Duty Manufacturers

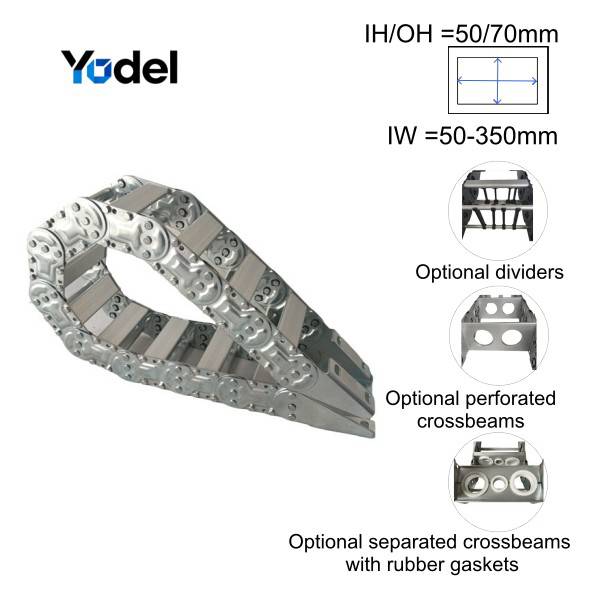

Product Attributes :

Series: TL95

Model:TL955070150

Inner Height: 50mm(1.97in)

Inner Width: 50-350mm(1.97-13.78in)

Outer Height: 70mm(2.76in)

Outer Width: 67-367mm(2.64-14.45in)

Bending Radii: R115/145/200/250/300mm(4.53/5.71/7.87/9.84/11.81in)

Pitch : 95mm(3.74in)

Links per Meter: 11pcs

Structure: bridge type stay (crossbars)

Stay type: C-frame/T-frame/rod (pipe)/split hole stay with rubber gaskets/ optional dividers

Stay arrangement: standard (every second link )/reinforced(every link )/mixture

Stay material: aluminium alloy

End brackets : Steel mounting brackets

Materials: galvanized steel/zinc-coated steel or customization

Length: cut to length / Customization

MOQ : 1Meter or Set

OEM/ODM service: available

Product Description

TL955070150 Steel Cable Drag Chain | High-Rigidity Dense Stay Track

The TL95 series steel cable drag chain (Model TL955070150) is an ultra-heavy-duty dynamic cable carrier engineered for extreme mechanical loads, long travel distances, and aggressive industrial operating conditions. Built with a solid 95mm pitch, 50mm inner height, 70mm outer height, and 150mm inner width, this heavy-duty steel drag track provides robust physical protection for hydraulic lines, pneumatic hoses, power cables, and multi-core feedback wires. Manufactured from high-grade galvanized or zinc-coated carbon steel, it delivers maximum torsional rigidity and exceptionally high tensile strength.

Unlike standard drag carriers that feature stays on alternating links, this high-rigidity TL95 steel cable drag chain features an intensive "stay-on-every-pitch" structural design. Every single link pitch is reinforced with an independent aluminum alloy stay profile, drastically reducing sag, preventing side displacement, and increasing load capability by over 40%. It is the definitive solution for large CNC portal mills, steel plant transfer cars, automated foundry machinery, and heavy overhead crane runways.

Technical Specifications of TL955070150 Steel Cable Drag Chain

Series

TL95

Model

TL955070150

Inner Height    (mm)

50

Outer Height   (mm)

70

Inner Width     (mm)

150

Outer Width    (mm)

                                                         167

Bending Radii   (mm)

R115, R145, R90, R200, R250, R300

Pitch

95

Material

galvanized steel /zinc-coated steel as per customer's request

Stay structure

C-frame /T-frame /hole stay /split stay /customization

Max Cables &Hose OD

40-42 mm

 Qty of cables or hoses

3-8 pcs (based on cables and hoses )

Configurations

1. Side plate: galvanized steel

2. Stay: aluminium alloy

3.  End mounting brackets: steel

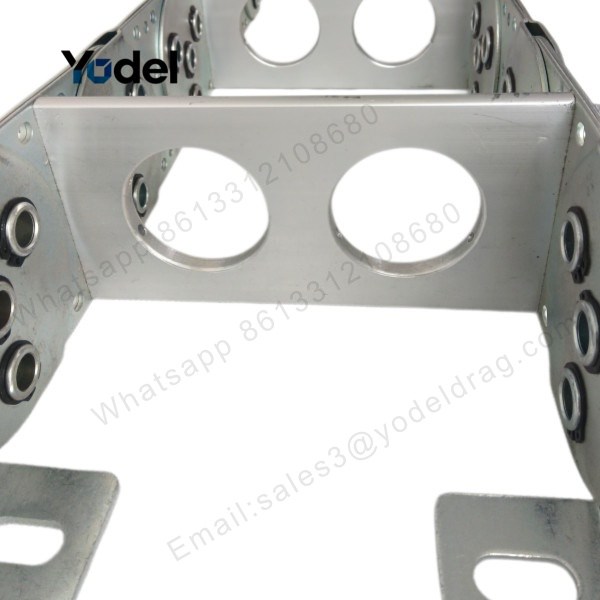

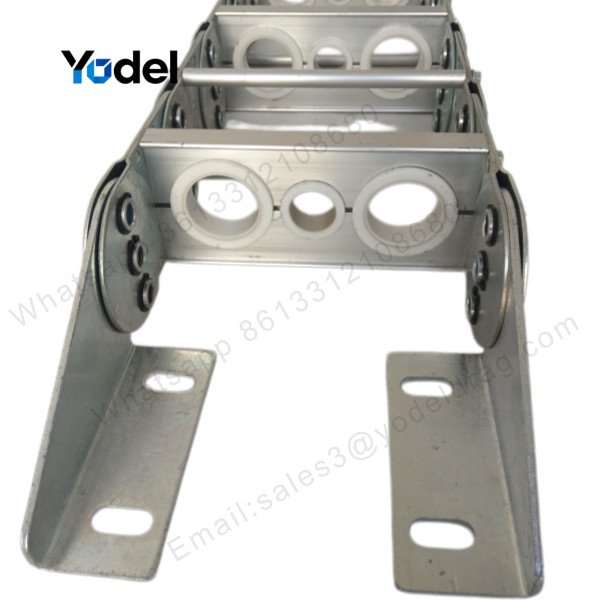

4. Inside :vertical dividers /perforated crossbeams plates with or without rubber rings/split stay/hole stay

5.OEM or ODM available

Working condition

1. Indoor & Semi-Indoor Heavy Transfer Equipment

2. Densely Packed Hydraulic Lines Requiring Heat Dissipation & Frequent Inspection

3. Humid, Water-Sprayed, or High-Salt Fog Environments

4. Side Tracks on Heavy Machine Tools & Overhead Crane Runways

Advantages

1. Superior Corrosion & High-Temperature Resistance

2. Ultra-High Mechanical Strength & Load-Bearing Capacity

3. Smooth & Quiet Operation via Short Pitch

4. Enhanced Safety via "Oil-Electric Separation"

5. High Reliability & Low Total Cost of Ownership (TCO)

Precision Stamping & Link Fabrication Process

The foundation of our TL95 steel cable drag chain lies in precision cold stamping and multi-stage metal processing. Each individual side link plate is punched from heavy-gauge galvanized steel sheets using high-tonnage industrial presses. This high-precision stamping creates exact pitch pivot points, smooth joint bevels, and uniform mounting holes. The consistent geometry guarantees seamless link-to-link articulation, eliminating mechanical jamming during continuous high-speed movement.

Precision link stamping for TL95 series TL955070150 steel cable drag chain

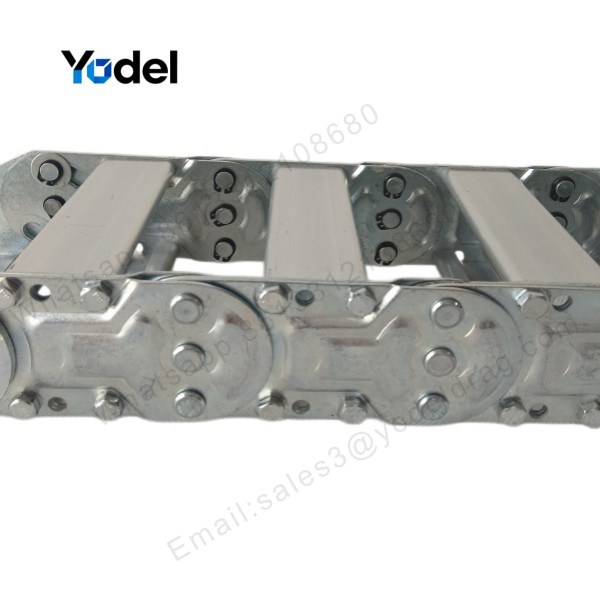

Precision Component Assembly & Dense Stay Structure

Following surface passivation and plating, the stamped steel links move to our manual assembly line. Skilled technicians assemble the chain links using high-tensile connection pins and locking rings. To achieve the extra-dense structural configuration required by Model TL955070150, an aluminum alloy stay bar is securely fastened onto every single pitch link (95mm spacing). This dense stay arrangement creates an unusually stable protective bridge around internal cables, preventing twisting and mitigating line wear.

Dense stay (on every link)component assembly for TL955070150 steel cable drag chain 50x150mm

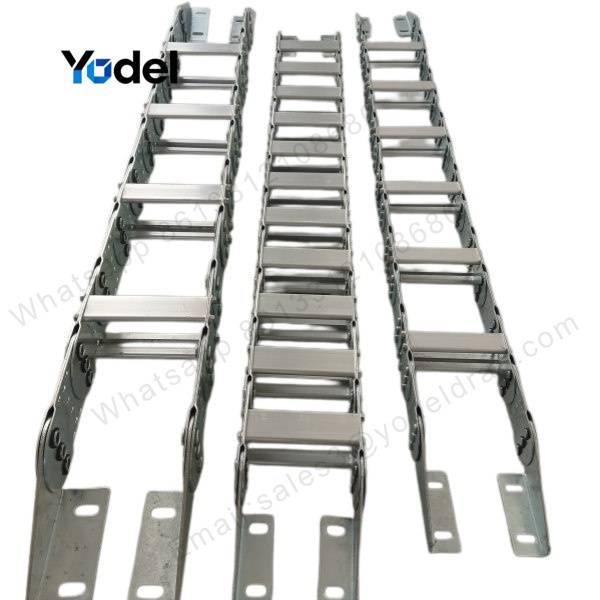

Final Inspection & Delivery-Ready Steel Drag Chains

Before dispatch, every fully assembled TL95 steel cable drag chain undergoes thorough quality testing. Our inspectors verify total travel length, bending radius compliance (R90 through R300), smoothness of movement, and bracket bolt torque. The completed tracks feature clean 150mm inner width channels that comfortably carry up to 8 heavy hydraulic or power cables (up to 42mm OD) while ensuring optimal heat dissipation and easy line replacement.

Finished heavy duty TL95 series TL955070150 steel cable drag chain ready for delivery

Key Engineering Advantages of Dense Stay TL95 Drag Chain

1. Extreme Sag Resistance for Long Travel Tracks

By mounting stay bars across every individual pitch (95mm interval) rather than skipping links, structural rigidity is significantly enhanced. The chain maintains a flat, unsupported length over extended travel distances, preventing sagging and chatter on long machine beds.

2. Superior Oil-Electric Line Separation

Equipped with internal vertical dividers and customizable hole stays, the TL95 steel cable drag chain cleanly isolates high-voltage electrical cables from high-pressure hydraulic lines. This prevents friction, eliminates electromagnetic interference, and prevents oil contamination on sensitive signal wiring.

3. Outstanding Thermal and Chemical Resilience

Constructed completely from galvanized steel and extruded aluminum, this carrier operates flawlessly in environments exposed to hot metallic chips, welding spatter, aggressive cutting fluids, and ambient heat up to 300°C where traditional nylon drag chains soften and break.

Primary Industrial Applications

  • Large Scale Machine Tools: Heavy Gantry CNC mills, horizontal boring machines, and large floor-type machining centers.
  • Metallurgy & Steel Production: Rolling mill automation, ladle transfer cars, and furnace charging machinery.
  • Heavy Lifting Equipment: Overhead crane cross-travel tracks, port container gantries, and shipyard mobile cranes.
  • Severe Industrial Environments: Foundries, forging presses, marble cutting systems, and high-vibration mining conveyors.
