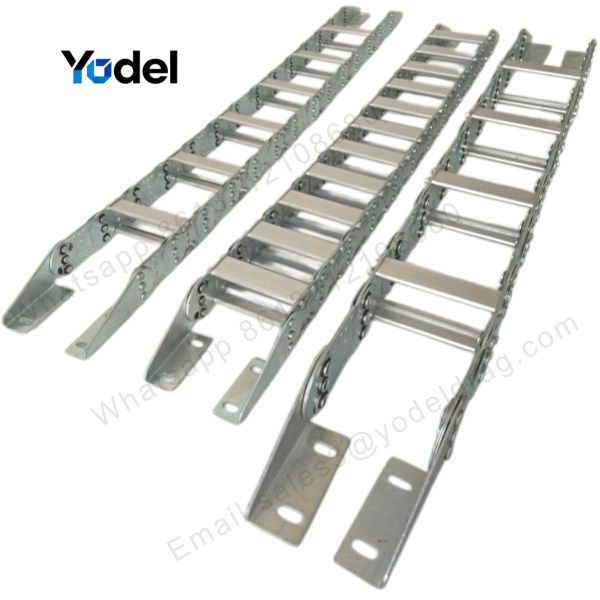

TL65 Series Heavy-Duty Stainless Steel Cable Carrier

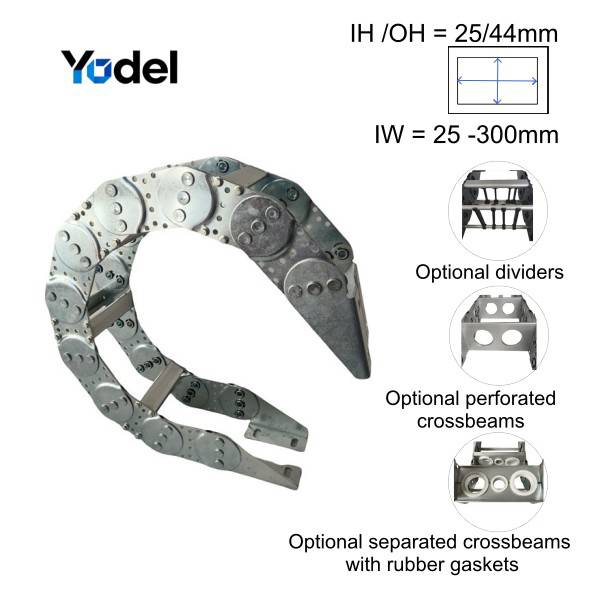

The TL65 series stainless steel cable carrier is engineered to provide superior protection for dynamic power cables, control lines, and pneumatic or hydraulic hoses in harsh industrial environments. Featuring a precise pitch of 65mm, an inner height of 25mm, and an outer height of 44mm, this compact yet extremely durable cable track delivers smooth articulation, low vibration, and extended service life. Manufactured from high-grade stainless steel options including 201, 304, 316, and 316L, it provides unparalleled resistance against chemical corrosion, thermal stress, and mechanical abrasion.

Designed for versatile cable management, the TL65 series accommodates flexible link configurations and multiple stay structures (C-frame, T-frame, hole stay, and split stay) to meet diverse machine layout requirements. Whether deployed in automated machinery, pharmaceutical processing lines, or heavy-duty CNC equipment, this stainless steel cable carrier ensures continuous operational reliability and eliminates costly downtime caused by cable degradation.

Technical Specifications of TL65 Stainless Steel Cable Carrier

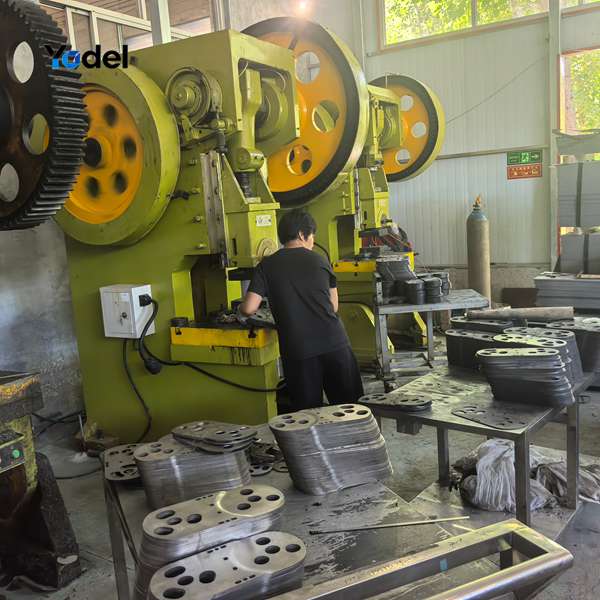

Precision Stamping & Link Fabrication

Every link of our stainless steel cable carrier is manufactured through high-precision punching and stamping processes. Using specialized industrial press machinery, high-tensile stainless steel sheets are stamped with exact link geometries, pitch holes, and pin connections. This rigorous fabrication ensures uniform link dimensions, smooth pivot motion, and high structural integrity under continuous dynamic loads.

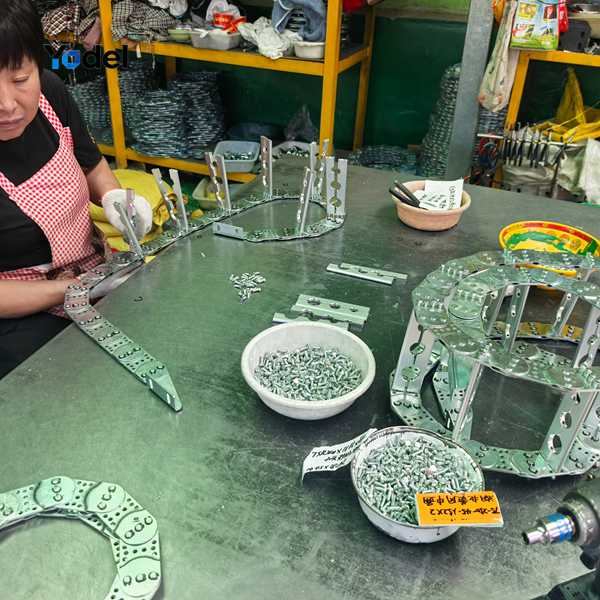

Manual Assembly and Quality Control Inspection

After stamping and surface treatment, the stainless steel links, crossbars, and internal dividers are assembled by skilled technicians. Every joint pin, snap ring, and divider is meticulously aligned and locked into position. During assembly, each section undergoes strict inspection to verify smooth bending behavior, proper clearance, and secure mounting bracket alignment before moving to final testing.

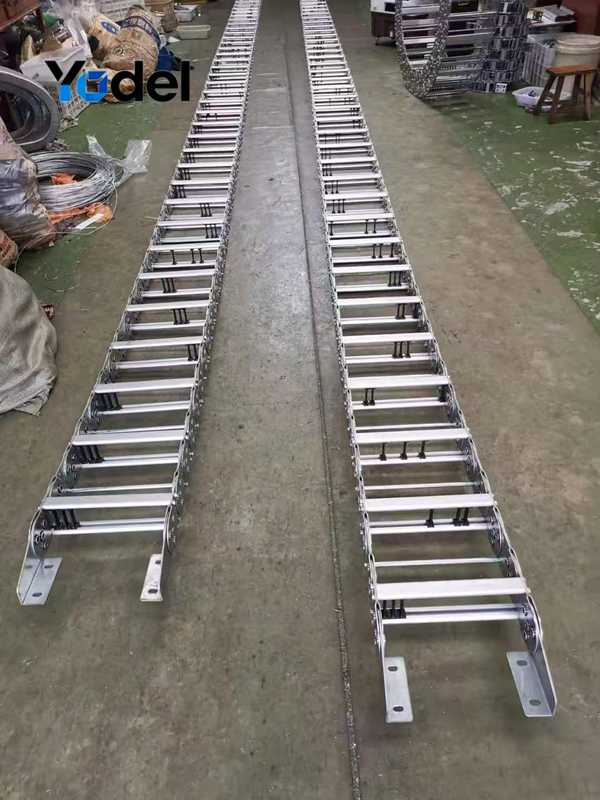

Finished Product Display & Structural Features

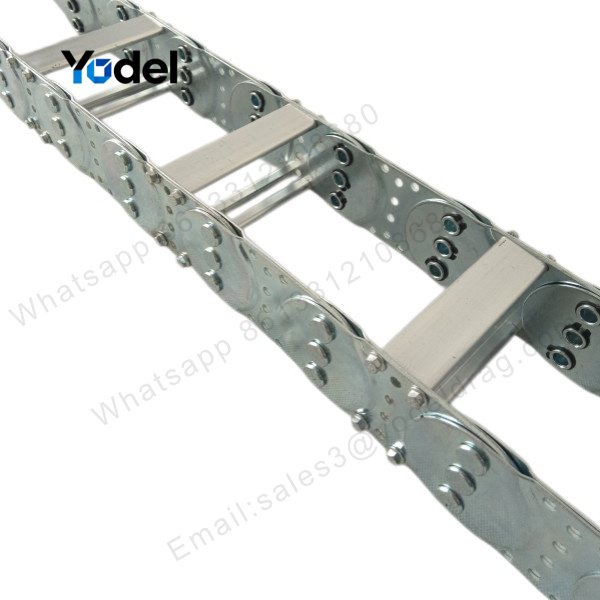

The assembled TL65 stainless steel cable carrier showcases a clean, open bridge design that facilitates efficient heat dissipation and prevents dust or chip accumulation inside the chain interior. With a 25mm inner height and 75mm inner width, it comfortably routes multiple control lines while maintaining optimal bending radius compliance (ranging from R60 to R185).

Key Advantages of TL65 Stainless Steel Cable Carrier

• Superior Corrosion & Weather Resistance: Constructed from 304 or 316 stainless steel, preventing rust and chemical degradation in acidic, alkaline, or marine environments.
• Exceptional Thermal Stability: Unaffected by extreme ambient temperatures, welding sparks, hot metal chips, or radiant heat.
• High Cleanliness & Hygienic Compliance: Smooth, non-porous surface enables easy high-pressure washdown, making it ideal for pharmaceutical and food processing machinery.
• Efficient Debris & Heat Dissipation: The bridge-type open frame prevents chip compaction and allows internal cable heat to vent freely.

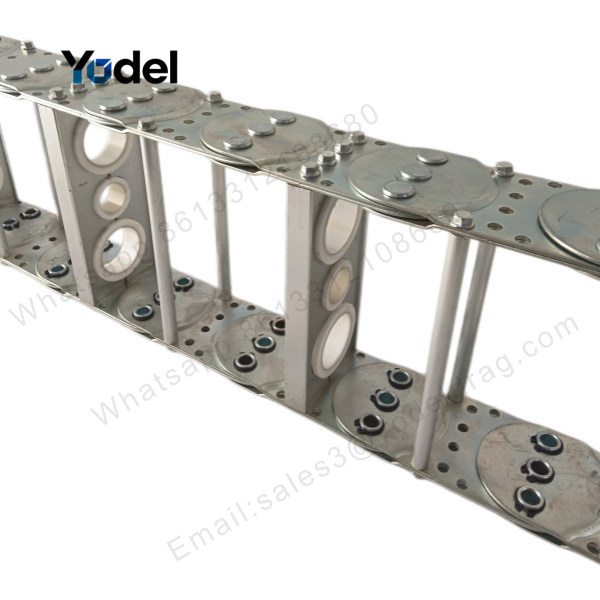

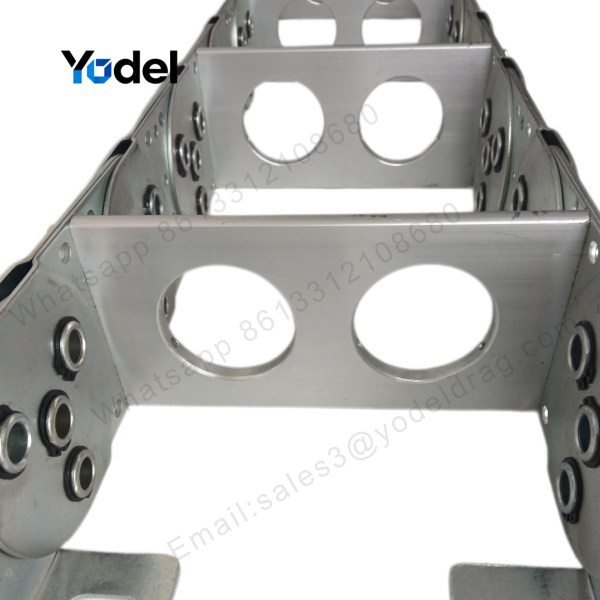

• Flexible Internal Layouts: Compatible with vertical dividers and custom-punched hole stays to eliminate cable rubbing and strain.

Industrial Applications and Working Conditions

The TL65 stainless steel cable carrier is specifically engineered for severe working conditions where standard plastic carriers fail:

1. Corrosive & High-Humidity Environments: Chemical dosing equipment, electroplating lines, offshore platforms, and PCB etching systems.
2. High Temperature & Spatter Environments: Automated welding cells, foundry machinery, laser cutting units, and heat treatment conveyors.
3. Heavy Debris & Swarf Environments: Stone carving machinery, woodworking routers, and metal cutting machine tool slides.
4. Strict Hygienic & Washdown Environments: Pharmaceutical liquid filling lines, dairy packaging, and food processing conveyors.
5. High Wind & Heavy Vibration Environments: Outdoor automation tracks, port machinery, and heavy mobile equipment.
